• The Push-In Plus Terminal Block Socket-compatible H3RN-[]-B Timers in a black design join the Compact, Multi-function H3RN Timers.

• Standard multiple time ranges and multiple operating modes.

• UL listed.*

Conforms to CSA and CE Marking.

* When used in combination with a Push-In Plus Terminal Block Socket (P2RF-[]-PU).

last update: April 1, 2016

Purchase the OMRON Analog Timers Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON H3RN-[]-B Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the H3RN-[]-B We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON H3RN-[]-BControl Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

D5A High-precision Switch/Features
E5AC-800 Digital Temperature Controller (Simple Type) (96 × 96 mm)/Features
E52 with Ferrule (Exclusive Models) Temperature Sensor with Ferrule (Exclusive Models)/Features
H3DK-M / -S Multi-range, Multi-mode Timer/Features
H5AN Digital Timer/Features

OMRON H3RN-[]-B specification
H3RN-[]-B Solid-state timer/Specifications
last update: April 01, 2016
Ratings

Item H3RN-1-B/H3RN-2-B H3RN-11-B/H3RN-21-B
Time ranges 0.1 s to 10 min (1 s, 10 s, 1 min, or 10 min
max. selectable) 0.1 min to 10 h (1 min, 10 min, 1 h, or 10 hrs
max. selectable)
Rated supply voltage *2 24 VAC (50/60 Hz); 12, 24 VDC
Pin type Plug-in
Operating mode ON-delay, interval, flicker OFF-start, or flicker-ON start selectable by DIP switch
Operating voltage range 85% to 110% of rated supply voltage (12 VDC: 90% to 110% of rated supply voltage) *1
Reset voltage 10% max. of rated supply voltage
Power consumption 24 VAC: Relay ON: approx. 0.8 VA
12 VDC: Relay ON: approx. 0.5 W
24 VDC: Relay ON: approx. 0.4 W
Control outputs 3 A at 250 VAC, resistive load (cosφ = 1) (G6B-2[]14P-FD-US used (Contact materials:
AgSnIn)) The minimum applicable load is 10 mA at 5 VDC (P reference value).

*1. When using the H3RN in any place where the ambient temperature is more than 50°C, supply 90% to 110% of the
       rated voltages (12 VDC: 95% to 110% of the rated voltage).
*2. Refer to Safety Precautions for All Times when combining the Timer with an AC 2-wire proximity sensor.

Characteristics

Item H3RN-1-B/H3RN-2-B H3RN-11-B/H3RN-21-B
Accuracy of operating time ±1% FS max. (1 s range: ±1%±10 ms max.)
Setting error ±15%±50 ms FS max.
Reset time Min. power-opening time:
12, 24 VDC: 0.1 s max. (including halfway reset)
24 VAC: 0.5 s max. (including halfway reset)
Influence of voltage ±2% FS max.
Influence of temperature ±2% FS max.
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength 2,000 VAC, 50/60 Hz for 1 min (between operating circuit and control output, or
contacts of different poles)
1,000 VAC, 50/60 Hz for 1 min (between non-continuous contacts)
Vibration resistance Destruction: 10 to 55 Hz, 0.75-mm single amplitude for 1 h each in 3 directions
Malfunction: 10 to 55 Hz, 0.5-mm single amplitude for 10 min each in 3 directions
Shock resistance Destruction: 980 m/s² *1
Malfunction: 100 m/s²
Ambient temperature Operating: -10°C to 55°C (with no icing)
Storage: -25°C to 65°C (with no icing)
Ambient humidity Operating: 35% to 85%
Life expectancy Mechanical: 10,000,000 operations min. (under no load at 1,800 operations/h)
Electrical: 100,000 operations min. (3 A at 250 VAC, resistive load at 1,800
operations/h)
Impulse withstand voltage Between power terminals: 1 kV
Noise immunity ±1.5 kV, square-wave noise by noise simulator (pulse width: 100 ns/1 μs, 1-ns rise)
Static immunity Destruction: 8 kV
Malfunction: 4 kV
Degree of protection IP40 (Terminal screw sections are excluded.)
Weight Approx. 18 g
EMC (EMI) EN 61812-1
Emission Enclosure: EN 55011 Group 1 class A
Emission AC Mains: EN 55011 Group 1 class A
(EMS) EN 61812-1
Immunity ESD: IEC 61000-4-2
Immunity RF-interference: IEC 61000-4-3
Immunity Burst: IEC 61000-4-4
Immunity Surge: IEC 51000-4-5
Immunity Conducted Disturbance: IEC 61000-4-6
Immunity Voltage Dip/Interruption: IEC 61000-4-11
Approved standards cULus (or cURus): UL 508/CSA C22.2 No.14 *2, CSA C22.2 No.14
Conforms to EN 61812-1, IEC 60664-1 4 kV/2.

*1. The destructive shock resistance test was performed on a standalone Timer.
*2. cULus (Listing): Applicable when an OMRON P2RF-[]-PU Socket is used.
       cURus (Recognition): Applicable when any other socket is used.

last update: April 01, 2016

OMRON H3RN-[]-B catalog
H3RN-[]-B Solid-state timer/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

H3RN-[]-B Data Sheet M093-E1-02
[1435KB] Nov 01, 201820181101 H3RN-[]-B Data Sheet

Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance -
[43KB] Mar 12, 201820180312 Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance

OMRON H3RN-[]-B dimension
H3RN-[]-B Solid-state timer/Dimensions
last update: November 1, 2018

(Unit: mm)

Timers

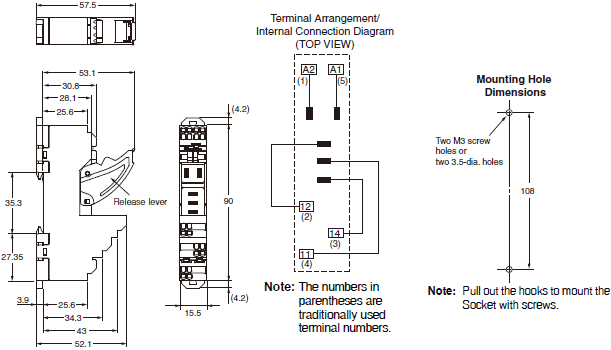

H3RN-1-B/H3RN-11-B Front Mounting

Note: Use the P2RF-08-PU Front-mounting Sockets.

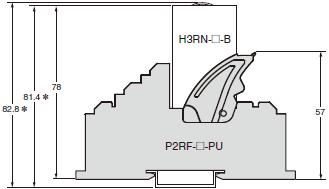

H3RN-2-B/H3RN-21-B Front Mounting
