OMRON NT11 / NT21 specification
NT11 / NT21 Programmable Terminals/Specifications
last update: October 08, 2015
NT11
General Specifications

Item Specification
Power supply voltage 24 VDC
allowable power
supply voltage range 20.4 to 27.6 VDC (24 VDC-15%, +15%)
Power consumption 10 W max.
Noise resistance Conforms to IEC61000-4-4, 2K (power lines)
Vibration resistance 10 to 57 Hz with 0.075 mm amplitude and 57 to 150 Hz with
9.8 m/s2 acceleration for 30 min in each of X, Y, and Z directions
Shock resistance 147 m/s2 3 times in each of X, Y, and Z directions
ambient operating
temperature 0 to +50°C
Ambient operating
humidity 35 to 85% RH (with no condensation)
Operating
environment No corrosive gasses.
Storage temperature -20 to +70°C (with no freezing)
Enclosure ratings Front panel: Equivalent to IP65, NEMA4
Weight 1.0 kg max.

Display/Panel Specifications

Note: In order to improve the performance of displays, liquid crystal devices may be changed without notice.

Item Specification
Display screen Dot matrix of STN liquid
crystal display panel
Number of dots: 160 x 64
Effective display area:
100 x 40 mm
Life expectancy: 50,000 hours
minimum
View angle (left/right direction):
±20° Backlight
LED
Life expectancy: 50,000 hours
minimum
Automatic turn-off: can be set
to turn off in 10 minutes or
1 hour, or to remain on.
Indicators POWER indicator (Green LDE): Lit while power is being supplied.
RUN indicator (Green LED): Lit during operation
Switch 22 switches
Life expectancy: 1 million operations minimum

Display Capacity

Note: In order to improve the performance of displays, liquid crystal devices may be changed without notice.

Item Specification
Display characters Normal characters (8 x 16 dots): Alphanumerics and symbols
Marks (8 x 16 dots): User-defined, 64 max.
Number of characters displayed Normal-size: 20 horizontally x 4 lines vertically max.
Eniargement function Double width
Display
elements Characterstring
displays 8 positions per screen
Numeral displays 8 positions per screen
Graph displays 4 positions per screen
Numeral settings 8 positions per screen
Screen
attributes Display history Order of frequency, 256 screens
Password screen Ensures security: screens for which this attribute is set can only be displayed if the correct password is input.
Menu screen Four items per screen
Screen types Normal screen: Displays screen registered as normal.
Max. number of registered screens 250
Screen registration method Transfer screen data created using an IBM PC/AT personal computer to the PT.
Screen saving method Saved to flash memory: 32 KB (downloading method)

NT21
General Specifications

Item Specification
Power supply voltage 24 VDC 15%
Power consumption 7 W max.
Noise resistance Conforms to IEC61000-4-4. Power supply line: 2 kV
Vibration resistance 10 to 57 Hz with 0.075-mm single amplitude,
57 to 150 Hz with 9.8 m/s² acceleration,
for a total of 60 min in X, Y, and Z directions
Shock resistance Peak acceleration 15 G,
3 times each in X, Y, and Z directions
Ambient operating temperature 0 to 50°C (with no icing)
Storage temperature -20 to +70°C (with no icing)
Ambient operating humidity 35% to 85% (with no condensation) (0 to 40°C)
35% to 55% (with no condensation) (40 to 50°C)
Dimensions 190 x 110 x 53.5 mm (W x H x D) (thickness inside panel: 49.0 mm)
Enclosure ratings Front panel operating section: Equivalent to IP65F, NEMA 4.*
Weight 0.6 kg max.

* Usage may not be possible in places where the unit would be exposed to oil for long periods.

Display Capacity

Item Specification
Display
elements Fixed displays A total of 65,535 per screen
(Graphics: Continuous straight lines, rectangles, circles, polygons, arcs, sectors) With overlapping screens,
the total is 524,280 per screen
Fixed character strings
Graphics
Marks
Numeral displays 256 positions per screen, max. 10-digit display (2 words)
Character string
displays 256 positions per screen, max.
1,024 display elements for overlapping screens
Graph displays 50 positions per screen, capable of displaying signs and percentages
Analog meters 50 positions per screen, capable of displaying signs and percentages
Trend graphs One frame per screen, 50 items per frame
(8 items max. for data logging)
Broken line graphs One frame per screen, 256 items per frame,
260 points per item
Lamps 256 positions per screen
Image library images 256 positions per screen
Touch switches 256 positions per screen, max. 256 meshes
Numeral settings 256 positions per screen
(numerical key pad) Total of 256 positions for both numerical and thumbwheel settings
Thumbwheel settings 26 positions per screen
Character string settings 256 positions per screen
Temporary inputs One position per screen
Alarm lists/histories Four groups per screen
Screen
types Recipes One position per screen
Normal screens Displays screens registered as normal
Overlapping screens A maximum of eight screens can be displayed overlapping each other.
Windows Up to three window screens can be displayed.
Display history screens Order of occurrence (1,024 screens max.), order of frequency (255 times max.)
System startup screen Displayed when powering ON (or resetting ) the PT,and when switching to RUN mode.and when switching to RUN mode.
Programming Console screen Emulates PLC Programming Console functions, capable of being called from RUN mode.
Screen attributes Buzzer, display history, normal background colors,
backlight mode, local windows
Number of
screens Max. number of registered screens 3999
Screen number 0: No display
1 to 3999: User registered screens
(normal, overlapping, windows)
9000: System startup screen
9001: Display history screens, order of occurrence
9002: Display history screens, order of frequency
9020: Programming Console screen
9999: Return to previous screen designation
Screen registration method By transferring screen data from the NT Support Tool to the PT via serial communications
By mounting the Memory Unit and downloading
(automatic/manual transfer) data to the PT
Saving screen data Flash memory (PT internal image memory)

Display Specifications

Item Specification
Display panel Display device Monochrome STN LCD
Number of dots (resolution) 260 dots horizontally x 140 dots vertically
Effective display area 117 mm horizontally x 63 mm vertically
Viewing angle Left/right direction:30°, up/down:30°
Display color Black & white (with blue mode)
Service life 50,000 hours min. (until contrast reduced to 50%)
Automatic turn-OFF Can be set to turn OFF in 1 to 255 min or to
remain ON with screen saver
Backlight
(white cold cathode tube) Service life 50,000 hours min. (at room temperature,
until brightness is reduced to 50%)
Replacement Non-replaceable

Panel Specifications

Item Specification
Touch panel Number of switches 91 (13 horizontally x 7 vertically)
Input Pressure-sensitive
Threshold force for operation 1 N max.
Life expectancy 1 million operations min.

External Interface Specifications

Communications method Serial port A Serial port B
NT Support Tool Supported Supported
PLC Host Link Supported Supported
1:1 NT Link Supported Supported
1:N NT Links Supported Supported
NT Link, PT Programming Console function Supported Supported
SBC/personal computer Memory Links Supported Not supported
Bar Code Reader Supported Not supported

* Connection via RS-422A/485 is possible using the NS-AL002 RS-232C/422A Adapter (connector), which can be
connected only to serial port B. (RS-485 connections must use 1:N NT Links.)

last update: October 08, 2015

OMRON NT11 / NT21 dimension
NT11 / NT21 Programmable Terminals/Dimensions
last update: November 12, 2012

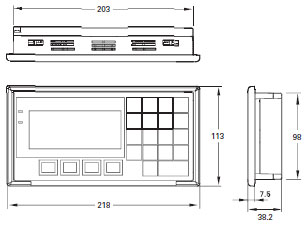

NT11
Outside Dimensions

Panel Plate thickness: 1.6 to 4.8 mm
Recommended panel cutout:

Rear face

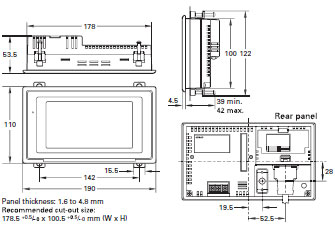

NT21

last update: November 12, 2012

OMRON NT11 / NT21 lineup
NT11 / NT21 Programmable Terminals/Lineup
last update: March 1, 2018
NT11

Product Specification Model
Programmable
Terminal *1, *2 Host link direct connection,
NT link method Ten-key type (frame color: beige) NT11-SF121-EV1 *3
Ten-key type (frame color: black) NT11-SF121B-EV1 *3
Support Software CD-ROM (for Windows 95, 98, Me, XP, NT,
2000) NT-ZJCAT1-EV4
Function key sheet 10 sheets for replacement for beige NT11-CKF01
10 sheets for replacement for black NT11-CKF01B

*1. The PT body incorporated the communication interface, screen memory, and a flash ROM that downloads the system
program.
*2. Connecting cables with the PLC and NTST are the same as those for the NT21.
*3. Orders accepted until the end of March 2018.

NT21

Product Specification Model number
NT21
Programmable
Terminal Monochrome STN Frame color: beige NT21-ST121-E
Frame color: black NT21-ST121B-E
Support Tool Windows 95, 98, Me, NT, or 2000 CD-ROM NT-ZJCAT1-EV4
Cables For screen transfer XW2Z-S002
For PLC
connection PT: 9-pin
PLC: 9-pin Cable length: 2 m XW2Z-200T
Cable length: 5 m XW2Z-500T
PT: 9-pin
PLC: 25-pin Cable length: 2 m XW2Z-200S
Cable length: 5 m XW2Z-500S
PT: 9-pin
PLC: Mini-peripheral Cable length: 2 m XW2Z-200T-2
Cable length: 5 m XW2Z-500T-2
Options Reflection Protective Sheets Display area only (5 sheets) NT20M-KBA04
Chemical-resistive Cover Silicon cover NT20S-KBA01
Battery For alarm lists/histories C500-BAT08
Memory Unit For screen and system data transfer NT-MF161
RS-232C/422A Adapter NS-AL002
Connector Kit XM2S-0911-S003

last update: March 1, 2018

OMRON NT11 / NT21 catalog
NT11 / NT21 Programmable Terminals/Catalog

Catalog

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

NT11, NT21 Catalog V071-E1-03
[669KB] Mar 01, 201820180301 NT11, NT21 Catalog

NO. NT11 / NT21

TYPE:Programmable Terminals Copyright Statement Copyright Statement

DATE:2021-06-11

Associated products:
NB-S Series Programmable Terminal/Features NX701-[][][][] NX-Series NX701 CPU Units/Features

Item	Specification
Power supply voltage	24 VDC
allowable power supply voltage range	20.4 to 27.6 VDC (24 VDC-15%, +15%)
Power consumption	10 W max.
Noise resistance	Conforms to IEC61000-4-4, 2K (power lines)
Vibration resistance	10 to 57 Hz with 0.075 mm amplitude and 57 to 150 Hz with 9.8 m/s2 acceleration for 30 min in each of X, Y, and Z directions
Shock resistance	147 m/s2 3 times in each of X, Y, and Z directions
ambient operating temperature	0 to +50°C
Ambient operating humidity	35 to 85% RH (with no condensation)
Operating environment	No corrosive gasses.
Storage temperature	-20 to +70°C (with no freezing)
Enclosure ratings	Front panel: Equivalent to IP65, NEMA4
Weight	1.0 kg max.

Item	Specification
Display screen	Dot matrix of STN liquid crystal display panel Number of dots: 160 x 64 Effective display area: 100 x 40 mm Life expectancy: 50,000 hours minimum View angle (left/right direction): ±20°	Backlight LED Life expectancy: 50,000 hours minimum Automatic turn-off: can be set to turn off in 10 minutes or 1 hour, or to remain on.
Indicators	POWER indicator (Green LDE): Lit while power is being supplied. RUN indicator (Green LED): Lit during operation
Switch	22 switches Life expectancy: 1 million operations minimum

Item	Specification
Display characters	Normal characters (8 x 16 dots): Alphanumerics and symbols Marks (8 x 16 dots): User-defined, 64 max.
Number of characters displayed	Normal-size: 20 horizontally x 4 lines vertically max.
Eniargement function	Double width
Display elements	Characterstring displays	8 positions per screen
Numeral displays	8 positions per screen
Graph displays	4 positions per screen
Numeral settings	8 positions per screen
Screen attributes	Display history	Order of frequency, 256 screens
Password screen	Ensures security: screens for which this attribute is set can only be displayed if the correct password is input.
Menu screen	Four items per screen
Screen types	Normal screen: Displays screen registered as normal.
Max. number of registered screens	250
Screen registration method	Transfer screen data created using an IBM PC/AT personal computer to the PT.
Screen saving method	Saved to flash memory: 32 KB (downloading method)

Item	Specification
Power supply voltage	24 VDC 15%
Power consumption	7 W max.
Noise resistance	Conforms to IEC61000-4-4. Power supply line: 2 kV
Vibration resistance	10 to 57 Hz with 0.075-mm single amplitude, 57 to 150 Hz with 9.8 m/s² acceleration, for a total of 60 min in X, Y, and Z directions
Shock resistance	Peak acceleration 15 G, 3 times each in X, Y, and Z directions
Ambient operating temperature	0 to 50°C (with no icing)
Storage temperature	-20 to +70°C (with no icing)
Ambient operating humidity	35% to 85% (with no condensation) (0 to 40°C) 35% to 55% (with no condensation) (40 to 50°C)
Dimensions	190 x 110 x 53.5 mm (W x H x D) (thickness inside panel: 49.0 mm)
Enclosure ratings	Front panel operating section: Equivalent to IP65F, NEMA 4.*
Weight	0.6 kg max.

Item	Specification
Display elements	Fixed displays	A total of 65,535 per screen (Graphics: Continuous straight lines, rectangles, circles, polygons, arcs, sectors)	With overlapping screens, the total is 524,280 per screen
	Fixed character strings
Graphics
Marks
Numeral displays	256 positions per screen, max. 10-digit display (2 words)
Character string displays	256 positions per screen, max. 1,024 display elements for overlapping screens
Graph displays	50 positions per screen, capable of displaying signs and percentages
Analog meters	50 positions per screen, capable of displaying signs and percentages
Trend graphs	One frame per screen, 50 items per frame (8 items max. for data logging)
Broken line graphs	One frame per screen, 256 items per frame, 260 points per item
Lamps	256 positions per screen
Image library images	256 positions per screen
Touch switches	256 positions per screen, max. 256 meshes
Numeral settings	256 positions per screen (numerical key pad)	Total of 256 positions for both numerical and thumbwheel settings
Thumbwheel settings	26 positions per screen
Character string settings	256 positions per screen
Temporary inputs	One position per screen
Alarm lists/histories	Four groups per screen
Screen types	Recipes	One position per screen
Normal screens	Displays screens registered as normal
Overlapping screens	A maximum of eight screens can be displayed overlapping each other.
Windows	Up to three window screens can be displayed.
Display history screens	Order of occurrence (1,024 screens max.), order of frequency (255 times max.)
System startup screen	Displayed when powering ON (or resetting ) the PT,and when switching to RUN mode.and when switching to RUN mode.
Programming Console screen	Emulates PLC Programming Console functions, capable of being called from RUN mode.
Screen attributes	Buzzer, display history, normal background colors, backlight mode, local windows
Number of screens	Max. number of registered screens	3999
Screen number	0: No display 1 to 3999: User registered screens (normal, overlapping, windows) 9000: System startup screen 9001: Display history screens, order of occurrence 9002: Display history screens, order of frequency 9020: Programming Console screen 9999: Return to previous screen designation
Screen registration method	By transferring screen data from the NT Support Tool to the PT via serial communications
By mounting the Memory Unit and downloading (automatic/manual transfer) data to the PT
Saving screen data	Flash memory (PT internal image memory)

Item	Specification
Display panel	Display device	Monochrome STN LCD
Number of dots (resolution)	260 dots horizontally x 140 dots vertically
Effective display area	117 mm horizontally x 63 mm vertically
Viewing angle	Left/right direction:30°, up/down:30°
Display color	Black & white (with blue mode)
Service life	50,000 hours min. (until contrast reduced to 50%)
Automatic turn-OFF	Can be set to turn OFF in 1 to 255 min or to remain ON with screen saver
Backlight (white cold cathode tube)	Service life	50,000 hours min. (at room temperature, until brightness is reduced to 50%)
Replacement	Non-replaceable

Item	Specification
Touch panel	Number of switches	91 (13 horizontally x 7 vertically)
Input	Pressure-sensitive
Threshold force for operation	1 N max.
Life expectancy	1 million operations min.

Communications method	Serial port A	Serial port B
NT Support Tool	Supported	Supported
PLC	Host Link	Supported	Supported
1:1 NT Link	Supported	Supported
1:N NT Links	Supported	Supported
NT Link, PT Programming Console function	Supported	Supported
SBC/personal computer	Memory Links	Supported	Not supported
Bar Code Reader	Supported	Not supported

Product	Specification	Model
Programmable Terminal 1, 2	Host link direct connection, NT link method	Ten-key type (frame color: beige)	*NT11-SF121-EV1 3**
Ten-key type (frame color: black)	*NT11-SF121B-EV1 3**
Support Software	CD-ROM (for Windows 95, 98, Me, XP, NT, 2000)	NT-ZJCAT1-EV4
Function key sheet	10 sheets for replacement for beige	NT11-CKF01
10 sheets for replacement for black	NT11-CKF01B

Product	Specification	Model number
NT21 Programmable Terminal	Monochrome STN	Frame color: beige	NT21-ST121-E
Frame color: black	NT21-ST121B-E
Support Tool	Windows 95, 98, Me, NT, or 2000	CD-ROM	NT-ZJCAT1-EV4
Cables	For screen transfer	XW2Z-S002
For PLC connection	PT: 9-pin PLC: 9-pin	Cable length: 2 m	XW2Z-200T
Cable length: 5 m	XW2Z-500T
PT: 9-pin PLC: 25-pin	Cable length: 2 m	XW2Z-200S
Cable length: 5 m	XW2Z-500S
PT: 9-pin PLC: Mini-peripheral	Cable length: 2 m	XW2Z-200T-2
Cable length: 5 m	XW2Z-500T-2
Options	Reflection Protective Sheets	Display area only (5 sheets)	NT20M-KBA04
Chemical-resistive Cover	Silicon cover	NT20S-KBA01
Battery	For alarm lists/histories	C500-BAT08
Memory Unit	For screen and system data transfer	NT-MF161
RS-232C/422A Adapter	NS-AL002
Connector Kit	XM2S-0911-S003

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
NT11, NT21 Catalog	V071-E1-03 [669KB]	Mar 01, 201820180301	NT11, NT21 Catalog

Return to OMRON
