CS1W-B7A Data Sheet	- [959KB]	Jan 27, 201420140127	CS1W-B7A Data Sheet

OMRON CS1W-B7A specification

last update: November 12, 2012

B7A Communications Specifications

Item	Specifications
Transmission method	One-way time-sharing multiplex transmissions
Transmission delay (communications delay on transmission path)	High-speed	3 ms typical, 5 ms max.
	Standard	19.2 ms typical, 31 ms max.
Transmission points	CS1W-B7A12	32 inputs (2 ports)
	CS1W-B7A02	32 outputs (2 ports)
	CS1W-B7A21	16 inputs (1 port), 16 outputs (1 port)
	CS1W-B7A22	32 inputs (2 ports), 32 outputs (2 ports)
External power supply voltage *1	12 to 24 V DC (allowable voltage range: 10.8 to 26.4 V)
External supply current *2	CS1W-B7A12	20 mA min.
	CS1W-B7A02	60 mA min.
	CS1W-B7A21	30 mA min.
	CS1W-B7A22	60 mA min.
Minimum input time *3	High-speed	16 ms
	Standard	2.4 ms
Transmission distance	High-speed	Power supply on one side (common power supply)	10 m max.
			50 m max. (with shielded cable)
		Power supply on both sides (separate power supplies)	10 m max.
			100 m max. (with shielded cable)
	Standard	Power supply on one side (common power supply)	100 m max.
		Power supply on both sides (separate power supplies)	500 m max.
Cables	VCTF, 0.75 mm2, 3 conductors (power supply on one side (common power supply)) VCTF, 0.75 mm2, 2 conductors (power supply on both sides (separate power supplies)) Shielded cable, 0.75 mm2, 3 conductors (power supply on one side (common power supply)) Shielded cable, 0.75 mm2, 2 conductors (power supply on both sides (separate power supplies))

*1. Use a SELV power supply with overcurrent protection. A SELV power supply refers to a power supply with double or
       reinforced insulation between input and output and with an output voltage of 30 V rms with a 42.4-V peak or an
       output voltage of 60 VDC max. We recommend OMRON S8[][]-series Power Supply Units for the external power
       supplies.
*2. The capacity of the external supply current does not include the capacity required by the B7A Link Terminal.
*3. The minimum input time is the minimum time required by the B7A Interface Unit to read the input signals from the
       CPU Unit.
Note: 1. When separate power supplies are used, the B7A Interface Unit and B7A Link Terminal are supplied by separate
              external power supplies.
           2. When a common power supply is used, the B7A Interface Unit and B7A Link Terminal are supplied by the same
                external power supply.

Specifications

Model		CS1W-B7A12	CS1W-B7A02	CS1W-B7A21	CS1W-B7A22
Applicable PLC		CS-series PLCs
Unit type		CS1 Basic I/O Unit
I/O points	Input	32 inputs	---	16 inputs	32 inputs
	Output	---	32 outputs	16 outputs	32 outputs
Transmission distance		Normal: 500m max. when the interface unit and the link terminal units have separate external power supplies, Normal: 100m max. when the interface unit and the link terminal units use a common external power supply, High speed: 100m max. with shielded cables, 10m max. with unshielded cables, when the interface unit and the link terminal units have separate external power supplies, High speed: 50m max. with shielded cables, 10m max. with unshielded cables, when the interface unit and the link terminal units use a common external power supply,
Transmission delay		Normal: 19.2ms (typ.), 31ms max. Short 3ms (typ.), 5ms max. * 1
Weight		230g max.		240g max.
Power supply voltage from external source *2		12 to 24VDC ±10%, 20mA min.	12 to 24VDC ±10%, 60mA min.	12 to 24VDC ±10%, 30mA min.	12 to 24VDC ±10%, 60mA min.
I/O memory allocation		Each Unit is allocated 4 words in the I/O Area (which starts at CIO 0000). The words are allocated according to the mounting position of the Unit.
		2 words (32 points).			4 words (64 points).
Current consumption		5 V DC: 90 mA max. (supplied from Power Supply Unit)

*1. The I/O delay time is selectable by the selector switch between normal and short.
*2. The value does not include the power supplied to B7A link terminal units.

last update: November 12, 2012

OMRON CS1W-B7A lineup

last update: September 24, 2012

Unit type	Name	Specifications		No. of words allocated	Current consumption (A)		Model	Standards
		I/O points	External connection		5 V	26 V
CS Series Basic I/O Units	B7A Interface Units	32 inputs	Removable terminal block	2 words	0.09	---	CS1W-B7A12	UC1, CE
		32 outputs		2 words	0.09	---	CS1W-B7A02
		16 inputs/ outputs		2 words	0.09	---	CS1W-B7A21
		32 inputs/ outputs		4 words	0.09	---	CS1W-B7A22

International Standards

• The standards indicated in the "Standards" column are those current for UL, CSA, cULus, cUL, NK, and Lloyd standards and EC Directives as of the end of October 2008. (The standards are abbreviated as follows: U: UL, U1: UL Class I Division 2 Products for Hazardous Locations, C: CSA, US: cULus Class I Division 2 Products for Hazardous Locations, CU: cUL, N: NK, L: Lloyd, and CE: EC Directives.
• Ask your OMRON representatives for the conditions under which the standards were met.

last update: September 24, 2012

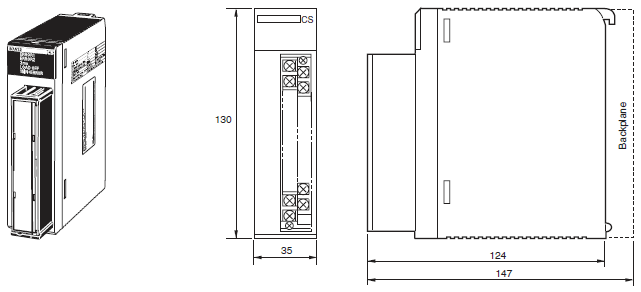

OMRON CS1W-B7A dimension

last update: September 24, 2012

CS1W-B7A12/02/21/22

last update: September 24, 2012

• NO. CS1W-B7A
• TYPE:Programmable Controllers CS1 Basic I/O Units
• DATE:2021-06-11
