OMRON NB Series Automation Systems
OMRON NB Series Dimensions
/Images/l_3110-25-139461-198x198.jpglast update: April 23, 2018
The future-proof, compact HMI
Give more value to your machines with Omron’s NB Series: compact range application HMI.
Enjoy his the aesthetic sense and excellent visibility.
Our expertise in Factory automation give you warranty of quality and a total freedom to build up optimal applications.
Newly added remote control features help to reduce the time and work involved in maintenance.
Enjoyable to use
The newly added remote control features significantly save you time, and the flexible design features make screen creation easier.
All these features greatly contribute to your global scale business.
Global support from local site
Flexible remote access function [NEW]
Besides conventional web browsers, now NB Series supports faster and secure Virtual network computing (VNC), providing exible remote access.
Powerful remote operation [NEW]
With the newly added features such as FTP Server and CSV data-copying features, you can change machine parameters from remote locations or host PC, and collect production data.
Now graphics can be updated even during the operation, and visual can be changed without stopping the HMI following changes in machines and recipes.
Easily create intuitive operator screens
Flexible window handling
NB Series easily creates screens for your project.
Besides the standard window, you can also create ‘window-in window’. Furthermore, it also supports bottom windows and transparency for pop-up windows.
Easy animation
Animations can be created easily. For example, you can show a different status with text and graphics, or move the components while changing them. This easy animation feature makes the operation easier to understand and eliminates the need for expertise.
Extensive language support
Thanks to the supported 32 languages and Text Library function, you will find it easy to manage texts in multi-language.
This allows users to operate the HMI in the language they choose.
Powerful macros
Thanks to its powerful macros, you can perform calculations and comparisons or iterations, and mathematical functions.
It also enables you to do even more.
Pleasant to program
Ready to use functions for your machine
The feature-rich NB series has everything you will need for creating applications for a wide range machines and in many industries, for example, packaging, food, plastics and textiles. From a simple lid placing or loading/unloading machine right up to an in-line filling or sealing /labeling packaging machine. Download free of charge NB-Designer software from Omron web site.
Always informed about alarms
Event monitoring (alarming) is both flexible and easy to use. Not only do you have the possibility to enter bit and word alarms for on/off or on-condition triggering, there is also the possibility to use different fonts and color to indicate varying degrees of status and priorities. Specific alarms are indicated with an audible buzzer sound, as well as by an accompanying text message, and you can even create pop-up alarms for situations where immediate action has to be taken.
Easy data presentation
Graphical representation of real-time and historical data is easy with the NB series. As well as display of time sampling and trending data, you have the option to save sampling data (max. 16 consecutive words) of basic real-time trending data. And you can plot using x/y coordinates, in which case sampling can be done via single or multiple points and with historical data. Furthermore, data can be presented in a variety of ways, such as sampling points using x and y components.
Multiple security options
Protecting your developed project with a password using the NB series is both a simple and secure matter. Among the comprehensive security options is the possibility to define up to 16 minimum security levels on screens, buttons and inputs, and you can set up to 32 specific permission controls for each operator. There is also a register condition (bit/word) control for a check of actual condition against a predefined value, and a standard operator confirmation check to confirm that critical actions have been performed by the operator.
The perfect partner for Omron devices
Omron Compact controllers perfectly match your specific automation requirement and connection to the NB series is possible via Serial or Ethernet.
Ethernet protocols, FTP or VNC make easy remote access for maintenance or data gathering and allows digitalisation of your machine.
last update: April 23, 2018
Purchase the OMRON Copyright Statement Please fill in the following
If you have just landed here, this product OMRON NB Series Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the NB Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON NB SeriesAutomation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
G6B-4[][]ND Terminal Relay/Features
G7TC I/O Relay Terminal/Features
G70D-SOC08 Relay Terminal/Features
K7L-U[] / UD[][] Liquid Leakage Sensor Amplifiers for Long-distance Wiring/Features
H3DK-H Power OFF-delay Timer/Features
OMRON NB Series lineup
NB Series Programmable Terminals/Lineuplast update: April 23, 2018
Programmable Terminals
| Product name | Specifications | Model |
|---|---|---|
| NB3Q | 3.5 inch, TFT LCD, Color, 320 × 240 dots | NB3Q-TW00B |
| 3.5 inch, TFT LCD, Color, 320 × 240 dots, USB Host, Ethernet | NB3Q-TW01B | |
| NB5Q | 5.6 inch, TFT LCD, Color, 320 × 234 dots | NB5Q-TW00B |
| 5.6 inch, TFT LCD, Color, 320 × 234 dots, USB Host, Ethernet | NB5Q-TW01B | |
| NB7W | 7 inch, TFT LCD, Color, 800 × 480 dots | NB7W-TW00B |
| 7 inch, TFT LCD, Color, 800 × 480 dots, USB Host, Ethernet | NB7W-TW01B | |
| NB10W | 10.1 inch, TFT LCD, Color, 800 × 480 dots, USB Host, Ethernet | NB10W-TW01B |
Options
| Product name | Specifications | Model |
|---|---|---|
| Software | Supported Operating Systems: Windows 10, Windows 8.1, Windows 8, Windows 7, Windows Vista®, Windows XP (SP3 or higher). Note: Except for Windows XP 64-bit version Download from Omron's regional websites. | NB-Designer * |
| NB-to-PLC Connecting cable | For NB to PLC via RS-232C (CP/CJ/CS), 2 m | XW2Z-200T |
| For NB to PLC via RS-232C (CP/CJ/CS), 5 m | XW2Z-500T | |
| For NB to PLC via RS-422A/485, 2 m | NB-RSEXT-2M | |
| Display protective sheets | For the NB3Q contains 5 sheets | NB3Q-KBA04 |
| For the NB5Q contains 5 sheets | NB5Q-KBA04 | |
| For the NB7W contains 5 sheets | NB7W-KBA04 | |
| For the NB10W contains 5 sheets | NB10W-KBA04 | |
| Attachment | Mounting bracket for NT31/NT31C series to NB5Q series | NB5Q-ATT01 |
Note: Use a standard USB cable (Type A male to Type B male) or standard Ethernet cable (10 BASE-T/100 BASE-TX twisted-pair cable) to connect the NB series to software (personal computer).
Use a standard Ethernet cable (10 BASE-T/100 BASE-TX twisted-pair cable) to connect the NB series to a PLC. For detail, refer to the NB Series Setup Manual (Cat. No. V107).
* The NB5Q-TW01B and NB7W-TW01B are supported by NB-Designer version 1.10 or higher.
* The NB3Q-TW0[]B and NB10W-TW01B are supported by NB-Designer version 1.20 or higher.
System Configuration
| Items | Specifications |
|---|---|
| Operating System (OS) | Microsoft Windows XP (SP3 or higher) Microsoft Windows Vista (32-bit or 64-bit edition) Microsoft Windows 7 (32-bit or 64-bit edition) Microsoft Windows 8 (32-bit or 64-bit edition) Microsoft Windows 8.1 (32-bit or 64-bit edition) Microsoft Windows 10 (32-bit or 64-bit edition) |
| CPU | Windows computers with CPU recommended for OS |
| Memory | 512 MB or more |
| Hard Disk | 2.5 GB or more, with the disk space more than 800 MB at least |
| Display | Supports the display with resolution of 800 × 600 and 16-bit high color (1024 × 768 and 32-bit true color are recommended.) . |
| Communication ports | RS-232C Port, USB Port, Ethernet Port |
Recommended USB Memory
| Product name | Specifications | Model |
|---|---|---|
| USB memory stick | Capacity: 2 GB | FZ-MEM2G |
| Capacity: 8 GB | FZ-MEM8G |
last update: April 23, 2018
OMRON NB Series catalog
NB Series Programmable Terminals/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 NB Series Catalog | V412-E1-10 [5993KB] | Nov 01, 201820181101 | NB Series Catalog |
OMRON NB Series dimension
NB Series Programmable Terminals/Dimensionslast update: October 04, 2012
NB3Q

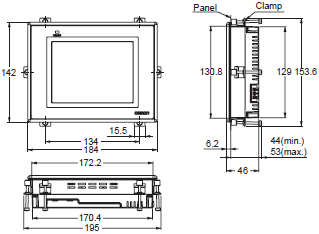

NB5Q

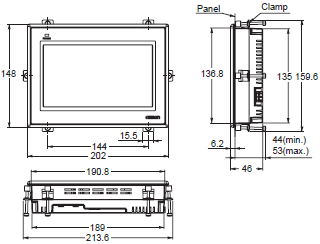

NB7W

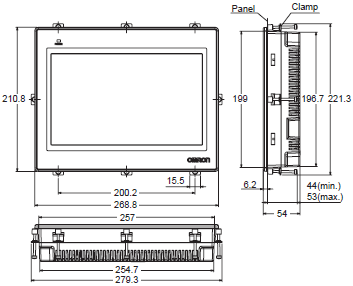

NB10W
Applicable panel thickness: 1.6 to 4.8 mm
last update: October 04, 2012
OMRON NB Series specification
NB Series Programmable Terminals/Specificationslast update: April 23, 2018
HMI
| Specifications | NB3Q | NB5Q | NB7W | NB10W | |||
|---|---|---|---|---|---|---|---|
| TW00B | TW01B | TW00B | TW01B | TW00B | TW01B | TW01B | |
| Display type | 3.5" TFT LCD | 5.6" TFT LCD | 7" TFT LCD | 10.1" TFT LCD | |||
| Display resolution (H × V) | 320 × 240 | 320 × 234 | 800 × 480 | 800 × 480 | |||
| Number of colors | 65,536 | ||||||
| Backlight | LED | ||||||
| Backlight lifetime | 50,000 hours of operating time at the normal temperature (25°C)* | ||||||
| Touch panel | Analog resistive membrane type, resolution 1024 × 1024, life: 1 million touch operations | ||||||
| Dimensions in mm (H × W × D) | 103.8 × 129.8 × 52.8 | 142 × 184 × 46 | 148 × 202 × 46 | 210.8 × 268.8 × 54.0 | |||
| Weight | 300 g max. | 305 g max. | 620 g max. | 627 g max. | 710 g max. | 715 g max. | 1525 g max. |
* This is the estimated time when the luminous intensity is decreased by 50% per LED at room temperature and humidity. It is a typical value.
Functionality
| Specifications | NB3Q | NB5Q | NB7W | NB10W | |||
|---|---|---|---|---|---|---|---|
| TW00B | TW01B | TW00B | TW01B | TW00B | TW01B | TW01B | |
| Internal memory | 128 MB (including system area) | ||||||
| Memory interface | --- | USB Memory | --- | USB Memory | --- | USB Memory | USB Memory |
| Serial (COM1) | RS-232C/422A/485 (not isolated), Transmission distance: 15 m Max. (RS-232C), 500 m Max. (RS-422A/485), Connector: D-Sub 9-pin | RS-232C, Transmission distance: 15 m Max., Connector: D-Sub 9-pin | |||||
| Serial (COM2) | --- | RS-232C/422A/485 (not isolated), Transmission distance: 15 m Max. (RS-232C), 500 m Max. (RS-422A/485), Connector: D-Sub 9-pin | |||||
| USB Host | Equivalent to USB 2.0 full speed, type A, Output power 5 V, 150 mA | ||||||
| USB Slave | Equivalent to USB 2.0 full speed, type B, Transmission distance: 5 m | ||||||
| Printer connection | PictBridge support | ||||||
| Ethernet | --- | 10/100 base-T | --- | 10/100 base-T | --- | 10/100 base-T | 10/100 base-T |
General
| Specifications | NB3Q | NB5Q | NB7W | NB10W | |||
|---|---|---|---|---|---|---|---|
| TW00B | TW01B | TW00B | TW01B | TW00B | TW01B | TW01B | |
| Line voltage | 20.4 to 27.6 VDC (24 VDC -15 to 15%) | ||||||
| Power consumption | 5 W | 9 W | 6 W | 10 W | 7 W | 11 W | 14 W |
| Battery lifetime | 5 years (at 25°C) * | ||||||
| Enclosure rating (front side) | Front operation part: IP65 (Dust proof and drip proof only from the front of the panel) | ||||||
| Obtained standards | EC Directives, KC, cUL508 | ||||||
| Operating environment | No corrosive gases. | ||||||
| Noise immunity | Compliant with IEC61000-4-4, 2 KV (Power cable) | ||||||
| Ambient operating temperature | 0 to 50°C | ||||||
| Ambient operating humidity | 10% to 90% RH (without condensation) | ||||||
