KE1 Smart Measurement and Monitor Units/Dimensions
last update: October 12, 2017

(Unit: mm)

Main Units

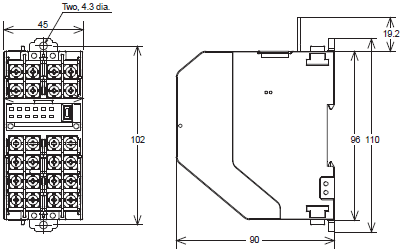

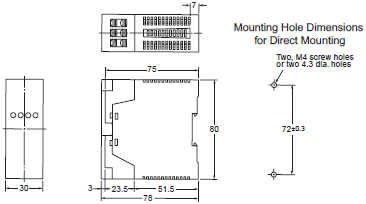

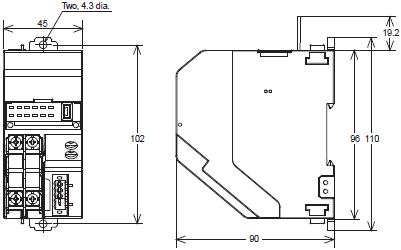

KE1-PGR1C-FLK/PVS1C-FLK/VSU1B-FLK/VAU1B-FLK/CTD8E/ZCT8E

KE1-DRT-FLK

Split-type Current Transformers (CTs)

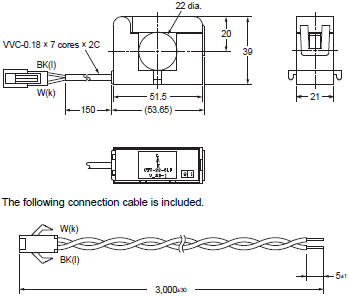

KM20-CTF-5A

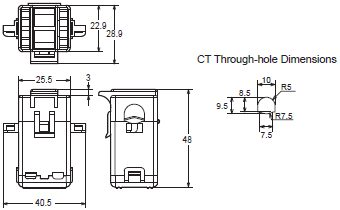

KM20-CTF-50A

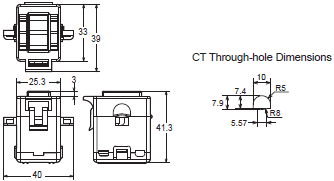

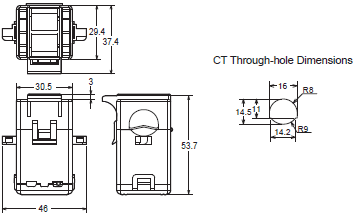

KM20-CTF-100A

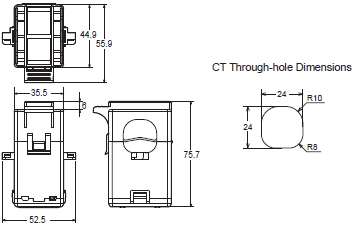

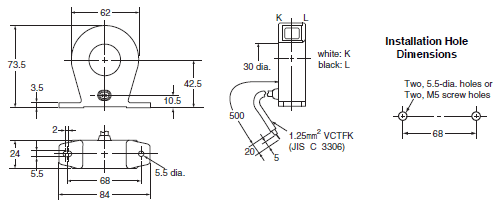

KM20-CTF-200A

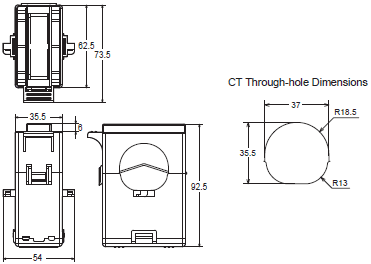

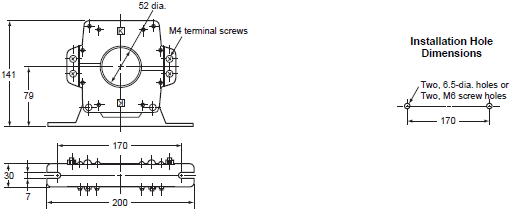

KM20-CTF-400A/600A

CT Through-hole Dimensions
KM20-CTB-5A/50A

CT Cable
KM20-CTF-CB3 (Special CT cable)

Zero-phase Current Transformers (Compatible ZCTs)
Indoor, through-hole

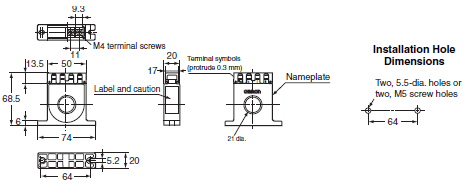

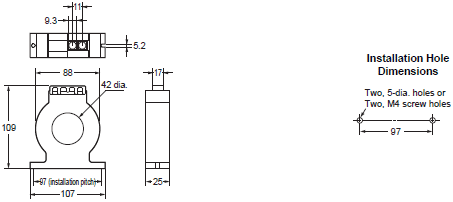

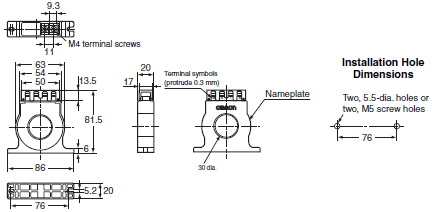

OTG-L21 (50A)

Indoor, through-hole
OTG-L30 (100A)

Indoor, through-hole

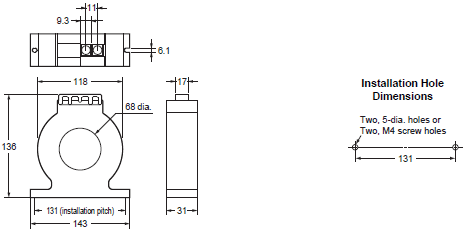

OTG-L42 (200A)

Indoor, through-hole

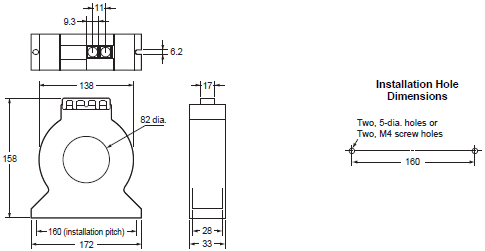

OTG-L68 (400A)

Indoor, through-hole
OTG-L82 (600A)

Indoor, through-hole

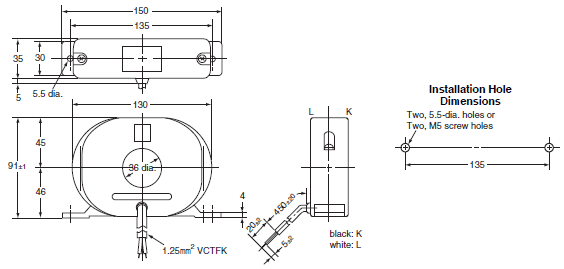

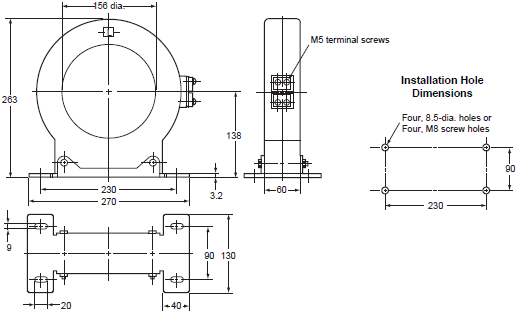

OTG-L156 (1,000A)

Indoor, split-type
OTG-CN52 (200A)

Indoor, split-type

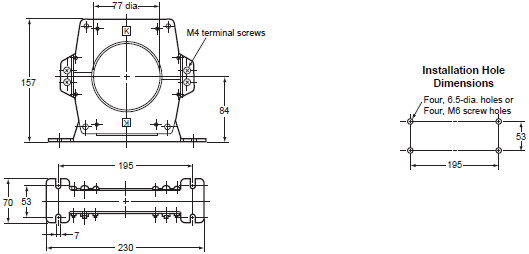

OTG-CN77 (400A)

Indoor, split-type

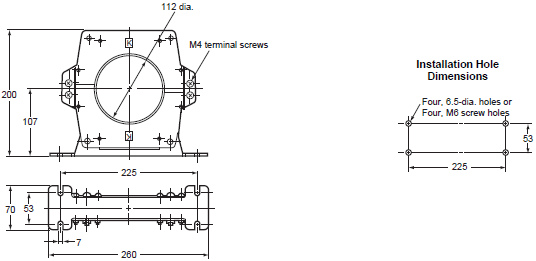

OTG-CN112 (600A)

Outdoor, through-hole
OTG-LA30W (100A)

Outdoor, split-type
OTG-CN36W (150A)

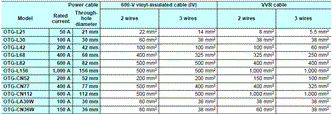

Largest Applicable Wire Sizes for CTs

Current Transformer for Ground Wires
Indoor, split-type
K6ER-CN22 (2A)

Communications Interface Converter
K3SC-10

Note: DIN Track mounting is also possible.

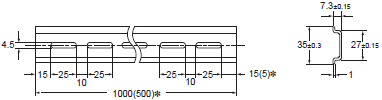

DIN Track
PFP-100N
PFP-50N

* The dimensions for the PFP-50N DIN Track are given in parenthesis.

Clamp (End Plate)
PFP-M

last update: October 12, 2017

OMRON KE1 specification
KE1 Smart Measurement and Monitor Units/Specifications
last update: April 3, 2017
Ratings

Model KE1-
PGR1C-
FLK
(Power/
Earth
Leakage) KE1-
PVS1C-
FLK
(Power/
Momentary
Voltage Sag) KE1-
VSU1B-
FLK
(Momentary
Voltage
Sag) KE1-
VAU1B-
FLK
(Voltage/
Current) KE1-
CTD8E
(CT
Expansion) KE1-
ZCT8E
(ZCT
Expansion)
Applicable phase wiring
method Single-phase two-wire, single-phase three-wire, three-phase three-wire, and three-
phase four-wire
Power
supply Rated power
supply voltage 100 to 240 VAC, 50/60 Hz ---
Allowable supply
voltage range 85% to 110% of rated power supply voltage ---
Power supply
fluctuation
frequency range 45 to 65 Hz ---
Power
consumption Standalone: 10 VA max.,
Maximum connections:
14 VA max. 10 VA max.
Power
interruption
compensation
method --- Backup for 1.2 seconds min.
with electric double-layer
capacitor for voltage
measurement only. ---
Input Rated input
voltage 100 to 480 VAC (single-phase, 2-wire): Line voltage
100/200 VAC (single-phase, 3-wire): Phase voltage/line
voltage
100 to 480 VAC (3-phase, 3-wire): Line voltage
58 to 277 VAC/100 to 480 VAC (3-phase, 4-wire):
Phase voltage/line voltage ---
Rated input
current for CT 5 A, 50 A, 100 A, 200 A,
400 A, or 600 A
Special CTs used. --- 5 A, 50 A, 100 A, 200 A,
400 A, or 600 A
Special CTs used. ---
Rated input
current for ZCT 50 A, 100 A,
150 A, 200
A, 400 A,
600 A, or
1,000 A --- 50 A, 100 A,
150 A, 200 A,
400 A, 600 A,
or 1,000 A
Rated input
power With 5-A CT: 4 kW
With 50-A CT: 40 kW
With 100-A CT: 80 kW
With 200-A CT: 160 kW
With 400-A CT: 320 kW
With 600-A CT: 480 kW --- With 5-A CT:
4 kW
With 50-A
CT: 40 kW
With 100-A
CT: 80 kW
With 200-A
CT: 160 kW
With 400-A
CT: 320 kW
With 600-A
CT: 80 kW ---
Rated input
frequency 50/60 Hz ---
Input frequency
fluctuation range 45 to 65 Hz ---
Input leakage
current 1,000 mA --- 1,000 mA
Allowable input
voltage 110% of rated input voltage (continuous) ---
Allowable input
current 120% of rated input current
(continuous) --- 120% of rated current
(continuous) ---
Rated input load Voltage input: 0.5 VA max. (excluding power supply) ---
Current input: 0.5 VA max. (for each input) --- Current
input: 0.5 VA
max. (for
each input) ---
Clock Clock setting 2012 to 2099 (Adjusted for leap years during this period.) ---
Clock accuracy ±1.5 min./month (at 23°C) ---
Clock backup
period Seven-day backup with an electric double-layer
capacitor (after being powered for at least 24 hours and
when the power is interrupted at 23°C) ---
Ambient operating
temperature -10 to 55°C (with no condensation or icing)
Storage temperature -25 to 65°C (with no condensation or icing)
Ambient operating humidity 25% to 85%
Storage humidity 25% to 85%
Altitude 2,000 m max.
Installation environment Overvoltage category II, pollution degree 2, measurement category II
Compliant
standards All KE1 Units EN 61010-2-030 (IEC 61010-2-030)
EN61326-1 Industrial electromagnetic environment
UL61010-1
UL61010-2-030

Characteristics

Model KE1-
PGR1C-
FLK
(Power/
Earth
Leakage) KE1-
PVS1C-
FLK
(Power/
Momentary
Voltage Sag) KE1-
VSU1B-
FLK
(Momentary
Voltage
Sag) KE1-
VAU1B-
FLK
(Voltage/
Current) KE1-
CTD8E
(CT
Expansion) KE1-
ZCT8E
(ZCT
Expansion)
Accuracy
*1 Voltage ±1.0% FS ±1 digit
The accuracy of the voltage across the Vtr is ±2.0% FS
±1 digit under the same conditions. ---
Current ±1.0% FS ±1 digit
However, the accuracy is
±2.0% FS ±1 digit for the
phase-S current for a
three-phase, three-wire
circuit and the phase-N
current for a single-phase,
three-wire circuit under
the same conditions. --- ±1.0% FS ±1 digit
However, the accuracy
is ±2.0% FS ±1 digit for
the phase-S current for
a three-phase, three-
wire circuit and the
phase-N current for a
single-phase, three-wire
circuit under the same
conditions. ---
Leakage current 30 to 200
mA: ±5%
rdg ±1 digit
200 to
1,000 mA:
±1%FS
±1 digit --- 30 to 200
mA: ±5%
rdg ±1 digit
200 to
1,000 mA:
±1%FS ±1
digit
Power (active
power and
reactive power) Active power and reactive
power ±2.0% FS ±1 digit
(power factor = 1) --- Active
power and
reactive
power
±2.0% FS
±1 digit
(Power
factor = 1) ---
Frequency ±0.3 Hz ±1 digit ---
Power factor *2 ±5.0% FS (power factor =
0.5 to 1 to 0.5) --- ±5.0% FS
(Power
factor = 0.5
to 1 to 0.5) ---
Temperature ---
Temperature influence *1 ±1.0% FS (percentage of the measurement value at an ambient temperature of 23°C,
rated input, rated frequency, and a power factor of 1 in the operating temperature
range)
Frequency influence *1 ±1.0% FS (percentage of the measurement value at an ambient temperature of 23°C,
rated input, rated frequency, and a power factor of 1 in the rated frequency ±5 Hz
range)
Influence of harmonics *1 ±0.5% FS (at ambient temperature of 23°C, error for superimposed 2nd, 3rd, 5th,
7th, 9th, 11th, and 13th harmonics for a content percentage of 30% for current and
5% for voltage of the basic wave)
Low-cut current set value 0.1% to 19.9% of rated input
in 0.1% increments --- 0.1% to 19.9% of rated
input in 0.1% increments ---
Low-cut leakage current
set value Variable in 0.1-mA
increments between 0.1
and 30.0 mA --- Variable in
0.1-mA
increments
between
0.1 and
30.0 mA
Sampling cycle 100 ms for measurement voltage at 50 Hz and 83.3 ms for measurement voltage at
60 Hz
Insulation resistance Insulation resistance: 20 MΩ (at 500 VDC)
Dielectric strength All models: Locations to which 2,000 V was applied for one minute: Between all
terminals and case
KE1-PGR1C-FLK:
Between the power supply terminals and RS-485/transistor/relay outputs
Between the power supply terminals and current/voltage/earth leakage inputs
Between current/voltage/earth leakage inputs and RS-485/relay/transistor outputs
KE1-PVS1C-FLK:
Between the power supply terminals and RS-485/transistor/relay outputs
Between the power supply terminals and current/voltage input
Between current/voltage inputs and RS-485/relay/transistor outputs
KE1-VSU1B-FLK:
Between power supply terminals and RS-485/relay outputs
Between the power supply terminals and voltage inputs
Between voltage inputs and RS-485/relay outputs
KE1-VAU1B-FLK:
Between power supply terminals and RS-485/relay outputs
Between the power supply terminals and current/voltage input
Between current/voltage inputs and RS-485/relay outputs
KE1-CTD8E:
Between current inputs and relay outputs
KE1-ZCT8E:
Between earth leakage inputs and relay outputs
Vibration resistance Single-amplitude: 0.35 mm, Acceleration: 50 m/s²
Vibration: 10 to 55 Hz, 10 sweeps of 5 minutes each along 3 axes
Shock resistance 150 m/s², 3 times each in 6 directions (up/down, left/right, forward/backward)
Weight Approx. 230 g
Memory backup No. of writes to non-volatile memory: 1,000,000 times
Event
inputs Number of inputs ---
No-voltage
inputs ---
Voltage input ---
Tempera-
ture in-
puts Thermistor
inputs ---
Applicable
thermistor ---
Combinations Capable of supporting 7
event inputs and 1
temperature input when
connected with the
KM1-EMU8A-FLK. ---
Transis-
tor out-
puts Number of
outputs One open-collector output
(OUT2) ---
Output capacity 30 VDC, 30 mA ---
ON residual
voltage 1.2 V max. ---
OFF leakage
current 100 μA max. ---
Total power
consumption
pulse output Outputs one pulse when
the power consumption
reaches the set pulse
output unit (1, 10, 100,
1k, 2k, 5k, 10k, 20k, 50k,
100k W/h). ---
Alarm output Outputs an alarm based on
the set alarm output
threshold. ---
Alarm recovery
method Automatic recovery only ---
Relay
outputs Number of
outputs One NO
contact
output
(OUT1) --- One NO
contact
output (OUT1) Two NO
contact
outputs
(OUT1
and OUT2) One NO contact output
(OUT1)
Rated load Resistance
load, 250
VAC, 3 A;
30 VDC, 3 A
Inductive
load (cosφ
= 0.4, L/R =
7 ms): 250
VAC, 1 A; 30
VDC, 1 A --- Resistance load, 250 VAC,
3 A; 30 VDC, 3 A
Inductive load (cosφ = 0.4,
L/R = 7 ms): 250 VAC, 1 A;
30 VDC, 1 A Resistance load, 125 VAC,
3 A; 30 VDC, 3 A
Mechanical life
expectancy 10,000,000
operations --- 10,000,000 operations 5,000,000 operations min.
Electrical life
expectancy 50,000
operations
min. (rated
load
switching
frequency:
1,800
times/h) --- 50,000 operations min.
(rated load switching
frequency: 1,800 times/h) 200,000 times min. (rated
load switching frequency:
1,800 times/h)
Failure rate P
level 5 VDC, 10
mA (at a
switching
frequency
of 120
times/min) --- 5 VDC, 10 mA (at a switching frequency of 120 times/
min)
Alarm output Turns
output ON
or OFF
based on
the alarm
set value. --- Turns output ON or OFF based on the alarm set value.
Recovery
method Automatic
recovery
only --- Automatic recovery only
Semicon
ductor
relay
outputs Number of
outputs --- One MOS
FET output
(OUT1) One MOS
FET output
(OUT2) ---
Maximum load
voltage --- Peak: 24 VAC/DC ---
Continuous load
current --- Peak: 80 mA AC/DC ---
ON resistance --- 15 Ω max. ---
Open-circuit
leakage current --- 1 nA max. ---
Alarm output --- Turns output ON or OFF
based on the alarm set value. ---
Recovery
method --- Automatic recovery only ---
Commu-
nications Protocols Communications protocol setting OFF: CompoWay/F, ON: Modbus
Unit number
setting CompoWay/F: 0 to 99, Modbus:1 to 99
When a switch operation is performed to set the protocol to Modbus when the node
number is set to 0, the node number is automatically changed to 1.
Communication
items Refer to the KM1/KE1 Communications Manual.
RS-485 Sync method Start-stop ---
Baud rate 9,600 bps, 19,200 bps, or 38,400 bps ---
Transmission
code CompoWay/F: ASCII, Modbus: Binary ---
Data length CompoWay/F: 7 bits, 8 bits; Modbus: 8 bits ---
Stop bits CompoWay/F: 1 bits or 2 bits
Modbus: 1 bit with priority, 2 bits without priority ---
Parity Even, odd, or none ---
Maximum
transmission
distance 500 m ---
Maximum number
of nodes CompoWay/F: 31, Modbus: 99 ---
USB USB 1.1 compliant
Memory retention for power
interruptions Parameter
data, alarm
history,
logged
data, and
backup
data Parameter
data, alarm
history,
logged data,
backup
data, and
momentary
voltage sag
history Parameter
data, alarm
history,
logged
data, and
momentary
voltage sag
history Parameter
data,
alarm
history,
and logged
data Parameter
data, alarm
history, and
backup data Parameter
data and
alarm
history
Number of connect
connector insertions/
removals 25 times

*1. Based on JISC1111, without special CT error, at ambient temperature of 23°C, rated input, and rated frequency.
Applicable to 2nd, 3rd, 5th,　7th, 9th, 11th, and 13th harmonics.
*2. Power factor formula: Power factor = Active power/Apparent power
Apparent power = √(Active power)² + (Reactive power)²

Protection

Model KE1-
PGR1C-
FLK
(Power/
Earth
Leakage) KE1-
PVS1C-
FLK
(Power/
Momentary
Voltage Sag) KE1-
VSU1B-
FLK
(Momentary
Voltage
Sag) KE1-
VAU1B-
FLK
(Voltage/
Current) KE1-
CTD8E
(CT
Expansion) KE1-
ZCT8E
(ZCT
Expansion)
Voltage
monitor-
ing Alarm threshold
(overvoltage/
undervoltage) 0.0 to 12,100.0 V ---
Operation
characteristic ±1.0% FS ±1 digit
The accuracy of the voltage across the Vtr is ±2.0%
FS ±1 digit under the same conditions. ---
Alarm ON delay
(overvoltage/
undervoltage) 0.1 to 10.0 s ---
Operating time
characteristic ±0.2 s ---
Alarm hysteresis
(overvoltage/
undervoltage) 0.0 to 2,200.0 V ---
Resetting time 0.5 s (Cannot be changed.) ---
Resetting time
characteristic ±0.2 s ---
Current
monitor-
ing Alarm threshold
(overcurrent/
undercurrent) 0.0 to 6,000.0 A --- 0.0 to 6,000.0 A ---
Operation
characteristic ±1.0% FS ±1 digit
However, the accuracy is
±2.0% FS ±1 digit for the
phase-S current for a
three-phase, three-wire
circuit and the phase-N
current for a single-
phase, three-wire circuit
under the same
conditions. --- ±1.0% FS ±1 digit
However, the accuracy
is ±2.0% FS ±1 digit for
the phase-S current for
a three-phase, three-
wire circuit and the
phase-N current for a
single-phase, three-
wire circuit under the
same conditions. ---
Alarm ON delay
(overcurrent/
undercurrent) 0.1 to 10.0 s --- 0.1 to 10.0 s ---
Operation
characteristic ±0.2 s --- ±0.2 s ---
Alarm hysteresis
(overcurrent/
undercurrent) 0.0 to 1,000.0 A --- 0.0 to 1,000.0 A ---
Resetting time 0.5 s (Cannot be changed.) --- 0.5 s (Cannot be
changed.) ---
Resetting time
characteristic ±0.2 s --- ±0.2 s ---
Active
power
monitor-
ing Alarm thresholds
(upper limit/lower
limit) -120,000,000 to
120,000,000 W --- -120,000,000
to
120,000,000
W ---
Operation
characteristic ±2.0% FS ±1 digit --- ±2.0% FS
±1 digit ---
Alarm ON delay
(upper limit/lower
limit) 0.5 to 10.0 s --- 0.5 to 10.0 s ---
Operation
characteristic ±0.2 s --- ±0.2 s ---
Alarm hysteresis
(upper limit/lower
limit) 0 to 24,000,000 W --- 0 to
24,000,000 W ---
Resetting time 0.5 s (Cannot be changed.) --- 0.5 s (Cannot
be changed.) ---
Resetting time
characteristic ±0.2 s --- ±0.2 s ---
Reactive
power
monitor-
ing Alarm thresholds
(upper limit/lower
limit) -120,000,000 to
120,000,000 W --- -120,000,000
to
120,000,000
W ---
Operation
characteristic ±2.0% FS ±1 digit --- ±2.0% FS
±1 digit ---
Alarm ON delay
(upper limit/lower
limit) 0.5 to 10.0 s --- 0.5 to 10.0 s ---
Operation
characteristic ±0.2 s --- ±0.2 s ---
Alarm hysteresis
(upper limit/lower
limit) 0 to 24,000,000 W --- 0 to
24,000,000 W ---
Resetting time 0.5 s (Cannot be changed.) --- 0.5 s (Cannot
be changed.) ---
Resetting time
characteristic ±0.2 s --- ±0.2 s ---
Power
factor
monitor-
ing Alarm threshold -1.00 to 1.00 --- -1.00 to 1.00 ---
Operation
characteristic ±5.0% FS (Power factor =
0.5 to 1 to 0.5) --- ±5.0% FS
(Power factor
= 0.5 to 1 to
0.5) ---
Alarm ON delay 0.5 to 10.0 s --- 0.5 to 10.0 s ---
Operation
characteristic ±0.2 s --- ±0.2 s ---
Alarm hysteresis 0.00 to 1.00 --- 0.00 to 1.00 ---
Earth
leakage
monitor-
ing Earth leakage
comparison value 30 to
1,000 mA --- 30 to 1,000 mA
Operation
characteristic ±5% rdg
±1 digit for
30 to 200
mA, ±1%
FS ±1 digit
for 200 to
1,000 mA --- ±5% rdg ±1 digit for 30 to
200 mA, ±1% FS ±1 digit
for 200 to 1,000 mA
Earth leakage
operating time 0.1 to
20.0 s --- 0.1 to 20.0 s
Operation
characteristic ±0.2 s --- ±0.2 s
Resetting
condition 95% of
operating
value --- 95% of operating value
Resetting time 0.5 s
(Cannot be
changed.) --- 0.5 s (Cannot be changed.)
Momen-
tary volt-
age sag
monitor-
ing Momentary voltage
sag detection
voltage --- 0 to 480.0 V ---
Allowable error in
detection voltage --- ±2.5% FS ±1 digit ---
Continuation time
for momentary
voltage sag --- Without backup: 0.02 to
0.2 s ---
With backup: 0.02 to 1.00 s
Relay output
operating time
accuracy --- ±5 ms ---
Open
phase
monitor-
ing Open phase
detection
condition (Largest error between any phase voltage and
average voltage) ÷ Average voltage × 100 . 85% ---
Operation
characteristic ±1.0% FS ±1 digit
The accuracy of the voltage across the Vtr is ±2.0%
FS ±1 digit under the same conditions. ---
Operating time 0.1 s ---
Operation
characteristic ±0.2 s ---
Resetting
condition Non-balance ratio: Less than 13% ---
Resetting time 0.5 s (Cannot be changed.) ---
Resetting time
characteristic ±0.2 s ---
Re-
versed
phase
monitor-
ing Reversed phase
detection
condition Change in voltage phase sequence lasts for 0.1
second or longer. ---
Operating time 0.1 s ---
Operation
characteristic ±0.2 s ---
Resetting
condition Phase offset within ±45° ---
Resetting time 0.5 s (Cannot be changed.) ---
Resetting time
characteristic ±0.2 s ---

Special CTs
Current Transformers (CTs)

Structure Split-type Through-
hole
Model KM20-
CTF-5A KM20-
CTF-50A KM20-
CTF-100A KM20-
CTF-200A KM20-
CTF-400A KM20-
CTF-600A KM20-
CTB-
5A/50A
Rated primary current 5 A 50 A 100 A 200 A 400 A 600 A 5A/50 A
Secondary winding 3,000 turns 6,000 turns 9,000 turns 3,000 turns
Applicable frequency 10 Hz to 5 kHz
Insulation resistance Between output terminals and case: 50 MΩ min. (at 500 VDC)
Dielectric strength Between output terminals and case: 2,000 VAC for 1 minute
Protective element 7.5-V clamp element
Allowable number of
connections/
disconnections 100 times
Mountable wire
diameter 7.4 mm
max. 8.5 mm
max. 11 mm max. 24 mm max. 35.5 mm max. 8.4 mm
max.
Operating
temperature and
humidity ranges -20 to 60°C, 85% max. (with no condensation)
Storage temperature
and humidity ranges -30 to 65°C, 85% max. (with no condensation)

Note: Operate the Special CTs at a low voltage of 600 V or less.

General Specifications

Item Specification
Rated power supply voltage 100 to 240 VAC, 50/60 Hz
Allowable voltage range 85% to 110% of rated power supply voltage
Power consumption (at maximum load) 6 VA max.
Current consumption (DeviceNet
power supply) 45 mA max. (24 VDC)
Vibration resistance 10 to 55 Hz, 10 m/s² for 2 hours along 3 axes
Shock resistance Single-amplitude: 0.35 mm, Acceleration: 50 m/s² Vibration: 10 to 55 Hz,
10 sweeps of 5 minutes each along 3 axes
Dielectric strength 2,000 V for 1 min between all terminals and case, and between power
supply terminals and temperature input/RS-485 output/USB output/
DeviceNet output/transistor output
Insulation resistance 20 MΩ min. (at 500 VDC)
Ambient operating temperature -10 to 55°C (with no condensation or icing)
Ambient operating humidity 25% to 85%
Ambient storage temperature -25 to 65°C (with no condensation or icing)
Dimensions 45 × 90 × 110 mm (W×H×D) (excluding protrusions)
Memory backup EEPROM (non-volatile memory), No. of writes: 1,000,000
Weight Approx. 170 g

Current Transformer (CT) Cable

Model KM20-CTF-CB3
Cable length 3 m

Note: Use only the CT Cable specified by OMRON.

Special ZCTs
Zero-phase Current Transformers (Compatible ZCTs)

Structure Indoor, through-hole
Model OTG-L21 OTG-L30 OTG-L42 OTG-L68 OTG-L82 OTG-L156
Rated current 50 A 100 A 200 A 400 A 600 A 1,000 A
Through-hole diameter 21 30 42 68 82 156
Rated load 600 VAC max, 50/60 Hz, Single-phase/three-phase
Output terminal
polarity Polarity (Connect CT output terminal k to terminal 5 or 7 and terminal I to terminal 6 or 8.)
Secondary connection Terminals (with test terminals kt and lt)
Insulation resistance 100 MΩ min. (between charged metal parts and ground)
Dielectric strength 2,200 VAC at 50/60 Hz for 1min (between charged metal parts and ground)
Ambient operating
temperature -10 to 60°C (with no icing)
Ambient operating
humidity 45% to 85%
Weight Approx. 90 g Approx. 130 g Approx. 230 g Approx. 480 g Approx. 700 g Approx. 6.6 kg

Structure Indoor, split-type Outdoor,
through-hole Outdoor,
split-type
Model OTG-CN52 OTG-CN77 OTGCN112 OTG-LA30W OTG-CN36W
Rated current 200 A 400 A 600 A 100 A 150 A
Through-hole diameter 52 77 112 30 36
Rated load 600 VAC max, 50/60 Hz, Single-phase/three-phase
Output terminal polarity Polarity (Connect CT output terminal k to terminal 5 or 7 and terminal I to terminal 6 or 8.)
Secondary connection Terminals (with test terminals kt and lt) Lead wire I = 500 Lead wire I = 450
Insulation resistance 100 MΩ min. (between charged metal parts and ground)
Dielectric strength 2,200 VAC at 50/60 Hz for 1min (between charged metal parts and ground)
Ambient operating temperature -10 to 60°C (with no icing)
Ambient operating humidity 45% to 85%
Weight Approx. 1.3 kg Approx. 2.5 kg Approx. 3.5 kg Approx. 140 g Approx. 650 g

Note: Operate the Special ZCTs at a low voltage of 600 V or less.

Current Transformer for Ground Wires

Structure Indoor, split-type
Model K6ER-CN22
Rated current 2 A
Through-hole diameter 22
Rated load 600 VAC max, 50/60 Hz, Single-phase/three-phase
Output terminal polarity Polarity (Connect CT output terminal k to terminal 5 or 7 and terminal I to terminal
6 or 8.)
Secondary connection Lead wire I: 150, Enclosed cable: 3,000 mm
Insulation resistance 100 MΩ min. (between core and output lead wire)
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min (between core and output lead wire)
Ambient operating temperature -10 to 60°C (with no icing)
Ambient operating humidity 80% max.
Weight Approx. 65 g

last update: April 3, 2017

OMRON KE1 lineup
KE1 Smart Measurement and Monitor Units/Lineup
last update: April 3, 2017
Main Units

Model Unit type Unit category Power supply
voltage Commu-
nications
KE1-PGR1C-FLK Power/Earth Leakage Monitor Unit Measurement
Master 100 to 240 VAC RS-485
KE1-PVS1C-FLK Power/Momentary Voltage Sag Monitor Unit
KE1-VSU1B-FLK Momentary Voltage Sag Monitor Unit Function Slave
KE1-VAU1B-FLK Voltage/Current Monitor Unit
KE1-CTD8E CT Expansion Unit CT Expansion
Slave Not required.* ---
KE1-ZCT8E ZCT Expansion Unit
KE1-DRT-FLK DeviceNet Communications Unit Communications
Slave 100 to 240 VAC RS-485
DeviceNet

* The CT and ZCT Expansion Units cannot be used in standalone operation. They must be used together with a
Measurement Master Unit.
Power is supplied to the CT and ZCT Expansion Units from the Measurement Master Unit. Power supply wiring is not
required.

Options (Order Separately)
CT Input
Current Transformers (CTs)

Model Rated primary current Rated secondary current Installation
KM20-CTF-5A 5 A Special output Split-type
KM20-CTF-50A 50 A
KM20-CTF-100A 100 A
KM20-CTF-200A 200 A
KM20-CTF-400A 400 A
KM20-CTF-600A 600 A
M20-CTB-5A/50A 5 A/50 A In-panel mounting
(through-hole)

Note: CT Cables are not included with the CTs.

Current Transformer (CT) Cable

Model Specification
KM20-CTF-CB3 3-m cable

Note: Use only the CT Cable specified by OMRON.

ZCT Input
Zero-phase Current Transformers (Compatible ZCTs)

Struc-
ture Indoor, through-hole Indoor, split-type Outdoor, through-hole Outdoor, split-type
Rated
current Through-
hole
diameter
(mm) Model Through-
hole
diameter
(mm) Model Through-
hole
diameter
(mm) Model Through-
hole
diameter
(mm) Model
50 A 21 OTG-L21 --- --- --- --- --- ---
100 A 30 OTG-L30 --- --- 30 OTG-LA30W --- ---
150 A --- --- --- --- --- --- 36 TG-CN36W
200 A 42 OTG-L42 52 OTG-CN52 --- --- --- ---
400 A 68 OTG-L68 77 OTG-CN77 --- --- --- ---
600 A 82 OTG-L82 112 OTG-CN112 --- --- --- ---
1,000 A 156 TG-L156 --- --- --- --- --- ---

Current Transformer for Ground Wires

Structure Indoor, split-type
Rated current Through-hole diameter (mm) Model
2 A 22 K6ER-CN22

Related Devices (Sold Separately)
When Connected to a Computer
Communications Interface Converters

Model Size (mm) Communications conversion Power supply voltage
K3SC-10 AC100-240 30 × 80 × 78
(W × H × D) RS-232C, USB <-> Half-duplex RS-485 100 to 240 VAC
K3SC-10 AC/DC24 24 VAC/DC

DIN Track

Model
PFP-100N
PFP-50N

Clamp (End Plate)

Model
PFP-M

last update: April 3, 2017

OMRON KE1 catalog
KE1 Smart Measurement and Monitor Units/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

KE1 Data Sheet N173-E1-01
[15420KB] Oct 12, 201720171012 KE1 Data Sheet

NO. KE1

TYPE:Electric Power Monitoring Equipment Smart Measurement and Power Monitor Copyright Statement

DATE:2021-06-08

Associated products:
KM50-C Smart Power Monitor/Features D6FZ-FGT Series Air Flow Sensor/Features

Model	KE1- PGR1C- FLK (Power/ Earth Leakage)	KE1- PVS1C- FLK (Power/ Momentary Voltage Sag)	KE1- VSU1B- FLK (Momentary Voltage Sag)	KE1- VAU1B- FLK (Voltage/ Current)	KE1- CTD8E (CT Expansion)	KE1- ZCT8E (ZCT Expansion)
Applicable phase wiring method	Single-phase two-wire, single-phase three-wire, three-phase three-wire, and three- phase four-wire
Power supply	Rated power supply voltage	100 to 240 VAC, 50/60 Hz	---
Allowable supply voltage range	85% to 110% of rated power supply voltage	---
Power supply fluctuation frequency range	45 to 65 Hz	---
Power consumption	Standalone: 10 VA max., Maximum connections: 14 VA max.	10 VA max.
Power interruption compensation method	---	Backup for 1.2 seconds min. with electric double-layer capacitor for voltage measurement only.	---
Input	Rated input voltage	100 to 480 VAC (single-phase, 2-wire): Line voltage 100/200 VAC (single-phase, 3-wire): Phase voltage/line voltage 100 to 480 VAC (3-phase, 3-wire): Line voltage 58 to 277 VAC/100 to 480 VAC (3-phase, 4-wire): Phase voltage/line voltage	---
Rated input current for CT	5 A, 50 A, 100 A, 200 A, 400 A, or 600 A Special CTs used.	---	5 A, 50 A, 100 A, 200 A, 400 A, or 600 A Special CTs used.	---
Rated input current for ZCT	50 A, 100 A, 150 A, 200 A, 400 A, 600 A, or 1,000 A	---	50 A, 100 A, 150 A, 200 A, 400 A, 600 A, or 1,000 A
Rated input power	With 5-A CT: 4 kW With 50-A CT: 40 kW With 100-A CT: 80 kW With 200-A CT: 160 kW With 400-A CT: 320 kW With 600-A CT: 480 kW	---	With 5-A CT: 4 kW With 50-A CT: 40 kW With 100-A CT: 80 kW With 200-A CT: 160 kW With 400-A CT: 320 kW With 600-A CT: 80 kW	---
Rated input frequency	50/60 Hz	---
Input frequency fluctuation range	45 to 65 Hz	---
Input leakage current	1,000 mA	---	1,000 mA
Allowable input voltage	110% of rated input voltage (continuous)	---
Allowable input current	120% of rated input current (continuous)	---	120% of rated current (continuous)	---
Rated input load	Voltage input: 0.5 VA max. (excluding power supply)	---
Current input: 0.5 VA max. (for each input)	---	Current input: 0.5 VA max. (for each input)	---
Clock	Clock setting	2012 to 2099 (Adjusted for leap years during this period.)	---
Clock accuracy	±1.5 min./month (at 23°C)	---
Clock backup period	Seven-day backup with an electric double-layer capacitor (after being powered for at least 24 hours and when the power is interrupted at 23°C)	---
Ambient operating temperature	-10 to 55°C (with no condensation or icing)
Storage temperature	-25 to 65°C (with no condensation or icing)
Ambient operating humidity	25% to 85%
Storage humidity	25% to 85%
Altitude	2,000 m max.
Installation environment	Overvoltage category II, pollution degree 2, measurement category II
Compliant standards	All KE1 Units	EN 61010-2-030 (IEC 61010-2-030) EN61326-1 Industrial electromagnetic environment UL61010-1 UL61010-2-030

Model	KE1- PGR1C- FLK (Power/ Earth Leakage)	KE1- PVS1C- FLK (Power/ Momentary Voltage Sag)	KE1- VSU1B- FLK (Momentary Voltage Sag)	KE1- VAU1B- FLK (Voltage/ Current)	KE1- CTD8E (CT Expansion)	KE1- ZCT8E (ZCT Expansion)
Accuracy *1	Voltage	±1.0% FS ±1 digit The accuracy of the voltage across the Vtr is ±2.0% FS ±1 digit under the same conditions.	---
Current	±1.0% FS ±1 digit However, the accuracy is ±2.0% FS ±1 digit for the phase-S current for a three-phase, three-wire circuit and the phase-N current for a single-phase, three-wire circuit under the same conditions.	---	±1.0% FS ±1 digit However, the accuracy is ±2.0% FS ±1 digit for the phase-S current for a three-phase, three- wire circuit and the phase-N current for a single-phase, three-wire circuit under the same conditions.	---
Leakage current	30 to 200 mA: ±5% rdg ±1 digit 200 to 1,000 mA: ±1%FS ±1 digit	---	30 to 200 mA: ±5% rdg ±1 digit 200 to 1,000 mA: ±1%FS ±1 digit
Power (active power and reactive power)	Active power and reactive power ±2.0% FS ±1 digit (power factor = 1)	---	Active power and reactive power ±2.0% FS ±1 digit (Power factor = 1)	---
Frequency	±0.3 Hz ±1 digit	---
*Power factor 2**	±5.0% FS (power factor = 0.5 to 1 to 0.5)	---	±5.0% FS (Power factor = 0.5 to 1 to 0.5)	---
Temperature	---
*Temperature influence 1**	±1.0% FS (percentage of the measurement value at an ambient temperature of 23°C, rated input, rated frequency, and a power factor of 1 in the operating temperature range)
*Frequency influence 1**	±1.0% FS (percentage of the measurement value at an ambient temperature of 23°C, rated input, rated frequency, and a power factor of 1 in the rated frequency ±5 Hz range)
*Influence of harmonics 1**	±0.5% FS (at ambient temperature of 23°C, error for superimposed 2nd, 3rd, 5th, 7th, 9th, 11th, and 13th harmonics for a content percentage of 30% for current and 5% for voltage of the basic wave)
Low-cut current set value	0.1% to 19.9% of rated input in 0.1% increments	---	0.1% to 19.9% of rated input in 0.1% increments	---
Low-cut leakage current set value	Variable in 0.1-mA increments between 0.1 and 30.0 mA	---	Variable in 0.1-mA increments between 0.1 and 30.0 mA
Sampling cycle	100 ms for measurement voltage at 50 Hz and 83.3 ms for measurement voltage at 60 Hz
Insulation resistance	Insulation resistance: 20 MΩ (at 500 VDC)
Dielectric strength	All models: Locations to which 2,000 V was applied for one minute: Between all terminals and case KE1-PGR1C-FLK: Between the power supply terminals and RS-485/transistor/relay outputs Between the power supply terminals and current/voltage/earth leakage inputs Between current/voltage/earth leakage inputs and RS-485/relay/transistor outputs KE1-PVS1C-FLK: Between the power supply terminals and RS-485/transistor/relay outputs Between the power supply terminals and current/voltage input Between current/voltage inputs and RS-485/relay/transistor outputs KE1-VSU1B-FLK: Between power supply terminals and RS-485/relay outputs Between the power supply terminals and voltage inputs Between voltage inputs and RS-485/relay outputs KE1-VAU1B-FLK: Between power supply terminals and RS-485/relay outputs Between the power supply terminals and current/voltage input Between current/voltage inputs and RS-485/relay outputs KE1-CTD8E: Between current inputs and relay outputs KE1-ZCT8E: Between earth leakage inputs and relay outputs
Vibration resistance	Single-amplitude: 0.35 mm, Acceleration: 50 m/s² Vibration: 10 to 55 Hz, 10 sweeps of 5 minutes each along 3 axes
Shock resistance	150 m/s², 3 times each in 6 directions (up/down, left/right, forward/backward)
Weight	Approx. 230 g
Memory backup	No. of writes to non-volatile memory: 1,000,000 times
Event inputs	Number of inputs	---
No-voltage inputs	---
Voltage input	---
Tempera- ture in- puts	Thermistor inputs	---
Applicable thermistor	---
Combinations	Capable of supporting 7 event inputs and 1 temperature input when connected with the KM1-EMU8A-FLK.	---
Transis- tor out- puts	Number of outputs	One open-collector output (OUT2)	---
Output capacity	30 VDC, 30 mA	---
ON residual voltage	1.2 V max.	---
OFF leakage current	100 μA max.	---
Total power consumption pulse output	Outputs one pulse when the power consumption reaches the set pulse output unit (1, 10, 100, 1k, 2k, 5k, 10k, 20k, 50k, 100k W/h).	---
Alarm output	Outputs an alarm based on the set alarm output threshold.	---
Alarm recovery method	Automatic recovery only	---
Relay outputs	Number of outputs	One NO contact output (OUT1)	---	One NO contact output (OUT1)	Two NO contact outputs (OUT1 and OUT2)	One NO contact output (OUT1)
Rated load	Resistance load, 250 VAC, 3 A; 30 VDC, 3 A Inductive load (cosφ = 0.4, L/R = 7 ms): 250 VAC, 1 A; 30 VDC, 1 A	---	Resistance load, 250 VAC, 3 A; 30 VDC, 3 A Inductive load (cosφ = 0.4, L/R = 7 ms): 250 VAC, 1 A; 30 VDC, 1 A	Resistance load, 125 VAC, 3 A; 30 VDC, 3 A
Mechanical life expectancy	10,000,000 operations	---	10,000,000 operations	5,000,000 operations min.
Electrical life expectancy	50,000 operations min. (rated load switching frequency: 1,800 times/h)	---	50,000 operations min. (rated load switching frequency: 1,800 times/h)	200,000 times min. (rated load switching frequency: 1,800 times/h)
Failure rate P level	5 VDC, 10 mA (at a switching frequency of 120 times/min)	---	5 VDC, 10 mA (at a switching frequency of 120 times/ min)
Alarm output	Turns output ON or OFF based on the alarm set value.	---	Turns output ON or OFF based on the alarm set value.
Recovery method	Automatic recovery only	---	Automatic recovery only
Semicon ductor relay outputs	Number of outputs	---	One MOS FET output (OUT1)	One MOS FET output (OUT2)	---
Maximum load voltage	---	Peak: 24 VAC/DC	---
Continuous load current	---	Peak: 80 mA AC/DC	---
ON resistance	---	15 Ω max.	---
Open-circuit leakage current	---	1 nA max.	---
Alarm output	---	Turns output ON or OFF based on the alarm set value.	---
Recovery method	---	Automatic recovery only	---
Commu- nications	Protocols	Communications protocol setting OFF: CompoWay/F, ON: Modbus
Unit number setting	CompoWay/F: 0 to 99, Modbus:1 to 99 When a switch operation is performed to set the protocol to Modbus when the node number is set to 0, the node number is automatically changed to 1.
Communication items	Refer to the KM1/KE1 Communications Manual.
RS-485	Sync method	Start-stop	---
Baud rate	9,600 bps, 19,200 bps, or 38,400 bps	---
Transmission code	CompoWay/F: ASCII, Modbus: Binary	---
Data length	CompoWay/F: 7 bits, 8 bits; Modbus: 8 bits	---
Stop bits	CompoWay/F: 1 bits or 2 bits Modbus: 1 bit with priority, 2 bits without priority	---
Parity	Even, odd, or none	---
Maximum transmission distance	500 m	---
Maximum number of nodes	CompoWay/F: 31, Modbus: 99	---
USB	USB 1.1 compliant
Memory retention for power interruptions	Parameter data, alarm history, logged data, and backup data	Parameter data, alarm history, logged data, backup data, and momentary voltage sag history	Parameter data, alarm history, logged data, and momentary voltage sag history	Parameter data, alarm history, and logged data	Parameter data, alarm history, and backup data	Parameter data and alarm history
Number of connect connector insertions/ removals	25 times

Model	KE1- PGR1C- FLK (Power/ Earth Leakage)	KE1- PVS1C- FLK (Power/ Momentary Voltage Sag)	KE1- VSU1B- FLK (Momentary Voltage Sag)	KE1- VAU1B- FLK (Voltage/ Current)	KE1- CTD8E (CT Expansion)	KE1- ZCT8E (ZCT Expansion)
Voltage monitor- ing	Alarm threshold (overvoltage/ undervoltage)	0.0 to 12,100.0 V	---
Operation characteristic	±1.0% FS ±1 digit The accuracy of the voltage across the Vtr is ±2.0% FS ±1 digit under the same conditions.	---
Alarm ON delay (overvoltage/ undervoltage)	0.1 to 10.0 s	---
Operating time characteristic	±0.2 s	---
Alarm hysteresis (overvoltage/ undervoltage)	0.0 to 2,200.0 V	---
Resetting time	0.5 s (Cannot be changed.)	---
Resetting time characteristic	±0.2 s	---
Current monitor- ing	Alarm threshold (overcurrent/ undercurrent)	0.0 to 6,000.0 A	---	0.0 to 6,000.0 A	---
Operation characteristic	±1.0% FS ±1 digit However, the accuracy is ±2.0% FS ±1 digit for the phase-S current for a three-phase, three-wire circuit and the phase-N current for a single- phase, three-wire circuit under the same conditions.	---	±1.0% FS ±1 digit However, the accuracy is ±2.0% FS ±1 digit for the phase-S current for a three-phase, three- wire circuit and the phase-N current for a single-phase, three- wire circuit under the same conditions.	---
Alarm ON delay (overcurrent/ undercurrent)	0.1 to 10.0 s	---	0.1 to 10.0 s	---
Operation characteristic	±0.2 s	---	±0.2 s	---
Alarm hysteresis (overcurrent/ undercurrent)	0.0 to 1,000.0 A	---	0.0 to 1,000.0 A	---
Resetting time	0.5 s (Cannot be changed.)	---	0.5 s (Cannot be changed.)	---
Resetting time characteristic	±0.2 s	---	±0.2 s	---
Active power monitor- ing	Alarm thresholds (upper limit/lower limit)	-120,000,000 to 120,000,000 W	---	-120,000,000 to 120,000,000 W	---
Operation characteristic	±2.0% FS ±1 digit	---	±2.0% FS ±1 digit	---
Alarm ON delay (upper limit/lower limit)	0.5 to 10.0 s	---	0.5 to 10.0 s	---
Operation characteristic	±0.2 s	---	±0.2 s	---
Alarm hysteresis (upper limit/lower limit)	0 to 24,000,000 W	---	0 to 24,000,000 W	---
Resetting time	0.5 s (Cannot be changed.)	---	0.5 s (Cannot be changed.)	---
Resetting time characteristic	±0.2 s	---	±0.2 s	---
Reactive power monitor- ing	Alarm thresholds (upper limit/lower limit)	-120,000,000 to 120,000,000 W	---	-120,000,000 to 120,000,000 W	---
Operation characteristic	±2.0% FS ±1 digit	---	±2.0% FS ±1 digit	---
Alarm ON delay (upper limit/lower limit)	0.5 to 10.0 s	---	0.5 to 10.0 s	---
Operation characteristic	±0.2 s	---	±0.2 s	---
Alarm hysteresis (upper limit/lower limit)	0 to 24,000,000 W	---	0 to 24,000,000 W	---
Resetting time	0.5 s (Cannot be changed.)	---	0.5 s (Cannot be changed.)	---
Resetting time characteristic	±0.2 s	---	±0.2 s	---
Power factor monitor- ing	Alarm threshold	-1.00 to 1.00	---	-1.00 to 1.00	---
Operation characteristic	±5.0% FS (Power factor = 0.5 to 1 to 0.5)	---	±5.0% FS (Power factor = 0.5 to 1 to 0.5)	---
Alarm ON delay	0.5 to 10.0 s	---	0.5 to 10.0 s	---
Operation characteristic	±0.2 s	---	±0.2 s	---
Alarm hysteresis	0.00 to 1.00	---	0.00 to 1.00	---
Earth leakage monitor- ing	Earth leakage comparison value	30 to 1,000 mA	---	30 to 1,000 mA
Operation characteristic	±5% rdg ±1 digit for 30 to 200 mA, ±1% FS ±1 digit for 200 to 1,000 mA	---	±5% rdg ±1 digit for 30 to 200 mA, ±1% FS ±1 digit for 200 to 1,000 mA
Earth leakage operating time	0.1 to 20.0 s	---	0.1 to 20.0 s
Operation characteristic	±0.2 s	---	±0.2 s
Resetting condition	95% of operating value	---	95% of operating value
Resetting time	0.5 s (Cannot be changed.)	---	0.5 s (Cannot be changed.)
Momen- tary volt- age sag monitor- ing	Momentary voltage sag detection voltage	---	0 to 480.0 V	---
Allowable error in detection voltage	---	±2.5% FS ±1 digit	---
Continuation time for momentary voltage sag	---	Without backup: 0.02 to 0.2 s	---
With backup: 0.02 to 1.00 s
Relay output operating time accuracy	---	±5 ms	---
Open phase monitor- ing	Open phase detection condition	(Largest error between any phase voltage and average voltage) ÷ Average voltage × 100 . 85%	---
Operation characteristic	±1.0% FS ±1 digit The accuracy of the voltage across the Vtr is ±2.0% FS ±1 digit under the same conditions.	---
Operating time	0.1 s	---
Operation characteristic	±0.2 s	---
Resetting condition	Non-balance ratio: Less than 13%	---
Resetting time	0.5 s (Cannot be changed.)	---
Resetting time characteristic	±0.2 s	---
Re- versed phase monitor- ing	Reversed phase detection condition	Change in voltage phase sequence lasts for 0.1 second or longer.	---
Operating time	0.1 s	---
Operation characteristic	±0.2 s	---
Resetting condition	Phase offset within ±45°	---
Resetting time	0.5 s (Cannot be changed.)	---
Resetting time characteristic	±0.2 s	---

Structure	Split-type	Through- hole
Model	KM20- CTF-5A	KM20- CTF-50A	KM20- CTF-100A	KM20- CTF-200A	KM20- CTF-400A	KM20- CTF-600A	KM20- CTB- 5A/50A
Rated primary current	5 A	50 A	100 A	200 A	400 A	600 A	5A/50 A
Secondary winding	3,000 turns	6,000 turns	9,000 turns	3,000 turns
Applicable frequency	10 Hz to 5 kHz
Insulation resistance	Between output terminals and case: 50 MΩ min. (at 500 VDC)
Dielectric strength	Between output terminals and case: 2,000 VAC for 1 minute
Protective element	7.5-V clamp element
Allowable number of connections/ disconnections	100 times
Mountable wire diameter	7.4 mm max.	8.5 mm max.	11 mm max.	24 mm max.	35.5 mm max.	8.4 mm max.
Operating temperature and humidity ranges	-20 to 60°C, 85% max. (with no condensation)
Storage temperature and humidity ranges	-30 to 65°C, 85% max. (with no condensation)

Item	Specification
Rated power supply voltage	100 to 240 VAC, 50/60 Hz
Allowable voltage range	85% to 110% of rated power supply voltage
Power consumption (at maximum load)	6 VA max.
Current consumption (DeviceNet power supply)	45 mA max. (24 VDC)
Vibration resistance	10 to 55 Hz, 10 m/s² for 2 hours along 3 axes
Shock resistance	Single-amplitude: 0.35 mm, Acceleration: 50 m/s² Vibration: 10 to 55 Hz, 10 sweeps of 5 minutes each along 3 axes
Dielectric strength	2,000 V for 1 min between all terminals and case, and between power supply terminals and temperature input/RS-485 output/USB output/ DeviceNet output/transistor output
Insulation resistance	20 MΩ min. (at 500 VDC)
Ambient operating temperature	-10 to 55°C (with no condensation or icing)
Ambient operating humidity	25% to 85%
Ambient storage temperature	-25 to 65°C (with no condensation or icing)
Dimensions	45 × 90 × 110 mm (W×H×D) (excluding protrusions)
Memory backup	EEPROM (non-volatile memory), No. of writes: 1,000,000
Weight	Approx. 170 g

Model	KM20-CTF-CB3
Cable length	3 m

Structure	Indoor, through-hole
Model	OTG-L21	OTG-L30	OTG-L42	OTG-L68	OTG-L82	OTG-L156
Rated current	50 A	100 A	200 A	400 A	600 A	1,000 A
Through-hole diameter	21	30	42	68	82	156
Rated load	600 VAC max, 50/60 Hz, Single-phase/three-phase
Output terminal polarity	Polarity (Connect CT output terminal k to terminal 5 or 7 and terminal I to terminal 6 or 8.)
Secondary connection	Terminals (with test terminals kt and lt)
Insulation resistance	100 MΩ min. (between charged metal parts and ground)
Dielectric strength	2,200 VAC at 50/60 Hz for 1min (between charged metal parts and ground)
Ambient operating temperature	-10 to 60°C (with no icing)
Ambient operating humidity	45% to 85%
Weight	Approx. 90 g	Approx. 130 g	Approx. 230 g	Approx. 480 g	Approx. 700 g	Approx. 6.6 kg

Structure	Indoor, split-type	Outdoor, through-hole	Outdoor, split-type
Model	OTG-CN52	OTG-CN77	OTGCN112	OTG-LA30W	OTG-CN36W
Rated current	200 A	400 A	600 A	100 A	150 A
Through-hole diameter	52	77	112	30	36
Rated load	600 VAC max, 50/60 Hz, Single-phase/three-phase
Output terminal polarity	Polarity (Connect CT output terminal k to terminal 5 or 7 and terminal I to terminal 6 or 8.)
Secondary connection	Terminals (with test terminals kt and lt)	Lead wire I = 500	Lead wire I = 450
Insulation resistance	100 MΩ min. (between charged metal parts and ground)
Dielectric strength	2,200 VAC at 50/60 Hz for 1min (between charged metal parts and ground)
Ambient operating temperature	-10 to 60°C (with no icing)
Ambient operating humidity	45% to 85%
Weight	Approx. 1.3 kg	Approx. 2.5 kg	Approx. 3.5 kg	Approx. 140 g	Approx. 650 g

Structure	Indoor, split-type
Model	K6ER-CN22
Rated current	2 A
Through-hole diameter	22
Rated load	600 VAC max, 50/60 Hz, Single-phase/three-phase
Output terminal polarity	Polarity (Connect CT output terminal k to terminal 5 or 7 and terminal I to terminal 6 or 8.)
Secondary connection	Lead wire I: 150, Enclosed cable: 3,000 mm
Insulation resistance	100 MΩ min. (between core and output lead wire)
Dielectric strength	1,000 VAC at 50/60 Hz for 1 min (between core and output lead wire)
Ambient operating temperature	-10 to 60°C (with no icing)
Ambient operating humidity	80% max.
Weight	Approx. 65 g

Model	Unit type	Unit category	Power supply voltage	Commu- nications
KE1-PGR1C-FLK	Power/Earth Leakage Monitor Unit	Measurement Master	100 to 240 VAC	RS-485
KE1-PVS1C-FLK	Power/Momentary Voltage Sag Monitor Unit
KE1-VSU1B-FLK	Momentary Voltage Sag Monitor Unit	Function Slave
KE1-VAU1B-FLK	Voltage/Current Monitor Unit
KE1-CTD8E	CT Expansion Unit	CT Expansion Slave	Not required.*	---
KE1-ZCT8E	ZCT Expansion Unit
KE1-DRT-FLK	DeviceNet Communications Unit	Communications Slave	100 to 240 VAC	RS-485 DeviceNet

Model	Rated primary current	Rated secondary current	Installation
KM20-CTF-5A	5 A	Special output	Split-type
KM20-CTF-50A	50 A
KM20-CTF-100A	100 A
KM20-CTF-200A	200 A
KM20-CTF-400A	400 A
KM20-CTF-600A	600 A
M20-CTB-5A/50A	5 A/50 A	In-panel mounting (through-hole)

Model	Specification
KM20-CTF-CB3	3-m cable

Struc- ture	Indoor, through-hole	Indoor, split-type	Outdoor, through-hole	Outdoor, split-type
Rated current	Through- hole diameter (mm)	Model	Through- hole diameter (mm)	Model	Through- hole diameter (mm)	Model	Through- hole diameter (mm)	Model
50 A	21	OTG-L21	---	---	---	---	---	---
100 A	30	OTG-L30	---	---	30	OTG-LA30W	---	---
150 A	---	---	---	---	---	---	36	TG-CN36W
200 A	42	OTG-L42	52	OTG-CN52	---	---	---	---
400 A	68	OTG-L68	77	OTG-CN77	---	---	---	---
600 A	82	OTG-L82	112	OTG-CN112	---	---	---	---
1,000 A	156	TG-L156	---	---	---	---	---	---

Structure	Indoor, split-type
Rated current	Through-hole diameter (mm)	Model
2 A	22	K6ER-CN22

Model	Size (mm)	Communications conversion	Power supply voltage
K3SC-10 AC100-240	30 × 80 × 78 (W × H × D)	RS-232C, USB <-> Half-duplex RS-485	100 to 240 VAC
K3SC-10 AC/DC24	24 VAC/DC

Model
PFP-100N
PFP-50N

Model
PFP-M

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
KE1 Data Sheet	N173-E1-01 [15420KB]	Oct 12, 201720171012	KE1 Data Sheet

Return to OMRON

OMRON KE1Energy Conservation Support / Environment Measure Equipment/ Electric Power Monitoring Equipment/Smart Measurement and Power Monitor

OMRON KE1 Dimensions

Monitor Power and Earth Leakage with Just One Unit

Alarms for 25-ms Voltage Sags and Power Fluctuation Logging

Purchase the OMRON Smart Measurement and Power Monitor Please fill in the following

OMRON KE1 dimension

Main Units

KE1-PGR1C-FLK/PVS1C-FLK/VSU1B-FLK/VAU1B-FLK/CTD8E/ZCT8E

KE1-DRT-FLK

Split-type Current Transformers (CTs)

KM20-CTF-5A

KM20-CTF-50A

KM20-CTF-100A

KM20-CTF-200A

KM20-CTF-400A/600A

CT Through-hole Dimensions

KM20-CTB-5A/50A

CT Cable

KM20-CTF-CB3 (Special CT cable)

Zero-phase Current Transformers (Compatible ZCTs)

Indoor, through-holeOTG-L21 (50A)

Indoor, through-holeOTG-L30 (100A)

Indoor, through-holeOTG-L42 (200A)

Indoor, through-holeOTG-L68 (400A)

Indoor, through-holeOTG-L82 (600A)

Indoor, through-holeOTG-L156 (1,000A)

Indoor, split-typeOTG-CN52 (200A)

Indoor, split-typeOTG-CN77 (400A)

Indoor, split-typeOTG-CN112 (600A)

Outdoor, through-holeOTG-LA30W (100A)

Outdoor, split-typeOTG-CN36W (150A)

Largest Applicable Wire Sizes for CTs

Current Transformer for Ground Wires

Indoor, split-typeK6ER-CN22 (2A)

Communications Interface ConverterK3SC-10

DIN TrackPFP-100NPFP-50N

Clamp (End Plate)PFP-M

OMRON KE1 specification

Ratings

Characteristics

Protection

Special CTs

Current Transformers (CTs)

General Specifications

Current Transformer (CT) Cable

Special ZCTs

Zero-phase Current Transformers (Compatible ZCTs)

Current Transformer for Ground Wires

OMRON KE1 lineup

Main Units

Options (Order Separately)

CT Input

Current Transformers (CTs)

Current Transformer (CT) Cable

ZCT Input

Zero-phase Current Transformers (Compatible ZCTs)

Current Transformer for Ground Wires

Related Devices (Sold Separately)

When Connected to a ComputerCommunications Interface Converters

DIN Track

Clamp (End Plate)

OMRON KE1 catalog

English

Global Edition

Indoor, through-hole
OTG-L21 (50A)

Indoor, through-hole
OTG-L30 (100A)

Indoor, through-hole
OTG-L42 (200A)

Indoor, through-hole
OTG-L68 (400A)

Indoor, through-hole
OTG-L82 (600A)

Indoor, through-hole
OTG-L156 (1,000A)

Indoor, split-type
OTG-CN52 (200A)

Indoor, split-type
OTG-CN77 (400A)

Indoor, split-type
OTG-CN112 (600A)

Outdoor, through-hole
OTG-LA30W (100A)

Outdoor, split-type
OTG-CN36W (150A)

Indoor, split-type
K6ER-CN22 (2A)

Communications Interface Converter
K3SC-10

DIN Track
PFP-100N
PFP-50N

Clamp (End Plate)
PFP-M

When Connected to a Computer
Communications Interface Converters
