3 slim, lightweight types to choose from.
Easy installation.
At 6 cm in depth and weighing 1 kg (ZJ-FW029), the ZJ-FW Series has pursued and achieved a slim, lightweight configuration. These ionizers easily fit on narrow workbenches or in high locations where previously they could not go. Moreover, you can select a size according to the area of coverage, so targets are uniformly neutralized.
Easy installation
Ideal for narrow workbenches to wide lines
With three sizes available, the ideal ionizer for the installation environment and ionization area can be selected. Stable uniform ionization is possible for any kind of work setup from narrow workbenches to wide lines. Moreover, tedious-to-rig air ducts used with bar type ionizers are unnecessary, which also translates into greater energy savings.
Easily installs in places where not applicable before!
(Stand, L-mounting bracket and pipe-mounting bracket available.)
Ionization performance
High speed ionization in a slim configuration
A proprietary louver structure enables a slim configuration and yet high speed ionization that removes electrostatic charge in 1 sec or less. As a standard feature, ion balance adjustment is available and airflow can be set by 4-step sliding switch. Moreover, when using the standard stand, the angle can be easily adjusted against a graduated scale.
Reliability
Four indicators and an alarm output let you easily identify the operating status.
The Ionizer’s operating status is displayed on easy-to-see indicators and it can be output to an external device. Besides the power (PWR) indicator, there are a CLEAN lamp that lights when it is time for electrode needle maintenance, an ALM lamp that lights if trouble occurs, and a FAN lamp that is lit while the fan is operating.
Maintainability
Easy electrode needle replacement owing to modular structure
The ionizer adopts a full-open structure that allows users to detach the front cover by just pressing on tabs. This makes electrode needle cleaning very easy. Moreover, the electrode needles are configured as a unit that can be easily and safely replaced.
last update: December 20, 2012
Purchase the OMRON Copyright Statement Please fill in the following
If you have just landed here, this product OMRON ZJ-FW Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the ZJ-FW We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON ZJ-FWPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
X General-purpose Basic Switch/Features
D4C Enclosed Switch/Features
A22NK Key-type Selector Switches/Features
G3J-S Soft-start Solid State Contactors/Features
H5CX Digital Timer/Features
OMRON ZJ-FW lineup
ZJ-FW Fan Ionizer (Area fan type)/Lineuplast update: May 18, 2017
Model
| Model |
|---|
| ZJ-FW013 |
| ZJ-FW029 |
| ZJ-FW053 |
Accessories
| Accessory | Model |
|---|---|
| Replacement filter (6-pack) | ZJ9-FL40FW |
| Replacement discharge electrode (4-electrode set) * | ZJ9-NDT04FW |
| Stand (Included with ZJ-FW029/053) | ZJ9-BRS1FW |
| L-mounting bracket (Included with ZJ-FW013) | ZJ9-BRL1FW |
| Pipe-mounting bracket (For mounting a 28-mm dia. pipe) | ZJ9-BRP1FW |
last update: May 18, 2017
OMRON ZJ-FW specification
ZJ-FW Fan Ionizer (Area fan type)/Specificationslast update: April 25, 2013
Rating/Performance
| Item | ZJ-FW013 | ZJ-FW029 | ZJ-FW053 |
|---|---|---|---|
| Power supply voltage | 24 V DC±10%, Ripple (p-p): 10% | ||
| Current consumption | 0.9 A max | 1.2 A max | 3.0 A max |
| Discharge voltage | ±7.5 kV | ||
| Discharge method | Variable DC | ||
| Ionization time * | 1.5 s | 1 s | |
| Ion balance * | ±10 V max. | ||
| Amount of ozone generated | 0.01 ppm (Measured at a distance of 50 mm from air outlet) | ||
| Indicators | Power (Green), Fan running (Green), Cleaning (Yellow), Alarm (Red) | ||
| Main functions | Ion balance adjustment (Automatic and manual) | ||
| External output (for both cleaning and alarm outputs) | Photo MOS relay output (NPN or PNP) • Applied voltage: 30VDC max., load current: 100mA max. • Residual voltage: 1V max | ||
| Discharge stop input | No-voltage contact input • ON: 0V short circuit • OFF: Open (leakage current: 0.1mA max.) | ||
| Ambient temperature range | 0 to 50°C (No icing or dewing) | ||
| Ambient humidity range | 35% to 65% (No icing or dewing) | ||
| Weight (Packaged) | Approx. 0.6 kg (Approx. 1.2 kg) | Approx. 1 kg (Approx. 1.8 kg) | Approx. 2 kg (Approx. 3 kg) |
| Material | Body:Aluminum, ABS Electrode needle: Tungsten | ||
| Accessories | Instruction sheet, I/O connector, L-mounting bracket, Streamer | Instruction sheet, I/O connector, Stand, Streamer | |
• Measurement conditions Measurement point and distance: 300 mm from body center, Airflow: Max, Plate monitor:
150 x 150 mm, 20 pF
• Ionization time: Time required to lower the charge from ±1000 V to ±100 V
• Ion balance measurement time: 10 s
last update: April 25, 2013
OMRON ZJ-FW dimension
ZJ-FW Fan Ionizer (Area fan type)/Dimensionslast update: May 18, 2017
(Unit: mm)

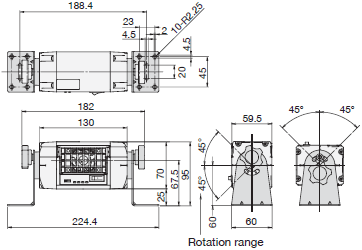

ZJ-FW013

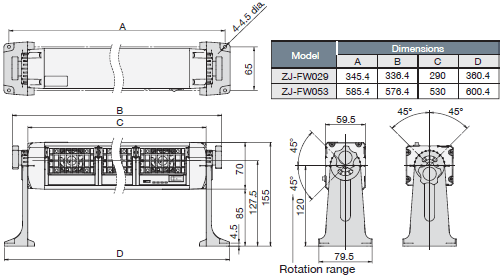

ZJ-FW029/053
