• Pin configuration compatible with G2R Relay and mounts to the P2R/P2RF Socket.

• Standard multiple time ranges and multiple operating modes.

• Conforms to EN61812-1 and IEC60664-1 4 kV/2 for Low Voltage, and EMC Directives.

last update: December 19, 2013

Purchase the OMRON Analog Timers Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON H3RN Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the H3RN We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON H3RNControl Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

G70D-SOC16 / FOM16 Relay Terminal/Features
E2ER / E2ERZ Oil-resistant Proximity Sensors/Features
CS1W-LCB01 / LCB05 Loop Control Boards/Features
SRT2-VID / VOD(-1) Transistor Remote I/O Terminals with Connectors (8/16 Points)/Features
K8AK-PW Three-phase Voltage Relay/Features

OMRON H3RN specification
H3RN Solid-state Timer/Specifications
last update: September 09, 2015
Ratings

Item H3RN-1/H3RN-2 H3RN-11/H3RN-21
Time ranges 0.1 s to 10 min (1 s, 10 s, 1 min, or 10 min
max. selectable) 0.1 min to 10 h (1 min, 10 min, 1 h, or 10 hrs
max. selectable)
Rated supply voltage *2 24 VAC (50/60 Hz); 12, 24 VDC
Pin type Plug-in
Operating mode ON-delay, interval, flicker OFF-start, or flicker-ON start selectable by DIP switch
Operating voltage range 85% to 110% of rated supply voltage (12 VDC: 90% to 110% of rated supply voltage) *1
Reset voltage 10% max. of rated supply voltage
Power consumption 24 VAC: Relay ON: approx. 0.8 VA
12 VDC: Relay ON: approx. 0.5 W
24 VDC: Relay ON: approx. 0.4 W
Control outputs 3 A at 250 VAC, resistive load (cosφ = 1) (G6B-2[]14P-FD-US used (Contact materials:
AgSnIn))
The minimum applicable load is 10 mA at 5 VDC (P reference value).

*1. When using the H3RN in any place where the ambient temperature is more than 50°C, supply 90% to 110% of the
rated voltages (12 VDC: 95% to 110% of the rated voltage).
*2. Refer to Safety Precautions for All Times when combining the Timer with an AC 2-wire proximity sensor.

Characteristics

Item H3RN-1/H3RN-2 H3RN-11/H3RN-21
Accuracy of operating
time ±1% FS max. (1 s range: ±1%±10 ms max.)
Setting error ±15%±50 ms FS max.
Reset time Min. power-opening time: 12, 24 VDC: 0.1 s max. (including halfway reset)
24 VAC: 0.5 s max. (including halfway reset)
Influence of voltage ±2% FS max.
Influence of
temperature ±2% FS max.
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength 2,000 VAC, 50/60 Hz for 1 min (between operating circuit and control output, or contacts of
different poles)
1,000 VAC, 50/60 Hz for 1 min (between non-continuous contacts)
Vibration resistance Destruction: 10 to 55 Hz, 0.75-mm single amplitude for 1 h each in 3 directions
Malfunction: 10 to 55 Hz, 0.5-mm single amplitude for 10 min each in 3 directions
Shock resistance Destruction: 300 m/s²
Malfunction: 100 m/s²
Ambient temperature Operating: -10°C to 55°C (with no icing)
Storage: -25°C to 65°C (with no icing)
Ambient humidity Operating: 35% to 85%
Life expectancy Mechanical: 10,000,000 operations min. (under no load at 1,800 operations/h)
Electrical: 100,000 operations min. (3 A at 250 VAC, resistive load at 1,800 operations/h)
Impulse withstand
voltage Between power terminals: 1 kV
Noise immunity ±1.5 kV, square-wave noise by noise simulator (pulse width: 100 ns/1 μs, 1-ns rise)
Static immunity Destruction: 8 kV
Malfunction: 4 kV
Degree of protection IP40 (Terminal screw sections are excluded.)
Weight Approx. 18 g
EMC (EMI) EN61812-1
Emission Enclosure: EN55011 Group 1 class A
Emission AC Mains: EN55011 Group 1 class A
(EMS) EN61812-1
Immunity ESD: IEC61000-4-2
Immunity RF-interference: IEC61000-4-3
Immunity Burst: IEC61000-4-4
Immunity Surge: IEC51000-4-5
Immunity Conducted Disturbance: IEC61000-4-6
Immunity Voltage Dip/Interruption: IEC61000-4-11
Approved standards UL508, CSA C22.2 No. 14
Conforms to EN61812-1, IEC60664-1 4 kV/2.
Output category according to IEC60947-5-1.

last update: September 09, 2015

OMRON H3RN catalog
H3RN Solid-state Timer/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

H3RN Data Sheet -
[4017KB] Sep 09, 201520150909 H3RN Data Sheet

Model Selection Guide for Timers L130-E1-01
[2548KB] Jun 12, 201720170612 Model Selection Guide for Timers

Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance -
[43KB] Mar 12, 201820180312 Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance

OMRON H3RN lineup
H3RN Solid-state Timer/Lineup
last update: September 24, 2012
List of Models

Supply voltage Time-limit contact Short-time range model
(0.1 s to 10 min) Long-time range model
(0.1 min to 10 h)

24 VAC;
12, 24 VDC SPDT H3RN-1 H3RN-11

DPST-NO H3RN-2 H3RN-21

Accessories(Optional)
Connecting Socket

Timer Track mounting/Front connecting socket Back connecting socket

H3RN-1/-11 P2RF-05-E P2R-057P

H3RN-2/-21 P2RF-08-E P2R-087P

last update: September 24, 2012

OMRON H3RN dimension
H3RN Solid-state Timer/Dimensions
last update: October 12, 2012
Timers

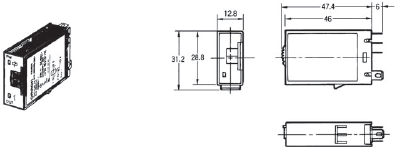

H3RN-1/H3RN-11 Front Mounting

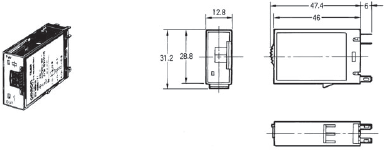

H3RN-2/H3RN-21 Front Mounting

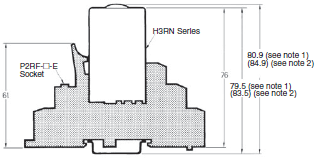

Mounting Height

Use the P2RF-[]-E or P2R-[]7P to mount the H3RN. When ordering any one of these sockets,replace "[]" with "05" for SPDT or "08" for DPST-NO.
The P2RF-[] cannot be used because the hook is a different shape.

P2RF-[]-E

P2R-[]7P

Note:Note:
Note:The value shown indicates the dimension for the P2RF-05-E with the PFP-[]N Mounting Rail.
The value is 71.5 mm when using the PFP-N[]2.
Note:The value shown in parentheses indicates the dimension for the P2RF-08-E with the PFP-[]N Mounting Rail.
The value is 75.5 mm when using the PFP-N[]2.

Note:There are no restrictions to the mounting direction.

last update: October 12, 2012

NO. H3RN

TYPE:Timers Analog Timers Copyright Statement

DATE:2021-06-17

Associated products:
H3YN Solid-state Timer/Features H3DK-M / -S Multi-range, Multi-mode Timer/Features

Item	H3RN-1/H3RN-2	H3RN-11/H3RN-21
Time ranges	0.1 s to 10 min (1 s, 10 s, 1 min, or 10 min max. selectable)	0.1 min to 10 h (1 min, 10 min, 1 h, or 10 hrs max. selectable)
*Rated supply voltage 2**	24 VAC (50/60 Hz); 12, 24 VDC
Pin type	Plug-in
Operating mode	ON-delay, interval, flicker OFF-start, or flicker-ON start selectable by DIP switch
Operating voltage range	85% to 110% of rated supply voltage (12 VDC: 90% to 110% of rated supply voltage) *1
Reset voltage	10% max. of rated supply voltage
Power consumption	24 VAC: Relay ON: approx. 0.8 VA 12 VDC: Relay ON: approx. 0.5 W 24 VDC: Relay ON: approx. 0.4 W
Control outputs	3 A at 250 VAC, resistive load (cosφ = 1) (G6B-2[]14P-FD-US used (Contact materials: AgSnIn)) The minimum applicable load is 10 mA at 5 VDC (P reference value).

Item	H3RN-1/H3RN-2	H3RN-11/H3RN-21
Accuracy of operating time	±1% FS max. (1 s range: ±1%±10 ms max.)
Setting error	±15%±50 ms FS max.
Reset time	Min. power-opening time: 12, 24 VDC: 0.1 s max. (including halfway reset) 24 VAC: 0.5 s max. (including halfway reset)
Influence of voltage	±2% FS max.
Influence of temperature	±2% FS max.
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	2,000 VAC, 50/60 Hz for 1 min (between operating circuit and control output, or contacts of different poles) 1,000 VAC, 50/60 Hz for 1 min (between non-continuous contacts)
Vibration resistance	Destruction: 10 to 55 Hz, 0.75-mm single amplitude for 1 h each in 3 directions Malfunction: 10 to 55 Hz, 0.5-mm single amplitude for 10 min each in 3 directions
Shock resistance	Destruction: 300 m/s² Malfunction: 100 m/s²
Ambient temperature	Operating: -10°C to 55°C (with no icing) Storage: -25°C to 65°C (with no icing)
Ambient humidity	Operating: 35% to 85%
Life expectancy	Mechanical: 10,000,000 operations min. (under no load at 1,800 operations/h) Electrical: 100,000 operations min. (3 A at 250 VAC, resistive load at 1,800 operations/h)
Impulse withstand voltage	Between power terminals: 1 kV
Noise immunity	±1.5 kV, square-wave noise by noise simulator (pulse width: 100 ns/1 μs, 1-ns rise)
Static immunity	Destruction: 8 kV Malfunction: 4 kV
Degree of protection	IP40 (Terminal screw sections are excluded.)
Weight	Approx. 18 g
EMC	(EMI) EN61812-1 Emission Enclosure: EN55011 Group 1 class A Emission AC Mains: EN55011 Group 1 class A (EMS) EN61812-1 Immunity ESD: IEC61000-4-2 Immunity RF-interference: IEC61000-4-3 Immunity Burst: IEC61000-4-4 Immunity Surge: IEC51000-4-5 Immunity Conducted Disturbance: IEC61000-4-6 Immunity Voltage Dip/Interruption: IEC61000-4-11
Approved standards	UL508, CSA C22.2 No. 14 Conforms to EN61812-1, IEC60664-1 4 kV/2. Output category according to IEC60947-5-1.

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
H3RN Data Sheet	- [4017KB]	Sep 09, 201520150909	H3RN Data Sheet
Model Selection Guide for Timers	L130-E1-01 [2548KB]	Jun 12, 201720170612	Model Selection Guide for Timers
Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance	- [43KB]	Mar 12, 201820180312	Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance

Supply voltage	Time-limit contact	Short-time range model (0.1 s to 10 min)	Long-time range model (0.1 min to 10 h)
24 VAC; 12, 24 VDC	SPDT	H3RN-1	H3RN-11
DPST-NO	H3RN-2	H3RN-21

Timer	Track mounting/Front connecting socket	Back connecting socket
H3RN-1/-11	P2RF-05-E	P2R-057P
H3RN-2/-21	P2RF-08-E	P2R-087P
