Color Mark Sensors Now Join the E3ZM Series of Photoelectric Sensors for the Food Industry
Space-saving Design with an SUS316L Housing (E3ZM Standard Size)
The compact design reduces volume by 90% compared with previous OMRON models.
And the world-standard dimensions contribute to standardized installation specifications.
Coaxial Optical System in a Compact Design
Although the E3ZM-V is only 11 × 21 × 32 mm, it uses a coaxial optical system.
Even if the sensing object is inclined, reflected light is captured with the coaxial optical system to provide stable detection.
IP69K Degree of Protection with an SUS316L Housing (Same Durability as the E3ZM)
The housing is constructed of corrosion-resistant SUS316L, and the display cover is PES (polyethersulfone). Both materials are highly resistant to the effects of detergents and disinfectants. IP69K degree of protection also allows the E3ZM-V to withstand washing with high-temperature, high-pressure water. This makes the E3ZM-V well suited to use in sites requiring a high level of hygiene.
Cutting-edge Technologies Give This Color Mark Sensor Its Compact Size and Superior Performance.
Improved Color-difference Discrimination, RGB Signal Processing
Discriminates fine color differences which was difficult for previous OMRON models.
Teaching enables automatic selection of ideal colors.
Plus, response is a fast 50 μs for both ON and OFF operation.
(Patent pending)
Easy Setting with 2-point and Automatic Teaching
2-point Teaching (Manual)
Simply aim the beam spot at the mark portion and background portion, and press the teaching button.
Automatic Teaching (Remote)
Send a pulse to the remote control input and have the mark pass by seven times for automatic teaching.
(Note: There is no answer-back output.)
last update: October 15, 2012
Purchase the OMRON Built-in Amplifier Please fill in the following
If you have just landed here, this product OMRON E3ZM-V Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E3ZM-V We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E3ZM-VSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E3NW Sensor Communications Unit/Features
F3W-MA Smart Muting Actuator/Features
G3PA Solid State Relays/Features
E5AC Digital Temperature Controller (96 x 96 mm)/Features
NX-V680C NX-series RFID Units/Features
OMRON E3ZM-V specification
E3ZM-V Color Mark Detection Compact Photoelectric Sensor/Specificationslast update: March 1, 2017
| Sensing method | Diffuse reflective (mark detection) | |
|---|---|---|
| Model | NPN output | E3ZM-V61/-V66 |
| PNP output | E3ZM-V81/-V86 | |
| Sensing distance | 12±2 mm *1 | |
| Sensing range | Depends on the combination of colors. Refer to Data Sheet. | |
| Spot diameter | 2-mm dia. max. | |
| Light source (wavelength) | White LED (450 to 700 nm) | |
| Power supply voltage | 10 to 30 VDC, including 10% ripple (p-p) | |
| Power consumption | 750 mW max. (current consumption for a 30-V power supply voltage: 25 mA max.) | |
| Control output | Load power supply voltage: 30 VDC max., Load current: 100 mA max. (Residual voltage: 2 V max.) Open-collector output (NPN/PNP output depending on model) | |
| Remote control input | NPN output ON: Short-circuit to 0 V, or 1.5 V max. (source current: 1 mA max.) NPN output OFF: Open or Vcc - 1.5 V to Vcc (leakage current: 0.1 mA max.) PNP output ON: Vcc - 1.5 V to Vcc (sink current: 1 mA max.) PNP output OFF: Open or 1.5 V max. (leakage current: 0.1 mA max.) | |
| Operating modes | Set in the order of the teaching operation. *2 | |
| Protection circuits | Reversed power supply polarity, Load short-circuit protection, and Reversed output polarity protection | |
| Response time | Operate or reset: 50 μs max. | |
| Sensitivity adjustment | Teaching method | |
| Ambient illumination | (Receiver side) Incandescent lamp: 3,000 lx max., Sunlight: 10,000 lx max. | |
| Ambient temperature range | Operating: -40 to 60°C (*3), Storage: -40 to 70°C (with no icing or condensation) | |
| Ambient humidity range | Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) | |
| Insulation resistance | 20 MΩ min. (at 500 VDC) | |
| Dielectric strength | 1,000 VAC at 50/60 Hz for 1 min | |
| Vibration resistance (destruction) | 10 to 55 Hz, 1.5-mm double amplitude for 2 h each in X, Y, and Z directions | |
| Shock resistance (destruction) | 500 m/s2 for 3 times each in X, Y, and Z directions | |
| Degree of protection *4 | IEC 60529: IP67, DIN 40050-9: IP69K | |
| Connection method | Pre-wired cable (standard length: 2 m) or M8 4-pin connector | |
| Indicator | Operating indicator (yellow), Stability indicator (green), and Teaching indicator (red) | |
| Weight (packed state) | Pre-wired models (2-m cable): Approx. 85 g Connector models: Approx. 35 g | |
| Materials | Housing | SUS316L |
| Lens | PMMA (polymethylmethacrylate) | |
| Indication | PES (polyethersulfone) | |
| Buttons | Fluoro rubber | |
| Cable | PVC (polyvinyl chloride) | |
| Accessories | Instruction sheet Note: Mounting Brackets are purchased separately. | |
*1. A deviation of ±2 mm (typical value) can be handled for combinations of white, yellow, and black. Refer to page 7 for the detection capabilities for other colors.
*2. Mark Sensor output switching:
When teaching, specify the ON color first and the OFF color second.
*3. Do not bend the cable in temperatures of −25°C or lower.
*4. IP69K Degree of Protection Specification
IP69K is a protection standard against high temperature and highpressure water defined in the German standard DIN 40050, Part 9. The test piece is sprayed with water at 80°C at a water pressure of 80 to 100 BAR using a specified nozzle shape at a rate of 14 to 16 liters/min. The distance between the test piece and nozzle is 10 to 15 cm, and water is sprayed horizontally for 30 seconds each at 0°, 30°, 60°, and 90° while rotating the test piece on a horizontal plane.
Standard Sensing Object for the Mark Sensor
| Color | Munsell color notation |
|---|---|
| White | N9.5 |
| Red | 4R 4.5/12.0 |
| Yellow-red | 4YR 6.0/11.5 |
| Yellow | 5Y 8.5/11.0 |
| Yellow-green | 3GY 6.5/10.0 |
| Green | 3G 6.5/9.0 |
| Blue-green | 5BG 4.5/10.0 |
| Blue | 3PB 5.0/10.0 |
| (Black) | (N2.0) |
last update: March 1, 2017
OMRON E3ZM-V catalog
E3ZM-V Color Mark Detection Compact Photoelectric Sensor/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 E3ZM-V Catalog | E389-E1-01A [2221KB] | Mar 01, 201720170301 | E3ZM-V Catalog |
| E3ZM-V Operating Procedures | - [387KB] | Jun 01, 201720170601 | E3ZM-V Operating Procedures |
OMRON E3ZM-V dimension
E3ZM-V Color Mark Detection Compact Photoelectric Sensor/Dimensionslast update: September 24, 2012
(Unit: mm)
Mark Sensor (Diffuse reflective)

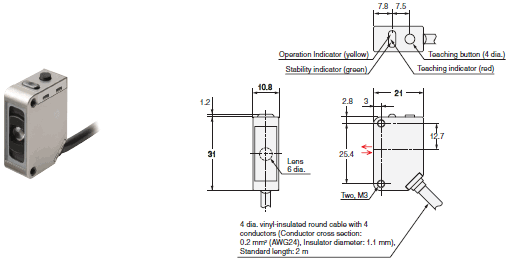

Pre-wired Models
E3ZM-V61
E3ZM-V81
Mark Sensor (Diffuse reflective)

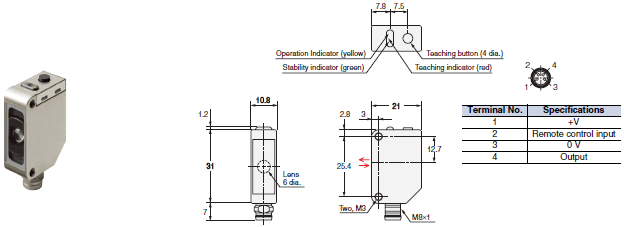

M8 Connector
