OMRON F3W-MA Safety Components
last update: January 5, 2015
• A muting system can be configured easily in combination with the safety light curtain.
• Muting functions can be stably performed even when workpieces with holes pass.
last update: January 5, 2015
If you have just landed here, this product OMRON F3W-MA Safety Components,Safety Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Safety Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the F3W-MA We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON F3W-MASafety Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E39-L93[] / L150 / L151 / L98 Sensor Adjuster, Cover Fittings/Features
CJ1W-INT01 CJ-series Interrupt Input Units/Features
CS1W-CLK SYSMAC CS-series Controller Link Units/Features
Cobra 500 SCARA Robots/Features
ZN-PD-S Air Particle Sensor/Features
last update: April 2, 2018
Appearance | Beam Gap between Muting Trigger Beams | output | Number of Beams | Model |
---|---|---|---|---|
![]() | 100 mm | PNP output | 8 | F3W-MA0100P |
300 mm | 20 | F3W-MA0300P |
Note: Use with the PNP output model safety light curtain.
Appearance | Type | Cable length | Specifications | Model |
---|---|---|---|---|

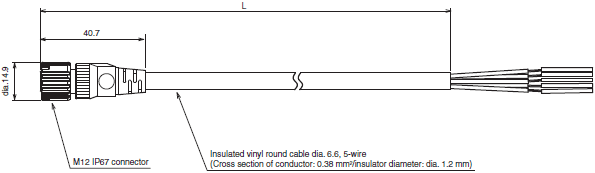

![]() | M12 connector (5-pin), 5 wires Color: Gray | 3 m | ![]() | F39-JG3A-L |
7 m | F39-JG7A-L | |||
10 m | F39-JG10A-L | |||
15 m | F39-JG15A-L | |||
20 m | F39-JG20A-L | |||

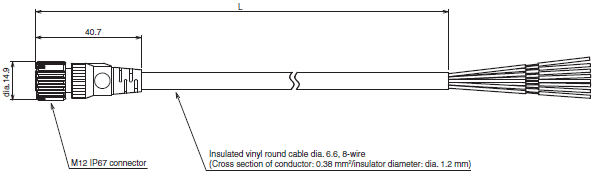

For receiver M12 connector (8-pin), 8 wires Color: Black | 3 m | ![]() | F39-JG3A-D | |
7 m | F39-JG7A-D | |||
10 m | F39-JG10A-D | |||
15 m | F39-JG15A-D | |||
20 m | F39-JG20A-D |

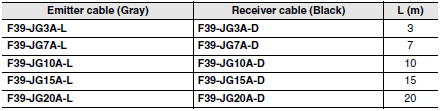

* A set of two Single-Ended Cables (one for emitter and one for receiver) is also available.
Model: Model number without the -L/-D at the end (F39-JG[]A)

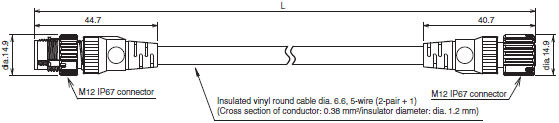

Appearance | Type | Cable length | Specifications | Model |
---|---|---|---|---|
![]() | M12 connector (5-pin) on both ends Color: Gray | 0.5 m | ![]() | F39-JGR5B-L |
1 m | F39-JG1B-L | |||
3 m | F39-JG3B-L | |||
5 m | F39-JG5B-L | |||
7 m | F39-JG7B-L | |||
10 m | F39-JG10B-L | |||
15 m | F39-JG15B-L | |||
20 m | F39-JG20B-L | |||

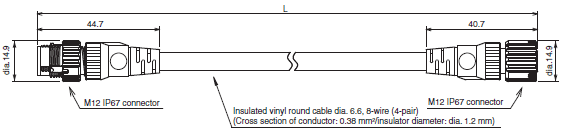

M12 connector (8-pin) on both ends Color: Black | 0.5 m | ![]() | F39-JGR5B-D | |
1 m | F39-JG1B-D | |||
3 m | F39-JG3B-D | |||
5 m | F39-JG5B-D | |||
7 m | F39-JG7B-D | |||
10 m | F39-JG10B-D | |||
15 m | F39-JG15B-D | |||
20 m | F39-JG20B-D |

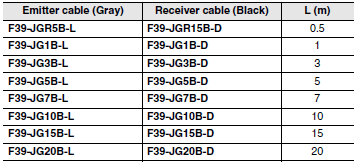

* A set of two Double-Ended Cables (one for emitter and one for receiver) is also available.
Model: Model number without the -L/-D at the end (F39-JG[]B)
Appearance | Type | Specifications | Model |
---|---|---|---|

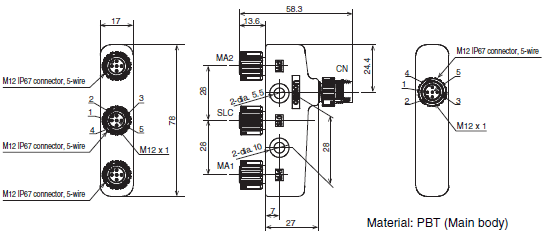

![]() | For emitter M12 connectors. Used for reduced wiring. | ![]() | F39-GCN4-L |

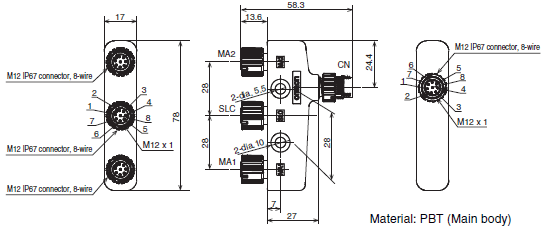

![]() | For receiver (PNP output) M12 connectors. Used for reduced wiring. | ![]() | F39-GCN4-D |
![]() | Includes one each of F39-GCN4-L and F39-GCN4-D | - | F39-GCN4 |
![]() | Water-resistive Cover for 4-Joint Plug/Socket Connector | One water-resistive cover for an F39-GCN4-L/-D 4-Joint Plug/Socket Connector. You can use this when the MA2 connector part is not used. Material: PBT. IP67 rated when attached. Smartclick mechanism. | XS5Z-11 |
![]() | Dust Cover for 4-Joint Plug/Socket Connector | One dust cover for an F39-GCN4-L/-D 4-Joint Plug/ Socket Connector. You can use this when the MA2 connector part is not used. Material: Rubber/black. This cover does not ensure IP67 degree of protection. XS2Z-14: Attach to a pin block inside the M12 female screw. XS2Z-15: Attach to a M12 female screw. When attaching the cover to the connector, press the cover onto the connector until the connector is fully inserted into the cover. | XS2Z-14 |
![]() | XS2Z-15 |
Appearance | Specification | Application | Remarks | Model |
---|---|---|---|---|

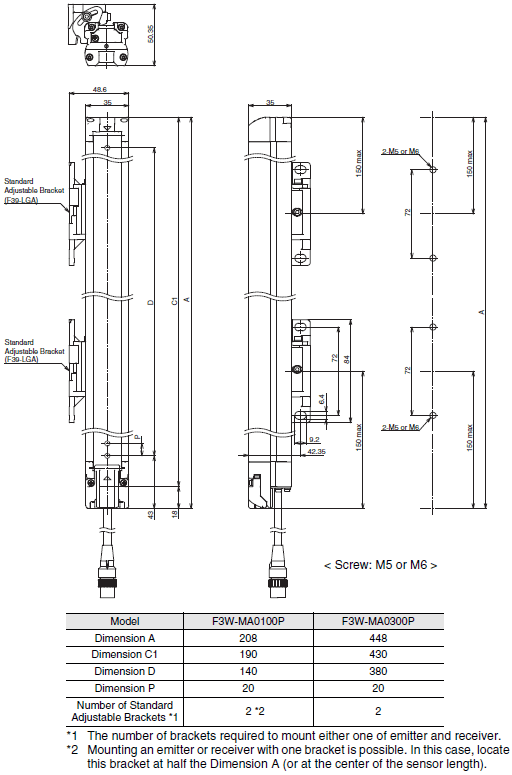

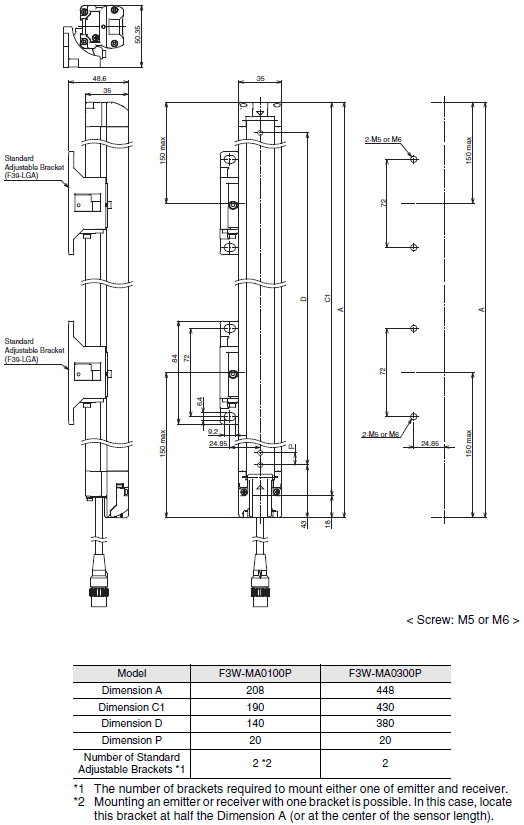

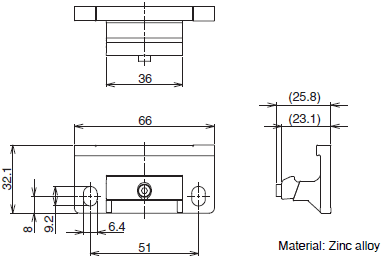

![]() | Standard Fixed Bracket | Bracket to mount the F3W-MA. Side mounting and backside mounting possible. | Two brackets per set | F39-LGF |

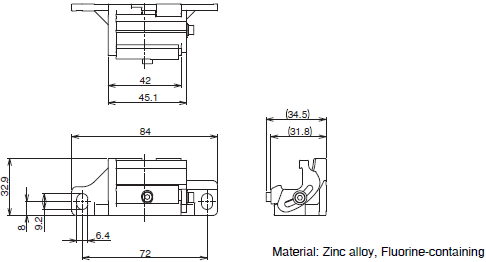

![]() | Standard Adjustable Bracket | Bracket to mount the F3W-MA. Beam alignment after mounting possible.The angle adjustment range is ±15°. Side mounting and backside mounting possible. | Two brackets per set | F39-LGA |

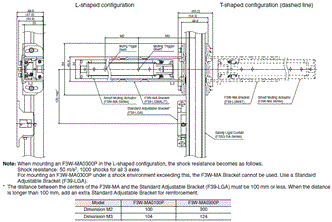

![]() | F3W-MA Bracket | Bracket to fix the F3W-MA to the F3SG-RA. F39-LGMAL: L-shaped configuration F39-LGMAT: T-shaped configuration Beam alignment after mounting possible. When using the F3W-MA Bracket, it is necessary to add an extra Standard Adjustable Bracket (F39-LGA) to the F3SG-RA. * Please also purchase Standard Adjustable Bracket (F39-LGA). | Two brackets per set | F39-LGMAL |
![]() | F39-LGMAT |
Note: When mounting an F3W-MA0300P in the L-shaped configuration, the shock resistance becomes as follows.
Shock resistance: 50 m/s2, 1000 shocks for all 3 axes
For mounting an F3W-MA0300P under a shock environment exceeding this, the F3W-MA Bracket cannot be used.
Use a Standard Adjustable Bracket (F39-LGA).
* When using F39-LGMA[], there are some restrictions on the brackets to mount the F3SG-RA.
This bracket is not usable together with F39-LGF.
When using together with the F39-LGA, the protective height of the F3SG-RA must be 270 mm or longer.
When using together with F39-LGTB, the protective height of the F3SG-RA must be 400 mm or longer.
An extra F39-LGA is required for reinforcement, depending on the mounting position of the F39-LGMA[].
Refer to "Dimensions" for details.
last update: April 2, 2018
last update: June 18, 2018

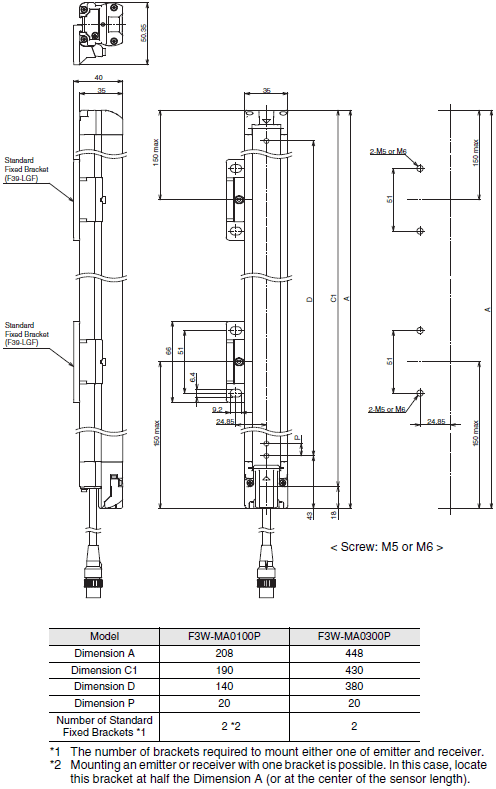

(Unit: mm)
last update: June 18, 2018
Catalog Name | Catalog Number [size] | Last Update | |
---|---|---|---|
![]() | F094-E1-10 [31303KB] | Nov 01, 201820181101 | F3SG-R Series Catalog |
last update: June 18, 2018
F3W-MA0100P | F3W-MA0300P | |||
---|---|---|---|---|
Perfor- mance | Beam Gap between Muting Trigger Beams | 100 mm | 300 mm | |
Number of Beams | 8 | 20 | ||
Standard Detection Object | 30 mm | |||
Operating Range | Long | 0.3 to 20.0 m (1 to 65 ft.) | ||
Short | 0.3 to 7.0 m (1 to 23 ft.) | |||
Response Time | Operation | 13 ms max. | ||
Reset | 26 ms max. (Synchronized) 78 ms max. (Not synchronized) | |||
Effective Aperture Angle | ±2.5° max., emitter and receiver at operating range of 3 m or greater | |||
Light Source | Infrared LEDs, Wavelength: 870 nm | |||
Startup Waiting Time | 2 s max. | |||
Elec- trical | Power Supply Voltage (Vs) | SELV/PELV 24 VDC±20% (ripple p-p 10% max.) | ||
Current Consumption | Emitter | 35 mA | 45 mA | |
Receiver | 75 mA | 75 mA | ||
Muting Outputs | Two PNP transistor outputs. * Load current of 300 mA max., Residual voltage of 2 V max. (except for voltage drop due to cable extension) | |||
* This product is a PNP output model. Use with the PNP output model safety light curtain. | ||||
Output Operation Mode | Muting Output A | Dark-ON (Muting Output A is enabled when MuteA trigger beam is blocked.) | ||
Muting Output B | Dark-ON (Muting Output B is enabled when MuteB trigger beam is blocked.) | |||
Input Voltage | ON Voltage | [MuteEnable] Vs to Vs-3 V (sink current 5 mA max.) * | ||
OFF Voltage | [Mute Enable] 0 to 1/2 Vs, or open * | |||
* The Vs indicates a supply voltage value in your environment. | ||||
Indicators | Refer to "LED Indicator Status". | |||
Protective Circuit | Protective Circuit Output short protection, Power supply reverse polarity protection | |||
Insulation Resistance | 20 MΩ or higher (500 VDC megger) | |||
Dielectric Strength | 1,000 VAC, 50/60 Hz (1 min) | |||
Func- tional | Functions | - Scan Code Selection - Operation Mode Selection (Point to Point Detection/Chattering and Void Space Prevention) - Off-Delay - Muting Enable - Muting Trigger Beam Allocation - Operating Range Selection | ||
Environ- mental | Ambient Temperature | Operating | -10 to 55°C (13 to 131°F) (non-icing) | |
Storage | -25 to 70°C (-13 to 158°F) | |||
Ambient Humidity | Operating | 35% to 85% (non-condensing) | ||
Storage | 35% to 95% | |||
Ambient Illuminance | Incandescent lamp: 3,000 Ix max. on receiver surface Sunlight: 10,000 Ix max. on receiver surface | |||
Degree of Protection (IEC 60529) | IP65 and IP67 | |||
Vibration Resistance (IEC 61496-1) | 10 to 55 Hz, Multiple amplitude of 0.7 mm, 20 sweeps for all 3 axes | |||
Shock Resistance (IEC 61496-1) | 100 m/s2, 1000 shocks for all 3 axes | |||
Pollution Degree (IEC 60664-1) | Pollution Degree 3 | |||
Connec- tions | Power Cable | Type of Connection | M12 connectors: 5-pin emitter, 8-pin receiver, IP67 rated when mated, Cables prewired to sensors | |
Number of Wires | Emitter: 5, Receiver: 8 | |||
Cable Length | 0.3 mm | |||
Cable Diameter | 6 mm | |||
Minimum Bending Radius | R5 mm | |||
Extension of Power Cable | 100 m max. Note: For T-Shaped configuration with COM lines, the length of cable extension is 30 m max. | |||
Material | Housing: Aluminum alloy, Cap: PBT resin, Front window: Acrylic resin, Cable: Oil-resistant PVC resin, FE plate: Stainless steel | |||
Net Weight *1 | 0.7 kg | 0.9 kg | ||
Gross Weight *2 | 1.3 kg | 2.2 kg | ||
Included Accessories | Instruction Sheet |
*1. The net weight is the weight of an emitter and a receiver.
*2. The gross weight is the weight of an emitter, a receiver, included accessories and a package.
Shown below are indication statuses of F3W-MA LED indicators when you purchased.
Name of Indicator | Color | Illuminated | Blinking | |
---|---|---|---|---|
Operating range | LONG | Green | Long Range mode is selected by DIP Switch. | - |
Running | RUN | Green | Power is ON. | - |
Error | ERR | Red | - | Error in emitter. Generic error happens. |
Name of Indicator | Color | Illuminated | Blinking | |
---|---|---|---|---|
Top-beam-state | TOP | Blue | The top beam is unblocked. | - |
Muting output A | MUTE A | Green | Muting Output A is activated. | - |
Muting output B | MUTE B | Green | Muting Output B is activated. | - |
Off-Delay | DELAY | Yellow | Off-Delay function is enabled by DIP Switch. | - |
Chattering/ Void space | CHAT | Green | Chattering and Void Space Prevention mode is selected by DIP Switch. | - |
Muting Enable | MUTE DISABLE | Red | The Muting Enable function is enabled and Muting Enable input is turned OFF by DIP Switch. | - |
Error | ERR | Red | - | Error in receiver. Generic error happens. |
Stable-state | STB | Green | Incident light level is 170% or higher of ON-threshold | - |
Running | RUN | Green | Power is ON. | - |
Communication | COM | Green | Synchronization between emitter and receiver is maintained. | Primary sensor] - Start-up (for approx. 3 s) - Synchronization between emitter and receiver is lost |
Bottom-beamstate | BTM | Blue | The bottom beam is unblocked. | - |
