OMRON G3PE (Three-phase) Relays
last update: April 25, 2017
• RoHS compliant.
• Surge pass protection improved surge dielectric strength for output currents. (OMRON testing)
• Slim design with 3-phase output and built-in heat sinks.
• DIN Track mounting types and screw mounting types are available. All DIN Track mounting types mount to DIN Track
(applicable DIN Track: TR35-15Fe (IEC 60715)).
• Conforms to UL, CSA, and EN standards (TÜV certification).
last update: April 25, 2017
If you have just landed here, this product OMRON G3PE (Three-phase) Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G3PE (Three-phase) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G3PE (Three-phase)Relays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E3C Compact Head Amplifier-separated Photoelectric Sensor/Features
E3S-LS3[] PCB Sensors/Features
CRS1-RPT01 Repeater Unit/Features
Cobra 500 SCARA Robots/Features
XW2F Connector-Terminal Block Conversion Units with Push-in Terminals/Features
last update: November 12, 2012
last update: November 12, 2012
last update: September 24, 2012
UL508, CSA22.2 No.14, and EN60947-4-3
Model | Same for all models |
---|---|
Rated operating voltage | 12 to 24 VDC |
Operating voltage range | 9.6 to 30 VDC |
Rated input current (impedance) | 10 mA max. (24 VDC) |
Must-operate voltage | 9.6 VDC max. |
Must-release voltage | 1 VDC min. |
Insulation method | Phototriac |
Operation indicator | Yellow LED |
Model | G3PE- 215B- 3(N) | G3PE- 215B- 2(N) | G3PE- 225B- 3(N) | G3PE- 225B- 2(N) | G3PE- 235B- 3(N) | G3PE- 235B- 2(N) | G3PE- 245B- 3(N) | G3PE- 245B- 2(N) |
---|---|---|---|---|---|---|---|---|
Rated load voltage | 100 to 240 VAC | |||||||
Operating voltage range | 75 to 264 VAC | |||||||
Rated load current *1 | 15 A (at 40 ° C) | 25 A (at 40 ° C) | 35 A (at 25 ° C) | 45 A (at 25 ° C) | ||||
Minimum load current | 0.2 A | 0.5 A | ||||||
Inrush current resistance (peak value) | 150 A (60 Hz, 1 cycle) | 220 A (60 Hz, 1 cycle) | 440 A (60 Hz, 1 cycle) | |||||
Permissible I2t (reference value) | 121A2s | 260A2s | 1,260A2s | |||||
Applicable load (resistive load: AC1 class) *2 | 5.1 kW (at 200 VAC) | 8.6 kW (at 200 VAC) | 12.1 kW (at 200 VAC) | 15.5 kW (at 200 VAC) |
Model | G3PE- 515B- 3(N) | G3PE- 515B- 2(N) | G3PE- 525B- 3(N) | G3PE- 525B- 2(N) | G3PE- 535B- 3(N) | G3PE- 535B- 2(N) | G3PE- 545B- 3(N) | G3PE- 545B- 2(N) |
---|---|---|---|---|---|---|---|---|
Rated load voltage | 200 to 480 VAC | |||||||
Operating voltage range | 180 to 528 VAC | |||||||
Rated load current *1 | 15 A (at 40 ° C) | 25 A (at 40 ° C) | 35 A (at 25 ° C) | 45 A (at 25 ° C) | ||||
Minimum load current | 0.5 A | |||||||
Inrush current resistance (peak value) | 220 A (60 Hz, 1 cycle) | 440 A (60 Hz, 1 cycle) | ||||||
Permissible I2t (reference value) | 260A2s | 1,260A2s | ||||||
Applicable load (resistive load: AC1 class) *2 | 12.5 kW (at 480 VAC) | 20.7 kW (at 480 VAC) | 29.0 kW (at 480 VAC) | 37.4 kW (at 480 VAC) |
*1. The applicable load current depends on the ambient temperature. For details, refer to Load Current vs. Ambient
Temperature in Engineering Data on Data Sheet.
*2. Applicable Load
Use the following formula to calculate the maximum total capacity of a heater load for a three-phase balanced load
with delta connections.
Model | G3PE- 215B- 3H | G3PE- 215B- 2H | G3PE- 225B- 3HH | G3PE- 225B- 2H | G3PE- 235B- 3H | G3PE- 235B- 2H | G3PE- 245B- 3H | G3PE- 245B- 2H |
---|---|---|---|---|---|---|---|---|
Rated load voltage | 100 to 240 VAC | |||||||
Operating voltage range | 75 to 264 VAC | |||||||
Rated load current * | 15 A (at 40 ° C) | 25 A (at 40 ° C) | 35 A (at 25 ° C) | 45 A (at 25 ° C) | ||||
Minimum load current | 0.2 A | 0.5 A | ||||||
Inrush current resistance (peak value) | 150 A (60 Hz, 1 cycle) | 220 A (60 Hz, 1 cycle) | 440 A (60 Hz, 1 cycle) | |||||
Permissible I2t (reference value) | 121A2s | 260A2s | 1,260A2s | |||||
Applicable load (resistive load: AC1 class) | Refer to Engineering Data on Data Sheet. |
Model | G3PE- 515B- 3H | G3PE- 515B- 2H | G3PE- 525B- 3H | G3PE- 525B- 2H | G3PE- 535B- 3H | G3PE- 535B- 2H | G3PE- 545B- 3H | G3PE- 545B- 2H |
---|---|---|---|---|---|---|---|---|
Rated load voltage | 200 to 480 VAC | |||||||
Operating voltage range | 180 to 528 VAC | |||||||
Rated load current * | 15 A (at 40 ° C) | 25 A (at 40 ° C) | 35 A (at 25 ° C) | 45 A (at 25 ° C) | ||||
Minimum load current | 0.5 A | |||||||
Inrush current resistance (peak value) | 220 A (60 Hz, 1 cycle) | 440 A (60 Hz, 1 cycle) | ||||||
Permissible I2t (reference value) | 260A2s | 1,260A2s | ||||||
Applicable load (resistive load: AC1 class) | Refer to Engineering Data on Data Sheet. |
* The rated load current depends on the heat sink or radiator that is mounted. It also depends on the ambient
temperature.
For details, refer to Load Current vs. Ambient Temperature in Engineering Data on Data Sheet.
Model | G3PE- 215B- 3(N) | G3PE- 215B- 2(N) | G3PE- 225B- 3(N) | G3PE- 225B- 2(N) | G3PE- 235B- 3(N) | G3PE- 235B- 2(N) | G3PE- 245B- 3(N) | G3PE- 245B- 2(N) |
---|---|---|---|---|---|---|---|---|
Operate time | 1/2 of load power source cycle + 1 ms max. | |||||||
Release time | 1/2 of load power source cycle + 1 ms max. | |||||||
Output ON voltage drop | 1.6 V (RMS) max. | |||||||
Leakage current * | 10 mA max. (at 200 VAC) | |||||||
Insulation resistance | 100 M Ω min. (at 500 VDC) | |||||||
Dielectric strength | 2,500 VAC, 50/60 Hz for 1 min | |||||||
Vibration resistance | DIN Track mounting: 10 to 55 to 10 Hz, 0.175-mm single amplitude (0.35-mm double amplitude) Screw mounting: 10 to 55 to 10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude) | |||||||
Shock resistance | 294 m/s2 (reverse mounting: 98 m/s2) | |||||||
Ambient storage temperature | - 30 to 100 ° C (with no icing or condensation) | |||||||
Ambient operating temperature | - 30 to 80 ° C (with no icing or condensation) | |||||||
Ambient operating humidity | 45% to 85% | |||||||
Weight | Approx. 1.25 kg | Approx. 1.45 kg | Approx. 1.25 kg | Approx. 1.65 kg | Approx. 1.45 kg | Approx. 2.0 kg | Approx. 1.65 kg |
Model | G3PE- 515B- 3(N) | G3PE- 515B- 2(N) | G3PE- 525B- 3(N) | G3PE- 525B- 2(N) | G3PE- 535B- 3(N) | G3PE- 535B- 2(N) | G3PE- 545B- 3(N) | G3PE- 545B- 2(N) |
---|---|---|---|---|---|---|---|---|
Operate time | 1/2 of load power source cycle + 1 ms max. | |||||||
Release time | 1/2 of load power source cycle + 1 ms max. | |||||||
Output ON voltage drop | 1.8 V (RMS) max. | |||||||
Leakage current * | 20 mA max. (at 480 VAC) | |||||||
Insulation resistance | 100 M Ω min. (at 500 VDC) | |||||||
Dielectric strength | 2,500 VAC, 50/60 Hz for 1 min | |||||||
Vibration resistance | DIN Track mounting: 10 to 55 to 10 Hz, 0.175-mm single amplitude (0.35-mm double amplitude) Screw mounting: 10 to 55 to 10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude) | |||||||
Shock resistance | 294 m/s2 (reverse mounting: 98 m/s2) | |||||||
Ambient storage temperature | - 30 to 100 ° C (with no icing or condensation) | |||||||
Ambient operating temperature | - 30 to 80 ° C (with no icing or condensation) | |||||||
Ambient operating humidity | 45% to 85% | |||||||
Weight | Approx. 1.25 kg | Approx. 1.45 kg | Approx. 1.25 kg | Approx. 1.65 kg | Approx. 1.45 kg | Approx. 2.0 kg | Approx. 1.65 kg |
* The leakage current of phase S will be approximately √3 times larger if the 2-element model is used.
Model | G3PE- 215B- 3H | G3PE- 215B- 2H | G3PE- 225B- 3H | G3PE- 225B- 2H | G3PE- 235B- 3H | G3PE- 235B- 2H | G3PE- 245B- 3H | G3PE- 245B- 2H |
---|---|---|---|---|---|---|---|---|
Operate time | 1/2 of load power source cycle + 1 ms max. | |||||||
Release time | 1/2 of load power source cycle + 1 ms max. | |||||||
Output ON voltage drop | 1.6 V (RMS) max. | |||||||
Leakage current * | 10 mA max. (at 200 VAC) | |||||||
Insulation resistance | 100 M Ω min. (at 500 VDC) | |||||||
Dielectric strength | 2,500 VAC, 50/60 Hz for 1 min | |||||||
Vibration resistance | 10 to 55 to 10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude) | |||||||
Shock resistance | Destruction: 294 m/s2 | |||||||
Ambient storage temperature | - 30 to 100 ° C (with no icing or condensation) | |||||||
Ambient operating temperature | - 30 to 80 ° C (with no icing or condensation) | |||||||
Ambient operating humidity | 45% to 85% | |||||||
Weight | Approx. 300 g |
Model | G3PE- 515B- 3H | G3PE- 515B- 2H | G3PE- 525B- 3H | G3PE- 525B- 2H | G3PE- 535B- 3H | G3PE- 535B- 2H | G3PE- 545B- 3H | G3PE- 545B- 2H |
---|---|---|---|---|---|---|---|---|
Operate time | 1/2 of load power source cycle + 1 ms max. | |||||||
Release time | 1/2 of load power source cycle + 1 ms max. | |||||||
Output ON voltage drop | 1.8 V (RMS) max. | |||||||
Leakage current * | 20 mA max. (at 480 VAC) | |||||||
Insulation resistance | 100 M Ω min. (at 500 VDC) | |||||||
Dielectric strength | 2,500 VAC, 50/60 Hz for 1 min | |||||||
Vibration resistance | 10 to 55 to 10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude) | |||||||
Shock resistance | Destruction: 294 m/s2 | |||||||
Ambient storage temperature | - 30 to 100 ° C (with no icing or condensation) | |||||||
Ambient operating temperature | - 30 to 80 ° C (with no icing or condensation) | |||||||
Ambient operating humidity | 45% to 85% | |||||||
Weight | Approx. 300 g |
* The leakage current of phase S will be approximately √3 times larger if the 2-element model is used.

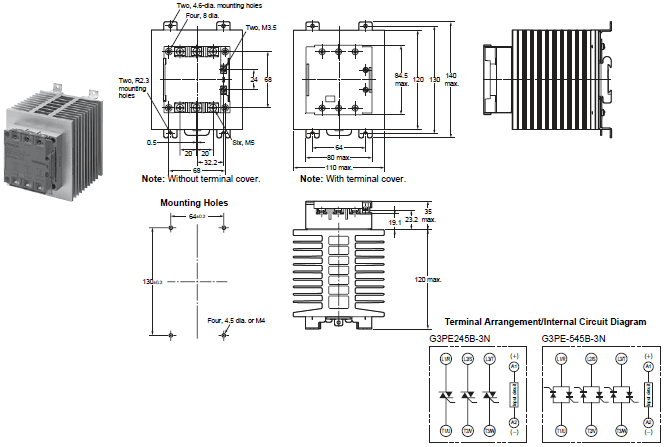

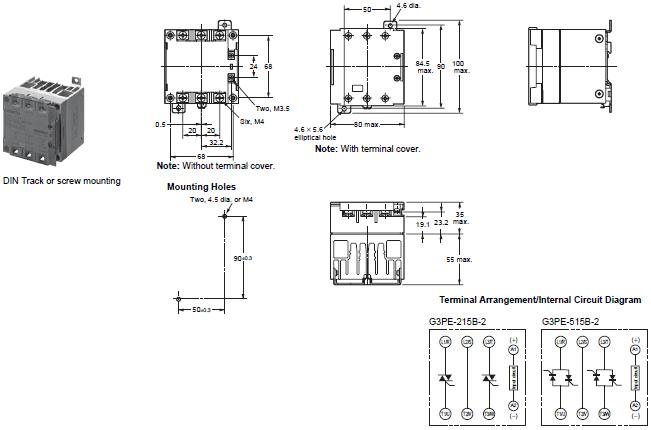

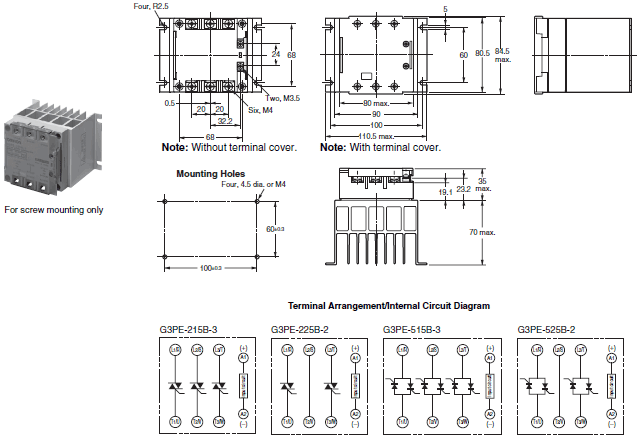

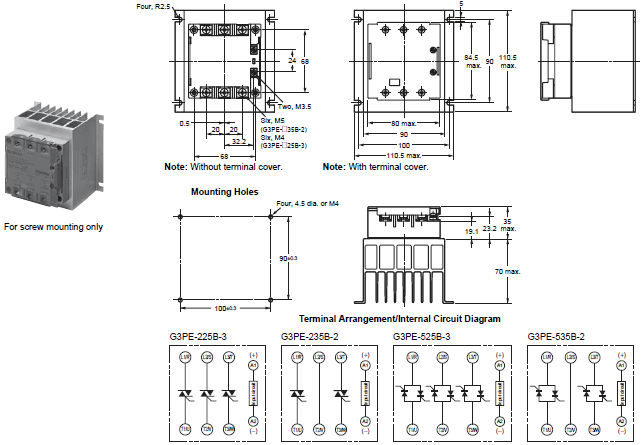

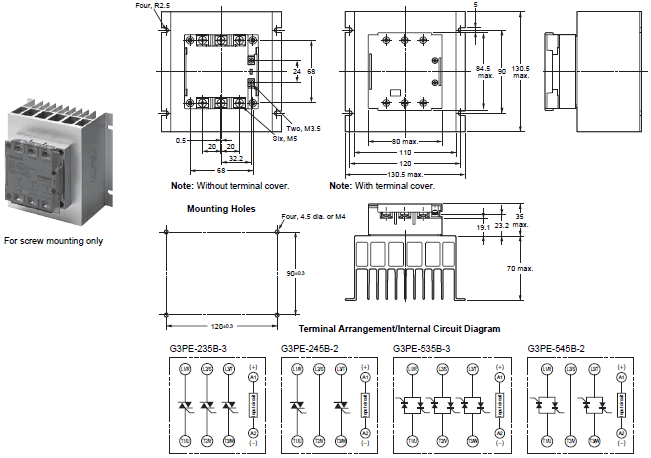

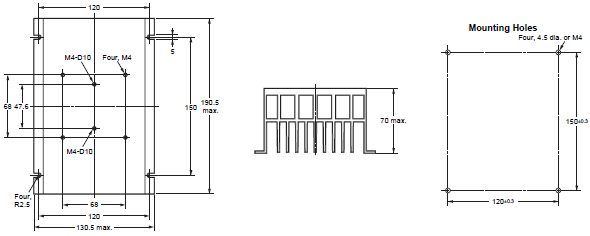

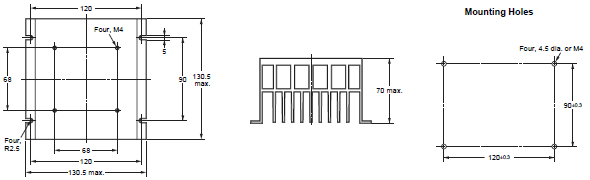

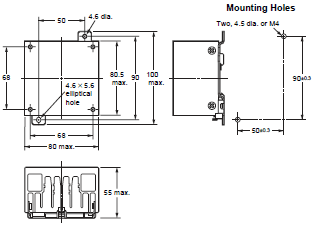

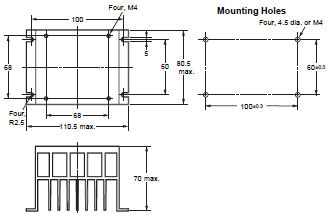

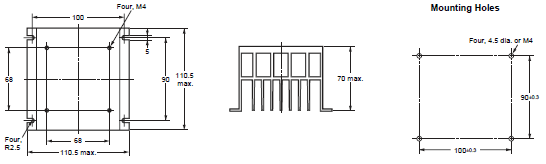

Model | Weight |
---|---|
Y92B-P50 | Approx. 450 g |
Y92B-P100 | Approx. 450 g |
Y92B-P150 | Approx. 600 g |
Y92B-P200 | Approx. 850 g |
Y92B-P250 | Approx. 1,200 g |
last update: September 24, 2012
Catalog Name | Catalog Number [size] | Last Update | |
---|---|---|---|
![]() | J174-E1-02 [3137KB] | Jan 17, 201820180117 | G3PE Data Sheet |
last update: September 24, 2012

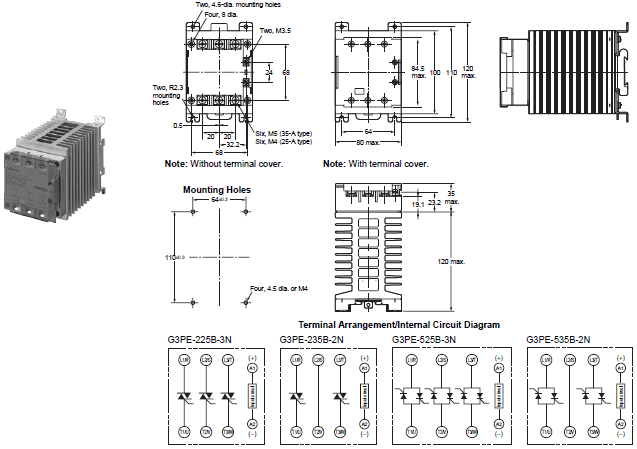

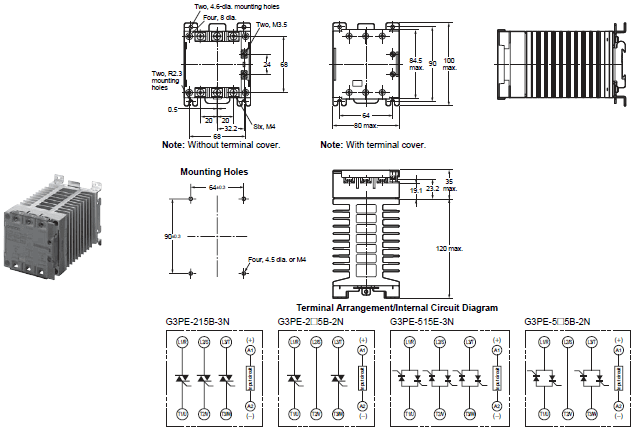

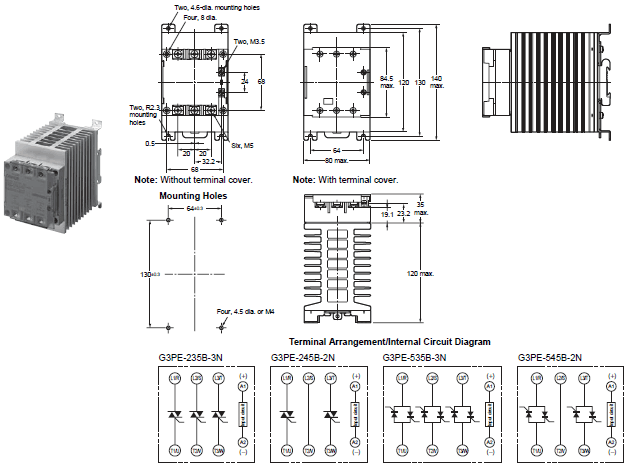

Number of phases | Insulation method | Operation indicator | Rated input voltage | Zero cross function | Type | Applicable load *1 | Number of poles | Model |
---|---|---|---|---|---|---|---|---|
Three- phase | Phototriac coupler | Yes (yellow) | 12 to 24 VDC | Yes | DIN track mounting * 2 | 15 A, 100 to 240 VAC | 3 | G3PE-215B-3N DC12-24 |
2 | G3PE-215B-2N DC12-24 | |||||||
25 A, 100 to 240 VAC | 3 | G3PE-225B-3N DC12-24 | ||||||
2 | G3PE-225B-2N DC12-24 | |||||||
35 A, 100 to 240 VAC | 3 | G3PE-235B-3N DC12-24 | ||||||
2 | G3PE-235B-2N DC12-24 | |||||||
45 A, 100 to 240 VAC | 3 | G3PE-245B-3N DC12-24 | ||||||
2 | G3PE-245B-2N DC12-24 | |||||||
15 A, 200 to 480 VAC | 3 | G3PE-515B-3N DC12-24 | ||||||
2 | G3PE-515B-2N DC12-24 | |||||||
25 A, 200 to 480 VAC | 3 | G3PE-525B-3N DC12-24 | ||||||
2 | G3PE-525B-2N DC12-24 | |||||||
35 A, 200 to 480 VAC | 3 | G3PE-535B-3N DC12-24 | ||||||
2 | G3PE-535B-2N DC12-24 | |||||||
45 A, 200 to 480 VAC | 3 | G3PE-545B-3N DC12-24 | ||||||
2 | G3PE-545B-2N DC12-24 | |||||||

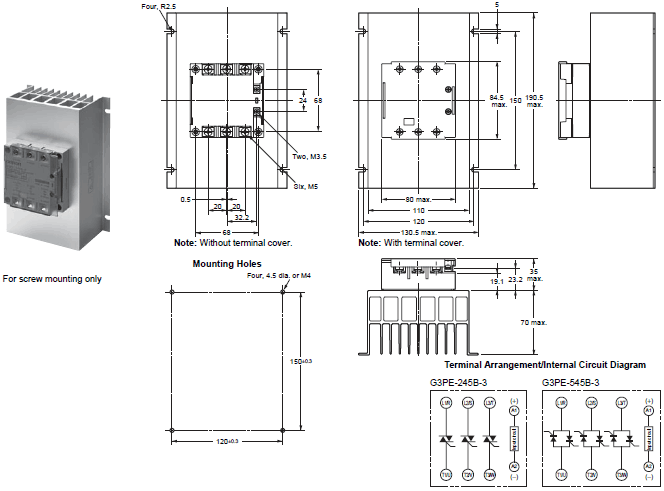

Screw mounting | 15 A, 100 to 240 VAC | 3 | G3PE-215B-3 DC12-24 | |||||
2 | G3PE-215B-2 DC12-24 *3 | |||||||
25 A, 100 to 240 VAC | 3 | G3PE-225B-3 DC12-24 | ||||||
2 | G3PE-225B-2 DC12-24 | |||||||
35 A, 100 to 240 VAC | 3 | G3PE-235B-3 DC12-24 | ||||||
2 | G3PE-235B-2 DC12-24 | |||||||
45 A, 100 to 240 VAC | 3 | G3PE-245B-3 DC12-24 | ||||||
2 | G3PE-245B-2 DC12-24 | |||||||
15 A, 200 to 480 VAC | 3 | G3PE-515B-3 DC12-24 | ||||||
2 | G3PE-515B-2 DC12-24 *3 | |||||||
25 A, 200 to 480 VAC | 3 | G3PE-525B-3 DC12-24 | ||||||
2 | G3PE-525B-2 DC12-24 | |||||||
35 A, 200 to 480 VAC | 3 | G3PE-535B-3 DC12-24 | ||||||
2 | G3PE-535B-2 DC12-24 | |||||||
45 A, 200 to 480 VAC | 3 | G3PE-545B-3 DC12-24 | ||||||
2 | G3PE-545B-2 DC12-24 |
*1. The applicable load current depends on the ambient temperature. For details, refer to Load Current vs. Ambient
Temperature in Engineering Data on Data Sheet.
*2. The applicable DIN Track is the TR35-15Fe (IEC 60715). For details, refer to the mounting information in the Safety
Precautions for All G3PE Models.
*3. DIN Track or Screw mounting.

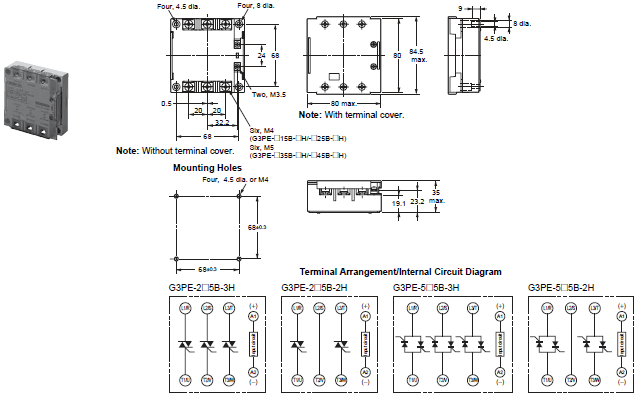

Number of phases | Insulation method | Operation indicator | Rated input voltage | Zero cross function | Type | Applicable load * | Number of poles | Model |
---|---|---|---|---|---|---|---|---|
Three- phase | Phototriac coupler | Yes (yellow) | 12 to 24 VDC | Yes | Externally attached heat sinks | 15 A, 100 to 240 VAC | 3 | G3PE-215B-3H DC12-24 |
2 | G3PE-215B-2H DC12-24 | |||||||
25 A, 100 to 240 VAC | 3 | G3PE-225B-3H DC12-24 | ||||||
2 | G3PE-225B-2H DC12-24 | |||||||
35 A, 100 to 240 VAC | 3 | G3PE-235B-3H DC12-24 | ||||||
2 | G3PE-235B-2H DC12-24 | |||||||
45 A, 100 to 240 VAC | 3 | G3PE-245B-3H DC12-24 | ||||||
2 | G3PE-245B-2H DC12-24 | |||||||
15 A, 200 to 480 VAC | 3 | G3PE-515B-3H DC12-24 | ||||||
2 | G3PE-515B-2H DC12-24 | |||||||
25 A, 200 to 480 VAC | 3 | G3PE-525B-3H DC12-24 | ||||||
2 | G3PE-525B-2H DC12-24 | |||||||
35 A, 200 to 480 VAC | 3 | G3PE-535B-3H DC12-24 | ||||||
2 | G3PE-535B-2H DC12-24 | |||||||
45 A, 200 to 480 VAC | 3 | G3PE-545B-3H DC12-24 | ||||||
2 | G3PE-545B-2H DC12-24 |
* The rated load current depends on the heat sink or radiator that is mounted. It also depends on the ambient
temperature.
For details, refer to Load Current vs. Ambient Temperature.
Heat resistance Rth (s-a) ( °C/W) | Model |
---|---|
1.67 | Y92B-P50 |
1.01 | Y92B-P100 |
0.63 | Y92B-P150 |
0.43 | Y92B-P200 |
0.36 | Y92B-P250 |
