• Clamp terminals eliminate the need to tighten screws.
• Just insert the ferrule to complete one-touch wiring.
last update: December 19, 2013
Purchase the OMRON Connector-Terminal Block Conversion Units Please fill in the following
If you have just landed here, this product OMRON XW2F Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the XW2F We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON XW2FPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
F3W-E Picking Sensor/Features
H3CR-A Solid-state Multi-functional Timers/Features
CJ1W-CLK CJ-series Controller Link Units/Features
DRT2-[]D16SL(H)(-1) / []D32SLH(-1) Screw-less Clamp Terminals with Transistors/Features
S8VK-G Switch Mode Power Supply (15/30/60/120/240/480-W Models)/Features
OMRON XW2F specification
XW2F Connector-Terminal Block Conversion Units with Push-in Terminals/Specificationslast update: September 24, 2012
| Rated current | 1 A/point, 4 A/common | |
|---|---|---|
| Rated voltage | 24 VDC | |
| Insulation resistance | 100 MΩ min. (at 500 VDC) | |
| Dielectric strength | 500 VAC for 1 min | |
| Ambient operating temperature | -10 to 55°C | |
| Applicable wires | Applicable wire sizes | AWG24 to AWG14 (core cross-sectional area: 0.21 to 2.08 mm2) Outer diameter of insulation must be 3.6 mm max. |
| Stripped length | AWG24 to 16: 9 to 11 mm, AWG14: 10.5 to 11.5 mm | |
last update: September 24, 2012
OMRON XW2F lineup
XW2F Connector-Terminal Block Conversion Units with Push-in Terminals/Lineuplast update: March 01, 2016
Connector-Terminal Block Conversion Units
| Number of input/ outputs | Number of contacts | I/O | Common Terminals | Model | Mounted Connector model | Cable Connector model |
|---|---|---|---|---|---|---|
| 16 | 20 | Inputs | YES | XW2F-20G7-IN16 | XG4A-2031 | XG4M-2030-T |
| 16 | 20 | Outputs | YES | XW2F-20G7-OUT16 | XG4A-2031 | XG4M-2030-T |
last update: March 01, 2016
OMRON XW2F catalog
XW2F Connector-Terminal Block Conversion Units with Push-in Terminals/Catalog- Catalog
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 XW2F Data Sheet | - [404KB] | Mar 01, 201620160301 | XW2F Data Sheet |
OMRON XW2F dimension
XW2F Connector-Terminal Block Conversion Units with Push-in Terminals/Dimensionslast update: March 01, 2016

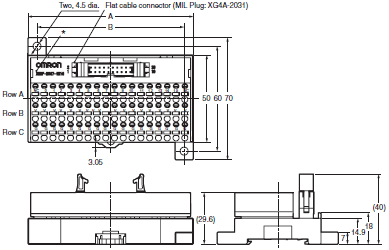

XW2F-20G7-IN16, XW2F-20G7-OUT16
