• Precise heater burnout detection.

• Set value and present value monitoring with indicators.

• Phase control or optimum cycle control.

• RS-485 communications to set manipulated variables and monitor load current.

• Total run time monitoring.

• Output modes for phase control: proportional to phase angle, proportional to voltage, proportional to square voltage, and constant-current control.

• Application with various loads: constant load resistance, variable load resistance.

• UL, and IEC/EN (TÜV) certified.

last update: April 25, 2017

Purchase the OMRON Copyright Statement Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON G3PW Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G3PW We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G3PWRelays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

FQ2 Smart Camera/Features
3Z4S-LE SV-V Series Lens for C-mount Cameras/Features
E2FM Proximity Sensor with All-stainless Housing/Features
61F-GP-N[] Floatless Level Switch (Compact, Plug-in Type)/Features
DRT2-TS04[] Temperature Input Terminals/Features

OMRON G3PW lineup
G3PW Single-phase Power Controller/Lineup
last update: September 24, 2012

Number of
phases Control
terminal block Type Capacity Heater
burnout
detection Commu-
nications Model number
Single-phase Screwless clamp
terminal block Standard 20 A 100 to
240 VAC No No G3PW-A220EU-C
45 A G3PW-A245EU-C
60 A G3PW-A260EU-C
Constant
current 20 A Yes Yes G3PW-A220EC-C-FLK
45 A G3PW-A245EC-C-FLK
60 A G3PW-A260EC-C-FLK
Terminal block
with small slotted
screws Standard 20 A No No G3PW-A220EU-S
45 A G3PW-A245EU-S
60 A G3PW-A260EU-S
Constant
current 20 A Yes Yes G3PW-A220EC-S-FLK
45 A G3PW-A245EC-S-FLK
60 A G3PW-A260EC-S-FLK

Accessories (Order Separately)

Name Resistive value Display Model
External Variable Resistor 2 kΩ 202 G32X-V2K

last update: September 24, 2012

OMRON G3PW catalog
G3PW Single-phase Power Controller/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

G3PW Data Sheet J176-E1-01
[1896KB] Jun 02, 201420140602 G3PW Data Sheet

OMRON G3PW dimension
G3PW Single-phase Power Controller/Dimensions
last update: November 12, 2012

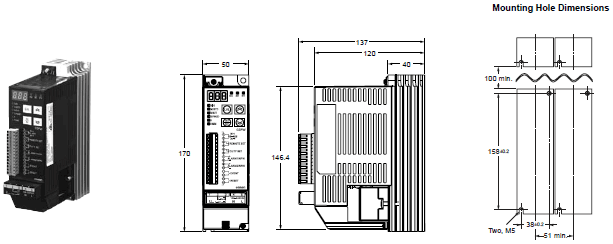

20-A Models with Screwless Clamp Terminal Block
G3PW-A220EU-C
G3PW-A220EC-C-FLK

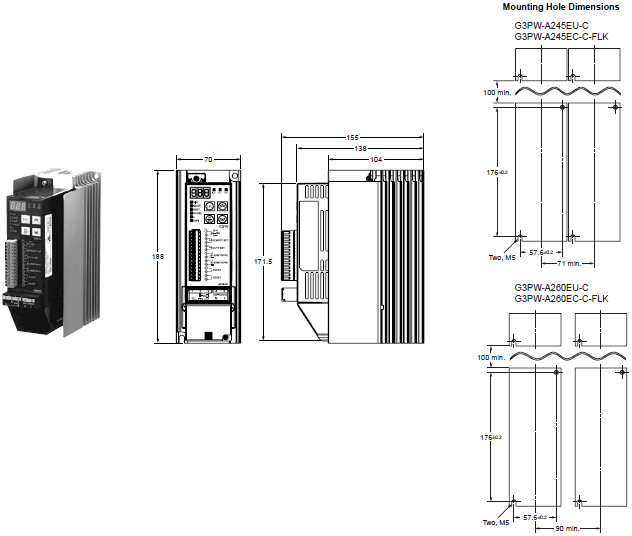

45/60-A Models with Screwless Clamp Terminal Block
G3PW-A245EU-C
G3PW-A260EU-C
G3PW-A245EC-C-FLK
G3PW-A260EC-C-FLK

20-A Models with Terminal Block with Small Slotted Screws
G3PW-A220EU-S
G3PW-A220EC-S-FLK

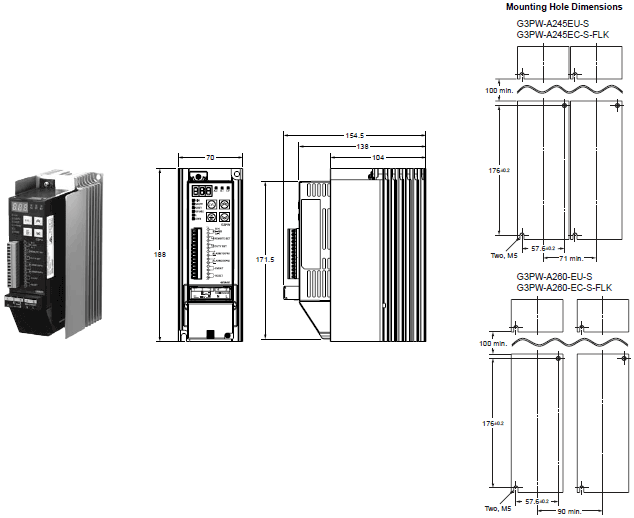

45/60-A Models with Terminal Block with Small Slotted Screws
G3PW-A245EU-S
G3PW-A260EU-S
G3PW-A245EC-S-FLK
G3PW-A260EC-S-FLK

Accessories (Order Separately)

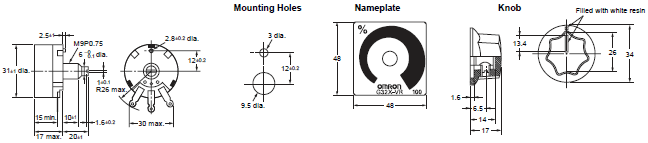

External Variable Resistor
