• Up to 256 I/O points per Master.
• Up to 32 Slaves per Master.
• Communications cycle time: 0.5 ms (at 750 kbps).
• Communications distance: Up to 500 m (at 93.75 kbps).
• Free wiring with any branching method for up to 200 m (in long-distance communications mode).
last update: December 19, 2013
Purchase the OMRON CJ1 Please fill in the following
If you have just landed here, this product OMRON CJ1W-SRM21 Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the CJ1W-SRM21 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON CJ1W-SRM21Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
NE1A-SCPU Series Safety Network Controller/Features
E52 (General purpose Models) Temperature Sensor (General-purpose Models)/Features
S8VK-T Switch Mode Power Supply (120/240/480/960 W Models)/Features
XW2B (Standard-type) Standard-type Connector-Terminal Block Conversion Units/Features
K8AK-TS / PT Thermistor Motor Protection Relay/Features

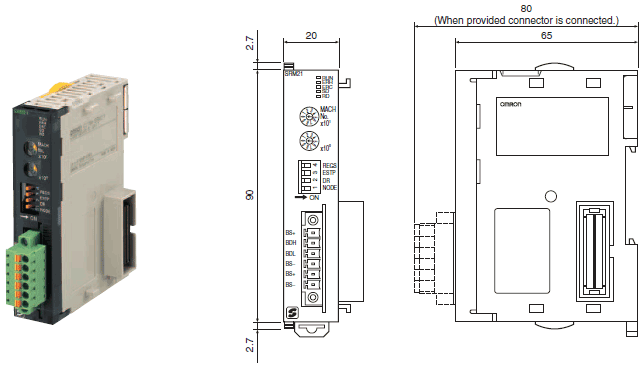

OMRON CJ1W-SRM21 dimension
