Three Technologies Supporting Effective and Efficient Ionization
Ion Sensing and Variable-AC System [Industry First]
An ion sensor installed on the bottom of the Ionizer detects the charge and ion balance.
The applied voltage is flexibly controlled according to the ion balance conditions to raise ionization efficiency.
Micro Power Spraying (MPS) Structure
High-speed airflow is achieved by minimizing the air nozzle diameter. An optimal cone shape is also employed for the inside of the nozzle to further improve ion dispersion. By using a special ring guard shape to pull passive (external) air into the active air stream, the total airflow is dramatically increased.
Optimized Discharge Electrode Pitch Optimized Discharge Electrode Pitch
Setting the discharge electrodes at a pitch that is 80 mm longer than in our previous models achieves an optimal layout that unifies ionizing performance and reduces ion recombination. This model ionizes over long distances with or without the use of an Air Purge Ionizer.
Improving Ease of Use
The Digital Ion Display Supports Safe, Reliable Settings. [Industry First]
The Digital Ion Display guides you when making settings. Settings that are important for ionization performance, such as the frequency and ion balance, can be made safety and reliably.
A Variety of Displays
Ion Balance Display
The charged state is displayed using colors.
Set Value Display
The current set value is shown on the right side of the display.
The set value can be numerically confirmed, so the setting can be quantified.
This allows identical settings to be made reliably and in a short time even across multiple Ionizers.
Cleaning Display
Notifies when cleaning is required.
Setting Lock
Disables all operations.
Operation Stop Mode Makes Maintenance Easy
The Operation Stop Mode allows for safe cleaning and replacement work. The digital display and LED lamps tell you that the Ionizer is in Operation Stop Mode so you won't forget to return to Operation Mode when you are finished doing maintenance. Both regular operations and maintenance can be done safety and reliably.
Operations from external equipment, such as stopping ionization and performing status management, can be done easily by connecting the Ionizer to a PLC using an I/O cable.
Low Running Cost
M.P.S. Construction Prolongs the Required Maintenance Period by 5 Times Compared to Our Previous Model
Greatly Reduces Maintenance Requirements
The M.P.S. nozzle emits clean air from around the discharge electrode, thus decreasing the amount of foreign matter adhesion, and dramatically extending the time before cleaning is required.
Energy-saving is a Basic Concept for OMRON Ionizers
Generally, bar-type Ionizers use compressed air. Therefore, a large amount of compressed air is needed, especially for long-distance or high-speed ionization. This increases the load rate of the compressor, and consumes large amounts of electricity. The ZJ-BAS uses an optimized discharge electrode pitch and M.P.S. nozzle to improve ionization performance while using an energy-saving structure (low-current consumption) that is environmentally friendly.
80-mm Discharge Electrode Pitch Dramatically Reduces Replacement Costs
The 80 mm discharge electrode pitch and variable-AC system reduce the number of discharge electrodes required by 60%. In addition to reducing the cleaning time, the periodic replacement of the electrodes has also been reduced, thereby dramatically reducing the running cost of the Ionizer.
last update: April 2, 2018
Purchase the OMRON Copyright Statement Please fill in the following
If you have just landed here, this product OMRON ZJ-BAS Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the ZJ-BAS We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON ZJ-BASPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E2A3 Cylindrical Proximity Sensor/Features
E5ZN-DRT DeviceNet Communications Unit/Features
ES1B Infrared Thermosensor/Features
H3CR-F Solid-state Timer/Features
NT-DRT21 Programmable Terminal DeviceNet Interface Unit/Features
OMRON ZJ-BAS specification
ZJ-BAS Ionizer (Digital Bar Type)/Specificationslast update: April 2, 2018
Ionizer
| Model | ZJ-BAS050 | ZJ-BAS058 | ZJ-BAS074 | ZJ-BAS090 | ZJ-BAS130 | ZJ-BAS154 | |
|---|---|---|---|---|---|---|---|
| Ionizer length (mm) | 370 | 450 | 610 | 770 | 1,170 | 1,410 | |
| Effective ionization length (mm) *1 | 500 | 580 | 740 | 900 | 1,300 | 1,540 | |
| Power supply voltage | 24 VDC ±10%, ripple (p-p) 10% max. | ||||||
| Current consumption | 520 mA max. (discharge frequency 0.08 to 0.5 Hz: 400 mA (typical), 1 to 10 Hz: 350 mA (typical), 20 to 40 Hz: 300 mA (typical)) | ||||||
| Discharge method | Sensing and a Variable-AC System | ||||||
| Discharge voltage | 6.5 kV P-P | ||||||
| Discharge electrode | Tungsten electrode | ||||||
| Recommended installation distance | 50 to 2,000 mm | ||||||
| Ion balance *2 | ±30 V max. | ||||||
| Power supply connector | Modular type, 8-pin connector (at both ends of Unit) | ||||||
| Air inlet | 6-dia one-touch coupling (at both ends of Unit) | ||||||
| Maximum air pressure | 0.3 MPa max. | ||||||
| External I/O | Input | Discharge stop input (Turns ON at 12 to 24 VDC), input impedance: 8.2 kΩ | |||||
| Output | Discharge stop output, cleaning output, alarm output, high-pressure error output: Signal output from photo MOS relay (100 mA max at 24 VDC) | ||||||
| Display | Seven-segment LED display | ||||||
| ID number | 001 to 050 | ||||||
| Ion balance adjustment function | Yes | ||||||
| Maximum number of linkable units | 7 Units | ||||||
| Material | Ionizer: ABS-resin, facing electrodes: Stainless steel | ||||||
| Ambient temperature range | Operating: 10 to 40°C, Storage: 0 to 40°C (with no icing or condensation) | ||||||
| Ambient humidity range | Operating: 35% to 65%, Storage: 35% to 85% (with no condensation) | ||||||
| Weight (Ionizer only) | Approx. 0.58 kg | Approx. 0.64 kg | Approx. 0.8 kg | Approx. 0.94 kg | Approx. 1.28 kg | Approx. 1.5 kg | |
| Accessories | Two mounting brackets, two M4 screws, instruction manual | Two mounting brackets, two M4 screws, 1 medium bracket, instruction manual | |||||
*1. Measurement conditions
Installation distance: 50 mm
Airflow: 1 L /min per hole
Frequency: 10 Hz
Charge plate monitor: 150 × 150 mm, 20 pF
Ionization time: (1,000 V→100V/-1,000V→-100V): 1 s max.)
*2. Measurement conditions
Installation distance: 300 mm
Airflow: 1 L /min per hole
Frequency: 10 Hz
Charge plate monitor: 150 × 150 mm, 20 pF
AC Adaptor
| Model | ZJ-BAS-PS01 |
|---|---|
| Input voltage | 100 to 240 VAC |
| Input current | 1.2 A max. |
| Output voltage | 24 VDC |
| Output current | 3.75 A max. |
| Number of output ports | 2 ports |
| Product configuration | Adapter box, AC adapter AC power cable |
| Weight (without package) | Adapter box: Approx. 30 g AC Adapter: Approx. 475 g AC power supply cable: Approx. 260 g |
last update: April 2, 2018
OMRON ZJ-BAS lineup
ZJ-BAS Ionizer (Digital Bar Type)/Lineuplast update: April 2, 2018
Ionizer
| Appearance | Total length | Effective length | Model |
|---|---|---|---|
 | 370 mm | 500 mm | ZJ-BAS050 |
| 450 mm | 580 mm | ZJ-BAS058 | |
| 610 mm | 740 mm | ZJ-BAS074 | |
| 770 mm | 900 mm | ZJ-BAS090 | |
| 1,170 mm | 1,300 mm | ZJ-BAS130 | |
| 1,410 mm | 1,540 mm | ZJ-BAS154 |
Power Supply Cable
| Appearance | Type | Cable length | Model |
|---|---|---|---|
 | Cable with Connector on One End (one ferrite core provided, 30-dia × 39 mm) | 2 m | ZJ-BAS-MC02A |
| 5 m | ZJ-BAS-MC05A | ||
| 10 m | ZJ-BAS-MC10A | ||
| 15 m | ZJ-BAS-MC15A | ||
| 20 m | ZJ-BAS-MC20A | ||
 | Cable with Connectors on Both Ends (one ferrite core provided, 30-dia × 39 mm) | 2 m | ZJ-BAS-MC02B |
| 5 m | ZJ-BAS-MC05B | ||
| 10 m | ZJ-BAS-MC10B | ||
| 15 m | ZJ-BAS-MC15B | ||
| 20 m | ZJ-BAS-MC20B | ||
 | Used for connecting Ionizers | 710 mm | ZJ-BAS-MC07RB |
| 790 mm | ZJ-BAS-MC08RB | ||
| 950 mm | ZJ-BAS-MC09RB | ||
| 1,110 mm | ZJ-BAS-MC11RB | ||
| 1,510 mm | ZJ-BAS-MC15RB | ||
| 1,750 mm | ZJ-BAS-MC17RB |
I/O Cable
| Appearance | Cable length | Model |
|---|---|---|
 | 2 m | ZJ-BAS-FC02A |
| 5 m | ZJ-BAS-FC05A | |
| 10 m | ZJ-BAS-FC10A | |
| 15 m | ZJ-BAS-FC15A | |
| 20 m | ZJ-BAS-FC20A |
AC Adapter
| Appearance | Specifications | Model |
|---|---|---|
 | Input: 100 to 240 VAC Output: 24 VDC × 2 | ZJ-BAS-PS01 |
Linking Bracket Set
| Appearance | Contents | Model |
|---|---|---|
 | Linking Bracket (1) 6-dia. Elbow Air Joint (× 2) | ZJ9-BAS-L01 |
Discharge Electrode Module
| Appearance | Quantity | Model |
|---|---|---|
 | Set of 5 | ZJ9-BAS-NT105 |
| Set of 10 | ZJ9-BAS-NT110 |
last update: April 2, 2018
OMRON ZJ-BAS catalog
ZJ-BAS Ionizer (Digital Bar Type)/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 ZJ-BAS Data Sheet | - [1177KB] | Apr 02, 201820180402 | ZJ-BAS Data Sheet |
| Static Sensors and Ionizers Series Catalog | E374-E1-04 [7616KB] | May 11, 201820180511 | Static Sensors and Ionizers Series Catalog |
OMRON ZJ-BAS dimension
ZJ-BAS Ionizer (Digital Bar Type)/Dimensionslast update: April 2, 2018
(Unit: mm)
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

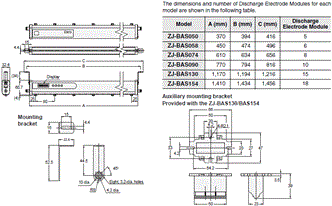

Ionizer
ZJ-BAS[][][]
Power Supply Cable
ZJ-BAS-MC[][]A
ZJ-BAS-MC[][]B/MC[][]RB
I/O Cable
ZJ-BAS-FC[][]A
AC Adapter (Adapter box)
ZJ-BAS-PS01

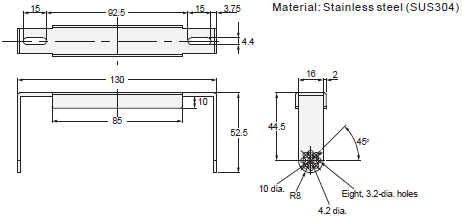

Linking Bracket
ZJ9-BAS-L01
last update: April 2, 2018
