• Up to 256 I/O points per Master.
• Up to 32 Slaves per Master.
• Communications cycle time: 0.5 ms (at 750 kbps).
• Communications distance: Up to 500 m (at 93.75 kbps).
• Free wiring with any branching method for up to 200 m (in long-distance communications mode).
last update: April 25, 2017
Purchase the OMRON CompoBus/S Please fill in the following
If you have just landed here, this product OMRON CS1W-SRM21 Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the CS1W-SRM21 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON CS1W-SRM21Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
V500-R2 Laser-type Bar Code Reader/Features
G70R-SOC08 Relay Terminal/Features
E32-T11NF[] Oil-resistant Fiber Units/Features
F3W-D Picking Sensor/Features
SRT2-[]D32ML(-1) Transistor Remote I/O Terminals with Connectors (32 Points)/Features
OMRON CS1W-SRM21 catalog
CS1W-SRM21 CS-series CompoBus/S Master Unit/Catalog- Catalog
- Manual
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 CS1W-SRM21 Data Sheet | - [345KB] | Nov 05, 200820081105 | CS1W-SRM21 Data Sheet |
OMRON CS1W-SRM21 lineup
CS1W-SRM21 CS-series CompoBus/S Master Unit/Lineuplast update: September 25, 2012
| Unit type | Name | Specifications | No. of unit num- bers allo- cated | Current consump- tion (A) | Model | Stand- ards | |||
|---|---|---|---|---|---|---|---|---|---|
| Commu- nications functions | No. of I/O points | Max. Units mountable per CPU Unit | 5 V | 24 V | |||||
| CS1 Special I/O Units | CompoBus/S Master Unit  | Remote I/O communi- cations | 256 max. (128 inputs and 128 outputs) | 95 | 2 | 0.15 | --- | CS1W-SRM21 | U, C, CE |
| 128 max. (64 inputs and 64 outputs) | 96 | 1 | |||||||
International Standards
- The standards indicated in the "Standards" column are those current for UL, CSA, cULus, cUL, NK, and Lloyd standards and EC Directives as of the end of October 2008. (The standards are abbreviated as follows: U: UL, U1: UL Class I Division 2 Products for Hazardous Locations, C: CSA, US: cULus Class I Division 2 Products for Hazardous Locations, CU: cUL, N: NK, L: Lloyd, and CE: EC Directives.
- Ask your OMRON representatives for the conditions under which the standards were met.
last update: September 25, 2012
OMRON CS1W-SRM21 dimension

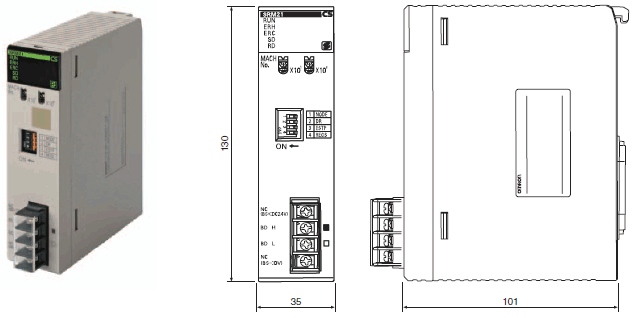

CS1W-SRM21 CS-series CompoBus/S Master Unit/Dimensionslast update: November 12, 2012
