/Images/l_3057-25-118718-198x198.jpglast update: September 01, 2016
No Cutting Oil Ingress by Any Path The Strongest Material Cables with Fluororesin Sheaths
The results of a thorough analysis of the ingress paths of cutting oil show that the deterioration of cable sheaths is a large factor.
The cable sheaths of OMRON’s Oil-resistant Components are made from fluororesin materials to provide maximum protection against the deterioration with a unique new concept. The result is an oil resistance impregnable to even highly aggressive cutting oils.
Fluororesin Blocks Ingress from Cables
[Patent Pending] Fluororesin Outer Cable Sheath
Fluororesin, which provides superior resistance to corrosion, is used for the outer cable sheath to suppress cable swelling and deterioration and prevent the ingress of cutting oil into the PCB inside the Sensor.
*The Strongest Material: Based on June 2016 OMRON investigation.
No Cutting Oil Ingress by Any Path Unique Structure
In addition to cable sheaths, joints, and moving sections, cutting oil enters most easily in gaps between different materials. OMRON’ s Oil-resistant Components completely block the ingress of cutting oil with a unique structure that does not allow the creation of gaps.
OMRON’s Unique Structure without Gaps Blocks Oil Ingress
Mechanical Seal Structure
An aluminum ring bushing is compressed and deformed by a set screw to seal the structure by pressing against the fluororesin part of the fiber core. This prevents the ingress of cutting oil from the joined surfaces.
last update: September 01, 2016
Purchase the OMRON Fiber Units Please fill in the following
If you have just landed here, this product OMRON E32-T11NF[] Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E32-T11NF[] We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E32-T11NF[]Sensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
R88M-G, R88D-GN[]-ML2 G-series AC Servomotors/Servo Drives with Built-in MECHATROLINK-II Communic...
E6H-C Hollow-shaft Encoder with Diameter of 40 mm/Features
CS1W-MAD44 SYSMAC CS-series Analog I/O Unit/Features
T20 Pendant Pendant/Features
S8V-NF Noise Filter (Single-phase 250 V 3 A / 6 A Type)/Features
OMRON E32-T11NF[] specification
E32-T11NF[] Oil-resistant Fiber Units/Specificationslast update: August 1, 2018
Installation Information
| Models | Installation | Weight (packed state) (g) | ||
|---|---|---|---|---|
| Ambient temperature | Tightening torque | Mounting hole | ||
| E32-T11NF 2M | -25 to 70 °C | 12 N·m | 8.5 +0.5 dia. | 80 |
| E32-T11NFS 2M | -25 to 70 °C | 0.78 N·m | 4.2 +0.5 dia. | 70 |
| Models | Cable | |||||
|---|---|---|---|---|---|---|
| Bending radius | Unbendable length | Tensile strength | Sheath material | Core material | Emitter/receiver differentiation | |
| E32-T11NF 2M | R1 | 0 | 29.4 N | Fluororesin | Plastic | None |
| E32-T11NFS 2M | R1 | 0 | 29.4 N | Fluororesin | Plastic | None |
last update: August 1, 2018
OMRON E32-T11NF[] lineup
E32-T11NF[] Oil-resistant Fiber Units/Lineuplast update: August 1, 2018
Through-beam Fiber Units
| Type | Sensing direction | Appearance (mm) | Bending radius of cable | Sensing distance (mm) | Optical axis diameter (minimum sensing object) | Model | |
|---|---|---|---|---|---|---|---|
| E3X-HD | E3NX-FA | ||||||
| Oil- resistant | Right- angle |  *1IP68G | Flexible, R1 | GIGA: 4,000 *2 HS: 4,000 *2 ST: 4,000 *2 SHS: 2,200 | GIGA: 4,000 *2 HS: 4,000 *2 ST: 4,000 *2 SHS: 2,200 | 4 dia. (0.1 dia./ 0.03 dia.) | E32-T11NF 2M |
 *1IP68G | Flexible, R1 | GIGA: 2,200 HS: 730 ST: 1,100 SHS: 270 | GIGA: 3,300 HS: 1,100 ST: 1,600 SHS: 270 | 2 dia. (0.1 dia./ 0.03 dia.) | E32-T11NFS 2M | ||
*1. The IP68G is the degree of protection which is defined according to the JIS (Japanese Industrial Standards).
The IP68 indicates the same level of protection as defined by the IEC, and the G indicates that a device has resistance to oil.
Passed OMRON's Oil-resistant Component Evaluation Standards (OMRON's own durability evaluation standards)
(Cutting oil type: specified in JIS K 2241:2000; Temperature: 35 °C max.)
*2. The optical fiber is 2 m long on each side, so the sensing distance is 4,000 mm.
Note:
1. The following mode names and response times apply to the modes given in the Sensing distance column.
[E3X-HD] GIGA: Giga-power mode (16 ms), HS: High-speed mode (250 μs), ST: Standard mode (1 ms), and SHS: Super-high-speed mode (NPN output: 50 μs, PNP output: 55 μs)
[E3NX-FA] GIGA: Giga-power mode (16 ms), HS: High-speed mode (250 μs), ST: Standard mode (1 ms), and SHS: Super-high-speed mode (30 μs)
2. The values for the minimum sensing object are reference values that indicate values obtained in standard mode with the sensing distance and sensitivity set to the optimum values. The first value is for the E3X-HD and the second value is for the E3NX-FA.
Combined Fiber Amplifier Units
| Series | E3X-HD Series | E3NX-FA Series |
|---|---|---|
| Appearance |  |  |
| Output | 1 output | 1 or 2 outputs (depending on the model) |
| External input | Not supported | Supported or not supported (depending on the model) |
| Response time * | 50 μs (55 μs)/250 μs/1 ms/16 ms (Default: 250 μs) | 30 μs (32 μs)/250 μs/1 ms/16 ms (Default: 250 μs) |
Note: The Fiber Amplifier Units are not oil resistant.
* These are the response times for super-high-speed mode (SHS), high-speed mode (HS), standard mode (ST), and GIGA-power mode (GIGA).
The value in parentheses for the super-high-speed mode is for a model with a PNP output.
last update: August 1, 2018
OMRON E32-T11NF[] dimension
E32-T11NF[] Oil-resistant Fiber Units/Dimensionslast update: August 1, 2018
(Unit: mm)

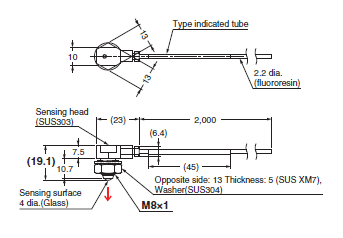

E32-T11NF 2M (Free Cutting)
![E32-T11NF[] Dimensions 1](/images/8767/3057_dm_125-110734.gif)

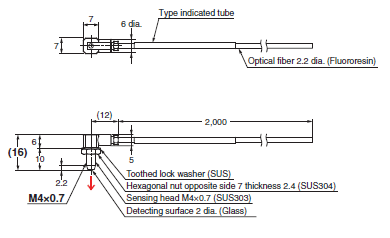

E32-T11NFS 2M (Free Cutting)
![E32-T11NF[] Dimensions 2](/images/8767/3057_dm_225-285759.gif)
last update: August 1, 2018
