OMRON F3W-DSensors/ Photoelectric Sensors/Area Sensors

OMRON F3W-D Sensors

F3W-D Picking Sensor/Catalog
F3W-D Picking Sensor/Dimensions
F3W-D Picking Sensor/Lineup
F3W-D Picking Sensor/Specifications
Purchase the OMRON F3W-D Area Sensors

OMRON F3W-D Dimensions

/Images/l_424-25-118830-198x198.jpg

last update: November 16, 2017

Sensing Distance of 3 m

Selectable Display Mode: All Lighting, All Flashing, Elevator-like Lighting, Accordion-like Lighting

• Six picking indicators provide very clear displays.
• Selectable display speed (slow/fast)

External Picking Indicators Can Be Connected

An indicator (M22N Series, etc.) can be directly connected to the Picking Sensor and mounted in an easy-to-see location.

* Be sure to check the power supply voltage before use.
For more information on the M22N Series, refer to the A22N/M22N/A30N Data Sheet (Cat. No. A254).

last update: November 16, 2017

Purchase the OMRON Area Sensors Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON F3W-D Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the F3W-D We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON F3W-DSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

QX-870 Series Laser Barcode Scanner/Features
ZJ-BAS Ionizer (Digital Bar Type)/Features
D4A-[]N General-purpose Limit Switch/Features
CS1W-DRM21-V1 CS-series DeviceNet Unit/Features
XW5T-P DIN Track Push-in Terminal Blocks/Features

OMRON F3W-D catalog
F3W-D Picking Sensor/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

F3W-D Data Sheet -
[3035KB] Feb 07, 201920190207 F3W-D Data Sheet

OMRON F3W-D dimension
F3W-D Picking Sensor/Dimensions
last update: November 12, 2012
Sensors
F3W-D

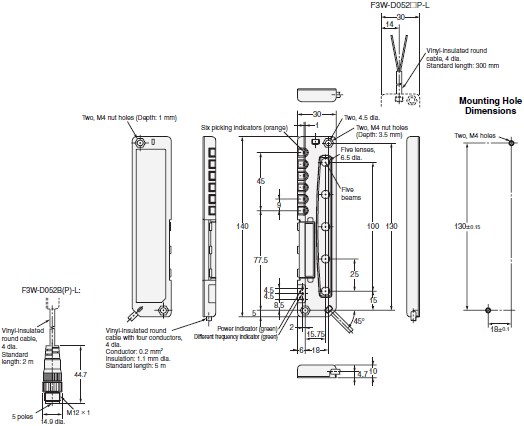

Emitter
F3W-D052A(P)-L
F3W-D052B(P)-L

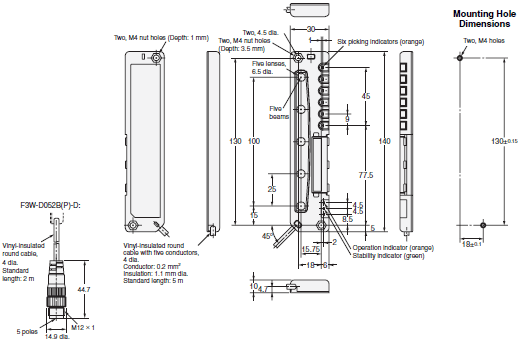

Receiver
F3W-D052A(P)-D
F3W-D052B(P)-D

Accessories (Sold Separately)
Mounting Brackets

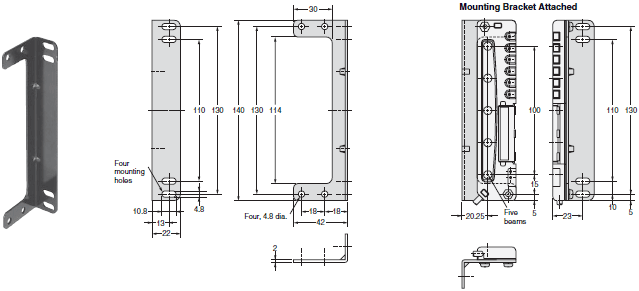

F39-L10 (L-shaped)

Material: Iron (Thickness: 2 mm)
Mounting screws provided.

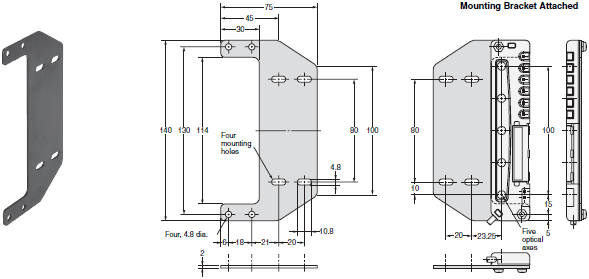

F39-L11 (Flat)

Material: Iron (Thickness: 2 mm)
Mounting screws provided.

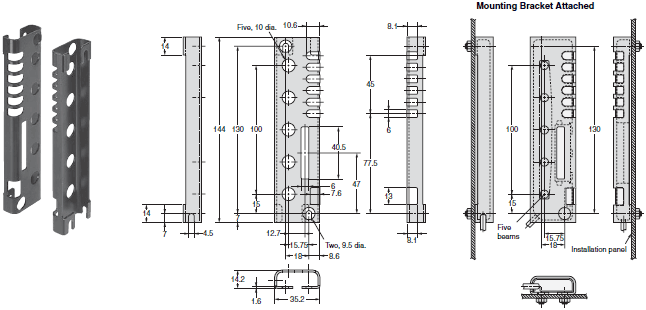

Protective Bracket
F39-L12 (Receiver)

Material: Iron (Thickness: 1.6 mm)
Mounting screws provided.
Note: The Emitter and Receiver are axially symmetrical.

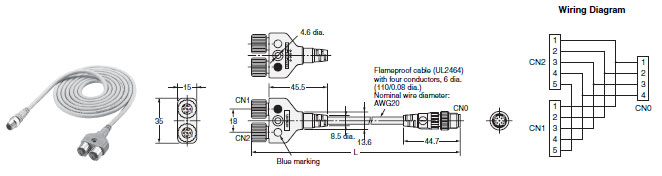

Y-shaped Joint Plugs and Sockets (Cable with Connectors on Both Ends)
XS2R-D526-S001-2 (L=2,000 mm)
XS2R-D526-S001-5 (L=5,000 mm)

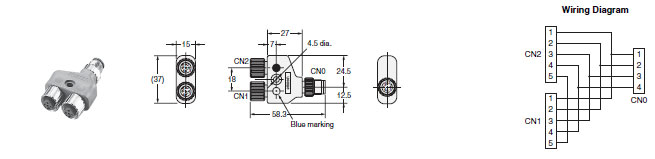

Y-shaped Joint Plugs and Sockets without Cable
XS2R-D526-S003

last update: November 12, 2012

OMRON F3W-D lineup
F3W-D Picking Sensor/Lineup
last update: August 1, 2018
Sensors

Sensing
method Appearance Connection
method
(cable length) Sensing
distance Beams Sensing
width
(mm) Output
type External
indicator Model
Gap Qty
Through-
beam Pre-wired (5 m) 3 m
(Infrared
LED) 25 m 5 100 NPN
open
collector --- F3W-D052A *1
Possible F3W-D052AP *1
Pre-wired
connector (2 m) --- F3W-D052B *1, 2
Possible F3W-D052BP *1, 2

*1. Models with PNP outputs are also available. To order PNP Models, replace A with C in the model number for a Pre-
wired Model and B with D in the model number for a Pre-wired Connector Model (Example: F3W-D052C).
*2. The XS2F-D521-[]G0 is the applicable connector cable. The colors of the external sheathes of the conductors,
however, are different. Refer to the XS2.

Accessories (Order Separately)
Mounting Brackets

Appearance Model Quantity Remarks
F39-L10 two
per set L-shaped Mounting Bracket
(mounting screws included)
F39-L11 two
per set Flat Mounting Bracket
(mounting screws included)

Protective Bracket

Appearance Model Qty
F39-L12 One each for Emitter and Receiver
(mounting screws included)

Y-shaped Joint Plugs and Sockets (Cable with Connectors on Both Ends)

Appearance Overall length Model Qty
2 m XS2R-D526-S001-2 1
5 m XS2R-D526-S001-5 1

Y-shaped Joint Plugs and Sockets without Cable

Appearance Model Qty Remarks
XS2R-D526-S003 1 Connecting cable:
Cable with connectors on both ends: XS2W Series
Cable with connector on one end: XS2F Series 4-conductor models

Sensor I/O Connectors (Models for Pre-wired Connectors: A Connector is not provided with the Sensor. Be sure to order a Connector separately.)

Size Type Appearance Cable length Model
M12 Socket on one cable
end Straight 2 m XS2F-D421-D80-F
5 m XS2F-D421-G80-F
L-shape 2 m XS2F-D422-D80-F
5 m XS2F-D422-G80-F
Socket and plug on
cable ends * Straight/Straight 2 m XS2W-D421-D81-F
5 m XS2W-D421-G81-F
L-shape/L-shape 2 m XS2W-D422-D81-F
5 m XS2W-D422-G81-F

Note: 1. Each model includes one cable. A cable is required for both the Emitter and the Receiver (two cables total).
2. Refer to Sensor I/O Connectors/Sensor Controllers on your OMRON website for details.
* Straight type/L-shape type combinations are also available.

last update: August 1, 2018

OMRON F3W-D specification
F3W-D Picking Sensor/Specifications
last update: February 7, 2019

Sensing method Through-beam
Model F3W-D052A (P) *1 F3W-D052B (P) *1
Sensing distance 3 m, switchable between LONG mode (1 to 3 m) and SHORT mode: (0.05 to 1 m),
factory-set to SHORT mode.
Beam gap 25 mm
Number of beams 5
Sensing width 100 mm
Standard sensing object Opaque, 35 mm dia. min.
Light source
(emission wavelength) Infrared LED (860 nm)
Power supply voltage 12 to 24 VDC±10% (ripple (p-p): 10% max.)
Power consumption Emitter: 0.6 W max., Receiver: 0.7 W max.
Control output NPN open collector with 100 mA max. at 30 VDC
NPN open collector output type
Dark-ON or Light-ON (selectable)
Picking instruction
indicator input Open collector with relay or transistor input
Indicator ON: Input voltage of 0 to 2 V
Indicator OFF: Open (with leakage current of 0.1 mA max.)
Protection circuits Reverse-connection protection, output short protection, and mutual
interference prevention function (set with frequency switch)
Response time Operate/Reset: 10 ms max.
Indicators Receiver Operation indicator (orange), stability indicator (green), and 6 picking indicators
(orange),
UNI-WIRE Direct Connection Models: Transmission indicator (orange) *2
Emitter Power indicator (green), different frequency indicator (green), and 6 picking
indicators (orange),
UNI-WIRE Direct Connection Models: Transmission indicator (orange) *2
Ambient temperature Operating: -10° to 55°C, Storage: -25° to 70°C (with no icing or condensation)
Ambient humidity 35% to 85% (with no condensation)
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 1,000 VAC 50/60 Hz for 1 min
Vibration resistance (destruction) 10 to 50 Hz, 1.5-mm double-amplitude for 2 hours each in X, Y and Z directions
Shock resistance (destruction) 500 m/s², 3 times each in X, Y and Z directions
Degree of protection IEC60529: IP62 (with the operation cover closed)
Connection method Pre-wired
Standard cable length: 5 m *3 Pre-wired connector
(M12 5-pin connector)
Standard cable length: 2 m *3
Weight (packed state) Approx. 360 g Approx. 230 g
Materials Case,
indicator windows ABS resin
Lens Acrylic resin
Operation cover Nylon (PA6)
Accessories Instruction manual

*1. The F3W-D052[]P Emitters are provided with the external picking indicator output line shown in the following table.

Item F3W-D052AP, F3W-D052BP
Connection method Pre-wired (standard cable length: 300 mm)
Electrical specifications Output current: 50 mA max.
Output voltage: Fixed at Sensor power supply voltage

*2. The transmission indicator indicates bus transmission status.
*3. The following cable lengths are also available.
F3W-D052A (P): 2 m, 7 m
F3W-D052B : 1 m, 3.5 m

last update: February 7, 2019
