OMRON CJ1W-IC / IIAutomation Systems/ Programmable Controllers/CJ1
OMRON CJ1W-IC / II Automation Systems
- CJ1W-IC / II CJ-series I/O Control Unit / I/O Interface Unit/Dimensions
- CJ1W-IC / II CJ-series I/O Control Unit / I/O Interface Unit/Catalog
- CJ1W-IC / II CJ-series I/O Control Unit / I/O Interface Unit/Lineup
- CJ1W-IC / II CJ-series I/O Control Unit / I/O Interface Unit/Specifications
- Purchase the OMRON CJ1W-IC / II CJ1
OMRON CJ1W-IC / II Dimensions
/Images/l_2068-25-118571-198x198.jpglast update: December 19, 2013
• Rack-mountable Units enable expanding Controller capacity even when space is limited.
• Easy-to-use connectors enable quick expansion without any settings.
last update: December 19, 2013
Purchase the OMRON CJ1 Please fill in the following
If you have just landed here, this product OMRON CJ1W-IC / II Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the CJ1W-IC / II We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON CJ1W-IC / IIAutomation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
G9B Stepping Relay Unit/Features
CS1W-V680C11 / V680C12 CS Series ID Sensor Unit/Features
Viper 650 Articulated Robots/Features
Automation Control Environment (ACE) Software/Features
T20 Pendant Pendant/Features
OMRON CJ1W-IC / II dimension
CJ1W-IC / II CJ-series I/O Control Unit / I/O Interface Unit/Dimensionslast update: August 08, 2013

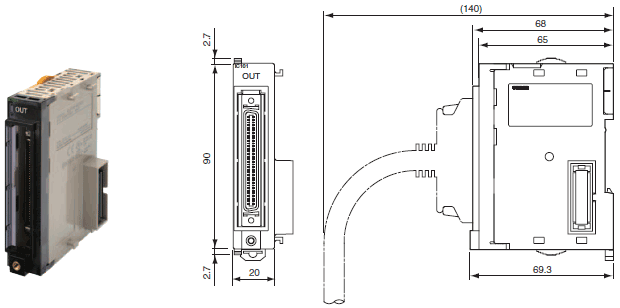

I/O Control Unit
CJ1W-IC101
Note: Weight : 70 g max.

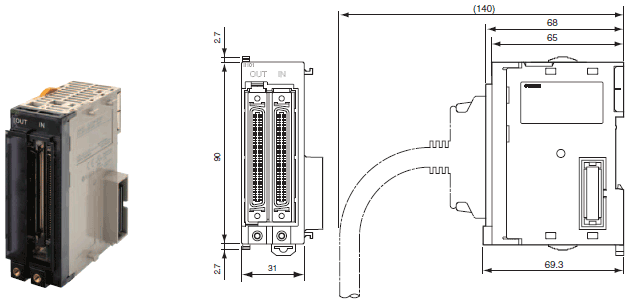

I/O Interface Unit
CJ1W-II101
Note: Weight : 130 g max. (including End Cover)
last update: August 08, 2013
OMRON CJ1W-IC / II catalog
CJ1W-IC / II CJ-series I/O Control Unit / I/O Interface Unit/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 CJ1W-IC/II Data Sheet | - [587KB] | Nov 29, 201120111129 | CJ1W-IC/II Data Sheet |
OMRON CJ1W-IC / II lineup
CJ1W-IC / II CJ-series I/O Control Unit / I/O Interface Unit/Lineuplast update: August 08, 2013
International Standards
- The standards are abbreviated as follows: U: UL, U1: UL (Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus, UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, and CE: EC Directives.
- Contact your OMRON representative for further details and applicable conditions for these standards.
I/O Control Unit (Mounted on CPU Rack when Connecting Expansion Racks)
| Product name | Specifications | Current consumption (A) | Model | Stand- ards | |
|---|---|---|---|---|---|
| 5 V | 24 V | ||||
| CJ-series I/O Control Unit  | Mount one I/O Control Unit on the CPU Rack when connecting one or more Expansion Racks. Connecting Cable: CS1W-CN[][]3 Expansion Connecting Cable Connected Unit: CJ1W-II101 I/O Interface Unit Mount to the right of the CPU Unit. | 0.02 | --- | CJ1W-IC101 | UC1, N, L, CE |
Note: Mounting the I/O Control Unit in any other location may cause faulty operation.
I/O Interface Unit (Mounted on Expansion Rack)
| Product Name | Specifications | Current consumption (A) | Model | Stand- ards | |
|---|---|---|---|---|---|
| 5 V | 24 V | ||||
| CJ-series I/O Interface Unit  | One I/O Interface Unit is required on each Expansion Rack. Connecting Cable: CS1W-CN[][]3 Expansion Connecting Cable Mount to the right of the Power Supply Unit. | 0.13 | --- | CJ1W-II101 | UC1, N, L, CE |
Note: Mounting the I/O Interface Unit in any other location may cause faulty operation.
last update: August 08, 2013
OMRON CJ1W-IC / II specification
CJ1W-IC / II CJ-series I/O Control Unit / I/O Interface Unit/Specificationslast update: September 24, 2012
No information is provided on the Specifications of this product.
last update: September 24, 2012
- NO. CJ1W-IC / II
- TYPE:Programmable Controllers CJ1 Other Units
- DATE:2021-06-20
