last update: April 3, 2017

• Easy setting with thumbwheel switches.

• A draw-out construction enables maintenance without rewiring.

• Models with 2-, 4-, 6-, or 8-digit displays are also available.

• Total Counter models are also Available..

last update: April 3, 2017

Purchase the OMRON General-purpose Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON H7AN Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the H7AN We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON H7ANControl Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E3S-C Oil-resistive, Long-range Photoelectric Sensor with Metal Housing/Features
F39-TC5 Connector Terminal Box (Muting Terminals)/Features
E52 with Ferrule (Exclusive Models) Temperature Sensor with Ferrule (Exclusive Models)/Features
K3HB-C Up/Down Counting Pulse Indicator/Features
EtherCAT EtherCAT Overview/Features

OMRON H7AN specification
H7AN Digital Counter (DIN 72 × 72)/Specifications
last update: April 10, 2017
Preset Counters
Incrementing/Decrementing Counters

Operating method Incrementing and decrementing (selectable with DIP switch)
Mounting method Flush mounting
Operation modes N, F, C, R, K, P, Q (selectable with rotary DIP switch)
Input signal method
(Count and reset inputs) Contact and transistor input voltage (H and L)
Control output 1-stage counters: Contact (SPDT) and transistor output (H and L output switchable)
2-stage counters: Contact (SPST-NO) and transistor output (H and L output switchable)
Set value read Continuous mode
Memory backup No Yes/No (Selectable using DIP switch)
Display Yes (10-mm high 7-segment LED, Up
indicator) Yes (10-mm high 7-segment LED, Up
indicator)
Models 2 digits 1 stage H7AN-2D H7AN-2DM
4 digits 1 stage H7AN-4D H7AN-4DM
2 stages H7AN-W4D H7AN-W4DM

Reversible Counters

Operating method Reversible (selectable with rotary DIP switch) between 0 and the set value
Incrementing/decrementing A/D (command inputs)
Incrementing/decrementing B/E (individual inputs)
Incrementing/decrementing C/F (phase difference inputs)
Mounting method Flush mounting
Operation modes N, F, C, R, K, P, Q (selectable with rotary DIP switch)
Input signal method
(Count, reset input) Contact and transistor input voltage (H and L)
Control output 1-stage counters: Contact (SPDT) and transistor output (H and L output switchable)
2-stage counters: Contact (SPST-NO) and transistor output (H and L output switchable)
Set value read Continuous mode
Memory backup No Yes/No (Selectable using DIP switch)
Display Yes (10-mm high 7-segment LED, Up indicator)
Models 2 digits 1 stage H7AN-E2D H7AN-E2DM
4 digits 1 stage H7AN-E4D H7AN-E4DM
2 stages H7AN-WE4D H7AN-WE4DM

Incrementing, Decrementing, and Reversible Counters

Operating method Incrementing, decrementing, and reversible (UP/DOWN A to F) (selectable with rotary
DIP switch)
Mounting method Flush mounting
Operation modes N, F, C, R, K, P, Q (selectable with rotary DIP switch)
Input signal method
(Count, reset input) Contact and transistor input voltage (H and L)
Control output 1-stage counters: Contact (SPDT) and transistor output (H and L output switchable)
2-stage counters: Contact (SPST-NO) and transistor output (H and L output switchable)
Set value read Continuous mode, Reset mode (selectable)
Memory backup No Yes/No (Selectable using DIP switch)
Display Yes (8-mm high 7-segment LED, Up indicator)
Models 6 digits 1 stage H7AN-R6D H7AN-R6DM
2 stage H7AN-RW6D H7AN-RW6DM
8 digits 1 stages H7AN-R8D H7AN-R8DM

Totalizing Counters
Incrementing/Decrementing Counters

Operating method Incrementing and decrementing (selectable with DIP switch)
Mounting method Flush mounting
Input signal method (Count, reset input) Contact and transistor input voltage (H and L)
Memory backup No Yes/No (Selectable using DIP switch)
Display Yes (10-mm high 7-segment LED)
Models 4 digits H7AN-T4 H7AN-T4M

Reversible Counters

Operating method Reversible (selectable with rotary DIP switch) between 0 and the full scale
Incrementing/decrementing A/D (command inputs)
Incrementing/decrementing B/E (individual inputs)
Incrementing/decrementing C/F (phase difference inputs)
Mounting method Flush mounting
Input signal method
(Count, reset input) Contact and transistor input voltage (H and L)
Memory backup Yes/No (Selectable using DIP switch)
Display Yes (10-mm high 7-segment LED)
Models 4 digits H7AN-ET4M

Incrementing, Decrementing, and Reversible Counters

Operating method Incrementing, decrementing, and reversible (UP/DOWN A to F)
Mounting method Flush mounting
Input signal method (Count, reset input) Contact and transistor input voltage (H and L)
Memory backup No Yes/No (Selectable using DIP switch)
Display Yes (8-mm high 7-segment LED)
Models 6 digits H7AN-RT6 H7AN-RT6M
8 digits --- H7AN-RT8M

Ratings

Rated supply voltage 100 to 240 VAC, 50/60 Hz (common use); 12 to 24, 48, 100 VDC *1
Operating voltage range 85% to 110% of rated voltage
Power consumption Approx. 10 VA (240 VAC at 50 Hz); Approx. 5 W (at 24 VDC) *2
Max. counting speed of CP1 and
CP2 2-digit counters: 30 Hz
4-digit counters: 30 Hz or 5 kHz
6- or 8-digit counters: 30 Hz or 5 kHz
Minimum signal width (with ON/OFF ratio of 1:1): 30 Hz: 16.7 ms, 5 kHz: 0.1 ms
H: 4.5 to 30 VDC, L: 0 to 2 VDC
Reset Power supply reset (except for H7AN Counter with suffix "-M"):
Minimum power-OFF time: 0.5 s with a reset time of 0.05 s after power-ON.
External, manual, reset signal time: 0.02 s
Reset time after completion of reset signal: 0.05 s
Automatic reset *3
Control output Contacts: 3 A at 250 VAC, resistive load (cosφ = 1)
No-contacts: 100 mA max. at 30 VDC max., open collector
Min. applicable load 10 mA at 5 VDC (p level reference value)
External power supply 80 mA, 12 VDC ±10% (contains 5% ripple max.)
Ambient temperature Operating: -10°C to 55°C (with no icing)
Storage: -25°C to 65°C (with no icing)
Ambient humidity 35% to 85%
Case color Light gray (Munsell 5Y7/1)

*1. The ripple is 20% max.
*2. There is an inrush current of 14 A at 240 VAC for approximately 0.6 ms, 15 A at 12 to 24 VDC for 2 ms, 5 A at 48
VDC for 3 ms, or 8 A at 100 VDC for 2 ms immediately after power-ON.
*3. Only preset counters can be automatically reset.

Characteristics

Insulation resistance 100 MW min. (at 500 VDC) (between current-carrying terminal and exposed non-current-
carrying metal parts, and between non-continuous contacts)
Dielectric strength 2,000 VAC, 50/60 Hz for 1 min (between current-carrying terminal and exposed non-
current carrying metal parts)
750 VAC, 50/60 Hz for 1 min (between non-continuous contacts)
Impulse withstand voltage 6 kV (between power terminals), 6 kV (between current-carrying terminal and exposed
non-current-carrying metal parts)
Noise immunity ±2 kV (between power terminals) and ±500 V (between input terminals), square-wave
noise by noise simulator
Vibration resistance Destruction:10 to 55 Hz, 0.75-mm double amplitude
Malfunction:10 to 55 Hz, 0.5-mm double amplitude
Shock resistance Destruction: 300 m/s²
Malfunction: 100 m/s²
Life expectancy Mechanical: 10,000,000 operations min.
Electrical: 100,000 operations min. (3 A at 250 VAC, resistive load)
Memory backup storage
method * Non-volatile memory (Number of writes: 1 million times, Data retention: 10 years)
Weight Approx. 360 g

* This applies only to the models ending with -M.

Applicable Standards

Approved safety standards UL508/CSA C22.2 No. 14
EN 61010-1 (IEC 61010-1): Pollution degree 2/overvoltage category II
EMC (EMI) EN61326
Emission Enclosure: EN 55011 Group 1 class A
Emission AC mains: EN 55011 Group 1 class A
(EMS) EN61326
Immunity ESD: EN 61000-4-2
Immunity RF-interference: EN 61000-4-3
Immunity Conducted Disturbance: EN 61000-4-6
Immunity Burst: EN 61000-4-4
Immunity Surge: EN 61000-4-5
Immunity Voltage Dip/Interruption: EN 61000-4-11

last update: April 10, 2017

OMRON H7AN catalog
H7AN Digital Counter (DIN 72 × 72)/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

H7AN Data Sheet -
[2729KB] Jul 12, 201720170712 H7AN Data Sheet

OMRON H7AN dimension
H7AN Digital Counter (DIN 72 × 72)/Dimensions
last update: July 12, 2017

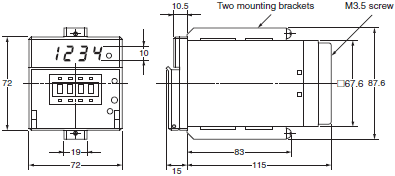

(Unit: mm)

H7AN

Note: 1. The panel cutouts for the H7AN are as shown (according to DIN437000).
         2. The recommended mounting panel thickness is from 1 to 5 mm.
         3. Use the mounting bracket (sold together) to mount the digital counter.
             Use model number Y92H-5 (2 pcs) to order additional brackets.

Panel Cutouts

(When N units are flush-mounted horizontally.)

(n-1) × 72 + 70 min. (including a tolerance of 2 mm)

last update: July 12, 2017

OMRON H7AN lineup
H7AN Digital Counter (DIN 72 × 72)/Lineup
last update: February 1, 2017

Each model is sold together with a mounting bracket.

Preset Counter

No. of
digits Backup
function Incrementing (Up) or decrementing (Down)
counter (not reversible) Reversible counter (Up/Down)
One stage Two stages One stage Two stages
With digital display With digital display With digital display With digital display
2 No H7AN-2D --- H7AN-E2D ---
Yes H7AN-2DM --- H7AN-E2DM ---
4 No H7AN-4D H7AN-W4D H7AN-E4D H7AN-WE4D
Yes H7AN-4DM H7AN-W4DM --- H7AN-WE4DM

No. of
digits Backup
function Incrementing (Up), decrementing (Down), or reversible (Up/Down) counter
One stage Two stages
With digital display With digital display
6 No H7AN-R6D H7AN-RW6D
Yes H7AN-R6DM H7AN-RW6DM
8 No H7AN-R8D ---
Yes H7AN-R8DM ---

Totalizing Counter

No. of
digits Backup
function Incrementing (Up) or decrementing (Down)
counter (not reversible) Reversible counter (Up/Down)
4 No H7AN-T4 ---
Yes H7AN-T4M H7AN-ET4M
6 No --- H7AN-RT6
Yes --- H7AN-RT6M
8 No --- ---
Yes --- H7AN-RT8M

Note: Specify the power supply voltage when ordering.

last update: February 1, 2017

NO. H7AN

TYPE:Counters General-purpose Copyright Statement

DATE:2021-06-08

Associated products:
H7BX Multifunction Counter (DIN 72 × 72)/Features H7CN Solid-state Counter/Features

Operating method	Incrementing and decrementing (selectable with DIP switch)
Mounting method	Flush mounting
Operation modes	N, F, C, R, K, P, Q (selectable with rotary DIP switch)
Input signal method (Count and reset inputs)	Contact and transistor input voltage (H and L)
Control output	1-stage counters: Contact (SPDT) and transistor output (H and L output switchable) 2-stage counters: Contact (SPST-NO) and transistor output (H and L output switchable)
Set value read	Continuous mode
Memory backup	No	Yes/No (Selectable using DIP switch)
Display	Yes (10-mm high 7-segment LED, Up indicator)	Yes (10-mm high 7-segment LED, Up indicator)
Models	2 digits	1 stage	H7AN-2D	H7AN-2DM
4 digits	1 stage	H7AN-4D	H7AN-4DM
2 stages	H7AN-W4D	H7AN-W4DM

Operating method	Reversible (selectable with rotary DIP switch) between 0 and the set value Incrementing/decrementing A/D (command inputs) Incrementing/decrementing B/E (individual inputs) Incrementing/decrementing C/F (phase difference inputs)
Mounting method	Flush mounting
Operation modes	N, F, C, R, K, P, Q (selectable with rotary DIP switch)
Input signal method (Count, reset input)	Contact and transistor input voltage (H and L)
Control output	1-stage counters: Contact (SPDT) and transistor output (H and L output switchable) 2-stage counters: Contact (SPST-NO) and transistor output (H and L output switchable)
Set value read	Continuous mode
Memory backup	No	Yes/No (Selectable using DIP switch)
Display	Yes (10-mm high 7-segment LED, Up indicator)
Models	2 digits	1 stage	H7AN-E2D	H7AN-E2DM
4 digits	1 stage	H7AN-E4D	H7AN-E4DM
2 stages	H7AN-WE4D	H7AN-WE4DM

Operating method	Incrementing, decrementing, and reversible (UP/DOWN A to F) (selectable with rotary DIP switch)
Mounting method	Flush mounting
Operation modes	N, F, C, R, K, P, Q (selectable with rotary DIP switch)
Input signal method (Count, reset input)	Contact and transistor input voltage (H and L)
Control output	1-stage counters: Contact (SPDT) and transistor output (H and L output switchable) 2-stage counters: Contact (SPST-NO) and transistor output (H and L output switchable)
Set value read	Continuous mode, Reset mode (selectable)
Memory backup	No	Yes/No (Selectable using DIP switch)
Display	Yes (8-mm high 7-segment LED, Up indicator)
Models	6 digits	1 stage	H7AN-R6D	H7AN-R6DM
2 stage	H7AN-RW6D	H7AN-RW6DM
8 digits	1 stages	H7AN-R8D	H7AN-R8DM

Operating method	Incrementing and decrementing (selectable with DIP switch)
Mounting method	Flush mounting
Input signal method (Count, reset input)	Contact and transistor input voltage (H and L)
Memory backup	No	Yes/No (Selectable using DIP switch)
Display	Yes (10-mm high 7-segment LED)
Models	4 digits	H7AN-T4	H7AN-T4M

Operating method	Reversible (selectable with rotary DIP switch) between 0 and the full scale Incrementing/decrementing A/D (command inputs) Incrementing/decrementing B/E (individual inputs) Incrementing/decrementing C/F (phase difference inputs)
Mounting method	Flush mounting
Input signal method (Count, reset input)	Contact and transistor input voltage (H and L)
Memory backup	Yes/No (Selectable using DIP switch)
Display	Yes (10-mm high 7-segment LED)
Models	4 digits	H7AN-ET4M

Operating method	Incrementing, decrementing, and reversible (UP/DOWN A to F)
Mounting method	Flush mounting
Input signal method (Count, reset input)	Contact and transistor input voltage (H and L)
Memory backup	No	Yes/No (Selectable using DIP switch)
Display	Yes (8-mm high 7-segment LED)
Models	6 digits	H7AN-RT6	H7AN-RT6M
8 digits	---	H7AN-RT8M

Rated supply voltage	100 to 240 VAC, 50/60 Hz (common use); 12 to 24, 48, 100 VDC *1
Operating voltage range	85% to 110% of rated voltage
Power consumption	Approx. 10 VA (240 VAC at 50 Hz); Approx. 5 W (at 24 VDC) *2
Max. counting speed of CP1 and CP2	2-digit counters: 30 Hz 4-digit counters: 30 Hz or 5 kHz 6- or 8-digit counters: 30 Hz or 5 kHz Minimum signal width (with ON/OFF ratio of 1:1): 30 Hz: 16.7 ms, 5 kHz: 0.1 ms H: 4.5 to 30 VDC, L: 0 to 2 VDC
Reset	Power supply reset (except for H7AN Counter with suffix "-M"): Minimum power-OFF time: 0.5 s with a reset time of 0.05 s after power-ON. External, manual, reset signal time: 0.02 s Reset time after completion of reset signal: 0.05 s Automatic reset *3
Control output	Contacts: 3 A at 250 VAC, resistive load (cosφ = 1) No-contacts: 100 mA max. at 30 VDC max., open collector
Min. applicable load	10 mA at 5 VDC (p level reference value)
External power supply	80 mA, 12 VDC ±10% (contains 5% ripple max.)
Ambient temperature	Operating: -10°C to 55°C (with no icing) Storage: -25°C to 65°C (with no icing)
Ambient humidity	35% to 85%
Case color	Light gray (Munsell 5Y7/1)

Insulation resistance	100 MW min. (at 500 VDC) (between current-carrying terminal and exposed non-current- carrying metal parts, and between non-continuous contacts)
Dielectric strength	2,000 VAC, 50/60 Hz for 1 min (between current-carrying terminal and exposed non- current carrying metal parts) 750 VAC, 50/60 Hz for 1 min (between non-continuous contacts)
Impulse withstand voltage	6 kV (between power terminals), 6 kV (between current-carrying terminal and exposed non-current-carrying metal parts)
Noise immunity	±2 kV (between power terminals) and ±500 V (between input terminals), square-wave noise by noise simulator
Vibration resistance	Destruction:10 to 55 Hz, 0.75-mm double amplitude Malfunction:10 to 55 Hz, 0.5-mm double amplitude
Shock resistance	Destruction: 300 m/s² Malfunction: 100 m/s²
Life expectancy	Mechanical: 10,000,000 operations min. Electrical: 100,000 operations min. (3 A at 250 VAC, resistive load)
Memory backup storage method *	Non-volatile memory (Number of writes: 1 million times, Data retention: 10 years)
Weight	Approx. 360 g

Approved safety standards	UL508/CSA C22.2 No. 14 EN 61010-1 (IEC 61010-1): Pollution degree 2/overvoltage category II
EMC	(EMI) EN61326 Emission Enclosure: EN 55011 Group 1 class A Emission AC mains: EN 55011 Group 1 class A (EMS) EN61326 Immunity ESD: EN 61000-4-2 Immunity RF-interference: EN 61000-4-3 Immunity Conducted Disturbance: EN 61000-4-6 Immunity Burst: EN 61000-4-4 Immunity Surge: EN 61000-4-5 Immunity Voltage Dip/Interruption: EN 61000-4-11

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
H7AN Data Sheet	- [2729KB]	Jul 12, 201720170712	H7AN Data Sheet

No. of digits	Backup function	Incrementing (Up) or decrementing (Down) counter (not reversible)	Reversible counter (Up/Down)
One stage	Two stages	One stage	Two stages
With digital display	With digital display	With digital display	With digital display
2	No	H7AN-2D	---	H7AN-E2D	---
Yes	H7AN-2DM	---	H7AN-E2DM	---
4	No	H7AN-4D	H7AN-W4D	H7AN-E4D	H7AN-WE4D
Yes	H7AN-4DM	H7AN-W4DM	---	H7AN-WE4DM

No. of digits	Backup function	Incrementing (Up), decrementing (Down), or reversible (Up/Down) counter
One stage	Two stages
With digital display	With digital display
6	No	H7AN-R6D	H7AN-RW6D
Yes	H7AN-R6DM	H7AN-RW6DM
8	No	H7AN-R8D	---
Yes	H7AN-R8DM	---

No. of digits	Backup function	Incrementing (Up) or decrementing (Down) counter (not reversible)	Reversible counter (Up/Down)
4	No	H7AN-T4	---
Yes	H7AN-T4M	H7AN-ET4M
6	No	---	H7AN-RT6
Yes	---	H7AN-RT6M
8	No	---	---
Yes	---	H7AN-RT8M

Return to OMRON
