OMRON D5F Switches

OMRON D5F Dimensions

/Images/l_341-25-118670-198x198.jpg

last update: December 19, 2013

• No-contact structure for high reliability.

• Ceramic materials in measuring part for superior resistance to abrasion.

• Two different output types (PNP and NPN) available.

• Less abrasion and damage of mechanical contacts compared to switches with contacts, reducing fluctuation in the output.

• More compact than previous OMRON models: 40% less mass, 15% lighter across the operating width.

last update: December 19, 2013

Purchase the OMRON High-precision Switches Please fill in the following

Title:

Email:

Tel:

Content:

Verification code:

If you have just landed here, this product OMRON D5F Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the D5F We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON D5FSwitches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

D4MC Enclosed Switch/Features
G3PC Solid State Relays with Failure Detection Function/Features
CJ1W-ECT21 CJ-series EtherCAT® Slave Unit/Features
DRT2-[]D04CL(-1) / []D08C(-1) / []D08CL(-1) / []D16C(-1) / []D16CL(-1) Environment-resistive Term...
S8JX Switch Mode Power Supply (15/35/50/100/150/300/600-W Models)/Features

OMRON D5F dimension

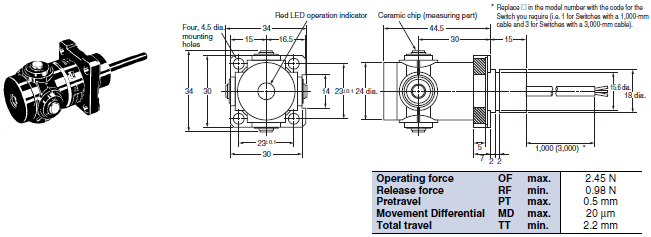

D5F High-precision Optical Switch/Dimensions

last update: September 24, 2012

D5F-2B[]0
D5F-3C[]0

D5F Dimensions 2 D5F-2B[]0_Dim

Note:Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions

last update: September 24, 2012


OMRON D5F specification

D5F High-precision Optical Switch/Specifications

last update: September 24, 2012

Ratings

Power supply voltage 12 to 24 VDC ± 10%, ripple (p-p): 10% max.
Output current 100 mA max.
Power consumption 30 mA max.
Leakage current 0.15 mA max.
Residual voltage 2 V max.

D5F Specifications 3 D5F_Spec1

Characteristics

Degree of protection IP67
Durability *1 Mechanical 5,000,000 operations min.
Electrical
Operating speed 1 μm/s to 0.5 m/s
Max. operating frequency 60 operations/minute max.
Insulation resistance 100 MΩ min. (at 500 VDC) between each terminal and non-current-carrying metal part
Dielectric strength (50/60Hz 1min) 1,100 VAC between each terminal and non-current-carrying metal part
Vibration resistance Malfunction 10 to 500 Hz, 1.3-mm double amplitude
Shock resistance Malfunction 300 m/s2 max.
Repeat accuracy 1 μm max. *2
Ambient temperature *3 Operating: -10 ° C to +60 ° C (with no icing)
Ambient humidity Operating: 35% to 95%RH
Weight Switch body: Approx. 50 g; Cord: Approx. 23 g/m

Note:The above figures are initial values.

Note:Durability values are calculated at an operating temperature of +5°C to +35°C, and an operating humidity of 30% to 70%RH. Contact your OMRON sales representative for more detailed information on other operating environments.

Note:Measurements were conducted repeatedly at the same point. The value is 1 μm max. for 200 measurements. For other conditions in detail, contact your OMRON sales representative.

Note:The ambient operating temperature varies depending on the current. Refer to the following Engineering Data.

Deviation in electrical durability after 1,000,000 operations 10 μm max.
Temperature coefficient * ± 50 × 10×6/ ° C max.

Note:Operating position fluctuation rate for a change of 1°C in the ambient temperature.

last update: September 24, 2012


OMRON D5F catalog

D5F High-precision Optical Switch/Catalog

  • Catalog
  • CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name Catalog Number
[size] 		Last Update
D5F Data Sheet -
[294KB] 		Aug 24, 201220120824 D5F Data Sheet


OMRON D5F lineup

D5F High-precision Optical Switch/Lineup

last update: September 24, 2012

Output configuration Contact form Operation indicator Cable length Model
PNP open collector
(+ common)		 SPST-NC ON when not operated 1 m D5F-2B10
3 m D5F-2B30
NPN open collector
(- common)		 SPST-NO ON when operated 1 m D5F-3C10
3 m D5F-3C30

last update: September 24, 2012
