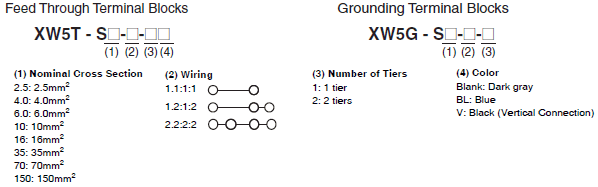

XW5T-S DIN Track Terminal Blocks with Screw Terminals/Lineup
XW5T-S DIN Track Terminal Blocks with Screw Terminals/Catalog
Purchase the OMRON XW5T-S DIN Track Terminal Blocks

OMRON XW5T-S Dimensions

/Images/l_3481-25-258603-198x198.jpg

last update: April 3, 2017

New Value For Control Panels

Control Panels: The Heart of Manufacturing Sites.
Evolution in control panels results in large evolution in production facilities.
And if control panel design, control panel manufacturing processes, and human interaction with them are innovated, control panel manufacturing becomes simpler and takes a leap forward.
OMRON will continue to achieve a control panel evolution and process innovation through many undertakings starting with the shared Value Design for Panel *1 concept for the specifications of products used in control panels.

*1 Value Design for Panel
Our shared Value Design for Panel (herein after referred to as "Value Design") concept for the specifications of products used in control panels will create new value to our customer’s control panels.
Combining multiple products that share the Value Design concept will further increase the value provided to control panels.

OMRON Products from Terminal Blocks to Controllers Let You Efficiently Build Control Panels

Control panels can be downsized by using the many OMRON Controllers,
Power Supply, Relays, and other products that connect to the Terminal Blocks.
We will help you downsize control panels with OMRON control panel components that connect to terminal blocks.
We can also help you reduce terminal preparation and wiring work and reduce stock management work by maximizing the use of the components to unify tools and wires.

Everything from DIN Track Terminal Blocks to Controllers Available with Push-in Plus Terminal Blocks

Push-In Plus Terminal Blocks for Easy Wiring

Just Insert Wires: No Tools Required Now you can use Push-In Plus terminal blocks to reduce the time and work involved in wiring.

Greatly Reduce Wiring Work with Push-In Plus Terminal Blocks

Easy to Insert

OMRON’s Push-In Plus terminal blocks are as easy as inserting to an earphone jack. They help reduce the work load and improve wiring quality.

Held Firmly in Place

Even though less insertion force is required, the wires are held firmly in place. The advanced mechanism design technology and manufacturing technology produced a spring that ensures better workability and reliability.

No Retightening Required

The retightening that is required for screw terminal blocks is not required for Push-in Plus terminal blocks.
Your work load is reduced not only when wiring, but also for inspections, delivery (shipping), and maintenance.

Wiring Possible with Stranded Wires

You can insert wires with pin terminals or ferrules, or you can also insert solid wires or stranded wires.

When a stranded wire is used: 3 Steps.

Screwdriver Held in Place to Free Both Your Hands

Optimized shape to hold the screwdriver was created by the resin parts and the spring.
Work goes smoothly when connecting stranded wires directly to the terminal because it’s easier to aim at the desired terminal.

Safety

The structure provides finger protection so that your fingers never touch conductive parts.

Minimum Width of 3.5 mm to Help Downsize Control Panels

Terminal blocks are the most numerous, most space-eating components in control panels. OMRON has achieved the top class

*According to OMRON investigation in March 2017.

Web Service That Helps Reduce Work in Selecting Terminal Blocks and Designing

• If you use OMRON’s website, you can easily select the Terminal Blocks to connect to the control panel
components that you have selected.
• You can easily confirm the dimensions of the Terminal Blocks that you have selected.
• And you can easily create Terminal Block parts lists (BOMs) and marking formats.

Take a Look Now! (www.ia.omron.com/solution/panel/)

last update: April 3, 2017

Purchase the OMRON DIN Track Terminal Blocks Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON XW5T-S Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the XW5T-S We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON XW5T-SPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E8F2 Digital Pressure Sensor/Features
ZX-E Smart Sensors (Inductive Displacement Type)/Features
E6C3-A Slim Encoder with Diameter of 50 mm/Features
CS1W-PPS01 SYSMAC CS-series Process Analog I/O Units/Features
XW2D Slim Connector-Terminal Block Conversion Units/Features

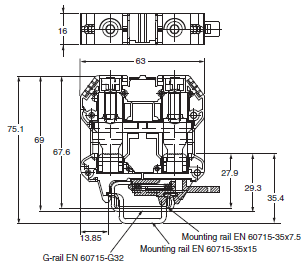

OMRON XW5T-S dimension
XW5T-S DIN Track Terminal Blocks with Screw Terminals/Dimensions
last update: July 12, 2017

(Unit: mm)

Feed Through Terminal Blocks
XW5T-S2.5-1.1-1[]

XW5T-S4.0-1.1-1

XW5T-S6.0-1.1-1[]

XW5T-S10-1.1-1[]

XW5T-S16-1.1-1[]

XW5T-S35-1.1-1[]

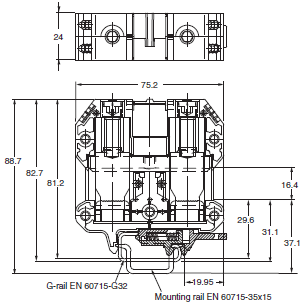

XW5T-S70-1.1-1[]

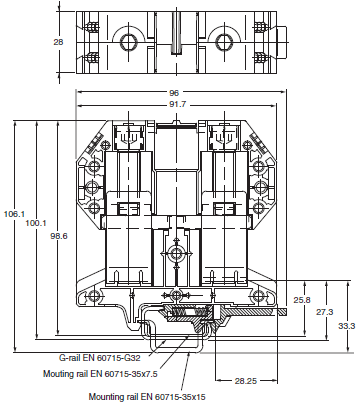

XW5T-S150-1.1-1[]

XW5T-S2.5-1.1-2[]

XW5T-S4.0-1.2-1

XW5T-S4.0-2.2-1

XW5T-S4.0-1.1-2[]

XW5T-S4.0-FU5

XW5T-S4.0-FU6

XW5T-S4.0-KD

Grounding Terminal Blocks
XW5G-S2.5-1.1-1

XW5G-S4.0-1.1-1

XW5G-S6.0-1.1-1

XW5G-S10-1.1-1

XW5G-S16-1.1-1

XW5G-S35-1.1-1

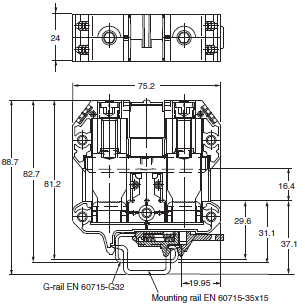

XW5G-S70-1.1-1

XW5G-S4.0-1.2-1

XW5G-S4.0-2.2-1

XW5G-S4.0-1.1-2

Short Bars

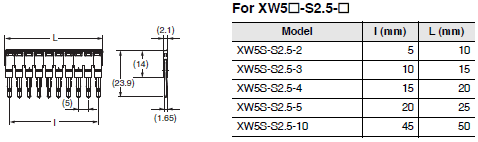

XW5S-S2.5-[]

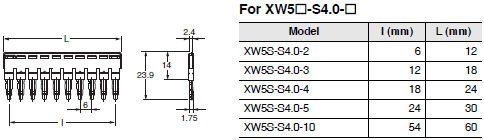

XW5S-S4.0-[]

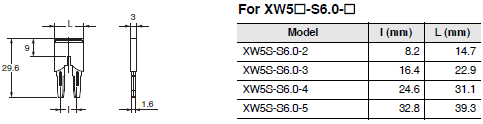

XW5S-S6.0-[]

XW5S-S10-2

XW5S-S16-2

Cross Connector with Screw

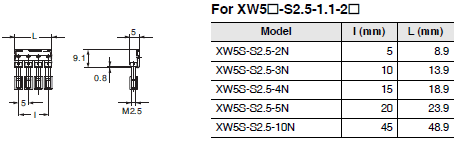

XW5S-S2.5-[]N

End Covers
XW5E-S2.5

XW5E-S16

XW5E-S4.0-1.2-1

XW5E-S4.0-2.2-1

XW5E-S4.0-1.1-2

XW5E-S2.5N

Separator Plates
XW5Z-S2.5PT

Label
XW5Z-S2.5[]

XW5Z-S4.0[]

XW5Z-S6.0[]

last update: July 12, 2017

OMRON XW5T-S specification
XW5T-S DIN Track Terminal Blocks with Screw Terminals/Specifications
last update: July 12, 2017
Ratings and Specifications
Feed Through Terminal Blocks

Model XW5T-S2.5-1.1-1(BL) XW5T-S4.0-1.1-1(BL) XW5T-S6.0-1.1-1(BL) XW5T-S10-1.1-1(BL)
Appearance and internal
wiring 1 tier, 1:1
1 tier, 1:1
1 tier, 1:1
1 tier, 1:1
Applicable
wire
sizes NOMINAL CROSS
SECTION 2.5 mm² 4.0 mm² 6.0 mm² 10 mm²
Minimum conductor
cross section solid 0.14 mm² 0.14 mm² 0.2 mm² 0.5 mm²
Maximum conductor
cross section solid 4.0 mm² 6.0 mm² 10 mm² 16 mm²
Minimum conductor
cross section fine
stranded 0.14 mm² 0.14 mm² 0.2 mm² 0.5 mm²
Maximum conductor
cross section fine
stranded 4.0 mm² 6.0 mm² 10 mm² 16 mm²
Minimum conductor
cross section (flex.,
stranded) with cable
end sleeve 0.5 mm² 0.5 mm² 0.5 mm² 0.5 mm²
Maximum conductor
cross section (flex.,
stranded) with cable
end sleeve 2.5 mm² 4.0 mm² 6.0 mm² 10 mm²
Conductor cross
section AWG AWG26 to AWG12 AWG26 to AWG10 AWG24 to AWG8 AWG20 to AWG6
Wire strip length 9 mm 9 mm 11 mm 13 mm
Tightening torque 0.4 Nm 0.5 Nm 1.2 Nm 1.2 Nm
Dimensions 5×48.2×56 6×48.2×56 8×48.2×56 10×48.2×56.2
Mounting rail TH35 TH35 TH35 TH35
IEC rated voltage 1,000 V 1,000 V 1,000 V 1,000 V
IEC rated current 24 A 32 A 41 A 57 A
Rated impulse voltage 8 kV 8 kV 8 kV 8 kV
UL rated voltage 600 V 600 V 600 V 600 V
UL rated current 20 A 30 A 50 A 65 A
End Covers XW5E-S2.5-1.1-1 XW5E-S2.5-1.1-1 XW5E-S2.5-1.1-1 XW5E-S2.5-1.1-1
Applicable nameplates XW5Z-S2.5LB XW5Z-S4.0LB[] XW5Z-S6.0LB[] ---
Applicable Short Bars XW5S-S4.0-[]
([]: Poles = 2, 3, 4, 5 or 10) XW5S-S4.0-[]
([]: Poles = 2, 3, 4, 5 or 10) XW5S-S6.0-[]
([]: Poles = 2,3, 4, or 5) XW5S-S10-[]
([]: Poles = 2)

Model XW5T-S16-1.1-1(BL) XW5T-S35-1.1-1(BL) XW5T-S70-1.1-1(BL) XW5T-S150-1.1-1(BL)
Appearance and internal
wiring 1 tier, 1:1
1 tier, 1:1
1 tier, 1:1
1 tier, 1:1
Applicable
wire
sizes NOMINAL CROSS
SECTION 16 mm² 35 mm² 70 mm² 150 mm²
Minimum conductor
cross section solid 1.5 mm² 10 mm² --- ---
Maximum conductor
cross section solid 16 mm² 10 mm² --- ---
Minimum conductor
cross section fine
stranded 4.0 mm² 10 mm² 10 mm² 35 mm²
Maximum conductor
cross section fine
stranded 25 mm² 35 mm² 70 mm² 150 mm²
Minimum conductor
cross section (flex.,
stranded) with cable
end sleeve 1.5 mm² --- --- ---
Maximum conductor
cross section (flex.,
stranded) with cable
end sleeve 16 mm² --- --- ---
Conductor cross
section AWG AWG14 to AWG4 AWG10 to AWG 1/0 AWG6 to AWG 2/0 AWG 2/0 to 350 kcmil
Wire strip length 15 mm 18 mm 24 mm 30 mm
Tightening torque 2 Nm 3 Nm 6 Nm 10 Nm
Dimensions 12×58.5×62 16×63×75.1 24×75.2×88.7 28×96× 10⁶.1
Mounting rail TH35 TH35 TH35 TH35
IEC rated voltage 1,000 V 800 V 800 V 1,000 V
IEC rated current 76 A 124 A 179 A 309 A
Rated impulse voltage 8 kV 8 kV 8 kV 8 kV
UL rated voltage 600 V 600 V 600 V 600 V
UL rated current 85 A 150 A 175 A 335 A
End Covers XW5E-S16
Applicable nameplates --- --- --- ---
Applicable Short Bars XW5S-S16-[] ([]: Poles = 2) --- --- ---

Model XW5T-S2.5-1.1-2 XW5T-S2.5-1.1-2V XW5T-S4.0-1.2-1(BL)
Appearance and internal
wiring 2 tier, 1:1
2 tier, 1:1
1 tier, 1:2
Applicable
wire
sizes NOMINAL CROSS
SECTION 2.5 mm² 2.5 mm² 4.0 mm²
Minimum conductor
cross section solid 0.2 mm² 0.2 mm² 0.14 mm²
Maximum conductor
cross section solid 4.0 mm² 4.0 mm² 6.0 mm²
Minimum conductor
cross section fine
stranded 0.14 mm² 0.14 mm² 0.14 mm²
Maximum conductor
cross section fine
stranded 2.5 mm² 2.5 mm² 6.0 mm²
Minimum conductor
cross section (flex.,
stranded) with cable
end sleeve --- --- 0.5 mm²
Maximum conductor
cross section (flex.,
stranded) with cable
end sleeve --- --- 4.0 mm²
Conductor cross
section AWG AWG22 to AWG12 AWG22 to AWG12 AWG26 to AWG10
Wire strip length 8 mm 8 mm 9 mm
Tightening torque 0.4 Nm 0.4 Nm 0.5 Nm
Dimensions 5×65.8×71.4 5×65.8×71.4 6×58×56
Mounting rail TH35 TH35 TH35
IEC rated voltage 500 V 500 V 500 V
IEC rated current 24 A 24 A 32 A
Rated impulse voltage 6 kV 6 kV 6 kV
UL rated voltage 600 V 600 V 300 V
UL rated current 20 A 20 A 30 A
End Covers XW5E-S2.5N XW5E-S2.5N XW5E-S4.0-1.2-1
Applicable nameplates XW5Z-2.5LB[] XW5Z-2.5LB[] XW5Z-4.0LB[]
Applicable Short Bars XW5S-S2.5-[]N
([]: Poles = 2, 3, 4, 5, or 10) XW5S-S2.5-[]N
([]: Poles = 2, 3, 4, 5, or 10) XW5S-S4.0-[]
([]: Poles = 2, 3, 4, 5, or 10)

Model XW5T-S4.0-2.2-1(BL) XW5T-S4.0-1.1-2 XW5T-S4.0-1.1-2V
Appearance and internal
wiring 1 tier, 2:2
2 tier, 1:1
2 tier, 1:1
Applicable
wire
sizes NOMINAL CROSS
SECTION 4.0 mm² 4.0 mm² 4.0 mm²
Minimum conductor
cross section solid 0.14 mm² 0.14 mm² 0.14 mm²
Maximum conductor
cross section solid 6.0 mm² 6.0 mm² 6.0 mm²
Minimum conductor
cross section fine
stranded 0.14 mm² 0.14 mm² 0.14 mm²
Maximum conductor
cross section fine
stranded 6.0 mm² 6.0 mm² 6.0 mm²
Minimum conductor
cross section (flex.,
stranded) with cable
end sleeve 0.5 mm² 0.5 mm² 0.5 mm²
Maximum conductor
cross section (flex.,
stranded) with cable
end sleeve 4.0 mm² 4.0 mm² 4.0 mm²
Conductor cross
section AWG AWG26 to AWG10 AWG26 to AWG10 AWG26 to AWG10
Wire strip length 9 mm 9 mm 9 mm
Tightening torque 0.5 Nm 0.5 Nm 0.5 Nm
Dimensions 6×69×58 6×73×75 6×73×75
Mounting rail TH35 TH35 TH35
IEC rated voltage 500 V 800 V 800 V
IEC rated current 32 A 32 A 32 A
Rated impulse voltage 6 kV 8 kV 8 kV
UL rated voltage 300 V 300 V 300 V
UL rated current 30 A 30 A 30 A
End Covers XW5E-S4.0-2.2-1 XW5E-S4.0-1.1-2 XW5E-S4.0-1.1-2
Applicable nameplates XW5Z-4.0LB[] XW5Z-4.0LB[] XW5Z-4.0LB[]
Applicable Short Bars XW5S-S4.0-[]
([]: Poles = 2, 3, 4, 5, or 10) XW5S-S4.0-[]
([]: Poles = 2, 3, 4, 5, or 10) XW5S-S4.0-[]
([]: Poles = 2, 3, 4, 5, or 10)

Grounding Terminal Blocks

Model XW5G-S2.5-1.1-1 XW5G-S4.0-1.1-1 XW5G-S6.0-1.1-1 XW5G-S10-1.1-1
Appearance and internal
wiring 1 tier, 1:1
1 tier, 1:1
1 tier, 1:1
1 tier, 1:1
Applicable
wire
sizes NOMINAL CROSS
SECTION 2.5 mm² 4.0 mm² 6.0 mm² 10 mm²
Minimum conductor
cross section solid 0.14 mm² 0.14 mm² 0.2 mm² 0.5 mm²
Maximum conductor
cross section solid 4.0 mm² 6.0 mm² 10 mm² 16 mm²
Minimum conductor
cross section fine
stranded 0.14 mm² 0.14 mm² 0.2 mm² 0.5 mm²
Maximum conductor
cross section fine
stranded 4.0 mm² 6.0 mm² 10 mm² 16 mm²
Minimum conductor
cross section (flex.,
stranded) with cable
end sleeve 0.5 mm² 0.5 mm² 0.5 mm² 0.5 mm²
Maximum conductor
cross section (flex.,
stranded) with cable
end sleeve 2.5 mm² 4.0 mm² 6.0 mm² 10 mm²
Conductor cross
section AWG AWG26 to AWG12 AWG26 to AWG10 AWG24 to AWG8 AWG20 to AWG6
Wire strip length 9 mm 9 mm 11 mm 13 mm
Tightening torque 0.4 Nm 0.5 Nm 1.2 Nm 1.2 Nm
Dimensions 5×48.2×56 6×48.2×56 8×48.2×56 10×48.2×56.2
Mounting rail TH35 TH35 TH35 TH35
IEC rated voltage 1,000 V 1,000 V 1,000 V 1,000 V
IEC rated current --- --- --- ---
Rated impulse voltage 8 kV 8 kV 8 kV 8 kV
UL rated voltage 600 V 600 V 600 V 600 V
UL rated current --- --- --- ---
End Covers XW5E-S2.5 XW5E-S2.5 XW5E-S2.5 XW5E-S2.5
Applicable nameplates XW5Z-S2.5LB[] XW5Z-S4.0LB[] XW5Z-S6.0LB[] ---
Applicable Short Bars --- --- --- ---

Model XW5G-S16-1.1-1 XW5G-S35-1.1-1 XW5G-S70-1.1-1
Appearance and internal
wiring 1 tier, 1:1
1 tier, 1:1
1 tier, 1:1
Applicable
wire
sizes NOMINAL CROSS
SECTION 16 mm² 35 mm² 70 mm²
Minimum conductor
cross section solid 1.5 mm² 10 mm² ---
Maximum conductor
cross section solid 16 mm² 35 mm² ---
Minimum conductor
cross section fine
stranded 4.0 mm² 10 mm² 10 mm²
Maximum conductor
cross section fine
stranded 25 mm² 35 mm² 70 mm²
Minimum conductor
cross section (flex.,
stranded) with cable
end sleeve 1.5 mm² --- ---
Maximum conductor
cross section (flex.,
stranded) with cable
end sleeve 16 mm² --- ---
Conductor cross
section AWG AWG14 to AWG4 AWG10 to AWG2 AWG6 to AWG 2/0
Wire strip length 15 mm 20 mm 24 mm
Tightening torque 2 Nm 3 Nm 6 Nm
Dimensions 12×58.5×62 16×63×75.1 24×75.2×88.7
Mounting rail TH35 TH35 TH35
IEC rated voltage 1000 V 800 V 800 V
IEC rated current --- --- ---
Rated impulse voltage 8 kV 8 kV 8 kV
UL rated voltage 600 V 600 V 600 V
UL rated current --- --- ---
End Covers XW5E-S16 --- ---
Applicable nameplates --- --- ---
Applicable Short Bars --- --- ---

Model XW5G-S4.0-1.2-1 XW5G-S4.0-2.2-1 XW5G-S4.0-1.1-2
Appearance and internal
wiring 1 tier, 1:2
1 tier, 2:2
2 tiers, 1:1
Applicable
wire
sizes NOMINAL CROSS
SECTION 4.0 mm² 4.0 mm² 4.0 mm²
Minimum conductor
cross section solid 0.14 mm² 0.14 mm² 0.14 mm²
Maximum conductor
cross section solid 6 mm² 6 mm² 6 mm²
Minimum conductor
cross section fine
stranded 0.14 mm² 0.14 mm² 0.14 mm²
Maximum conductor
cross section fine
stranded 6 mm² 6 mm² 6 mm²
Minimum conductor
cross section (flex.,
stranded) with cable
end sleeve 0.5 mm² 0.5 mm² 0.5 mm²
Maximum conductor
cross section (flex.,
stranded) with cable
end sleeve 4 mm² 4 mm² 4 mm²
Conductor cross
section AWG AWG26 to AWG10 AWG26 to AWG10 AWG26 to AWG10
Wire strip length 9 mm 9 mm 9 mm
Tightening torque 0.5 Nm 0.5 Nm 0.5 Nm
Dimensions 6×58×56 6×69×58 6×73×75
Mounting rail TH35 TH35 TH35
IEC rated voltage 500 V 500 V 800 V
IEC rated current --- --- ---
Rated impulse voltage 6 kV 6 kV 8 kV
UL rated voltage 300 V 300 V 300 V
UL rated current --- --- ---
End Covers XW5E-S4.0-1.2-1 XW5E-S4.0-2.2-1 XW5E-S4.0-1.1-2
Applicable nameplates XW5Z-4.0LB[] XW5Z-4.0LB[] XW5Z-4.0LB[]
Applicable Short Bars --- --- ---

Terminal Blocks with Fuses

Model XW5T-S4.0-FU5 XW5T-S4.0-FU6
Appearance and internal wiring 1 tier, 1:1
1 tier, 1:1
Applicable
wire
sizes NOMINAL CROSS SECTION 4.0 mm² 4.0 mm²
Minimum conductor cross
section solid 0.5 mm² 0.5 mm²
Maximum conductor cross
section solid 6 mm² 6 mm²
Minimum conductor cross
section fine stranded 0.5 mm² 0.5 mm²
Maximum conductor cross
section fine stranded 4 mm² 4 mm²
Minimum conductor cross
section (flex., stranded) with
cable end sleeve --- ---
Maximum conductor cross
section (flex., stranded) with
cable end sleeve --- ---
Conductor cross section AWG AWG22 to AWG10 AWG22 to AWG10
Wire strip length 8 mm 8 mm
Tightening torque 0.5 Nm 0.5 Nm
Dimensions 8×77.2×62 10×77.2×62
Mounting rail TH35 TH35
IEC rated voltage 800 V 800 V
IEC rated current 6.3 A 10 A
Rated impulse voltage 8 kV 8 kV
UL rated voltage 600 V 600 V
UL rated current 15 A 15 A
End Covers --- ---
Applicable nameplates --- ---
Applicable Short Bars --- ---

Technical Information for XW5T-S4.0-FU5, XW5T-S4.0-FU6

The fuse blocks of this type have a flip top disconnect lever. It accepts miniature fuses of 5×20, 5×25 and 5×30 mm (terminal width: 8 mm) or 6.3×32 mm (terminal width: 10 mm). The hinged lever has latch points both in the open and in the closed position, and can be sealed.
Depending on the application and the installation method, the circumstances for increased temperature must be checked in the closed fuse holders. Higher ambient temperatures are an additional load for the fuse inserts. Therefore, the reduction of the rated current must be considered accordingly in these applications.

Disconnect Terminal Blocks

Model XW5T-S4.0-KD
Appearance and internal wiring 1 tier, 1:1
Applicable
wire
sizes NOMINAL CROSS SECTION 4.0 mm²
Minimum conductor cross
section solid 0.14 mm²
Maximum conductor cross
section solid 6 mm²
Minimum conductor cross
section fine stranded 0.14 mm²
Maximum conductor cross
section fine stranded 6 mm²
Minimum conductor cross
section (flex., stranded) with
cable end sleeve 0.5 mm²
Maximum conductor cross
section (flex., stranded) with
cable end sleeve 4 mm²
Conductor cross section AWG AWG26 to AWG10
Wire strip length 9 mm
Tightening torque 0.5 Nm
Dimensions 6×58×58
Mounting rail TH35
IEC rated voltage 500 V
IEC rated current 20 A
Rated impulse voltage 6 kV
UL rated voltage 300 V
UL rated current 16 A
End Covers XW5E-S4.0-1.2-1
Applicable nameplates XW5Z-S4.0LB[]
Applicable Short Bars XW5S-S4.0-[]

Short Bar

Model XW5S-S2.5-[] XW5S-S4.0-[] XW5S-S6.0-[] XW5S-S10-[] XW5S-S16-[]
IEC rated voltage 600 V 1,000 V
IEC rated current 20 A 30 A 50 A 57 A 76 A
UL rated voltage 600 V
UL rated current 20 A 30 A 50 A 65 A 85 A
Compliant standards UL
IEC60947-7-1

Characteristics

Operating temperature range 40 to 60°C (with no condensation or icing)
Insulating material PA
Flammability rating according to UL 94 V0
Operating humidity range 5% to 95%
Compliant standards cULus (UL 1059), IEC 60947-7-1 and IEC 60947-7-2
Vibration resistance 5 to 150 Hz 0.964 (m/s²)²/Hz
Shock resistance 50 m/s² 30 ms according EN 61373

last update: July 12, 2017

OMRON XW5T-S lineup
XW5T-S DIN Track Terminal Blocks with Screw Terminals/Lineup
last update: December 14, 2017
Model Number Legend

Ordering Information

Flammability Rating according to UL94: V0
Insulating material: PA

Classification Product
type Nominal Cross
Section
(mm²) Number
of levels Number of
cramp
position
per level Color Model Pack
(pcs.) Weight
(gram)
Feed Through
Terminal blocks Standard
terminals 2.5 1 2 Dark gray XW5T-S2.5-1.1-1 100 8
2.5 1 2 Blue XW5T-S2.5-1.1-1BL 100 8
4.0 1 2 Dark gray XW5T-S4.0-1.1-1 100 9
4.0 1 2 Blue XW5T-S4.0-1.1-1BL 100 9
6.0 1 2 Dark gray XW5T-S6.0-1.1-1 100 14
6.0 1 2 Blue XW5T-S6.0-1.1-1BL 100 14
10.0 1 2 Dark gray XW5T-S10-1.1-1 50 17
10.0 1 2 Blue XW5T-S10-1.1-1BL 50 17
16.0 1 2 Dark gray XW5T-S16-1.1-1 50 37
16.0 1 2 Blue XW5T-S16-1.1-1BL 50 37
35.0 1 2 Dark gray XW5T-S35-1.1-1 20 74
35.0 1 2 Blue XW5T-S35-1.1-1BL 20 74
70.0 1 2 Dark gray XW5T-S70-1.1-1 20 177
70.0 1 2 Blue XW5T-S70-1.1-1BL 20 177
150.0 1 2 Dark gray XW5T-S150-1.1-1 10 281
150.0 1 2 Blue XW5T-S150-1.1-1BL 10 282
Multi tiers
terminal 2.5 2 2 Dark gray XW5T-S2.5-1.1-2 100 13
2.5 2 2 Black XW5T-S2.5-1.1-2V 100 15
4.0 2 2 Dark gray XW5T-S4.0-1.1-2 100 19
4.0 2 2 Black XW5T-S4.0-1.1-2V 100 20
Multi
conductor
terminals 4.0 1 3 Dark gray XW5T-S4.0-1.2-1 100 13
4.0 1 4 XW5T-S4.0-2.2-1 100 17
4.0 1 3 Blue XW5T-S4.0-1.2-1BL 100 13
4.0 1 4 XW5T-S4.0-2.2-1BL 100 17
Grounding
Terminal blocks Standard
terminals 2.5 1 2 Green/
yellow XW5G-S2.5-1.1-1 100 10
4.0 1 2 XW5G-S4.0-1.1-1 100 12
6.0 1 2 XW5G-S6.0-1.1-1 100 20
10.0 1 2 XW5G-S10-1.1-1 50 23
16.0 1 2 XW5G-S16-1.1-1 50 47
35.0 1 2 XW5G-S35-1.1-1 20 123
70.0 1 2 XW5G-S70-1.1-1 20 240
Multi tiers
terminal 4.0 2 2 XW5G-S4.0-1.1-2 100 23
Multi
conductor
terminals 4.0 1 3 XW5G-S4.0-1.2-1 100 16
4.0 1 4 XW5G-S4.0-2.2-1 100 20
Special terminals Fuse
terminal 4.0 1 2 Dark gray XW5T-S4.0-FU5 50 19
4.0 1 2 XW5T-S4.0-FU6 50 22
Knife edge
disconnect
block 4.0 1 2 XW5T-S4.0-KD 100 12

Accessories
Short Bars
For XW5[]-S2.5-[]

No. of poles Color Model Pack
(pcs.)
2 Yellow (YL) XW5S-S2.5-2 10
3 XW5S-S2.5-3 10
4 XW5S-S2.5-4 10
5 XW5S-S2.5-5 10
10 XW5S-S2.5-10 20

For XW5[]-S4.0-[]

No. of poles Color Model Pack
(pcs.)
2 Yellow (YL) XW5S-S4.0-2 10
3 XW5S-S4.0-3 10
4 XW5S-S4.0-4 10
5 XW5S-S4.0-5 10
10 XW5S-S4.0-10 20

For XW5[]-S6.0-[]

No. of poles Color Model Pack
(pcs.)
2 Yellow (YL) XW5S-S6.0-2 10
3 XW5S-S6.0-3 10
4 XW5S-S6.0-4 10
5 XW5S-S6.0-5 10

For XW5[]-S10-[]

No. of poles Color Model Pack
(pcs.)
2 Yellow (YL) XW5S-S10-2 10

For XW5[]-S16-[]

No. of poles Color Model Pack
(pcs.)
2 Yellow (YL) XW5S-S16-2 10

Cross Connector with Screw
For XW5[]-S2.5-1.1-2[]

No. of poles Color Model Pack
(pcs.)
2 Yellow (YL) XW5S-S2.5-2N 10
3 XW5S-S2.5-3N 10
4 XW5S-S2.5-4N 10
5 XW5S-S2.5-5N 10
10 XW5S-S2.5-10N 10

End Covers

Applicable Terminal Blocks Model Pack
(pcs.)
XW5[]-S2.5-1.1-[]
XW5[]-S4.0-1.1-[]
XW5[]-S6.0-1.1-[]
XW5[]-S10-1.1-[] XW5E-S2.5 10
XW5T-S16-1.1-[] XW5E-S16 10
XW5T-S4.0-KD
XW5[]-S4.0-1.2-1 XW5E-S4.0-1.2-1 10
XW5[]-S4.0-2.2-1 XW5E-S4.0-2.2-1 10
XW5[]-S4.0-1.1-2[] XW5E-S4.0-1.1-2 10
XW5T-S2.5-1.1-2[] XW5E-S2.5N 10

Separator Plates

Applicable Terminal Blocks Model Pack
(pcs.)
XW5[]-S2.5-1.1-[]
XW5[]-S4.0-1.1-[]
XW5[]-S6.0-1.1-[]
XW5[]-S10-1.1-[] XW5Z-S2.5PT 10

Labels

Applicable Terminal Blocks Marking Model Pack
(pcs.)
XW5[]-S2.5-[] None XW5Z-S2.5LB 25
1-10 XW5Z-S2.5LB-1-10 25
11-20 XW5Z-S2.5LB-11-20 25
21-30 XW5Z-S2.5LB-21-30 25
31-40 XW5Z-S2.5LB-31-40 25
41-50 XW5Z-S2.5LB-41-50 25
51-60 XW5Z-S2.5LB-51-60 25
61-70 XW5Z-S2.5LB-61-70 25
71-80 XW5Z-S2.5LB-71-80 25
81-90 XW5Z-S2.5LB-81-90 25
91-100 XW5Z-S2.5LB-91-100 25
XW5[]-S4.0-[] 1-100 XW5Z-S2.5LB-1-100 1 *
None XW5Z-S4.0LB 25
1-10 XW5Z-S4.0LB-1-10 25
11-20 XW5Z-S4.0LB-11-20 25
21-30 XW5Z-S4.0LB-21-30 25
31-40 XW5Z-S4.0LB-31-40 25
41-50 XW5Z-S4.0LB-41-50 25
51-60 XW5Z-S4.0LB-51-60 25
61-70 XW5Z-S4.0LB-61-70 25
71-80 XW5Z-S4.0LB-71-80 25
81-90 XW5Z-S4.0LB-81-90 25
91-100 XW5Z-S4.0LB-91-100 25
1-100 XW5Z-S4.0LB-1-100 1 *
XW5[]-S6.0-[] None XW5Z-S6.0LB 25
1-10 XW5Z-S6.0LB-1-10 25
11-20 XW5Z-S6.0LB-11-20 25
21-30 XW5Z-S6.0LB-21-30 25
31-40 XW5Z-S6.0LB-31-40 25
41-50 XW5Z-S6.0LB-41-50 25
51-60 XW5Z-S6.0LB-51-60 25
61-70 XW5Z-S6.0LB-61-70 25
71-80 XW5Z-S6.0LB-71-80 25
81-90 XW5Z-S6.0LB-81-90 25
91-100 XW5Z-S6.0LB-91-100 25
1-100 XW5Z-S6.0LB-1-100 1 *

* Box including 250 pcs.

last update: December 14, 2017

OMRON XW5T-S catalog
XW5T-S DIN Track Terminal Blocks with Screw Terminals/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

XW5T Catalog G123-E1-02
[5452KB] May 07, 201820180507 XW5T Catalog

XW5T DIN Track Terminal Blocks with Screw Terminals Data Sheet G125-E1-02
[6260KB] Dec 14, 201720171214 XW5T DIN Track Terminal Blocks with Screw Terminals Data Sheet

NO. XW5T-S

TYPE:Wiring Systems DIN Track Terminal Blocks Copyright Statement

DATE:2021-06-12

Associated products:
XW5T-P DIN Track Push-in Terminal Blocks/Features XS5 NEXT Series Round Oil-resistant Connectors (M12 Smartclick)/Features

Model	XW5T-S2.5-1.1-1(BL)	XW5T-S4.0-1.1-1(BL)	XW5T-S6.0-1.1-1(BL)	XW5T-S10-1.1-1(BL)
Appearance and internal wiring	1 tier, 1:1	1 tier, 1:1	1 tier, 1:1	1 tier, 1:1
Applicable wire sizes	NOMINAL CROSS SECTION	2.5 mm²	4.0 mm²	6.0 mm²	10 mm²
Minimum conductor cross section solid	0.14 mm²	0.14 mm²	0.2 mm²	0.5 mm²
Maximum conductor cross section solid	4.0 mm²	6.0 mm²	10 mm²	16 mm²
Minimum conductor cross section fine stranded	0.14 mm²	0.14 mm²	0.2 mm²	0.5 mm²
Maximum conductor cross section fine stranded	4.0 mm²	6.0 mm²	10 mm²	16 mm²
Minimum conductor cross section (flex., stranded) with cable end sleeve	0.5 mm²	0.5 mm²	0.5 mm²	0.5 mm²
Maximum conductor cross section (flex., stranded) with cable end sleeve	2.5 mm²	4.0 mm²	6.0 mm²	10 mm²
Conductor cross section AWG	AWG26 to AWG12	AWG26 to AWG10	AWG24 to AWG8	AWG20 to AWG6
Wire strip length	9 mm	9 mm	11 mm	13 mm
Tightening torque	0.4 Nm	0.5 Nm	1.2 Nm	1.2 Nm
Dimensions	5×48.2×56	6×48.2×56	8×48.2×56	10×48.2×56.2
Mounting rail	TH35	TH35	TH35	TH35
IEC rated voltage	1,000 V	1,000 V	1,000 V	1,000 V
IEC rated current	24 A	32 A	41 A	57 A
Rated impulse voltage	8 kV	8 kV	8 kV	8 kV
UL rated voltage	600 V	600 V	600 V	600 V
UL rated current	20 A	30 A	50 A	65 A
End Covers	XW5E-S2.5-1.1-1	XW5E-S2.5-1.1-1	XW5E-S2.5-1.1-1	XW5E-S2.5-1.1-1
Applicable nameplates	XW5Z-S2.5LB	XW5Z-S4.0LB[]	XW5Z-S6.0LB[]	---
Applicable Short Bars	XW5S-S4.0-[] ([]: Poles = 2, 3, 4, 5 or 10)	XW5S-S4.0-[] ([]: Poles = 2, 3, 4, 5 or 10)	XW5S-S6.0-[] ([]: Poles = 2,3, 4, or 5)	XW5S-S10-[] ([]: Poles = 2)

Model	XW5T-S16-1.1-1(BL)	XW5T-S35-1.1-1(BL)	XW5T-S70-1.1-1(BL)	XW5T-S150-1.1-1(BL)
Appearance and internal wiring	1 tier, 1:1	1 tier, 1:1	1 tier, 1:1	1 tier, 1:1
Applicable wire sizes	NOMINAL CROSS SECTION	16 mm²	35 mm²	70 mm²	150 mm²
Minimum conductor cross section solid	1.5 mm²	10 mm²	---	---
Maximum conductor cross section solid	16 mm²	10 mm²	---	---
Minimum conductor cross section fine stranded	4.0 mm²	10 mm²	10 mm²	35 mm²
Maximum conductor cross section fine stranded	25 mm²	35 mm²	70 mm²	150 mm²
Minimum conductor cross section (flex., stranded) with cable end sleeve	1.5 mm²	---	---	---
Maximum conductor cross section (flex., stranded) with cable end sleeve	16 mm²	---	---	---
Conductor cross section AWG	AWG14 to AWG4	AWG10 to AWG 1/0	AWG6 to AWG 2/0	AWG 2/0 to 350 kcmil
Wire strip length	15 mm	18 mm	24 mm	30 mm
Tightening torque	2 Nm	3 Nm	6 Nm	10 Nm
Dimensions	12×58.5×62	16×63×75.1	24×75.2×88.7	28×96× 10⁶.1
Mounting rail	TH35	TH35	TH35	TH35
IEC rated voltage	1,000 V	800 V	800 V	1,000 V
IEC rated current	76 A	124 A	179 A	309 A
Rated impulse voltage	8 kV	8 kV	8 kV	8 kV
UL rated voltage	600 V	600 V	600 V	600 V
UL rated current	85 A	150 A	175 A	335 A
End Covers	XW5E-S16
Applicable nameplates	---	---	---	---
Applicable Short Bars	XW5S-S16-[] ([]: Poles = 2)	---	---	---

Model	XW5T-S2.5-1.1-2	XW5T-S2.5-1.1-2V	XW5T-S4.0-1.2-1(BL)
Appearance and internal wiring	2 tier, 1:1	2 tier, 1:1	1 tier, 1:2
Applicable wire sizes	NOMINAL CROSS SECTION	2.5 mm²	2.5 mm²	4.0 mm²
Minimum conductor cross section solid	0.2 mm²	0.2 mm²	0.14 mm²
Maximum conductor cross section solid	4.0 mm²	4.0 mm²	6.0 mm²
Minimum conductor cross section fine stranded	0.14 mm²	0.14 mm²	0.14 mm²
Maximum conductor cross section fine stranded	2.5 mm²	2.5 mm²	6.0 mm²
Minimum conductor cross section (flex., stranded) with cable end sleeve	---	---	0.5 mm²
Maximum conductor cross section (flex., stranded) with cable end sleeve	---	---	4.0 mm²
Conductor cross section AWG	AWG22 to AWG12	AWG22 to AWG12	AWG26 to AWG10
Wire strip length	8 mm	8 mm	9 mm
Tightening torque	0.4 Nm	0.4 Nm	0.5 Nm
Dimensions	5×65.8×71.4	5×65.8×71.4	6×58×56
Mounting rail	TH35	TH35	TH35
IEC rated voltage	500 V	500 V	500 V
IEC rated current	24 A	24 A	32 A
Rated impulse voltage	6 kV	6 kV	6 kV
UL rated voltage	600 V	600 V	300 V
UL rated current	20 A	20 A	30 A
End Covers	XW5E-S2.5N	XW5E-S2.5N	XW5E-S4.0-1.2-1
Applicable nameplates	XW5Z-2.5LB[]	XW5Z-2.5LB[]	XW5Z-4.0LB[]
Applicable Short Bars	XW5S-S2.5-[]N ([]: Poles = 2, 3, 4, 5, or 10)	XW5S-S2.5-[]N ([]: Poles = 2, 3, 4, 5, or 10)	XW5S-S4.0-[] ([]: Poles = 2, 3, 4, 5, or 10)

Model	XW5T-S4.0-2.2-1(BL)	XW5T-S4.0-1.1-2	XW5T-S4.0-1.1-2V
Appearance and internal wiring	1 tier, 2:2	2 tier, 1:1	2 tier, 1:1
Applicable wire sizes	NOMINAL CROSS SECTION	4.0 mm²	4.0 mm²	4.0 mm²
Minimum conductor cross section solid	0.14 mm²	0.14 mm²	0.14 mm²
Maximum conductor cross section solid	6.0 mm²	6.0 mm²	6.0 mm²
Minimum conductor cross section fine stranded	0.14 mm²	0.14 mm²	0.14 mm²
Maximum conductor cross section fine stranded	6.0 mm²	6.0 mm²	6.0 mm²
Minimum conductor cross section (flex., stranded) with cable end sleeve	0.5 mm²	0.5 mm²	0.5 mm²
Maximum conductor cross section (flex., stranded) with cable end sleeve	4.0 mm²	4.0 mm²	4.0 mm²
Conductor cross section AWG	AWG26 to AWG10	AWG26 to AWG10	AWG26 to AWG10
Wire strip length	9 mm	9 mm	9 mm
Tightening torque	0.5 Nm	0.5 Nm	0.5 Nm
Dimensions	6×69×58	6×73×75	6×73×75
Mounting rail	TH35	TH35	TH35
IEC rated voltage	500 V	800 V	800 V
IEC rated current	32 A	32 A	32 A
Rated impulse voltage	6 kV	8 kV	8 kV
UL rated voltage	300 V	300 V	300 V
UL rated current	30 A	30 A	30 A
End Covers	XW5E-S4.0-2.2-1	XW5E-S4.0-1.1-2	XW5E-S4.0-1.1-2
Applicable nameplates	XW5Z-4.0LB[]	XW5Z-4.0LB[]	XW5Z-4.0LB[]
Applicable Short Bars	XW5S-S4.0-[] ([]: Poles = 2, 3, 4, 5, or 10)	XW5S-S4.0-[] ([]: Poles = 2, 3, 4, 5, or 10)	XW5S-S4.0-[] ([]: Poles = 2, 3, 4, 5, or 10)

Model	XW5G-S2.5-1.1-1	XW5G-S4.0-1.1-1	XW5G-S6.0-1.1-1	XW5G-S10-1.1-1
Appearance and internal wiring	1 tier, 1:1	1 tier, 1:1	1 tier, 1:1	1 tier, 1:1
Applicable wire sizes	NOMINAL CROSS SECTION	2.5 mm²	4.0 mm²	6.0 mm²	10 mm²
Minimum conductor cross section solid	0.14 mm²	0.14 mm²	0.2 mm²	0.5 mm²
Maximum conductor cross section solid	4.0 mm²	6.0 mm²	10 mm²	16 mm²
Minimum conductor cross section fine stranded	0.14 mm²	0.14 mm²	0.2 mm²	0.5 mm²
Maximum conductor cross section fine stranded	4.0 mm²	6.0 mm²	10 mm²	16 mm²
Minimum conductor cross section (flex., stranded) with cable end sleeve	0.5 mm²	0.5 mm²	0.5 mm²	0.5 mm²
Maximum conductor cross section (flex., stranded) with cable end sleeve	2.5 mm²	4.0 mm²	6.0 mm²	10 mm²
Conductor cross section AWG	AWG26 to AWG12	AWG26 to AWG10	AWG24 to AWG8	AWG20 to AWG6
Wire strip length	9 mm	9 mm	11 mm	13 mm
Tightening torque	0.4 Nm	0.5 Nm	1.2 Nm	1.2 Nm
Dimensions	5×48.2×56	6×48.2×56	8×48.2×56	10×48.2×56.2
Mounting rail	TH35	TH35	TH35	TH35
IEC rated voltage	1,000 V	1,000 V	1,000 V	1,000 V
IEC rated current	---	---	---	---
Rated impulse voltage	8 kV	8 kV	8 kV	8 kV
UL rated voltage	600 V	600 V	600 V	600 V
UL rated current	---	---	---	---
End Covers	XW5E-S2.5	XW5E-S2.5	XW5E-S2.5	XW5E-S2.5
Applicable nameplates	XW5Z-S2.5LB[]	XW5Z-S4.0LB[]	XW5Z-S6.0LB[]	---
Applicable Short Bars	---	---	---	---

Model	XW5G-S16-1.1-1	XW5G-S35-1.1-1	XW5G-S70-1.1-1
Appearance and internal wiring	1 tier, 1:1	1 tier, 1:1	1 tier, 1:1
Applicable wire sizes	NOMINAL CROSS SECTION	16 mm²	35 mm²	70 mm²
Minimum conductor cross section solid	1.5 mm²	10 mm²	---
Maximum conductor cross section solid	16 mm²	35 mm²	---
Minimum conductor cross section fine stranded	4.0 mm²	10 mm²	10 mm²
Maximum conductor cross section fine stranded	25 mm²	35 mm²	70 mm²
Minimum conductor cross section (flex., stranded) with cable end sleeve	1.5 mm²	---	---
Maximum conductor cross section (flex., stranded) with cable end sleeve	16 mm²	---	---
Conductor cross section AWG	AWG14 to AWG4	AWG10 to AWG2	AWG6 to AWG 2/0
Wire strip length	15 mm	20 mm	24 mm
Tightening torque	2 Nm	3 Nm	6 Nm
Dimensions	12×58.5×62	16×63×75.1	24×75.2×88.7
Mounting rail	TH35	TH35	TH35
IEC rated voltage	1000 V	800 V	800 V
IEC rated current	---	---	---
Rated impulse voltage	8 kV	8 kV	8 kV
UL rated voltage	600 V	600 V	600 V
UL rated current	---	---	---
End Covers	XW5E-S16	---	---
Applicable nameplates	---	---	---
Applicable Short Bars	---	---	---

Model	XW5G-S4.0-1.2-1	XW5G-S4.0-2.2-1	XW5G-S4.0-1.1-2
Appearance and internal wiring	1 tier, 1:2	1 tier, 2:2	2 tiers, 1:1
Applicable wire sizes	NOMINAL CROSS SECTION	4.0 mm²	4.0 mm²	4.0 mm²
Minimum conductor cross section solid	0.14 mm²	0.14 mm²	0.14 mm²
Maximum conductor cross section solid	6 mm²	6 mm²	6 mm²
Minimum conductor cross section fine stranded	0.14 mm²	0.14 mm²	0.14 mm²
Maximum conductor cross section fine stranded	6 mm²	6 mm²	6 mm²
Minimum conductor cross section (flex., stranded) with cable end sleeve	0.5 mm²	0.5 mm²	0.5 mm²
Maximum conductor cross section (flex., stranded) with cable end sleeve	4 mm²	4 mm²	4 mm²
Conductor cross section AWG	AWG26 to AWG10	AWG26 to AWG10	AWG26 to AWG10
Wire strip length	9 mm	9 mm	9 mm
Tightening torque	0.5 Nm	0.5 Nm	0.5 Nm
Dimensions	6×58×56	6×69×58	6×73×75
Mounting rail	TH35	TH35	TH35
IEC rated voltage	500 V	500 V	800 V
IEC rated current	---	---	---
Rated impulse voltage	6 kV	6 kV	8 kV
UL rated voltage	300 V	300 V	300 V
UL rated current	---	---	---
End Covers	XW5E-S4.0-1.2-1	XW5E-S4.0-2.2-1	XW5E-S4.0-1.1-2
Applicable nameplates	XW5Z-4.0LB[]	XW5Z-4.0LB[]	XW5Z-4.0LB[]
Applicable Short Bars	---	---	---

Model	XW5T-S4.0-FU5	XW5T-S4.0-FU6
Appearance and internal wiring	1 tier, 1:1	1 tier, 1:1
Applicable wire sizes	NOMINAL CROSS SECTION	4.0 mm²	4.0 mm²
Minimum conductor cross section solid	0.5 mm²	0.5 mm²
Maximum conductor cross section solid	6 mm²	6 mm²
Minimum conductor cross section fine stranded	0.5 mm²	0.5 mm²
Maximum conductor cross section fine stranded	4 mm²	4 mm²
Minimum conductor cross section (flex., stranded) with cable end sleeve	---	---
Maximum conductor cross section (flex., stranded) with cable end sleeve	---	---
Conductor cross section AWG	AWG22 to AWG10	AWG22 to AWG10
Wire strip length	8 mm	8 mm
Tightening torque	0.5 Nm	0.5 Nm
Dimensions	8×77.2×62	10×77.2×62
Mounting rail	TH35	TH35
IEC rated voltage	800 V	800 V
IEC rated current	6.3 A	10 A
Rated impulse voltage	8 kV	8 kV
UL rated voltage	600 V	600 V
UL rated current	15 A	15 A
End Covers	---	---
Applicable nameplates	---	---
Applicable Short Bars	---	---

Model	XW5T-S4.0-KD
Appearance and internal wiring	1 tier, 1:1
Applicable wire sizes	NOMINAL CROSS SECTION	4.0 mm²
Minimum conductor cross section solid	0.14 mm²
Maximum conductor cross section solid	6 mm²
Minimum conductor cross section fine stranded	0.14 mm²
Maximum conductor cross section fine stranded	6 mm²
Minimum conductor cross section (flex., stranded) with cable end sleeve	0.5 mm²
Maximum conductor cross section (flex., stranded) with cable end sleeve	4 mm²
Conductor cross section AWG	AWG26 to AWG10
Wire strip length	9 mm
Tightening torque	0.5 Nm
Dimensions	6×58×58
Mounting rail	TH35
IEC rated voltage	500 V
IEC rated current	20 A
Rated impulse voltage	6 kV
UL rated voltage	300 V
UL rated current	16 A
End Covers	XW5E-S4.0-1.2-1
Applicable nameplates	XW5Z-S4.0LB[]
Applicable Short Bars	XW5S-S4.0-[]

Model	XW5S-S2.5-[]	XW5S-S4.0-[]	XW5S-S6.0-[]	XW5S-S10-[]	XW5S-S16-[]
IEC rated voltage	600 V	1,000 V
IEC rated current	20 A	30 A	50 A	57 A	76 A
UL rated voltage	600 V
UL rated current	20 A	30 A	50 A	65 A	85 A
Compliant standards	UL
IEC60947-7-1

Operating temperature range	40 to 60°C (with no condensation or icing)
Insulating material	PA
Flammability rating according to UL 94	V0
Operating humidity	range 5% to 95%
Compliant standards	cULus (UL 1059), IEC 60947-7-1 and IEC 60947-7-2
Vibration resistance	5 to 150 Hz 0.964 (m/s²)²/Hz
Shock resistance	50 m/s² 30 ms according EN 61373

Classification	Product type	Nominal Cross Section (mm²)	Number of levels	Number of cramp position per level	Color	Model	Pack (pcs.)	Weight (gram)
Feed Through Terminal blocks	Standard terminals	2.5	1	2	Dark gray	XW5T-S2.5-1.1-1	100	8
2.5	1	2	Blue	XW5T-S2.5-1.1-1BL	100	8
4.0	1	2	Dark gray	XW5T-S4.0-1.1-1	100	9
4.0	1	2	Blue	XW5T-S4.0-1.1-1BL	100	9
6.0	1	2	Dark gray	XW5T-S6.0-1.1-1	100	14
6.0	1	2	Blue	XW5T-S6.0-1.1-1BL	100	14
10.0	1	2	Dark gray	XW5T-S10-1.1-1	50	17
10.0	1	2	Blue	XW5T-S10-1.1-1BL	50	17
16.0	1	2	Dark gray	XW5T-S16-1.1-1	50	37
16.0	1	2	Blue	XW5T-S16-1.1-1BL	50	37
35.0	1	2	Dark gray	XW5T-S35-1.1-1	20	74
35.0	1	2	Blue	XW5T-S35-1.1-1BL	20	74
70.0	1	2	Dark gray	XW5T-S70-1.1-1	20	177
70.0	1	2	Blue	XW5T-S70-1.1-1BL	20	177
150.0	1	2	Dark gray	XW5T-S150-1.1-1	10	281
150.0	1	2	Blue	XW5T-S150-1.1-1BL	10	282
Multi tiers terminal	2.5	2	2	Dark gray	XW5T-S2.5-1.1-2	100	13
2.5	2	2	Black	XW5T-S2.5-1.1-2V	100	15
4.0	2	2	Dark gray	XW5T-S4.0-1.1-2	100	19
4.0	2	2	Black	XW5T-S4.0-1.1-2V	100	20
Multi conductor terminals	4.0	1	3	Dark gray	XW5T-S4.0-1.2-1	100	13
4.0	1	4	XW5T-S4.0-2.2-1	100	17
4.0	1	3	Blue	XW5T-S4.0-1.2-1BL	100	13
4.0	1	4	XW5T-S4.0-2.2-1BL	100	17
Grounding Terminal blocks	Standard terminals	2.5	1	2	Green/ yellow	XW5G-S2.5-1.1-1	100	10
4.0	1	2	XW5G-S4.0-1.1-1	100	12
6.0	1	2	XW5G-S6.0-1.1-1	100	20
10.0	1	2	XW5G-S10-1.1-1	50	23
16.0	1	2	XW5G-S16-1.1-1	50	47
35.0	1	2	XW5G-S35-1.1-1	20	123
70.0	1	2	XW5G-S70-1.1-1	20	240
Multi tiers terminal	4.0	2	2	XW5G-S4.0-1.1-2	100	23
Multi conductor terminals	4.0	1	3	XW5G-S4.0-1.2-1	100	16
4.0	1	4	XW5G-S4.0-2.2-1	100	20
Special terminals	Fuse terminal	4.0	1	2	Dark gray	XW5T-S4.0-FU5	50	19
4.0	1	2	XW5T-S4.0-FU6	50	22
Knife edge disconnect block	4.0	1	2	XW5T-S4.0-KD	100	12

No. of poles	Color	Model	Pack (pcs.)
2	Yellow (YL)	XW5S-S2.5-2	10
3	XW5S-S2.5-3	10
4	XW5S-S2.5-4	10
5	XW5S-S2.5-5	10
10	XW5S-S2.5-10	20

No. of poles	Color	Model	Pack (pcs.)
2	Yellow (YL)	XW5S-S4.0-2	10
3	XW5S-S4.0-3	10
4	XW5S-S4.0-4	10
5	XW5S-S4.0-5	10
10	XW5S-S4.0-10	20

No. of poles	Color	Model	Pack (pcs.)
2	Yellow (YL)	XW5S-S6.0-2	10
3	XW5S-S6.0-3	10
4	XW5S-S6.0-4	10
5	XW5S-S6.0-5	10

No. of poles	Color	Model	Pack (pcs.)
2	Yellow (YL)	XW5S-S10-2	10

No. of poles	Color	Model	Pack (pcs.)
2	Yellow (YL)	XW5S-S16-2	10

No. of poles	Color	Model	Pack (pcs.)
2	Yellow (YL)	XW5S-S2.5-2N	10
3	XW5S-S2.5-3N	10
4	XW5S-S2.5-4N	10
5	XW5S-S2.5-5N	10
10	XW5S-S2.5-10N	10

Applicable Terminal Blocks	Model	Pack (pcs.)
XW5[]-S2.5-1.1-[] XW5[]-S4.0-1.1-[] XW5[]-S6.0-1.1-[] XW5[]-S10-1.1-[]	XW5E-S2.5	10
XW5T-S16-1.1-[]	XW5E-S16	10
XW5T-S4.0-KD XW5[]-S4.0-1.2-1	XW5E-S4.0-1.2-1	10
XW5[]-S4.0-2.2-1	XW5E-S4.0-2.2-1	10
XW5[]-S4.0-1.1-2[]	XW5E-S4.0-1.1-2	10
XW5T-S2.5-1.1-2[]	XW5E-S2.5N	10

Applicable Terminal Blocks	Model	Pack (pcs.)
XW5[]-S2.5-1.1-[] XW5[]-S4.0-1.1-[] XW5[]-S6.0-1.1-[] XW5[]-S10-1.1-[]	XW5Z-S2.5PT	10

Applicable Terminal Blocks	Marking	Model	Pack (pcs.)
XW5[]-S2.5-[]	None	XW5Z-S2.5LB	25
1-10	XW5Z-S2.5LB-1-10	25
11-20	XW5Z-S2.5LB-11-20	25
21-30	XW5Z-S2.5LB-21-30	25
31-40	XW5Z-S2.5LB-31-40	25
41-50	XW5Z-S2.5LB-41-50	25
51-60	XW5Z-S2.5LB-51-60	25
61-70	XW5Z-S2.5LB-61-70	25
71-80	XW5Z-S2.5LB-71-80	25
81-90	XW5Z-S2.5LB-81-90	25
91-100	XW5Z-S2.5LB-91-100	25
XW5[]-S4.0-[]	1-100	XW5Z-S2.5LB-1-100	1 *
None	XW5Z-S4.0LB	25
1-10	XW5Z-S4.0LB-1-10	25
11-20	XW5Z-S4.0LB-11-20	25
21-30	XW5Z-S4.0LB-21-30	25
31-40	XW5Z-S4.0LB-31-40	25
41-50	XW5Z-S4.0LB-41-50	25
51-60	XW5Z-S4.0LB-51-60	25
61-70	XW5Z-S4.0LB-61-70	25
71-80	XW5Z-S4.0LB-71-80	25
81-90	XW5Z-S4.0LB-81-90	25
91-100	XW5Z-S4.0LB-91-100	25
1-100	XW5Z-S4.0LB-1-100	1 *
XW5[]-S6.0-[]	None	XW5Z-S6.0LB	25
1-10	XW5Z-S6.0LB-1-10	25
11-20	XW5Z-S6.0LB-11-20	25
21-30	XW5Z-S6.0LB-21-30	25
31-40	XW5Z-S6.0LB-31-40	25
41-50	XW5Z-S6.0LB-41-50	25
51-60	XW5Z-S6.0LB-51-60	25
61-70	XW5Z-S6.0LB-61-70	25
71-80	XW5Z-S6.0LB-71-80	25
81-90	XW5Z-S6.0LB-81-90	25
91-100	XW5Z-S6.0LB-91-100	25
1-100	XW5Z-S6.0LB-1-100	1 *

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
XW5T Catalog	G123-E1-02 [5452KB]	May 07, 201820180507	XW5T Catalog
XW5T DIN Track Terminal Blocks with Screw Terminals Data Sheet	G125-E1-02 [6260KB]	Dec 14, 201720171214	XW5T DIN Track Terminal Blocks with Screw Terminals Data Sheet

Return to OMRON
