OMRON H7E[]-N lineup

last update: January 24, 2013

Total Counters "H7EC-N"

Total Counters

Count input	Max. counting speed	Display	Model
			Light-gray body	Black body
PNP/NPN universal DC voltage input (4.5 to 30 VDC)	30 Hz ← → 1 kHz (switchable)	7-segment LCD with backlight	H7EC-NV-H	H7EC-NV-BH
		7-segment LCD	H7EC-NV	H7EC-NV-B
AC/DC multi-voltage input (24 to 240 VAC/VDC)	20 Hz	7-segment LCD	H7EC-NFV	H7EC-NFV-B
No-voltage	30 Hz ← → 1 kHz (switchable)	7-segment LCD	H7EC-N	H7EC-N-B

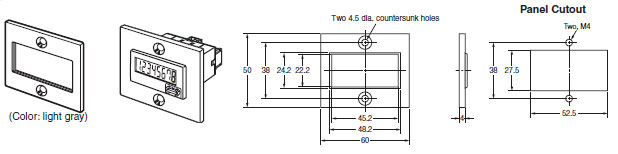

Accessories (Order Separately)

Name	Model

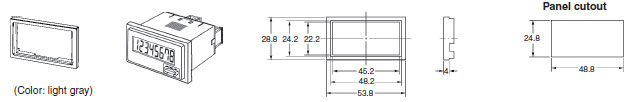

Compact Flush Mounting Bracket	Y92F-35

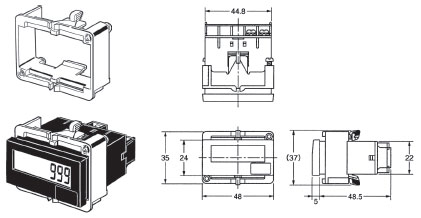

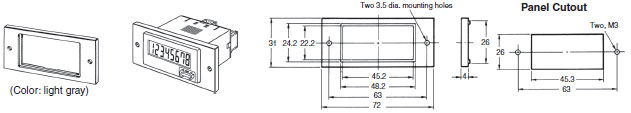

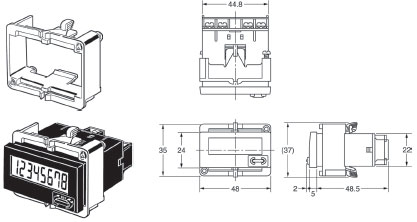

Flush Mounting Bracket *1	Y92F-34

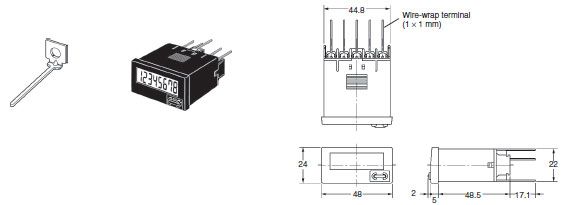

Wire-wrap Terminal (set of two Terminals)	Y92S-37
Lithium Battery *2	Y92S-36
Waterproof Packing *1	Y92S-32

*1. Provided with H7EC. (Order additional Brackets separately as required.)
*2. Built into H7EC. Order replacements using the above model number before the service life expires.

Time Counters "H7ET-N"

Time Counters

Timer input	Display	Time range
		999999.9h ← → 3999d23.9h (switchable)		999h59min59s ← → 9999h59.9min (switchable)
		Light-gray body	Black body	Light-gray body	Black body
PNP/NPN universal DC voltage input (4.5 to 30 VDC)	7-segment LCD with backlight	H7ET-NV-H	H7ET-NV-BH	H7ET-NV1-H	H7ET-NV1-BH
	7-segment LCD	H7ET-NV	H7ET-NV-B	H7ET-NV1	H7ET-NV1-B
AC/DC multi-voltage input (24 to 240 VAC/VDC)	7-segment LCD	H7ET-NFV	H7ET-NFV-B	H7ET-NFV1	H7ET-NFV1-B
No-voltage input	7-segment LCD	H7ET-N	H7ET-N-B	H7ET-N1	H7ET-N1-B

Accessories (Order Separately)

Name	Model
Compact Flush Mounting Bracket	Y92F-35

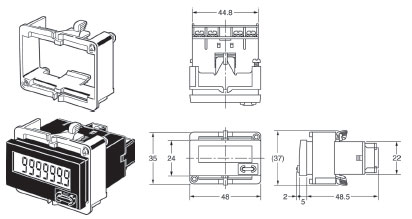

Flush Mounting Bracket *1	Y92F-34
Wire-wrap Terminal (set of two terminals)	Y92S-37
Lithium Battery *2	Y92S-36
Waterproof Packing *1	Y92S-32

*1. Provided with H7ET. (Order additional Brackets separately as required.)
*2. Built into H7ET. Order replacements using the above model number before the service life expires.

Tachometers "H7ER-N"

Tachometers

Count input	Display	Max. revolutions displayed (applicable encoder resolution)
		1000 s-1 (1 pulse/rev.), 1000 min-1 (60 pulse/rev.)		1000.0 s-1 (10 pulse/rev.), 1000.0 min-1 (600 pulse/rev.) ← → 10000 min-1 (60 pulse/rev.) (switchable)
		Light-gray body	Black body	Light-gray body	Black body
PNP/NPN universal DC voltage input (4.5 to 30 VDC)	7-segment LCD with backlight	H7ER-NV-H	H7ER-NV-BH	H7ER-NV1-H	H7ER-NV1-BH
	7-segment LCD	H7ER-NV	H7ER-NV-B	H7ER-NV1	H7ER-NV1-B
No-voltage input	7-segment LCD	H7ER-N	H7ER-N-B	---	---

Accessories (Order Separately)

Name	Model
Compact Flush Mounting Bracket	Y92F-35
Flush Mounting Bracket *1	Y92F-34
Wire-wrap Terminal (set of two terminals)	Y92S-37
Lithium Battery *2	Y92S-36
Waterproof Packing *1	Y92S-32

*1. Provided with H7ER. (Order additional Brackets separately as required.)
*2. Built into H7ER. Order replacements using the above model number before the service life expires.

PC Board-use Counters "H7E[]-N[]P"

PC Board-use Counters

Count input	Display	Total counter		Time counter
		Max. counting speed
		1 kHz	30 Hz
No-voltage input	7-segment LCD	H7EC-NP	H7EC-NLP	H7ET-NP

Accessory (Order Separately)

Connecting Socket (28-pin)	XR2A-2801-N

last update: January 24, 2013

OMRON H7E[]-N specification

last update: August 03, 2015

Total Counters "H7EC-N"

General

Item	H7EC-NV-[] H7EC-NV-[]H	H7EC-NFV-[]	H7EC-N-[]
Operating mode	Up type
Mounting method	Flush mounting
External connections	Screw terminals, optional Wire-wrap Terminals *1
Reset	External/Manual reset
Number of digits	8
Count input	PNP/NPN universal DC voltage input	AC/DC multi-voltage input	No-voltage input
Display	7-segment LCD with or without backlight, zero suppression (character height: 8.6 mm) *2
Max. counting speed	30 Hz/1 kHz	20 Hz	30 Hz/1 kHz
Case color	Light gray or black (-B models)
Attachment	Waterproof packing, Y92F-34 Flush Mounting Bracket
Approved standard	UL863, CSA C22.2 No.14, Lloyds Conforms to EN61010-1/IEC61010-1 (Pollution degree2/overvoltage category III) Conforms to VDE0106/P100

*1. Separately ordered Wire-wrap Terminals (Y92S-37) are required.
*2. Only PNP/NPN universal DC voltage input models (-H models) have a backlight.

Ratings

Item	H7EC-NV-[] H7EC-NV-[]H	H7EC-NFV-[]	H7EC-N-[]
Supply voltage	Backlight model: 24 VDC (0.3 W max.) (only for backlight) No-backlight model: Not required (powered by built-in battery)	Not required (powered by built-in battery)
Count input	High (logic) level: 4.5 to 30 VDC Low (logic) level: 0 to 2 VDC (Input impedance: Approx. 4.7 kΩ)	High (logic) level: 24 to 240 VAC/VDC, 50/60 Hz Low (logic) level: 0 to 2.4 VAC/VDC, 50/60 Hz	No voltage input Maximum short-circuit impedance: 10 kΩ max. Short-circuit residual voltage: 0.5 V max. Minimum open impedance: 750 kΩ min.
Reset input		No voltage input Maximum short-circuit impedance: 10 kΩ max. Short-circuit residual voltage: 0.5 V max. Minimum open impedance: 750 kΩ min.
Max. counting speed *	30 Hz or 1 KHz (Switchable with switch)	20 Hz	30 Hz or 1 KHz (Switchable with switch)
Minimum signal width	20 Hz: 25 ms 30 Hz: 16.7 ms 1 KHz: 0.5 ms
Reset system	External reset and manual reset: Minimum signal width of 20 ms
Terminal screw tightening torque	0.98 Nm max.
Ambient temperature	Operating: -10°C to 55°C (with no condensation or icing) Storage: -25°C to 65°C (with no condensation or icing)
Ambient humidity	Operating 25% to 85%

Note: ON/OFF ratio 1:1

Characteristics

Item	H7EC-NV-[] H7EC-NV-[]H	H7EC-NFV-[]	H7EC-N-[]
Insulation resistance	100 MΩ min. (at 500 VDC) between current-carrying metal parts and exposed non-current-carrying metal parts, and between the backlight power supply terminal and count input terminals/reset terminals for backlight models	100 MΩ min. (at 500 VDC) between current-carrying metal parts and exposed non-current-carrying metal parts and between count input terminals and reset terminals	100 MΩ min. (at 500 VDC) between current-carrying metal parts and exposed non-current-carrying metal parts
Dielectric strength	1,000 VAC, 50/60 Hz for 1 min between current-carrying metal parts and exposed non-current-carrying metal parts and between the backlight power supply terminal and count input terminals/reset terminals for backlight models	3,700 VAC, 50/60 Hz for 1 min between current-carrying metal parts and exposed non-current-carrying metal parts 2,200 VAC, 50/60 Hz for 1 min between reset terminals and exposed non-current-carrying metal parts and between count input terminals and reset terminals	1,000 VAC, 50/60 Hz for 1 min between current-carrying metal parts and exposed non-current-carrying metal parts
Impulse withstand voltage	4.5 kV between current-carrying terminal and exposed non-current-carrying metal parts	4.5 kV between current-carrying terminal and exposed non-current-carrying metal parts 3 kV between input terminals and reset terminals	4.5 kV between current-carrying terminal and exposed non-current-carrying metal parts
Noise immunity	Square-wave noise generated by noise simulator (pulse width: 100 ns/1 μs, 1-ns rise)
	±600 V (Between count input terminals/Between reset terminals) ±480 V (Between the backlight power supply terminals for backlight models)	±1.5 kV (Between count input terminals) ±500 V (Between reset terminals)	±500 V (Between count input terminals/Between reset terminals)
Static immunity	±8 kV (malfunction)
Vibration resistance	Malfunction: 0.15-mm single amplitude at 10 to 55 Hz for 10 min each in 3 directions Destruction: 0.375-mm single amplitude at 10 to 55 Hz for 2 hrs each in 3 directions
Shock resistance	Malfunction: 200 m/s2 3 times each in 6 directions Destruction: 300 m/s2 3 times each in 6 directions
EMC	(EMI) EN61326-1 (See note 1.) Emission Enclosure: EN55011 Group 1 class B (EMS) EN61326-1 (See note 1.) Immunity ESD: EN61000-4-2: 4 kV contact discharge (level 2) 8 kV air discharge (level 3) Immunity RF-interference from AM Radio Waves: EN61000-4-3: 10 V/m (80 MHz to 1 GHz) (level 3) Immunity RF-interference from Pulse-modulated Radio Waves: EN61000-4-3: 10 V/m (900 MHz ± 5 MHz) (level 3) Immunity Conducted Disturbance: EN61000-4-6: 10 V (0.15 to 80 MHz) (level 3) Immunity Burst: EN61000-4-4: 2 kV power line (level 3) 2 kV I/O signal line (level 4)
Degree of protection	Front panel: IP66, NEMA4 Terminal block: IP20
Weight (see note 2.)	No-backlight model: Approx. 60 g Backlight model: Approx. 65 g	Approx. 60 g	Approx. 60 g

Note: 1. Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)
          2. Weight includes waterproof packing and flush mounting bracket.

Reference Value

Item	Value	Note
Battery life	7 years min. with continuous input at 25°C (lithium battery)	The battery life is calculated according to the conditions in the left column and therefore is not a guaranteed value. Use these value as reference for maintenance or replacement.

Time Counters "H7ET-N"

General

Item	H7ET-NV-[] H7ET-NV-[]H	H7ET-NFV-[]	H7ET-N-[]	H7ET-NV1-[] H7ET-NV1-[]H	H7ET-NFV1-[]	H7ET-N1-[]
Operating mode	Accumulating
Mounting method	Flush mounting
External connections	Screw terminals
Reset	External/Manual reset
Display	7-segment LCD with or without backlight, zero suppression (character height: 8.6 mm) *1
Number of digits	7
Time range	0.0h to 999999.9h ←→ 0.0h to 3999d23.9h (switchable with switch)			0s to 999h59min59s ←→ 0.0min to 9999h59.9min (switchable with switch)
Timer input	PNP/NPN universal DC voltage input	AC/DC multi- voltage input	No-voltage input *2	PNP/NPN universal DC voltage input	AC/DC multi- voltage input	No-voltage input
Case color	Light gray or black (-B models)
Attachment	Waterproof packing, Y92F-34 Flush Mounting Bracket, time unit labels *3
Approved standard	UL863, CSA C22.2 No.14, Lloyds Conforms to EN61010-1/IEC61010-1 (pollution degree2/overvoltage category III) Conforms to VDE0106/P100

*1. Only PNP/NPN universal DC voltage input models (-H models) have a backlight.
*2. The frequency range for an AC voltage is 50 to 60 Hz.
*3. “-hours”, “-d-h”, “-h-m”, and “-h-m-s” labels are included.
*4. Zero suppression: Zeros are not displayed to increase readability. For example, "000008.2" is displayed as "8.2" if
        zero suppression is set. If the range is set to 3999d23.9h, the value is "008.2".

Ratings

Item	H7ET-NV[]-[] H7ET-NV[]-[]H	H7ET-NFV[]-[]	H7ET-N[]-[]
Supply voltage	Backlight model: 24 VDC (0.3 W max.) (for backlight) No-backlight model: Not required (powered by built-in battery)	Not required (powered by built-in battery)
Timer input	High (logic) level: 4.5 to 30 VDC Low (logic) level: 0 to 2 VDC (Input impedance: Approx. 4.7 kΩ)	High (logic) level: 24 to 240 VAC/VDC, 50/60 Hz Low (logic) level: 0 to 2.4 VAC/VDC, 50/60 Hz	No voltage input Maximum short-circuit impedance: 10 kΩ max. Short-circuit residual voltage: 0.5 V max. Minimum open impedance: 750 kΩ min.
Reset input		No voltage input Maximum short-circuit impedance: 10 kΩ max. Short-circuit residual voltage: 0.5 V max. Minimum open impedance: 750 kΩ min.
Minimum pulse width	1 s
Reset system	External reset and manual reset: Minimum signal width of 20 ms
Terminal screw tightening torque	0.98 Nm max.
Ambient temperature	Operating: -10°C to 55°C (with no condensation or icing) Storage: -25°C to 65°C (with no condensation or icing)
Ambient humidity	Operating: 25% to 85%

Characteristics

Item	H7ET-NV[]-[] H7ET-NV[]-H[]	H7ET-NFV[]-[]	H7ET-N[]-[]
Time accuracy	±100 ppm (25°C)
Insulation resistance	100 MΩ min. (at 500 VDC) between current-carrying metal parts and exposed non-current-carrying metal parts, and between the backlight power supply and timer input terminals/reset terminals for backlight models	100 MΩ min. (at 500 VDC) between current-carrying metal parts and exposed non-current-carrying metal parts and between timer input terminals and reset terminals	100 MΩ min. (at 500 VDC) between current-carrying metal parts and exposed non-current-carrying metal parts
Dielectric strength	1,000 VAC, 50/60 Hz for 1 min between current-carrying metal parts and exposed non-current-carrying metal parts and between the backlight power supply and timer input terminals/reset terminals for backlight models	3,700 VAC, 50/60 Hz for 1 min between timer input terminals and exposed noncurrent-carrying metal parts 2,200 VAC, 50/60 Hz for 1 min between reset terminals and exposed non-current-carrying metal parts and between timer input terminals and reset terminals	1,000 VAC, 50/60 Hz for 1 min between current-carrying metal parts and exposed non-current-carrying metal parts
Impulse withstand	4.5 kV between current-carrying terminal and exposed non-current-carrying metal parts	4.5 kV between current-carrying terminal and exposed non-current-carrying metal parts 3 kV between timer input terminals and reset terminals	4.5 kV between current-carrying terminal and exposed non-current-carrying metal parts
Noise immunity	Square-wave noise generated by noise simulator (pulse width: 100 ns/1 μs, 1-ns rise)
	±600 V (Between timer input terminals/Between reset terminals) ±480 V (Between the backlight power supply terminals for backlight models)	±1.5 kV (Between timer input terminals) ±500 V (Between reset terminals)	±500 V (Between timer input terminals/Between reset terminals)
Static immunity	±8 kV (malfunction)
Vibration resistance	Malfunction: 0.15-mm single amplitude at 10 to 55 Hz for 10 min each in 3 directions Destruction: 0.375-mm single amplitude at 10 to 55 Hz for 2 hrs each in 3 directions
Shock resistance	Malfunction: 200 m/s2 3 times each in 6 directions Destruction: 300 m/s2 3 times each in 6 directions
EMC	(EMI) EN61326-1 (See note 1.) Emission Enclosure: EN55011 Group 1 class B (EMS) EN61326-1 (See note 1.) Immunity ESD: EN61000-4-2: 4 kV contact discharge (level 2), 8 kV air discharge (level 3) Immunity RF-interference from AM Radio Waves: EN61000-4-3: 10 V/m (80 MHz to 1 GHz) (level 3) Immunity RF-interference from Pulse-modulated Radio Waves: EN61000-4-3: 10 V/m (900 MHz ± 5 MHz) (level 3) Immunity Conducted Disturbance: EN61000-4-6: 10 V (0.15 to 80 MHz) (level 3) Immunity Burst: EN61000-4-4: 2 kV power line (level 3), 2 kV I/O signal line (level 4)
Degree of protection	Front panel: IP66, NEMA4 with waterproof packing Terminal block: IP20
Weight (see note 2.)	No-backlight model: Approx. 60 g Backlight model: Approx. 65 g	Approx. 60 g	Approx. 60 g

Note: 1. Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)
          2. Weight includes waterproof packing and flush mounting bracket.

Reference Value

Item	Value	Note
Battery life	10 years min. with continuous input at 25°C (lithium battery)	The battery life is calculated according to the conditions in the left column and therefore is not a guaranteed value. Use these value as reference for maintenance or replacement.

Tachometers "H7ER-N"

General

Item	H7ER-NV-[] H7ER-NV-[]H	H7ER-N-[]	H7ER-NV1-[] H7ER-NV1-[]H
Operating mode	Up type
Mounting method	Flush mounting
External connections	Screw terminals, Wire-wrap Terminals *3
Display	7-segment LCD with or without backlight, zero suppression (character height: 8.6 mm) *4
Number of digits	4		5
Count input	PNP/NPN universal DC voltage input	No-voltage input	PNP/NPN universal DC voltage input
Max. counting speed	1 kHz		10 kHz
Max. revolutions displayed *5 *6	1,000 s-1 (When encoder resolution of 1 pulse/rev is used.) 1,000 min-1 (When encoder resolution of 60 pulse/rev is used.)		1,000.0 s-1 (When encoder resolution of 10 pulse/ rev is used.) 1,000.0 min-1 (When encoder resolution of 600 pulse/rev is used.) ←→ 10,000 min-1 (When encoder resolution of 60 pulse/rev is used.) (Switchable with switch)
Attachment	Waterproof packing, Y92F-34 Flush Mounting Bracket, revolution unit labels *5
Approved standard	UL863, CSA C22.2 No.14, Lloyds Conforms to EN61010-1/IEC61010-1 (Pollution degree2/overvoltage category III) Conforms to VDE0106/P100

*1. Reset is not available.
*2. When there is no input, the display will be 0.0 or 0.
*3. Separately ordered Wire-wrap Terminals (Y92S-37) are required.
*4. Only PNP/NPN Universal DC voltage input models have a backlight.
*5. “rpm”, “rps”, “s^-1” and “min^-1” labels are included.
*6. "s^-1" in "1,000 s^-1" means the same thing as RPS. "min^-1" means the same thing as RPM.

Ratings

Item	H7ER-NV[]-[] H7ER-NV[]-[]H	H7ER-N-[]
Supply voltage	Backlight model: 24 VDC (0.3 W max.) (for backlight lit) No-backlight model: Not required (powered by built-in battery)	Not required (powered by built-in battery)
Count input	High (logic) level: 4.5 to 30 VDC Low (logic) level: 0 to 2 VDC (Input impedance: Approx. 4.7 kΩ)	No voltage input Maximum short-circuit impedance: 10 kΩ max. Short-circuit residual voltage: 0.5 V max. Minimum open impedance: 750 kΩ min.
Max. counting speed	4-digit models: 1 kHz 5-digit models: 10 kHz	1 kHz
Minimum signal width	10 kHz: 0.05 ms 1 kHz: 0.5 ms *
Terminal screw tightening torque	0.98 Nm max.
Ambient temperature	Operating: -10°C to 55°C (with no condensation or icing) Storage: -25°C to 65°C (with no condensation or icing)
Ambient humidity	Operating: 25% to 85%

* 5-digit models :1 kHz/10 kHz switchable.

Characteristics

Item	H7ER-NV[]-[]  H7ER-NV[]-[]H	H7ER-N-[]
Insulation resistance	100 MΩ min. (at 500 VDC) between current-carrying metal parts and exposed non-current-carrying metal parts, and between the backlight power supply and count input terminals/reset terminals for backlight models	100 MΩ min. (at 500 VDC) between current-carrying metal parts and exposed non-current-carrying metal parts
Dielectric strength	1,000 VAC, 50/60 Hz for 1 min between current-carrying metal parts and exposed non-current-carrying metal parts and between the backlight power supply and count input terminals/reset terminals for backlight models	1,000 VAC, 50/60 Hz for 1 min between current-carrying metal parts and exposed non-current-carrying metal parts
Impulse withstand voltage	4.5 kV between current-carrying terminal and exposed non-current-carrying metal parts
Noise immunity	Square-wave noise generated by noise simulator (pulse width: 100 ns/1 μs, 1-ns rise)
	±600 V (Between count input terminals) ±480 V (Between the backlight power supply terminals for backlight models)	±500 V (Between count input terminals)
Static immunity	±8 kV (malfunction)
Vibration resistance	Malfunction: 0.15-mm single amplitude at 10 to 55 Hz for 10 min each in 3 directions Destruction: 0.375-mm single amplitude at 10 to 55 Hz for 2 hrs each in 3 directions
Shock resistance	Malfunction: 200 m/s2 3 times each in 6 directions Destruction: 300 m/s2 3 times each in 6 directions
EMC	(EMI) EN61326-1 (See note 1.) Emission Enclosure: EN55011 Group 1 class B (EMS) EN61326-1 (See note 1.) Immunity ESD: EN61000-4-2: 4 kV contact discharge (level 2), 8 kV air discharge (level 3) Immunity RF-interference from AM Radio Waves: EN61000-4-3: 10 V/m (80 MHz to 1 GHz) (level 3) Immunity RF-interference from Pulse-modulated Radio Waves: EN61000-4-3: 10 V/m (900 MHz ± 5 MHz) (level 3) Immunity Conducted Disturbance: EN61000-4-6: 10 V (0.15 to 80 MHz) (level 3) Immunity Burst: EN61000-4-4: 2 kV power line (level 3), 2 kV I/O signal line (level 4)
Degree of protection	Front panel: IP66, NEMA4 with waterproof packing Terminal block: IP20
Weight (see note 2.)	No-backlight model: Approx. 60 g Backlight model: Approx. 65 g

Note: 1. Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)
          2. Weight includes waterproof packing and flush mounting bracket.

Reference Value

Item	Value	Note
Battery life	7 years min. with continuous input at 25°C (lithium battery)	The battery life is calculated according to the conditions in the left column and therefore is not a guaranteed value. Use these value as reference for maintenance or replacement.

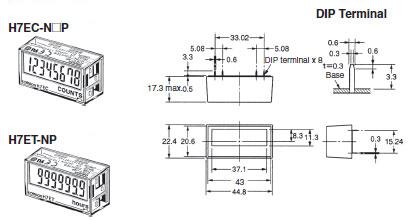

PC Board-use Counters "H7E[]-N[]P"

General

Item	Total Counter		Time Counter
	H7EC-NP	H7EC-NLP	H7ET-NP
Operating mode	Up type
Mounting method	Direct mounting on PC Board or mounting on 28-pin socket
Reset	External reset, Power-OFF reset
Number of digits	8		7
Time range	---		0.0h to 999999.9h
Max. counting speed	1 kHz	30 Hz	---
Count/Timer input	No-voltage input
Display	7-segment LCD (character height: 8.6 mm)
Case color	Transparent
Approved standard	UL863, CSA C22.2 No.14

Ratings

Item	H7EC-NP H7EC-NLP	H7ET-NP
Supply voltage	3 VDC (2.7 to 3.3 VDC)
Count/Timer input	No voltage input Maximum short-circuit impedance: 10 kΩ max. Short-circuit residual voltage: 0.5 V max. Minimum open impedance: 750 kΩ min.
Reset input
Max. counting speed *	1 kHz: Minimum signal width of 0.5 ms 30 Hz: Minimum signal width of 16.7 ms	---
Minimum signal input width	---	1 s
Reset system	External reset: Minimum signal width of 20 ms Power-OFF reset: Minimum power OFF time of 500 ms
Ambient temperature	Operating: -10°C to 55°C (with no condensation or icing) Storage: -25°C to 65°C (with no condensation or icing)
Ambient humidity	Operating: 25% to 85%

* ON/OFF ratio 1:1

Characteristics

Item	H7EC-NP  H7EC-NLP	H7ET-NP
Time accuracy	---	±100 ppm (25°C)
Noise immunity	Square-wave noise generated by noise simulator (pulse width: 100 ns/1 μs, 1-ns rise) ±500 V (Between count or timer input terminals/Between reset terminals)
Static immunity	±8 kV (malfunction)
Vibration resistance	Malfunction: 0.15-mm single amplitude at 10 to 55 Hz for 10 min each in 3 directions Destruction: 0.375-mm single amplitude at 10 to 55 Hz for 2 hrs each in 3 directions
Shock resistance	Malfunction: 200 m/s2 3 times each in 6 directions Destruction: 300 m/s2 3 times each in 6 directions
EMC	(EMI) EN61326-1 (See note 1.) Emission Enclosure: EN55011 Group 1 class B (EMS) EN61326-1 (See note 1.) Immunity ESD: EN61000-4-2: 4-kV contact discharge (level 2), 8-kV air discharge (level 3) Immunity RF-interference from AM Radio Waves: EN61000-4-3: 10 V/m (80 MHz to 1 GHz) (level 3) Immunity RF-interference from Pulse-modulated Radio Waves: EN61000-4-3: 10 V/m (900 MHz ± 5 MHz) (level 3) Immunity Conducted Disturbance (see note): EN61000-4-6: 10 V (0.15 to 80 MHz) (level 3) Immunity Burst (see note 2.): EN61000-4-4: 2-kV I/O signal line (level 4)
Weight	Approx. 20 g

Note: 1. Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)
          2. The power supply terminals of the H7E[]-N[]P are considered as 3-VDC control terminals.

last update: August 03, 2015

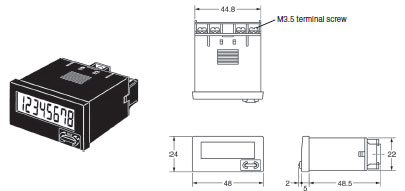

OMRON H7E[]-N dimension

last update: January 24, 2013

Total Counters "H7EC-N"

H7EC-N

Dimensions with Y92F-34 Flush Mounting Bracket

Note: A Compact Flush Mounting Bracket (Y92F-35) can also be used. Refer to Accessories for details.

Panel Cutout

Waterproofing is not possible for dense mounting

• When mounting, insert the Counter into the cutout, insert the adapter from the back and push in the Counter while making the gap between the front panel and the cutout panel as small as possible. Use screws to secure the Counter. If waterproofing is desired, insert the waterproof packing.

• When several Counters are installed, ensure that the ambient temperature will not exceed specifications.

• The appropriate thickness of the panel is 1 to 5 mm.

Time Counters "H7ET-N"

H7ET-N

Dimensions with Y92F-34 Flush Mounting Bracket

Note: A Compact Flush Mounting Bracket (Y92F-35) can also be used. Refer to Accessories for details.

Panel Cutout

Waterproofing is not possible for dense mounting

• When mounting, insert the Counter into the cutout, insert the adapter from the back and push in the Counter while making the gap between the front panel and the cutout panel as small as possible. Use screws to secure the Counter. If waterproofing is desired, insert the waterproof packing.

• When several Counters are installed, ensure that the ambient temperature will not exceed specifications.

• The appropriate thickness of the panel is 1 to 5 mm.

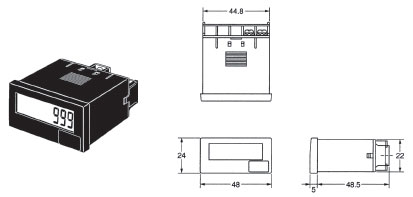

Tachometers "H7ER-N"

H7ER-N

Dimensions with Y92F-34 Flush Mounting Bracket

Note: A Compact Flush Mounting Bracket (Y92F-35) can also be used. Refer to Accessories for details.

Panel Cutout

Waterproofing is not possible for dense mounting

• When mounting, insert the Counter into the cutout, insert the adapter from the back and push in the Counter while making the gap between the front panel and the cutout panel as small as possible. Use screws to secure the Counter. If waterproofing is desired, insert the waterproof packing.

• When several Counters are installed, ensure that the ambient temperature will not exceed specifications.

• The appropriate thickness of the panel is 1 to 5 mm.

PC Board-use Counters "H7E[]-N[]P"

H7EC-N[]P, H7ET-NP

PCB Processing Dimensions (Soldering Surface)

Note: Processing dimensions are for 28-pin IC socket.

Accessories (Order Separately) (Common)

H7E (Except for PCB-mounting Counter)

The H7E models are supplied with a mounting bracket (Y92F-34) and nut. Additionally, the Y92F-75/-76/-77B Flush Mounting Adapters shown here allow the H7E models to be fitted to existing panel cutouts.

Y92F-35 Compact Flush Mounting Bracket

Degree of protection (front): IP40 (not waterproof)
The DIP switch of the H7E[]-N can be operated in mounted condition. Vibration resistance and shock resistant are the same level as the H7E[]-N series.

• The minimum mounting interval is 30 mm.
    Note: An interval of 40 mm is recommended for easier wiring.
• Do not allow the ambient temperature of the H7E[]-N to exceed the specifications (55°C).
• Mounting is possible onto panels with a thickness of 1 to 5 mm.

Y92F-75 Flush Mounting Adapter for 26 × 45.3 Rectangular Cutout

Use mounting bracket supplied with the Counter

Y92F-76 Flush Mounting Adapter for 27.5 × 52.5 Rectangular Cutout

Use the Y92F-76 together with the Y92F-35 Compact Flush Mounting Bracket.
Do not use the Flush Mounting Adapter supplied with the Counter.

Y92F-77B Flush Mounting Adapter for 24.8 × 48.8 Rectangular Cutout

Use mounting bracket supplied with the Counter

Note: The mounting panel thickness should be between 1 and 5 mm.

Y92S-37Wire-wrap Terminal (Set of Two Terminals)

When using the Wire-wrap Terminal, be sure to use the correct wires and peripheral devices. (The correct wires, bits and sleeves are shown in the table on the right.)

Y92S-36 Lithium Battery (3 V)

last update: January 24, 2013

OMRON H7E[]-N catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
H7E Data Sheet	- [2812KB]	Jul 30, 201520150730	H7E Data Sheet

• NO. H7E[]-N
• TYPE:Counters Total / Time Counters Copyright Statement
• DATE:2021-06-11
• Associated products:
  H7HP Total Counter/Time Counter (DIN 72 x 36)/Features H8BM-R Multi-maintenance Counter/Timer (DIN 72 x 72)/Features
