last update: October 2, 2017

Extensive Lineup

We have prepared a lineup, tailor-made to fit with your devices and applications.

Sensor length150 to 6,100 mm (in 50 mm increments)Height34 to 80 mm in five series

Easy to Order & Assembly Free

By covering just 4 points, a ready-to-use Safety Edge will be delivered to you:

Shape

Select a shape from five series as required in your application or equipment

Wiring

Select wiring from four types (2-wire/connector (male/female) cable, terminating resistor) and cable length 100 mm or any length from 500 mm to 10,000 mm with increments of 500 mm for both ends of the Safety Edge.

Length

Select any length from 150 mm to 6,100 mm with increments of 50 mm.

Mounting base

An L-shaped mounting base is also provided depending on the mounting location (except the SGE-125 series)

Note: For details, refer to "Model Number Structure" on Catalog.

SCC Edge Controller

Dedicated SCC Edge Controller that regulates a system conforming to Safety Category 3.

Dedicated SCC Edge Controller enables establishment of a safety system conforming to PLd/Safety Category 3(when hazards are directly blocked by built-in relays) Any short-circuits or breaks in the system are monitored and its status is indicated with LED. Authentificated under major safety standards

Note: For details on LED indicators, refer to "Connection" on Catalog.

last update: October 2, 2017

Purchase the OMRON Copyright Statement Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON SGE / SCC Safety Components,Safety Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Safety Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the SGE / SCC We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON SGE / SCCSafety Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

D5B Mechanical Touch Switch/Features
G2R-[]-S (S) General-purpose Relay/Features
E5DC Digital Temperature Controller (22.5 mm Wide, and DIN Track-mounting Type)/Features
CJ1M-CPU1[] CJ-series CJ1M CPU Units/Features
Viper 650 Articulated Robots/Features

OMRON SGE / SCC lineup
SGE / SCC Safety Edge/Edge Controller/Lineup
last update: October 6, 2017
Edge Controller

Product Appearance Safety
output Auxiliary output Rated
voltage Terminal
block type Model
Safety Mat/
Edge Controller * SPDT-NO SPST-NO 120 VAC
or
24 VAC/DC Screw
terminals SCC-1224A

* Can also be connected with UMA-series Safety Mats.
Refer to the SCC-1224A Safety Mat/Edge Controller User Manual (Cat. No. Z394) for details.

Product Appearance Safety
output Auxiliary output Rated
voltage Terminal
block type Model
Edge Controller DPST-NO SPST-NO *1 24 VDC Screw terminals SCC-1224
SPST-NO *2 SCC-1224ND

*1. One-shot timer that turns ON between two and three seconds after the application of pressure to the safety edge
*2. Kept ON during the application of pressure to the safety edge

Safety Edge

Appearance Cross-sectional dimensions
(including a standard
mounting base) *1 Actuation
distance
*2 Material Model Specification
(Cable)
15 mm x 34 mm 2.6 mm TPE SGE-125-[]-[] [](-[])
25 mm x 39 mm 3.9 mm EPDM SGE-225-[]-[] (L) [](-[])
25 mm x 60 mm 7.4 mm SGE-245-[]-[] (L) [](-[])
25 mm x 60 mm
25 mm x 74 mm
(including sealing cover) SGE-245L-[]-[] (L) [](-[])
35 mm x 80 mm 5.2 mm SGE-365-[]-[] (L) [](-[])

*1. For dimensions including L-shaped base, refer to "Dimensions/Terminal Arrangement" on Catalog.
*2. Values of actuation distance are characteristic values tested according to EN ISO 13856-2 using a test object of ϕ80
   mm and actuating point C3 under a test temperature of 20°C and test speed v = 10 mm/s. Refer to "Characteristics"
   on Catalog for details.

last update: October 6, 2017

OMRON SGE / SCC catalog
SGE / SCC Safety Edge/Edge Controller/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

SGE/SCC Catalog F088-E1-06
[2189KB] Feb 09, 201820180209 SGE/SCC Catalog

OMRON SGE / SCC specification
SGE / SCC Safety Edge/Edge Controller/Specifications
last update: October 6, 2017
Edge Controller SCC-1224A
Power Input

Power supply voltage* 120 VAC 50/60Hz (Terminals A1 and A2)
24 VAC 50/60Hz or 24 VDC (Terminals B1 and B2)
Operating voltage range -10% to +10% of rated power supply voltage
Power consumption (with sensors connected) 120 VAC: 3.8 VA max. 50 Hz, 3.5 VA max. 60 Hz
24 VAC: 1.2 VA max., 24 VDC: 1.5 W max.

* Select either Terminals A1 and A2 or Terminals B1 and B2 according to the power supply voltage applied. Never apply
both voltages simultaneously.

Inputs

Sensor input SGE Safety Edge: A maximum of 5 edges can be connected in series.
Maximum wiring length: 25 m max.

Contacts

Safety output 230 VAC 3 A, 24 VDC 3 A (resistive load)
230 VAC 1 A (AC-15), 24 VDC 2 A (DC-13) (inductive load)
Auxiliary output 24 VAC/DC 2A (resistive load)

Characteristics

Startup time *1 300 ms max.
Operating time (Open to closed) *2 550 ms max.
Response time (Closed to open) *3 13 ms max.
Vibration resistance Malfunction: 10 to 55 Hz, Sinus, 0.15 mm amplitude, 10 cycles
Shock resistance Malfunction: 147 m/s²
Durability Mechanical 1,000,000 cycles min.
Electrical AC-15: 800,000 cycles min. (230 VAC, 1A)
DC-13: 250,000 cycles min. (24 VDC, 2A)
Ambient operating temperature -20 to 55°C (-4 to 131°F) (with no icing or condensation)
Ambient operating humidity 0% to 90%
Degree of protection IP20
Material (Housing) Polyamide PA6.6, self-extinguishing according to UL 94-V2
Protection type Class II (protective insulation)
Pollution degree 2
Overvoltage category (IEC/EN 60664-1) III
Rated insulation voltage 250 V
Rated impulse voltage resistance 4 kV
Dielectric strength 1.5 kVAC
Terminal tightening torque 0.5 to 0.6 N• m
Weight approx. 210 g (7.4 oz)
Conformity Conforming to Standards EN ISO 13856-2, EN ISO 13849-1: 2015, EN 61000-6-2, EN 61000-6-3,
ANSI/UL 508, CSA C22.2 No.14
PFHd 6.5× 10^-9 (Nop 17,520)
MTTFd 195 years
DC 99% (Nop 17,520)

*1. The startup time is the delay time from power-on to when the SCC-1224A Safety Mat/Edge Controller is ready to
     operate.
*2. The operating time is the time it takes for the safety output contacts to be closed after the sensor is deactivated and the
      manual reset input contacts are closed.
      The contact bounce time is not included.
*3. The response time is the time it takes for the safety output contacts to open after the sensor is activated. Contact
      bounce time is included.
Note: The SCC-1224/SCC-1224ND have different specifications. Consult your OMRON representative for details.

Safety Edge

Model SGE-125 SGE-225 *4 SGE-245
SGE-245L SGE-365
Material *1 TPE EPDM
Material hardness 65 Shore A 68 Shore A
Max. length of a single safety edge 6.1 m
Actuation distance *2 2.6 mm 3.9 mm 7.4 mm 5.2 mm
Actuation force *2 42 N 57 N 68 N 78 N
Maximum allowable load 500 N
Overtravel distance *2 (400 N) 9.5 mm 6.7 mm 18.3 mm 33.8 mm
Maximum operation angle 2 x 30° 2 x 45°
Inactive end region *3 20 mm 40 mm 20 mm
Connecting cable 2 conductors, 0.34 mm², Allowable bending radius: R38mm
Cable Specifications
Type: PUR (Polyurethane) Round lead cable
External diameter: 3.5 dia.
Number of conductors: 2 conductors
Cross-section of conducto: 0.34 mm²
Insulator diameter: 1.2 dia.
Mechanical durability 10,000 operations min.
Ambient temperature During operation: -10 to 55°C (with no icing),
During storage: -25 to 75°C (with no icing)
Operating ambient humidity 0 to 90%RH
Degree of protection IP65
Unit weight 0.18 kg/m 0.51 kg/m 0.77 kg/m (SGE-245)
0.82 kg/m (SGE-245L) 1.10 kg/m

*1. TPE: Thermoplastic Elastomer
EPDM: Ethylene Propylene Rubber
*2. Values of actuation distance and actuation force are characteristic values tested according to EN ISO 13856-2 using a
test object of ϕ80 mm and actuating point C3 under a test temperature of 20°C and test speed v = 10 mm/s. Refer
to “Characteristics” on Catalog for details.
*3. There is an inactive region (including an end cap) in both ends of the safety edge.

*4. The SGE-225 can be used for finger protection.The actuation force is 20 N when the SGE-225 is used for finger
    protection.
(Characteristic values tested according to EN ISO 13856-2 using a test object of ϕ20 mm and actuating point C3 under
a test temperature of 20°C and test speed v = 10 mm/s)

Mechanical Force

Material TPE EPDM
Model SGE-125 SGE-225, SGE-245, SGE-365
Features Strength * 1 2 3 4 5 6 1 2 3 4 5 6
Tear Strength (Resistance) 3 3
Ultimate Tensile Strength 3 3
Rebound Elasticity at 20°C 2 2
Resistance Against Permanent Deformation 3 4 2
Abrasion 3 3
Elongation at Tear 4 5 3
Cold Flexibility 2 2

Note: 1 = Excellent
   2 = Very good
   3 = Good
   4 = Fair
   5 = Poor
   6 = Very poor

Environmental Resistance

Material TPE EPDM
Model SGE-125 SGE-225, SGE-245, SGE-365
Features Tolerance * 1 2 3 4 5 6 1 2 3 4 5 6
Heat Stability 4 2
Oxidation Stability 1 1
UV Stability 1 1
Weather/Ozone Resistance 1 1
Flame Resistance 6 6
Gas Permeability 3 4

Note: 1 = Excellent
   2 = Very good
   3 = Good
   4 = Fair
   5 = Poor
   6 = Very poor

Chemical Resistance

Material TPE EPDM
Model SGE-125 SGE-225, SGE-245, SGE-365
Features Effects * 1 2 3 4 5 6 1 2 3 4 5 6
Water Resistance 1 1 2
Diluted Acids 1 2
Diluted Bases 1 2
Non-Oxidizing Acids 2 2
Oxidizing Acids 2 4
ASTM Oil #3 2 6
Vegetable Oils 1 2 5
Organic Solvents 2
Ester Solvents 2 3 2
Ketone Solvents (Containing Oxygen) 2 3 3
Aliphatic Hydrocarbons Solvents (Gasoline) 5
Aromatic Hydrocarbons 6
Hydrocarbons 2 3 5 6
Alcohol 1 1

Note: 1 = No Effects, Permanent Contact
   2 = Few Effects, Some Contact
   3 = Medium Effects, Some Contact
   4 = Noticeable Effects, Reduced Contact
   5 = Severe Effects, Very Brief Contact
   6 = Extreme Effects, Avoid Contact

last update: October 6, 2017

OMRON SGE / SCC dimension
SGE / SCC Safety Edge/Edge Controller/Dimensions
last update: October 2, 2017

(Unit: mm)

Edge Controller
SCC-1224A

Safety Edge
SGE-125

SGE-225

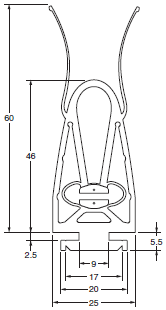

SGE-245

SGE-245L

SGE-365

Mounting Bases
For SGE-125

For SGE-225/245

For SGE-225/245 L-shaped

For SGE-365

For SGE-365 L-shaped

Connectors
Connector (male) Terminal code: M

Connector (female) Terminal code: F

last update: October 2, 2017

NO. SGE / SCC

TYPE:Safety Edges Copyright Statement Copyright Statement

DATE:2021-06-07

Associated products:
UM, MC3 Safety Mat/Safety Mat Controller/Features A22E / A22NE-P / A22NE-PD Emergency Stop Pushbutton Switches (22-dia. or 25-dia.)/Features

Product	Appearance	Safety output	Auxiliary output	Rated voltage	Terminal block type	Model
Safety Mat/ Edge Controller *		SPDT-NO	SPST-NO	120 VAC or 24 VAC/DC	Screw terminals	SCC-1224A

Product	Appearance	Safety output	Auxiliary output	Rated voltage	Terminal block type	Model
Edge Controller		DPST-NO	SPST-NO *1	24 VDC	Screw terminals	SCC-1224
SPST-NO *2	SCC-1224ND

Cross-sectional dimensions (including a standard mounting base) *1	Actuation distance *2	Material	Model	Specification (Cable)
15 mm x 34 mm	2.6 mm	TPE	SGE-125-[]-[]	[](-[])
25 mm x 39 mm	3.9 mm	EPDM	SGE-225-[]-[] (L)	[](-[])
25 mm x 60 mm	7.4 mm	SGE-245-[]-[] (L)	[](-[])
25 mm x 60 mm 25 mm x 74 mm (including sealing cover)	SGE-245L-[]-[] (L)	[](-[])
35 mm x 80 mm	5.2 mm	SGE-365-[]-[] (L)	[](-[])

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
SGE/SCC Catalog	F088-E1-06 [2189KB]	Feb 09, 201820180209	SGE/SCC Catalog

Power supply voltage*	120 VAC 50/60Hz (Terminals A1 and A2) 24 VAC 50/60Hz or 24 VDC (Terminals B1 and B2)
Operating voltage range	-10% to +10% of rated power supply voltage
Power consumption (with sensors connected)	120 VAC: 3.8 VA max. 50 Hz, 3.5 VA max. 60 Hz 24 VAC: 1.2 VA max., 24 VDC: 1.5 W max.

Sensor input	SGE Safety Edge: A maximum of 5 edges can be connected in series. Maximum wiring length: 25 m max.

Safety output	230 VAC 3 A, 24 VDC 3 A (resistive load) 230 VAC 1 A (AC-15), 24 VDC 2 A (DC-13) (inductive load)
Auxiliary output	24 VAC/DC 2A (resistive load)

*Startup time 1**	300 ms max.
*Operating time (Open to closed) 2**	550 ms max.
*Response time (Closed to open) 3**	13 ms max.
Vibration resistance	Malfunction: 10 to 55 Hz, Sinus, 0.15 mm amplitude, 10 cycles
Shock resistance	Malfunction: 147 m/s²
Durability	Mechanical	1,000,000 cycles min.
Electrical	AC-15: 800,000 cycles min. (230 VAC, 1A) DC-13: 250,000 cycles min. (24 VDC, 2A)
Ambient operating temperature	-20 to 55°C (-4 to 131°F) (with no icing or condensation)
Ambient operating humidity	0% to 90%
Degree of protection	IP20
Material (Housing)	Polyamide PA6.6, self-extinguishing according to UL 94-V2
Protection type	Class II (protective insulation)
Pollution degree	2
Overvoltage category (IEC/EN 60664-1)	III
Rated insulation voltage	250 V
Rated impulse voltage resistance	4 kV
Dielectric strength	1.5 kVAC
Terminal tightening torque	0.5 to 0.6 N• m
Weight	approx. 210 g (7.4 oz)
Conformity	Conforming to Standards	EN ISO 13856-2, EN ISO 13849-1: 2015, EN 61000-6-2, EN 61000-6-3, ANSI/UL 508, CSA C22.2 No.14
PFHd	6.5× 10^-9 (Nop 17,520)
MTTFd	195 years
DC	99% (Nop 17,520)

Model	SGE-125	*SGE-225 4**	SGE-245 SGE-245L	SGE-365
*Material 1**	TPE	EPDM
Material hardness	65 Shore A	68 Shore A
Max. length of a single safety edge	6.1 m
*Actuation distance 2**	2.6 mm	3.9 mm	7.4 mm	5.2 mm
*Actuation force 2**	42 N	57 N	68 N	78 N
Maximum allowable load	500 N
*Overtravel distance 2 (400 N)**	9.5 mm	6.7 mm	18.3 mm	33.8 mm
Maximum operation angle	2 x 30°	2 x 45°
*Inactive end region 3**	20 mm	40 mm	20 mm
Connecting cable	2 conductors, 0.34 mm², Allowable bending radius: R38mm Cable Specifications Type: PUR (Polyurethane) Round lead cable External diameter: 3.5 dia. Number of conductors: 2 conductors Cross-section of conducto: 0.34 mm² Insulator diameter: 1.2 dia.
Mechanical durability	10,000 operations min.
Ambient temperature	During operation: -10 to 55°C (with no icing), During storage: -25 to 75°C (with no icing)
Operating ambient humidity	0 to 90%RH
Degree of protection	IP65
Unit weight	0.18 kg/m	0.51 kg/m	0.77 kg/m (SGE-245) 0.82 kg/m (SGE-245L)	1.10 kg/m

Return to OMRON

Material	TPE						EPDM
Model	SGE-125						SGE-225, SGE-245, SGE-365
Features Strength *	1	2	3	4	5	6	1	2	3	4	5	6
Tear Strength (Resistance)			3						3
Ultimate Tensile Strength			3						3
Rebound Elasticity at 20°C		2						2
Resistance Against Permanent Deformation			3	4				2
Abrasion			3						3
Elongation at Tear				4	5				3
Cold Flexibility		2						2
