OMRON NE1A-SCPU0[]-EIP Dimensions

/Images/l_2621-25-118990-198x198.jpg

last update: May 23, 2013

Main Network EtherNet/IP

• Monitors safety systems via EtherNet/IP.

• Equipped with master functions of CIP Safety on DeviceNet.

• Does not require external devices for connecting Safety Network Controller and EtherNet/IP.

• Increased maintainability in combination with OMRON's EtherNet/IP compatible PLC.

• ISO13849-1 (PLe) and IEC 61508 SIL3 certification.

last update: May 23, 2013

Purchase the OMRON NE1A/NE0A-series Safety Network Controllers Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON NE1A-SCPU0[]-EIP Safety Components,Safety Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Safety Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the NE1A-SCPU0[]-EIP We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON NE1A-SCPU0[]-EIPSafety Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

D4N-[]R Pull-reset Safety Limit Switch/Features
E2ER / E2ERZ Oil-resistant Proximity Sensors/Features
EE-SPZ-A Retroreflective Photomicrosensor with Lens/Features
H7E[]-N Self-powered Totalizer/Features
CJ1W-CT021 CJ-series High-speed Counter Unit/Features

OMRON NE1A-SCPU0[]-EIP catalog
NE1A-SCPU0[]-EIP Safety Network Controller/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

NE1A-SCPU0[]-EIP Data Sheet -
[527KB] Nov 27, 201320131127 NE1A-SCPU0[]-EIP Data Sheet

OMRON NE1A-SCPU0[]-EIP specification
NE1A-SCPU0[]-EIP Safety Network Controller/Specifications
last update: December 4, 2013
Certified Standards

Certification body Standards
TÜV Rheinland NFPA 79-2012
ISO13849-1: 2008
IEC61508 part1-7: 2010
IEC61131-2: 2007
EN ISO13849-2: 2012
EN61000-6-4: 2007
EN61000-6-2: 2005
EN60204-1: 2006
EN ISO13850: 2006 (EN418: 1992)
ANSI RIA15.06-1999
ANSI B11.19-2012
UL UL508
ANSI/ISA 12.12.01
UL1998
NFPA79
IEC61508
CSA22.2 No.142
CSA22.2 No.213

Specifications

Model NE1A-SCPU01-EIP NE1A-SCPU02-EIP
DeviceNet communications power supply voltage 11 to 25 VDC (Supplied via communications connector.)
Unit power supply voltage (V0) *1 20.4 to 26.4 VDC (24 VDC -15%/+10%)
I/O power supply voltage (V1, V2) *1
Current consumption Communications power supply 24 VDC, 15 mA
Internal circuit power supply 24 VDC, 280 mA 24 VDC, 330 mA
I/O power supply *2 24 VDC, 40 mA (Input)
120 mA (Output) 24 VDC, 80 mA (Input)
150 mA (Output)
Overvoltage category II
Noise immunity Conforms to IEC61131-2.
Vibration resistance 10 to 57 Hz: 0.35 mm, 57 to 150 Hz: m/s²
Shock resistance 150 m/s²: 11 ms
Mounting method DIN track mounting (IEC60715 TH35-7.5/TH35-15)
Ambient operating temperature -10 to 55°C
Ambient operating humidity 10% to 95% (with no condensation)
Ambient storage temperature -40 to 70°C
Degree of protection IP20
Serial interface USB version 1.1
Weight 570 g max. 800 g max.

*1. V0-G0: Internal control circuit
V1-G1 (G): For external input device, test output
V2-G2 (G): For external output device
*2. Not including power consumption for external devices.

Safety Input Specifications

Input type Sinking inputs (PNP)
ON voltage 11 VDC min. between each terminal and ground
OFF voltage 5 VDC min. between each terminal and ground
OFF current 1 mA max.
Input current 4.5 mA

Safety Output Specifications

Output type Sourcing outputs (PNP)
Rated output current 0.5 A max./output
ON residual voltage 1.2 V max. between each output terminal and V2
Leakage current 0.1 mA max.

Test Output Specifications

Output type Sourcing outputs (PNP)
Rated output current 0.7 A max./output *
ON residual voltage 1.2 V max. between each output terminal and V1
Leakage current 0.1 mA max.

* The maximum current for simultaneously ON outputs is 1.4 A.
(T0 to T3: NE1A-SCPU01 (-V1) (-EIP), T0 to T7: NE1A-SCPU02) (-EIP)
A 15 to 400-mA, 24-VDC external indicator can be connected to T3: NE1A-SCPU01 (-V1) (-EIP), T3, and T7: NE1A-
SCPU02 (-EIP).

Ethernet/IP Communications Specifications

Media access method CSMA/CD
Modulation method Baseband
Transmission path type Star
Transmission speed 10 Mbps (10BASE-T)
100 Mbps (100BASE-T)
Transmission media Shielded twisted pair cable (STP): Category 5, 5e
Transmission distance 100 m (distance between hub and node)
No. of cascade-connectable Units No limit when a switching hub is used.

DeviceNet Communications Specifications

Communications protocol DeviceNet compliant
Connection form Multi-drop system and T-branch system can be combined (for trunk line and branch lines)
Communications speed 500/250/125 kbps
Communications media Special cable, 5 conductors (2 for communications, 2 for power supply, 1 for shielding)
Communications distance Communications
speed Max. network length Branch
length Total branch length
500 kbps 100 m max. (100 m max.) 6 m max. 39 m max.
250 kbps 250 m max. (100 m max.) 78 m max.
125 kbps 500 m max. (100 m max.) 156 m max.
Note: Figures in parentheses ( ) indicate values when a thin cable is used.
Communications power
supply 11 to 25 VDC
No. of connectable nodes 63
Safety I/O
communications Unit
version
1.0 Safety Master function
Max. no. of connections: 32
Max. data size: Input 16 bytes or output 16 bytes (per connection)
Connection type: Single-cast, Multi-cast

Safety Slave function
Max. no. of connections: 4
Max. data size: Input 16 bytes or output 16 bytes (per connection)
Connection type: Single-cast, Multi-cast
Standard I/O
communications Standard Slave function
Max. no. of connections: 2
Max. data size: Input 16 bytes or output 16 bytes (per connection)
Connection type: Poll, Bit-strobe, COS, Cyclic
Message communications Max. message length: 502 bytes

last update: December 4, 2013

OMRON NE1A-SCPU0[]-EIP dimension
NE1A-SCPU0[]-EIP Safety Network Controller/Dimensions
last update: May 23, 2013

(Unit: mm)

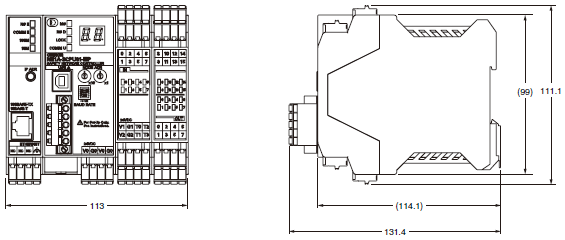

NE1A-SCPU01-EIP

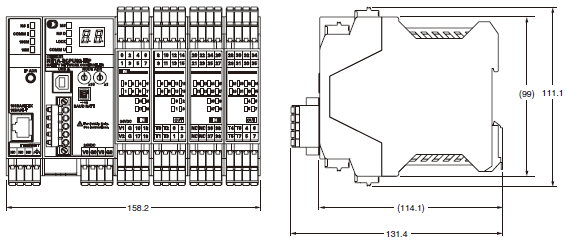

NE1A-SCPU02-EIP

last update: May 23, 2013

OMRON NE1A-SCPU0[]-EIP lineup
NE1A-SCPU0[]-EIP Safety Network Controller/Lineup
last update: May 23, 2013

Name No. of I/O points Model Unit version

Safety inputs Test outputs Safety outputs

Safety Network Controller 16 4 8 NE1A-SCPU01-EIP 1.1

40 8 8 NE1A-SCPU02-EIP 1.1

Note: 1. The standard NE1A Controllers are equipped with spring-cage terminal blocks, but other screw terminal blocks
are available if desired, e.g., to replace previous terminals.
2. Use the Network Configurator Ver. 2.2 or later to make NE1A-SCPU0[]-EIP settings.

last update: May 23, 2013
