OMRON CJ1W-CT021 lineup

last update: September 24, 2012

International Standards

• The standards are abbreviated as follows: U: UL, U1: UL (Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus, UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, and CE: EC Directives.
• Contact your OMRON representative for further details and applicable conditions for these standards.

Unit type	Product name	Specifications			No. of unit numbers allocated	Current consumption (A)		Model	Standards
		Countable channels	Encoder A and B inputs, pulse input Z signals	Max. counting rate		5 V	24 V
CJ1 Special I/O Units	Highspeed Counter Unit	2	Open collector Input voltage: 5 VDC, 12 V, or 24 V (5 V and 12 V are each for one axis only.)	50kHz	4	0.28	-	CJ1W-CT021	UC1, N, L, CE
			RS-422 line driver	500kHz

Note: The following functions become unavailable when it is used with the NJ-series CPU unit.
           - Counter value capture using allocation area (CIO)
           - The capture, Stop/capture/continue, Stop/capture/reset/continue, and Capture/reset functions using External
               Control Input Function
           - Pulse rate range control using Output Control Mode
           - The pulse rate measurement function
           - Because the NJ Series has no power OFF interrupt task, operation cannot be restarted from the position at which
               the power was interrupted.
           - The IORD/IOWR instruction
           - Starting of External Interrupt Task by Output and External Control Input

Accessories

The High-Speed Counter Unit includes the 40-pin solder-type connectors C500-CE404 (socket: Fujitsu FCN-361J040-AU, cover: Fujitsu FCN-360C040-J2).

Applicable Connectors

Name	Connection		Specifications	Model
40-pin Connectors	Soldered		FCN-361J040-AU Connector FCN-360C040-J2 Connector Cover Right angle type, included with Unit	C500-CE404
	Crimped		FCN-363J040 Housing FCN-363J-AU Contactor FCN-360C040-J2 Connector Cover Right angle type	C500-CE405
	Pressure welded		FCN-367J040-AU/F, w/o connector cover	C500-CE403
	Soldered		40-pin, soldered, w/connector cover	C500-CE401
	Crimped		40-pin, crimped w/connector cover	C500-CE402

Connector-Terminal Conversion Unit and Connection Cables

Product Name			Specifications		Model
For Connecting with Terminal Block	Connecting Cables		Normal wiring	Cable length: 0.5m	XW2Z-050B
				Cable length: 1.0m	XW2Z-100B
				Cable length: 1.5m	XW2Z-150B
				Cable length: 2.0m	XW2Z-200B
				Cable length: 3.0m	XW2Z-300B
				Cable length: 5.0m	XW2Z-500B
	Connector-Terminal Conversion Unit	Through	40-pin M2.4 screw terminals		XW2B-40G4
			40-pin M3.5 screw terminals		XW2B-40G5
		Slim	40-pin M3 screw terminals		XW2D-40G6

last update: September 24, 2012

OMRON CJ1W-CT021 specification

last update: September 24, 2012

General Specifications

Item	CJ1W-CT021
Unit type	CJ-series Special I/O Unit
General Specifications	Conform to general specifications for CJ/NJ-series
Ambient Operating Temperature	0 to 55 °C
Ambient Storage Temperature	-20 to 75 °C
Ambient Operating Humidity	10% to 90% without condensation
Internal Current Consumption	280 mA (at 5 V)

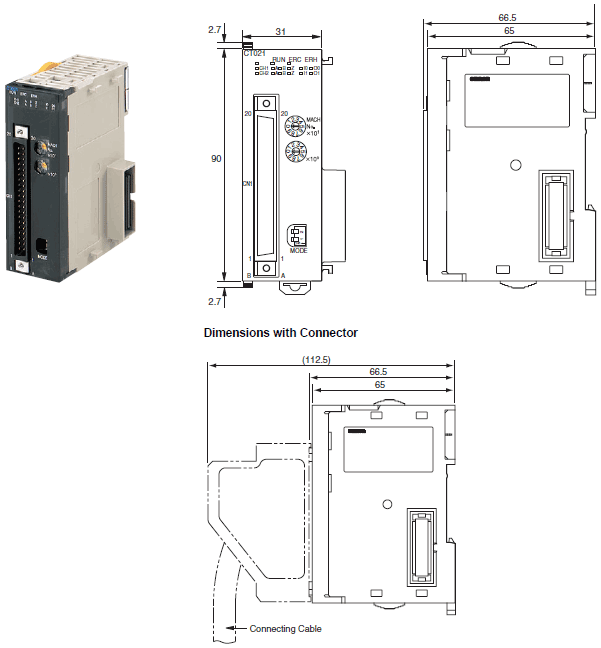

Dimensions	31 × 90 × 65 mm (W × H × D)
Weight	100 g
Mounting Position	CJ-series CPU Rack or CJ-series Expansion Rack *1, NJ-series CPU Rack or NJ-series Expansion Rack
Maximum Number of CT021 Units per Rack	Equal to the number of slots of the Rack *2
Maximum Number of CT021 Units per basic CJ/NJ system	24
Data Exchange with CPU Unit	I/O Refresh Data Area (CIO-bits 200000 to 255915, CIO-words 2000 to 2959): *3 Special I/O Unit DM-Area (D-words 20000 to 29599): 400 DM-words per Unit are transmitted form the CPU to the Unit at Power Up or when the Unit is restarted *4

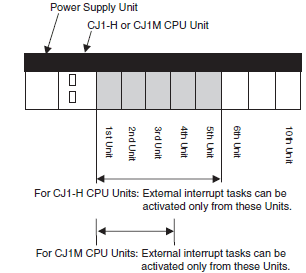

*1. The Unit must be in one of the five positions immediately to the right of the CJ1-H CPU Unit or in one of the three
       positions immediately to the right of the CJ1M CPU Unit to activate external interrupt tasks. No external interrupt
       tasks can be activated if the Unit is in any other position (i.e., 6th Unit position or further away from the CJ1-H CPU
       Unit, or 4th Unit position or further away from the CJ1M CPU Unit), or if it is on a CJ-series Expansion Rack.
*2. The maximum number of Units per Rack is also depending on the maximum supply current of the Power Supply Unit
       and the current consumption of other Units on the Rack.
*3. The CJ1W-CT021 Special I/O Unit is allocated words for 40 words in the Special I/O Unit (CIO) Area.
*4. The CJ1W-CT021 Special I/O Unit is allocated words for 4 Units in the Special I/O Unit DM Area. From the 400 DM
       words that are allocated, the first 113 words are used to make the DM-settings and the remaining 287 words can be
       used as work-words.

Functional Specifications

Item	CJ1W-CT021
Number of Counters	2
Counter Type	Simple Counter Circular Counter Linear Counter The Counter Type can be chosen by DIP switch at the front of the Unit. By default the Counters are set to Simple Counter.
Maximum Input Frequency	500 kHz
Maximum Response Time	0.5 ms
Signals per Counter	Phase A, B and Z
Digital I/O	2 Digital Inputs (I0 and I1): Every Digital Input can be assigned to a Counter. In this way one Counter can be controlled by a maximum of 2 Digital Inputs. 2 Digital Outputs (O0 and O1): The Unit Output Pattern represents the 2 Digital Outputs and 30 Soft Outputs.
Input Signal Types	Phase Differential (multiplication ×1), (multiplication ×2) *1 and (multiplication ×4) *1 Up/Down *1 Pulse & Direction *1
Counter Control using CIO- software bits *4	Open Gate / Start Counter: Counter is enabled to count pulses Close Gate / Stop Counter: Counter is disabled to count pulses Preset Counter: Preset Value can be set in CIO Reset Counter to zero Capture Counter Value: Captured Counter Value can be read using IORDinstruction
Digital Input Functionality	Gate *1 Reset *1 Preset *1 Capture *1 Stop/Capture-Continue *1 *4 Stop/Capture-Reset/Continue *1 *4 Capture/Reset *1 *4 Enable Reset *1 Disable Reset *1 For every Function the corresponding action can be triggered on a rising- or on a falling edge.
Output Control Mode	Automatic ON/OFF output according to the following three modes: Range Mode *1 Comparison Mode *1 Rate Range *1 *4 Manual output control
Output State Control	On changing the Operating Mode of the controller from RUN/MONITOR → PROGRAM, an I/O Bus Error or an Overflow/Underflow Error, the Digital Outputs can be configured to: Continue automatic updating Output States Freeze Output States *1 Predefine Output States *1
Output Driver Configuration	The Output Driver of every Digital Output can be configured as: NPN PNP *1
Reset Signals	Every Counter can be reset to zero by (a combination of) the following sources: Software Counter Reset Bit Digital Input *1 Z-Input *1
Extra Functions	Programmable Output Pulse *1: To every Digital Output an ON-delay and/or a Pulse Duration [1 to 9999 ms] can be applied. Rate Measurement *1 *4 : For every Counter the Pulse Rate can be measured by defining a Time- Window [1 to 9999 ms]. Up to a maximum of 64 Rate Values are stored in the Rate History Log File. Rate Values from the Rate History Log File can be read using the IORD-instruction. Additionally for every Counter two Rate Ranges can be defined that control the Outputs according to the measured Rate Value. Hysteresis *1: To prevent Outputs from being switched On and Off by very small fluctuations in the Counter Value around Range Limits, for every Counter an Hysteresis-value [1 to 255] can be defined (the Unit must in Range Mode).
Noise Filtering Counter Inputs and Digital Inputs	To suppress noise on the signal lines of the Counter Inputs (A and B) and the Digital Inputs (I0 and I1) a Noise Filter can be configured: 10 kHz *1 50 kHz (default) 500 kHz *1 For the Digital Inputs the 500 kHz filter can not be selected. The Z-Input Signals of every Counter are filtered with a fixed Noise Filter of 1 kHz.
Initial Counter Value *4	The Initial Counter Value *1 is transferred to the Unit when the Unit is Powered Up or Restarted. The Initial Counter Value is very useful to overcome problems in case of power failure.
IORD- and IOWR-instructions *4	Run-time *3 configuration and operation of the High-speed Counter Unit is possible by using IORD- and IOWR-instructions. The following data can be read or written: DM-configuration data *1 Range- and Comparison Data *1 Captured Counter Value Rate History Log File Data *1 Counter Value (Re) Configure High-speed Counter Unit *1 Error Clear
Interrupts of Outputs *4	The Digital Outputs and the Soft Outputs of the Unit Output Pattern can all be configured to generate interrupts to the CJ1-H/CJ1M CPU Unit *1 *2.
Interrupts of Digital Inputs *4	The Digital Inputs can all be configured to generate interrupts to the CJ1-H/ CJ1M CPU Unit *2.
Error History Log Function	Stores up to 30 error log records

*1. This specification item is only supported for Circular and Linear Counters (not for Simple Counters). For a complete
       overview of the differences between Simple and Circular/Linear Counters refer to High-speed Counter Unit Operation
       Manual (Cat. No. W401).
*2. To activate external interrupt tasks, a CJ1-H or CJ1M CPU Unit must be used. CJ1 CPU Units do not support external
       interrupt tasks. To activate external interrupt tasks in a CJ1-H CPU Unit, the CJ1W-CT021 High-speed Counter Unit
       must be in one of the five positions immediately to the right of the CJ1-H CPU Unit. For CJ1M CPU Units, the CJ1W-
       CT021 High-speed Counter Unit must be in one of the three positions immediately to the right of the CJ1M CPU Unit.
       No external interrupt tasks can be activated if the Unit is in any other position (i.e., 6th Unit position or further away
       from the CJ1-H CPU Unit, or 4th Unit position or further away from the CJ1M CPU Unit), or if it is on a CJseries
       Expansion Rack.

*3. If an IOWR- or IORD-instruction is used during operation, comparison will stop during instruction execution. Care
       must be taken, therefore, with the timing of executing instructions.
*4. This specification item cannot be used with N J-series CPU units.

Input Specifications

Item	Counter Inputs A and B				Digital Inputs (I0 and I1)
Input Voltage	24 VDC (19.6 to 26.4 V)	12 VDC (9.8 to 13.2 V)	5 VDC (4.5 to 5.5 V)	Line Driver	24 VDC (19.6 to 26.4 V)
Input Current (typical)	8 mA	8 mA	7 mA	11 mA Connectable to RS-422 compatible Line Drivers.	7.6 mA
ON Voltage (min.)	19.6 V	9.8 V	4.5 V		19.6 V
OFF Voltage (max.)	4 V	2.5 V	1.5 V		4 V

Item	Counter Input Z
Input Voltage	24 VDC (18.6 to 26.4 V)	12 VDC (9.8 to 13.2 V)	5 VDC (4.5 to 5.5 V)	Line Driver
Input Current (typical)	7.3 mA	6.6mA	6 mA	11 mA Connectable to RS-422 compatible Line Drivers.
ON Voltage (min.)	18.6 V	9.8V	4.5 V
OFF Voltage (max.)	4 V	2.5V	1.5 V

Note: 1. The Counter Inputs (A, B, Z) are insulated from each other and from the Digital Inputs. The Digital Inputs are also
              insulated from each other. All Counter Inputs and Digital Inputs are reverse polarity protected and insulated from
              the I/O-bus.
           2. A noise filter can be configured (10 kHz or 50 kHz (default)) for the Digital Inputs. Every Z-Input has a defined
                noise filter of 1 kHz.
           3. If the 50-kHz noise filter is configured for External Control Inputs, signals of 10 μs or longer can be read.

Counter Inputs A, B, Z and Digital Inputs
5/12/24V input signals	RS-422 Line Driver signals
Counter inputs A and B Input pulses with a duty factor of 50% Relationship between A and B phases with phase differential inputs Counter Input Z */Digital Inputs (24 V) *Maximum allowed frequency of Z-pulses is 1 kHz	Counter inputs A and B Input pulses with a duty factor of 50% Relationship between A and B phases with phase differential inputs Counter Input Z * * Maximum allowed frequency of Z-pulses is 1 kHz

Filter Selection	Timing requirement (μs)
	A	B	C	D	E	F	G	H	I	J
10 kHz	<3	>50	>100	>23	>10	>100	>50	>100	>23	>10
50 kHz	<3	>10	>20	>4.5	>10	>20	>10	>20	>4.5	>10
500 kHz	-	-	-	-	-	>2	>1	>4	>1	>10

Note: As a general guideline it can be stated that if you want the timing requirements for the Counter Inputs to satisfy the
          above mentioned specifications, you must pay attention to the type of output driver of the encoder being used, the
          length of the encoder cable and the frequency of the count pulses generated. For example, if you use an Open
          Collector encoder (e.g. E6B2-CWZ6C) at 24 V with 10 m cable, you can typically generate count pulses up to 20 kHz.
          Therefore, if you want to generate count pulses with higher frequencies, you should use a different type of encoder
          (e.g. E6B2-CWZ1X with Line Driver output or a fast push-pull 24 V encoder, e.g. E6C3-CWZ5GH (Complementary
          output)) or reduce the length of the encoder cable.

Output Specifications

Item	Specification
Driver Type	Open Collector (NPN/PNP selectable)
Operating Voltage Range	12 to 24 V (10.2 to 26.4 V) 30 mA max. at 26.4 VDC (for PNP output, without load current)
Maximum Switching Capacity	46 mA at 10.2 V to 100 mA at 26.4 V (200 mA maximum/common) (see picture below)
Minimum Switching Current	5 mA
Output ON-delay	100 μs max.
Output OFF-delay	100 μs max.
Leakage Current	0.1 mA max.
Residual Voltage	1.5 V max.
Short Circuit Protection	No

Note: 1. Every Digital Output has 2 Output drivers available: NPN and PNP (available as separate pins on the front
              connectors). Every Output can be separately (DM-) configured for NPN or PNP. By default the Outputs are
              configured as NPN-output.
           2. The Digital Outputs are insulated from the I/O-bus but not from each other. They are not short circuit protected.
           3. The Output current must not exceed 200 mA per common (i.e. per 2 Digital Outputs) otherwise the unit will be
                damaged.
           4. The Outputs can be automatically or manually controlled (DM-setting) by using Manual Output Control in CIO.
           5. The state control of the Outputs, in case the operating mode of the CPU-Unit is changed from RUN/MONITOR →
                PROGRAM, an I/O Bus error or an Overflow/Underflow error occurs, can be configured.

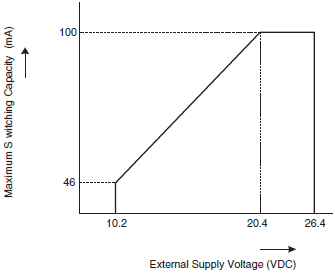

Maximum Switching Capacity

The maximum switching current depends upon the power supply voltage, as shown below.
