• Easy adjustment and optical axis monitoring with a light indicator.
• Wide operating voltage range: 5 to 24 VDC
• Supports connection with Programmable Controllers (PLCs).
• Easy-to-wire connectors assure easy maintenance.
last update: April 19, 2017
Purchase the OMRON Retro-reflective Please fill in the following
If you have just landed here, this product OMRON EE-SPZ-A Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the EE-SPZ-A We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON EE-SPZ-ASensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
CS1W-NC[][]3 SYSMAC CS-series Position Control Units/Features
EE-SX77 / SX87 Photomicrosensor with Slim Cable (Non-modulated)/Features
E6D-C High-resolution Encoder with Diameter of 55 mm/Features
E5ED / E5ED-B Digital Temperature Controller (48 x 96 mm)/Features
H3CR-A Solid-state Multi-functional Timers/Features

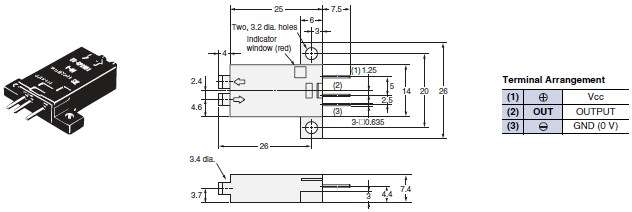

OMRON EE-SPZ-A dimension
