OMRON CRT1B-[]D02JS(-1) / []D04JS(-1) Automation Systems
last update: December 19, 2013
• Available in 2 types: 2-point Bit Slave Unit and 4-point Bit Slave Unit.
• Compact size for installation in limited space. Save space and wiring since bit slave can be installed near I/O devices.
• Industry first bit slave connectable with round cables which can be easily purchased at a lower price. Connectable with flat cables, too for easy wiring. Cables are selectable depending on applications.
last update: December 19, 2013
If you have just landed here, this product OMRON CRT1B-[]D02JS(-1) / []D04JS(-1) Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the CRT1B-[]D02JS(-1) / []D04JS(-1) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON CRT1B-[]D02JS(-1) / []D04JS(-1)Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E3X-DRT21-S VER.3 Fiber Amplifier Sensor Communication Unit/Features
H7BX Multifunction Counter (DIN 72 × 72)/Features
CK3M-CPU1[]1 Programmable Multi-Axis Controller CK3M-series CPU Unit/Features
KM50-C Smart Power Monitor/Features
K8AK-TS / PT Thermistor Motor Protection Relay/Features
last update: December 19, 2013
Item | Specification |
---|---|
Communications power supply voltage | 14 to 26.4 VDC |
I/O power supply voltage *1 | 20.4 to 26.4 VDC (24 VDC -15%/+10%) |
Noise immunity | Conforms to IEC 61000-4-4, 2 kV (power line). |
Vibration resistance | 10 to 60 Hz with double-amplitude of 0.7 mm, 60 to 150 Hz and 50 m/s2 in X, Y, and Z directions for 80 min each |
Shock resistance | 150 m/s2 (3 times each in 6 directions on 3 axes) |
Dielectric strength | 500 VAC (between isolated circuits) |
Insulation resistance | 20 MΩ min. (between isolated circuits) |
Ambient operating temperature | -10 to 55°C |
Ambient operating humidity | 25% to 85% (with no condensation) |
Ambient operating atmosphere | No corrosive gases |
Storage temperature | -25 to 65°C |
Storage humidity | 25% to 85% (with no condensation) |
Terminal block screw tightening torque *2 | M3 wiring screws: 0.5 Nm M3 mounting screws: 0.5 Nm |
Installation | Mounted on 35-mm DIN Track or Mounting Bracket, or secured with M4 screws (depending on model) |
*1. The I/O power supply is called the sensor power supply in information for the CRT1-VAD04S.
*2. Applicable only to Slaves to which screw terminal blocks are mounted.
Item | Specification | |||
---|---|---|---|---|
Model | CRT1B-ID02JS | CRT1B-ID02JS-1 | CRT1B-ID04JS | CRT1B-ID04JS-1 |
I/O capacity | 2 inputs | 4 inputs | ||
Internal I/O common | NPN | PNP | NPN | PNP |
ON voltage | 10.5 VDC min. (between each input terminal and the V terminal) | 10.5 VDC min. (between each input terminal and the G terminal) | 10.5 VDC min. (between each input terminal and the V terminal) | 10.5 VDC min. (between each input terminal and the G terminal) |
OFF voltage | --- | --- | --- | --- |
OFF current | 1.0 mA max. | 1.0 mA max. | ||
Input current | 3.0 mA min./input (at 10.5 VDC) | 3.0 mA min./input (at 10.5 VDC) | ||
Sensor power supply voltage | Communications power supply voltage 0 V (max.) Communications power supply voltage -1 V (min.) | Communications power supply voltage 0 V (max.) Communications power supply voltage -1 V (min.) | ||
ON delay | 1.5 ms max. | 1.5 ms max. | ||
OFF delay | 1.5 ms max. | 1.5 ms max. | ||
Number of circuits per common | 2 inputs/common | 4 inputs/common | ||
Power short-circuit detection | Not supported. | Not supported. | ||
Isolation method | No isolation | No isolation | ||
Input indicators | LEDs (yellow) | LEDs (yellow) | ||
Degree of protection | IEC standard IP20 | IEC standard IP20 | ||
Installation | M4 screw mounting using CRT1B-ATT03 Mounting Bracket | M4 screw mounting using CRT1B-ATT03 Mounting Bracket | ||
Power supply type | Network power supply | Network power supply | ||
Communications power supply current consumption * | 25 mA max. for 24-VDC power supply voltage 30 mA max. for 14-VDC power supply voltage | 35 mA max. for 24-VDC power supply voltage 40 mA max. for 14-VDC power supply voltage | ||
Input device supply current | 50 mA/point (G terminal) | 50 mA/point (V terminal) | 50 mA/point (G terminal) | 50 mA/point (V terminal) |
Weight | 16 g max. | 21 g max. |
* The current consumption is for Bit Slave Unit communications current when all inputs are OFF, i.e., it does not include
input device current consumption. The communications power supply is also used for the I/O power supply for sensors.
Be sure to consider the sensor current consumption and the number of sensors connected in addition to the
communications power.
The power supply current consumption is expressed by the following formula.
Communications power supply current consumption = Bit Slave Unit communications current consumption + (Bit Slave
Unit input current × number of inputs used) + (sensor current consumption × number of sensors used)
Item | Specification | |||
---|---|---|---|---|
Model | CRT1B-OD02JS | CRT1B-OD02JS-1 | CRT1B-OD04JS | CRT1B-OD04JS-1 |
I/O capacity | 2 outputs | 4 outputs | ||
Internal I/O common | NPN | PNP | NPN | PNP |
Rated output current | 0.1 A/output | 0.1 A/output | ||
Load power supply voltage | Communications power supply voltage 0 V (max.) Communications power supply voltage -1.2 V (min.) | Communications power supply voltage 0 V (max.) Communications power supply voltage -1.2 V (min.) | ||
Residual voltage | 1.2 V max. (0.1 A DC, between each output terminal and G terminal) | 1.2 V max. (0.1 A DC, between each output terminal and V terminal) | 1.2 V max. (0.1 A DC, between each output terminal and G terminal) | 1.2 V max. (0.1 A DC, between each output terminal and V terminal) |
Leakage current | 0.1 mA max. | 0.1 mA max. | ||
ON delay | 0.5 ms max. | 0.5 ms max. | ||
OFF delay | 1.5 ms max. | 1.5 ms max. | ||
Number of circuits per common | 2 outputs/common | 4 outputs/common | ||
Load short-circuit detection | Not supported. | Not supported. | ||
Isolation method | No isolation | No isolation | ||
Output indicators | LEDs (yellow) | LEDs (yellow) | ||
Degree of protection | IEC standard IP20 | IEC standard IP20 | ||
Installation | M4 screw mounting using CRT1B-ATT03 Mounting Bracket | M4 screw mounting using CRT1B-ATT03 Mounting Bracket | ||
Power supply type | Network power supply | Network power supply | ||
Communications power supply current consumption * | 25 mA max. for 24-VDC power supply voltage 30 mA max. for 14-VDC power supply voltage | 30 mA max. for 24-VDC power supply voltage 35 mA max. for 14-VDC power supply voltage | ||
Output device supply current | 30 mA/point (G terminal) | 30 mA/point (V terminal) | 30 mA/point (G terminal) | 30 mA/point (V terminal) |
Weight | 16 g max. | 21 g max. |
* The current consumption is for Bit Slave Unit communications current when all outputs are OFF, i.e., it does not include
the output device load current consumption.
The communications power supply is also used for the I/O power supply for actuators. Be sure to consider the actuator
load current consumption and the number of sensors connected in addition to the communications power. The power
supply current consumption is expressed by the following formula.
Communications power supply current consumption = Bit Slave Unit communications current consumption + (actual
load current × number of actuators used)
Item | Specification | |
---|---|---|
Model | CRT1B-MD02JS | CRT1B-MD02JS-1 |
I/O capacity | 1 input | |
Internal I/O common | NPN | PNP |
ON voltage | 10.5 VDC min. (between each input terminal and the V terminal) | 10.5 VDC min. (between each input terminal and the G terminal) |
OFF voltage | --- | --- |
OFF current | 1.0 mA max. | |
Input current | 3.0 mA min./input (at 10.5 VDC) | |
Sensor power supply voltage | Communications power supply voltage 0 V (max.) Communications power supply voltage -1 V (min.) | |
ON delay | 1.5 ms max. | |
OFF delay | 1.5 ms max. | |
Number of circuits per common | 1 input/common | |
Power short-circuit detection | Not supported. | |
Isolation method | No isolation | |
Input indicators | LEDs (yellow) | |
Degree of protection | IEC standard IP20 | |
Installation | M4 screw mounting using CRT1B-ATT03 Mounting Bracket | |
Power supply type | Network power supply | |
Communications power supply current consumption * | 25 mA max. for 24-VDC power supply voltage 30 mA max. for 14-VDC power supply voltage | |
Input device supply current | 50 mA/point (G terminal) | 50 mA/point (V terminal) |
* The current consumption is for Bit Slave Unit communications current when all inputs are OFF, i.e., it does not include
input device current consumption. The communications power supply is also used for the I/O power supply for
sensors. Be sure to consider the sensor current consumption and the number of sensors connected in addition to the
communications power. The power supply current consumption is expressed by the following formula.
Communications power supply current consumption = Bit Slave Unit communications current consumption + (Bit Slave
Unit input current × number of inputs used) + (sensor current consumption × number of sensors used)
Item | Specification | |
---|---|---|
Model | CRT1B-MD02JS | CRT1B-MD02JS-1 |
I/O capacity | 1 output | |
Internal I/O common | NPN | PNP |
Rated output current | 0.1 A/output | |
Load power supply voltage | Communications power supply voltage 0 V (max.) Communications power supply voltage -1.2 V (min.) | |
Residual voltage | 1.2 V max. (DC, 0.1 A, between each output terminal and G terminal) | 1.2 V max. (DC, 0.1 A, between each output terminal and V terminal) |
Leakage current | 0.1 mA max. | |
ON delay | 0.5 ms max. | |
OFF delay | 1.5 ms max. | |
Number of circuits per common | 1 output/common | |
Load short-circuit detection | Not supported. | |
Isolation method | No isolation | |
Output indicators | LEDs (yellow) | |
Degree of protection | IEC standard IP20 | |
Installation | M4 screw mounting using CRT1B-ATT03 Mounting Bracket | |
Power supply type | Network power supply | |
Output device supply current | 30 mA/point (G terminal) | 30 mA/point (V terminal) |
Item | Specification | |
---|---|---|
Model | CRT1B-MD04JS | CRT1B-MD04JS-1 |
I/O capacity | 2 inputs | |
Internal I/O common | NPN | PNP |
ON voltage | 10.5 VDC min. (between each input terminal and the V terminal) | 10.5 VDC min. (between each input terminal and the G terminal) |
OFF voltage | --- | --- |
OFF current | 1.0 mA max. | |
Input current | 3.0 mA min./input (at 10.5 VDC) | |
Sensor power supply voltage | Communications power supply voltage 0 V (max.) Communications power supply voltage -1 V (min.) | |
ON delay | 1.5 ms max. | |
OFF delay | 1.5 ms max. | |
Number of circuits per common | 2 inputs/common | |
Power short-circuit detection | Not supported. | |
Isolation method | No isolation | |
Input indicators | LEDs (yellow) | |
Degree of protection | IEC standard IP20 | |
Installation | M4 screw mounting using CRT1B-ATT03 Mounting Bracket | |
Power supply type | Network power supply | |
Communications power supply current consumption * | 35 mA max. for 24-VDC power supply voltage 40 mA max. for 14-VDC power supply voltage | |
Input device supply current | 50 mA/point (G terminal) | 50 mA/point (V terminal) |
Weight | 21 g max. |
* The current consumption is for Bit Slave Unit communications current when all inputs are OFF, i.e., it does not include
input device current consumption. The communications power supply is also used for the I/O power supply for
sensors. Be sure to consider the sensor current consumption and the number of sensors connected in addition to the
communications power. The power supply current consumption is expressed by the following formula.
Communications power supply current consumption = Bit Slave Unit communications current consumption + (Bit Slave
Unit input current × number of inputs used) + (sensor current consumption × number of sensors used)
Item | Specification | |
---|---|---|
Model | CRT1B-MD04JS | CRT1B-MD04JS-1 |
I/O capacity | 2 outputs | |
Internal I/O common | NPN | PNP |
Rated output current | 0.1 A/output | |
Load power supply voltage | Communications power supply voltage 0 V (max.) Communications power supply voltage -1.2 V (min.) | |
Residual voltage | 1.2 V max. (DC, 0.1 A, between each output terminal and G terminal) | 1.2 V max. (DC, 0.1 A, between each output terminal and V terminal) |
Leakage current | 0.1 mA max. | |
ON delay | 0.5 ms max. | |
OFF delay | 1.5 ms max. | |
Number of circuits per common | 2 outputs/common | |
Load short-circuit detection | Not supported. | |
Isolation method | No isolation | |
Output indicators | LEDs (yellow) | |
Degree of protection | IEC standard IP20 | |
Installation | M4 screw mounting using CRT1B-ATT03 Mounting Bracket | |
Power supply type | Network power supply | |
Output device supply current | 30 mA/point (G terminal) | 30 mA/point (V terminal) |
last update: December 19, 2013

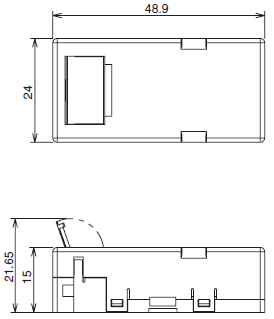

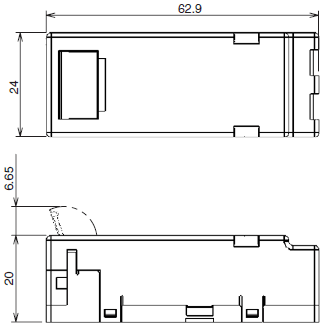

last update: December 19, 2013
Name | Specifications | Model | ||
---|---|---|---|---|
Compact Connectors | Inputs | 2 inputs | NPN | CRT1B-ID02JS |
2 outputs | PNP | CRT1B-ID02JS-1 | ||
Outputs | 2 inputs | NPN | CRT1B-OD02JS | |
2 outputs | PNP | CRT1B-OD02JS-1 | ||
Inputs/Outputs | 1 input/1 output | NPN | CRT1B-MD02JS | |
1 input/1 output | PNP | CRT1B-MD02J-1 | ||
Inputs | 4 inputs | NPN | CRT1B-ID04JS | |
4 outputs | PNP | CRT1B-ID04JS-1 | ||
Outputs | 4 inputs | NPN | CRT1B-OD04JS | |
4 outputs | PNP | CRT1B-OD04JS-1 | ||
Inputs/Outputs | 2 inputs/2 outputs | NPN | CRT1B-MD04JS | |
2 inputs/2 outputs | PNP | CRT1B-MD04JS-1 | ||
Mounting Bracket | CRT1-ATT03 |
Name | Model |
---|---|
Open Type Connector (for Unit connection) (Honda Tsushin Kogyo Co.,Ltd.) | HCN-TB4LMZG+ *1 |
Terminating Resistor | DRS1-T |
Name | Model |
---|---|
Open Type Connector (for Unit connection) (Honda Tsushin Kogyo Co.,Ltd.) | HCN-TB4LMZG+ *1 |
Terminating Resistor | DCN4-TM4 *2 |
Flat Connector Socket | DCN4-TR4 *2 |
Note: The DCN4-MD4 Multidrop Connector cannot be used with Bit Slaves with Compact Connectors. Use Open Type
Connector from Honda Tsushin Kogyo Co., Ltd.
Name | Model |
---|---|
Flat Connector Socket | DCN4-TR4 *2 |
Flat Connector Plug | DCN4-BR4 *2 |
Flat Multidrop Connector Plug | DCN4-MR4 *2 |
Terminating Resistor | DCN4-TM4 *2 |
Special Tools | DWT-A01 |
Note: The DCN4-MD4 Multidrop Connector cannot be used with Bit Slaves with Compact Connectors.
*1 For information of HCN-TB4LMZG+, contact to Honda Tsushin Kogyo Co.,Ltd. Tel:+81-52-242-2111
*2 The minimum quantity packaged is 10 Connectors.Oder the Connectors in multiples of 10.
The compact connectors use XA-series Connectors from JST Mfg. Co., Ltd. Special cable connectors must be attached for cables connecting to external devices if a Slave Unit with Compact Connectors is used.
Name | Applicable cable range | Model | Crimping Tool | |||
---|---|---|---|---|---|---|
mm2 | AWG# | Wire sheath external diameter | ||||
Contacts | Loose terminal | 0.08 to 0.33 | 28 to 22 | 1.2 to 1.9 | BXA-001T-P0.6 | YC-692R |
Chain terminal | SXA-001T-P0.6 | YRS-692 | ||||
Loose terminal | 0.22 to 0.5 | 24 to 20 | 1.5 to 1.9 | BXA-01T-P0.6 | YC-701R | |
Chain terminal | SXA-01T-P0.6 | YRS-701 | ||||
Housing | --- | --- | XAP-03V-1 | --- |
Note 1. Automated Crimp Tools are also available. For details, contact the manufacturer.
2. For information on the processing procedure, refer to the instruction manual included with the tool or contact
the manufacturer (JST Mfg. Co., Ltd.).
last update: December 19, 2013
Catalog Name | Catalog Number [size] | Last Update | |
---|---|---|---|
![]() | P056-E1-08 [4302KB] | May 07, 201820180507 | CompoNet Catalog |
last update: August 07, 2013
last update: August 07, 2013
