OMRON E3X-DRT21-S VER.3 specification

last update: November 06, 2012

Item		Description
Communications Method		Sets parameters using Explicit messages
Communications functions	Remote I/O Communications Slave function	Edits slave device parameters, enables device monitor functions
	Message Communications function	E3X-MC11-SV2 can be connected
	Configurator	DeviceNet communications
Mobile Console connection		Monitors ON/OFF output, status, incident light level (digital display data)
Power supply		Supplied from the DeviceNet communications connector (power is also supplied to all connected Sensors through Wire-reducing Connectors)
Maximum connectable Sensors *1		For remote I/O communications 1-CH mode *2: 13 For remote I/O communications 2-CH mode *3 or for remote I/O communications 2-CH mode + detection level monitoring mode *4: 16
Connectable Sensors *5		E3X-DA-S Series or E3X-MDA Series Digital Fiber Sensor E3C-LDA Series Laser Photoelectric Sensor with Separate Digital Amplifier E2C-EDA High-resolution Digital Proximity Sensor with Separate Amplifier (use connector-type Amplifier Units and the E3X-CN02 Cordless Slave Connector)
Power supply voltage		11 to 25 VDC
Current consumption *6		70 mA max.
Ambient operating temperature		-20 to 55°C
Ambient operating humidity		30% to 85% (with no condensation)
Storage temperature		-30 to 70°C
Dimensions (mm)		30 x 34.6 x 71.3 (W x H x D)
Weight (packed state)		Approx. 150 g

*1. When any of the following Sensors is connected, two words are allocated per Sensor and each Sensor is counted as
       two Sensors for the number of connected Sensors.
       E3X-DA[]-S ([]: 7/9), E3X-DA[]TW-S ([]: 6/8), E3X-MDA[] ([]: 6/8), E3C-LDA[] ([]: 6/8), E2C-EDA[] ([]: 6/8)
*2. Communications is possible for the ON/OFF output data from 13 Units. One word is allocated as the input area in the
       Master.
*3. Communications is possible for the ON/OFF output data from 16 Units and the number of connected Sensors. Two
       word sare allocated as the output area in the Master.
*4. Communications is possible for the ON/OFF output data from 16 Units, the number of connected Sensors, and the
       detection levels for the connected Sensors.
       Two words are allocated as the input area and one word is allocated for the number of connected Sensors in the
       Master.
*5. Connection cannot be performed if the response speed of the Sensor is set to super-high-speed mode.
*6. This does not include the current supplied to the Sensor.

last update: November 06, 2012

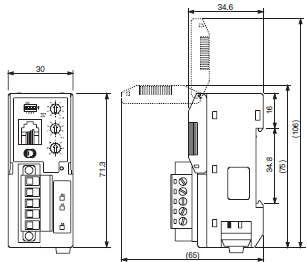

OMRON E3X-DRT21-S VER.3 dimension

last update: November 06, 2012

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

E3X-DRT21-S VER.3
Digital Sensor Communication Unit

last update: November 06, 2012

OMRON E3X-DRT21-S VER.3 lineup

last update: October 11, 2012

Digital Sensor Communication Unit

Type	Model
Device Net	E3X-DRT21-S VER.3

Wire-saving Connector (sold separately)

Type	Model
Cordless Slave Connector	E3X-CN02

Note : Order as many Connectors as the number of Sensors.

last update: October 11, 2012

OMRON E3X-DRT21-S VER.3 catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
E3X-DRT21-S Catalog	E359-E1 [316KB]	Sep 24, 201220120924	E3X-DRT21-S Catalog
