OMRON EE-SPX303N / SPX403N lineup

last update: January 05, 2017

Sensors

Appearance	Sensing method	Sensing distance (slot width)	Output type	Output configuration	Model
	Through-beam type (with slot)	13 mm (slot width) (Infrared light)	NPN output	Dark-ON	EE-SPX303N
				Light-ON	EE-SPX403N

Accessories (Order Separately)

Type		Cable length	Model
Connector	Connector		EE-1001
			EE-1009 *
	Connector with Cable	1 m	EE-1006 1M
			EE-1010 1M *
		2 m	EE-1006 2M
			EE-1010 2M *
	Connector with Robot Cable	1 m	EE-1010-R 1M *
		2 m	EE-1010-R 2M *
NPN/PNP Conversion Connector		0.46 m (total length)	EE-2002

Note: Refer to EE-[] Catalog for details.
* EE-1009- or EE-1010-series Connectors have a builtin locking mechanism to prevent cable disconnection when only the cable is pulled. To remove the Connector from the Sensor, grip the top and bottom of the Connector firmly and push into the Sensor once before pulling out. The locking mechanism prevents the Connector from being removed by pulling on the cable only and enables removal only when the Connector (housing) is pulled.

last update: January 05, 2017

OMRON EE-SPX303N / SPX403N specification

last update: August 07, 2013

Models	EE-SPX303N, EE-SPX403N
Sensing distance	13 mm (slot width)
Sensing object	Opaque: 2.2 × 0.5 mm min.
Differential distance	0.05 mm max.
Light source	Infrared LED (pulse lighting) with a peak wavelength of 940 nm
Indicator	Light indicator (red)
Supply voltage	12 to 24 VDC ±10%, ripple (p-p): 5% max.
Current consumption	15 mA max.
Control output	NPN voltage output: Load power supply voltage: 12 to 24 VDC Load current: 80 mA max. OFF current: 0.5 mA max. 80 mA load current with a residual voltage of 2.0 V max. 10 mA load current with a residual voltage of 1.0 V max.
Protection circuits	Power supply reverse polarity protection, Output reverse polarity protection
Response frequency *	100 Hz min.
Ambient illumination	3,000 lx max. with incandescent light or sunlight on the surface of the receiver.
Ambient temperature range	Operating: -10 to +55°C Storage: -25 to +65°C
Ambient humidity range	Operating: 5% to 85% Storage: 5% to 95%
Vibration resistance	Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 h each in X, Y, and Z directions
Shock resistance	Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection	IEC IP50
Connecting method	Special connector (soldering not possible)
Weight	Approx. 4 g
Material	Polycarbonate

* The response frequency was measured by detecting the following rotating disk.

last update: August 07, 2013

OMRON EE-SPX303N / SPX403N catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
EE-SPX303N/SPX403N Data Sheet	- [547KB]	Dec 12, 201720171212	EE-SPX303N/SPX403N Data Sheet

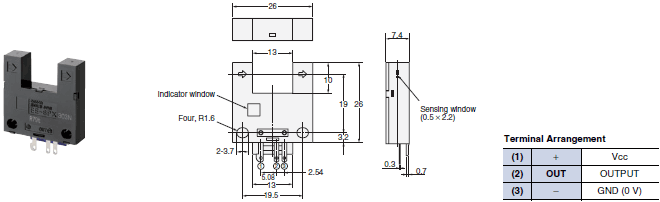

OMRON EE-SPX303N / SPX403N dimension

last update: August 07, 2013

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

EE-SPX303N, EE-SPX403N

last update: August 07, 2013
