OMRON G9HRelays/ Solid-state Relays/Socket / Plug-in Type
OMRON G9H Relays
OMRON G9H Dimensions
/Images/l_998-25-118882-198x198.jpglast update: January 5, 2017
• UL/CSA certified (-US models).
• Using a triac to open and close the circuit reduces chattering and arching, thereby increasing the electrical durability to 10 million operations.
• Relays contacts for power ON and 10-A switching with high-capacity are provided in a compact body without the need of radiators. Plus, there is almost no effect on heat generation or ambient temperature.
• Operation indicators to easily check operation.
• Built-in temperature fuse prevents internal burning due to triac or relay malfunctions.
• Socket-type Relays the same size as the 1-pole and 2-pole LY Relays.
last update: January 5, 2017
Purchase the OMRON Socket / Plug-in Type Please fill in the following
If you have just landed here, this product OMRON G9H Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G9H We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G9HRelays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E3T Ultracompact, Ultrathin Photoelectric Sensor with Built-in Amplifier/Features
SC Limit Switch Connectors/Features
MK-S General-purpose Relays/Features
H7CN Solid-state Counter/Features
KM-N2-FLK Power Monitor/Features
OMRON G9H specification
G9H Hybrid Power Relay/Specificationslast update: September 24, 2012
Ratings
Input
| Rated voltage | Item | Operating voltage | Coil resistance | Must operate voltage | Must release voltage | Power consumption |
|---|---|---|---|---|---|---|
| DC | 5 V | 4 to 6 VDC | 104 Ω | 4 VDC max. | 0.5 VDC min. | Approx. 240 mW |
| 12 V | 9.6 to 14.4 VDC | 600 Ω | 9.6 VDC max. | 1.2 VDC min. | ||
| 24 V | 19.2 to 28. 8 VDC | 2,400 Ω | 19.2 VDC max. | 2.4 VDC min. |
Note: 1. The coil resistance is measured at a coil temperature of 23°C with a tolerance of ±10%.
2. Performance characteristic data are measured at a coil temperature of 23°C.
Output
| Model | Applicable load | |||
|---|---|---|---|---|
| Rated load voltage | Load voltage range | Load current (See note.) | Inrush current resistance | |
| G9H-205S | 100 to 240 VAC | 75 to 264 VAC | 50 mA to 5 A (at 55 ° C) | 80 A (60 Hz, 1 cycle) |
| G9H-210S | 50 mA to 10 A (at 55 ° C) | 170 A (60 Hz, 1 cycle) | ||
Note: The load current depends on the ambient temperature. For details, refer to Load Current vs. Ambient Temperature
in Engineering Data.
Characteristics
| Model | G9H-205S | G9H-210S | |
|---|---|---|---|
| Operate time | 10 ms max. | ||
| Release time | 1/2 cycle max. + 10 ms | ||
| Output ON voltage drop | 1.6 V max. (RMS) (at 5 A) | 1.6 V max. (RMS) (at 10 A) | |
| Leakage current | 5 mA max. at 250 VAC | ||
| Inrush current resistance | 80 A | 170 A | |
| Temperature rise | 50 ° C max. (rated voltage applied using resistance method) | ||
| Insulation resistance | 100 M Ω min. (at 500 VDC) | ||
| Dielectric strength | 2,000 VAC 50/60 Hz 1 min | ||
| Vibration resistance | Destruction | 10 to 55 to 10 Hz, 1-mm single amplitude (2-mm double amplitude) | |
| Malfunction | 10 to 45 to 10 Hz, 1-mm single amplitude (2-mm double amplitude) | ||
| Shock resistance (See note.) | Destruction | 1,000 m/s 2 | |
| Malfunction | 100 m/s 2 | ||
| Life expectancy | Mechanical | 10 million operations min. (switching frequency: 18,000 operations/hour) | |
| Electrical | 10 million operations min. (resistive load and switching frequency: 18,000 operations/hour) | ||
| Storage temperature | - 25 to 70 ° C (with no icing or condensation) | ||
| Ambient operating temperature | - 25 to 60 ° C (with no icing or condensation) | ||
| Ambient operating humidity | 35% to 85% | ||
| Weight | Approx. 25 g | ||
Note: Value when excited.
last update: September 24, 2012
OMRON G9H dimension
G9H Hybrid Power Relay/Dimensionslast update: November 12, 2012

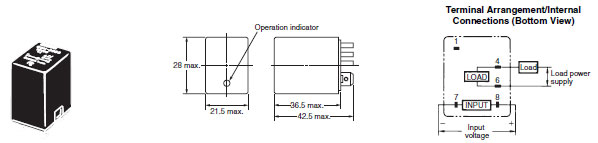

Hybrid Power Relays
G9H-205S
G9H-210S
Accessories (Order Separately)
Connecting Socket
Use the PTF08A (-E), PT08, PT08-0, or PT08QN.

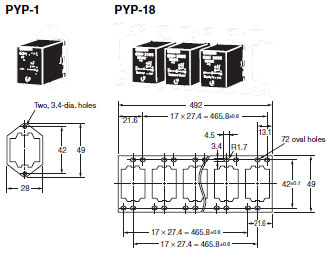

Connecting Socket Mounting Plate (t =1.6)
Use a Mounting Plate when two or more Connecting Sockets are mounted side by side.
Types of Mounting Plates are available: the PYP-1 (for mounting one Unit) and the PYP-18 (for mounting up to 18 Units). The Mounting Plate for 18 Units can be cut to the desired length before use.
last update: November 12, 2012
OMRON G9H catalog
G9H Hybrid Power Relay/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 G9H Data Sheet | - [627KB] | Jan 05, 201720170105 | G9H Data Sheet |
OMRON G9H lineup
G9H Hybrid Power Relay/Lineuplast update: July 22, 2014
| Isolation method | Zero cross function | Operation indicator | Applicable output load (See note.) | Rated input voltage | Model |
|---|---|---|---|---|---|
| Relay | No | Yes | 5 A 100 to 240 VAC | 5 VDC | G9H-205S DC5 |
| G9H-205S-US DC5 | |||||
| 12 VDC | G9H-205S DC12 | ||||
| G9H-205S-US DC12 | |||||
| 24 VDC | G9H-205S DC24 | ||||
| G9H-205S-US DC24 | |||||
| 10 A 100 to 240 VAC | 5 VDC | G9H-210S DC5 | |||
| G9H-210S-US DC5 | |||||
| 12 VDC | G9H-210S DC12 | ||||
| G9H-210S-US DC12 | |||||
| 24 VDC | G9H-210S DC24 | ||||
| G9H-210S-US DC24 |
Note: 1. The actual product is labeled "250 VAC."
2. For information on products that are certified for international standards, consult your OMRON sales
representatives
Accessories (Order Separately)
Connecting Socket Mounting Plate
| Model | Minimum quantity packaged (units) |
|---|---|
| PYP-1 | 10 |
| PYP-18 | 1 |
Note: Order the models above in increments of the minimum quantity packaged.
Connecting Socket/Hold-Down Clips
| Front-mounting Sockets | Back-mounting Sockets | |||
|---|---|---|---|---|
| Socket | PTF08A(-E) | PT08 | PT08-0 | PT08QN |
| Hold-down Clip | PYC-A1 | PYC-P PYC-S | PYC-P | PYC-P PYC-S |
last update: July 22, 2014
