OMRON Accessories 61F Dimensions
/Images/l_264-25-118549-198x198.jpglast update: December 19, 2013
• Highly reliable Track-mounted and Back-connecting Sockets
• 61F Controllers and Surge Killer Units can be mounted securely and easily using Mounting Brackets and DIN Rails.
last update: December 19, 2013
Purchase the OMRON Electrode Holders / Electrodes Please fill in the following
If you have just landed here, this product OMRON Accessories 61F Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the Accessories 61F We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON Accessories 61FSwitches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E3Z-LT / LR / LL Compact Laser Photoelectric Sensor with Built-in Amplifier/Features
E2CY-SD Non-ferrous-metal-detecting Proximity Sensor (Separate Amplifier Type)/Features
NX-V680C NX-series RFID Units/Features
S82S Switch Mode Power Supply (3/7.5-W Models)/Features
K8DT-AW Single-phase Overcurrent/Undercurrent Relay/Features
OMRON Accessories 61F catalog
Accessories 61F Connecting Sockets, Mounting Brackets, DIN Rails/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 Connecting Sockets, Mounting Brackets, DIN Rails Data Sheet | - [827KB] | Oct 08, 201420141008 | Connecting Sockets, Mounting Brackets, DIN Rails Data Sheet |
OMRON Accessories 61F dimension
Accessories 61F Connecting Sockets, Mounting Brackets, DIN Rails/Dimensionslast update: October 15, 2014
Track-mounted Sockets

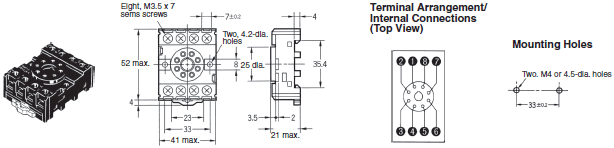

PF083A-E

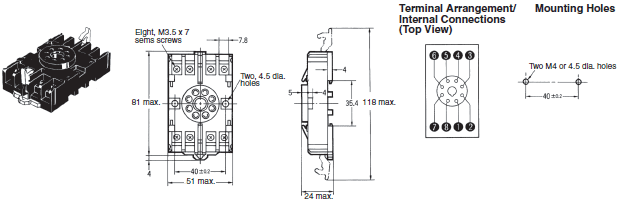

8PFA

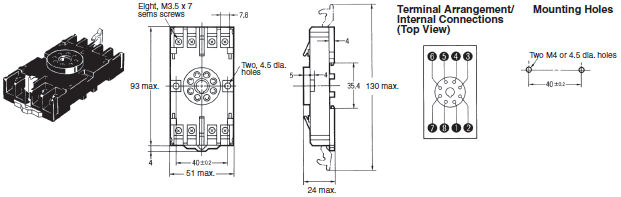

8PFA1

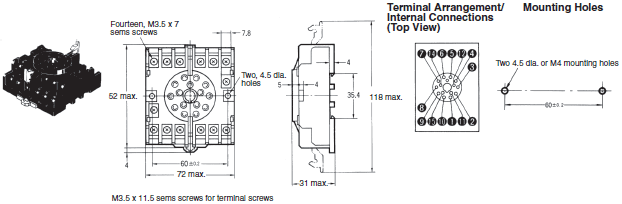

14PFA

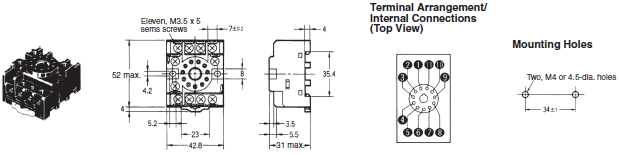

PF113A-E
Back-connecting Sockets

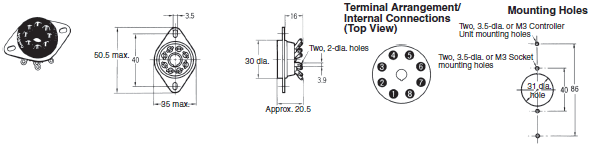

PL08

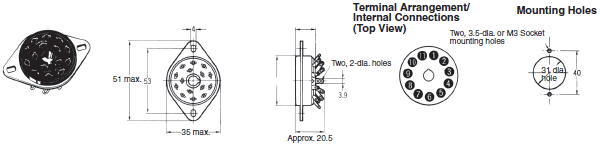

PL11

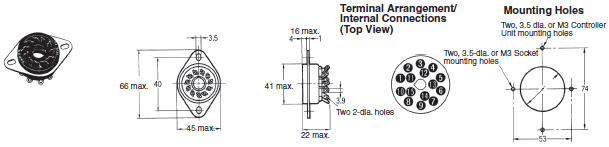

PL15
Mounting Brackets
When the 61F-G1P/-G2P/-IP/-UHS/-HSL is mounted using a Track-mounted Socket, the Switch is held secure by the hooks on the mounting Socket.
61F-GP-N8, 61F-APN2
To mount to the PF083A-E Track-mounted Socket, use the enclosed PFC-N8 Mounting Bracket.
PFC-N8
61F-GP-N, 61F-GPN-BT/-BC
To mount to the PF113A-E Track-mounted Socket, use the enclosed PFC-N8 Mounting Brackets.
PFC-N8
To mount to the PL11 Back-connecting Socket, use the PHC-5 Mounting Brackets.
PHC-5
61F-03B, -04B
To mount to the PF113A-E Track-mounted Socket, use the PFC-A1 Mounting Brackets.
PFC-A1
To mount to the PL11 Back-connecting Socket, use the PLC Mounting Brackets.
PLC
DIN Track Mounting Accessories
DIN Track
PFP-100N
PFP-50N
DIN Track
PFP-100N2
Note: 1. The PFP-100N is 15 mm on both ends, while the PFP50N is 15 mm on one end and 5 mm on the other end.
2. Indicates total DIN Track length.
1 m: PFP-100N
50 cm: PFP-50N
1 m: PFP-100N2
End Plate
PFP-M
Spacer
PFP-S
last update: October 15, 2014
OMRON Accessories 61F lineup
Accessories 61F Connecting Sockets, Mounting Brackets, DIN Rails/Lineuplast update: September 24, 2012
Connection Sockets
| Type | Track-mounted Socket | Back-connecting Socket |
|---|---|---|
| Controller Model | Model | Model |
| 61F-UHS | 8PFA1 | PL08 |
| 61F-HSL | 8PFA | |
| 61F-APN2 61F-GP-N8[] | PF083A-E | |
| 61F-G1P[] 61F-G2P[] 61F-IP (-22) | 14PFA | PL15 |
| 61F-GP-N[] 61F-03B 61F-GPN-BT/-BC 61F-04B | PF113A-E | PL11 |
Mounting Brackets
| Model |
|---|
| PFC-A1 |
| PHC-5 |
| PLC |
| PFC-N8 (See note.) |
Note:PFC-N8 Mounting Brackets are included with 61F-GP-N[], 61F-GP-N8[], 61F-GPN-V50, 61F-GPN-BT/-BC, and 61F-APN2 Controllers.
DIN Rails
| Model |
|---|
| PFP-100N |
| PFP-50N |
| PFP-100N2 |
| PFP-M |
| PFP-S |
last update: September 24, 2012
OMRON Accessories 61F specification
Accessories 61F Connecting Sockets, Mounting Brackets, DIN Rails/Specificationslast update: September 24, 2012
No information is provided on the Specifications of this product.
last update: September 24, 2012
