OMRON CS1W-AT2[][]Automation Systems/ Programmable Controllers/Replacement Support Units

OMRON CS1W-AT2[][] Automation Systems

CS1W-AT2[][] C200H I/O Terminal Block Conversion Adapter/Catalog
CS1W-AT2[][] C200H I/O Terminal Block Conversion Adapter/Specifications
CS1W-AT2[][] C200H I/O Terminal Block Conversion Adapter/Dimensions
CS1W-AT2[][] C200H I/O Terminal Block Conversion Adapter/Lineup
Purchase the OMRON CS1W-AT2[][] Replacement Support Units

OMRON CS1W-AT2[][] Dimensions

/Images/l_3404-25-226828-198x198.jpg

last update: October 14, 2014

• The C200H I/O Terminal Block Conversion Adapter is a terminal block conversion adapter to reuse the terminal block wiring of the existing C200H I/O Units as is when replacing C200H Series with CS Series.

• If you use this terminal block conversion adapter, you don't need to redo the I/O wiring, by which you can reduce the time for wiring works, wiring check, and test run.

last update: October 14, 2014

Purchase the OMRON Replacement Support Units Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON CS1W-AT2[][] Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the CS1W-AT2[][] We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON CS1W-AT2[][]Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

UM, MC3 Safety Mat/Safety Mat Controller/Features
M22N Indicators/Features
G3J-T Soft-start/stop Solid State Contactors/Features
G3J-S Soft-start Solid State Contactors/Features
DRT2-[]D16S(-1) e-CON Connector Terminals/Features

OMRON CS1W-AT2[][] catalog
CS1W-AT2[][] C200H I/O Terminal Block Conversion Adapter/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

CS1W-AT2[][] Data Sheet -
[1463KB] Feb 06, 201820180206 CS1W-AT2[][] Data Sheet

OMRON CS1W-AT2[][] specification
CS1W-AT2[][] C200H I/O Terminal Block Conversion Adapter/Specifications
last update: February 7, 2018
Connection of I/O Units and Terminal Block Conversion Adapter

C200H
I/O
Terminal
Conver-
sion
Adapter
Model Replaced from: C200H-series I/O Units Replaced to: CS-series I/O Units
Product
name Specifications Model Product
name Specifications Model
CS1W-
AT201 DC Input
Unit 12 to 24 VDC, 8 inputs C200H-ID211 DC Input
Unit 7 mA at 24 VDC,
16 inputs CS1W-ID211
AC Input
Unit 100 to 120 VAC,
8 inputs C200H-IA121 AC Input
Unit 100 to 120 VAC,
100 to 120 VDC,
16 inputs CS1W-IA111
200 to 240 VAC,
8 inputs C200H-IA221 200 to 240 VAC,
16 inputs CS1W-IA211
AC/DC
Input Unit 12 to 24 VAC/VDC,
8 inputs C200H-IM211 AC/DC
Input Unit 7 mA at 24 VDC,
16 inputs CS1W-ID211
*1
Non-voltage contacts,
8 inputs, NPN C200H-ID001 CS1W-ID211
*2
Non-voltage contacts,
8 inputs, PNP C200H-ID002 CS1W-ID211
*2
Interrupt
Input Unit 12 to 24 VDC,
8 inputs C200HS-INT01 Interrupt
Input Unit 7 mA at 24 VDC,
16 inputs CS1W-INT01
*3
Triac
Output
Unit 1.2 A at 250 VAC max.,
8 outputs C200H-OA223 Triac
Output
Unit 0.5 A at 250 VAC max.,
16 outputs CS1W-OA211
*4
1 A at 120 VAC max.,
8 outputs C200H-OA121-E 0.5 A at 250 VAC max.,
16 outputs CS1W-OA211
1 A at 250 VAC max.,
8 outputs C200H-OA221 CS1W-OA211
*4
Relay
Output
Unit 2 A at 250 VAC/
24 VDC max., 8 outputs C200H-OC221 Relay
Output
Unit 2 A at 250 VAC/
24 VDC max.,
0.1 A at 120 VDC,
16 outputs CS1W-OC211
2 A at 250 VAC/
24 VDC max.,
independent contacts,
5 outputs C200H-OC223 2 A at 250 VAC/
24 VDC max.,
0.1 A at 120 VDC,
independent contacts,
8 outputs CS1W-OC201
Transistor
Output
Unit 1 A at 12 to 48 VDC,
8 outputs, sinking C200H-OD411 Transistor
Output
Unit 0.5 A at 12 to 24 VDC,
16 outputs CS1W-OD211
*4 *5
2.1 A at 24 VDC,
8 outputs, sinking C200H-OD213 CS1W-OD211
*4
0.8 A at 24 VDC,
8 outputs, sourcing C200H-OD214 0.5 A at 24 VDC,
16 outputs CS1W-OD212
*6
0.3 A at 5 to 24 VDC,
8 outputs, sourcing C200H-OD216 CS1W-OD212
*7
CS1W-
AT211 DC Input
Unit 24 VDC, 16 inputs C200H-ID212 DC Input
Unit 7 mA at 24 VDC,
16 inputs CS1W-ID211
AC Input
Unit 100 to 120 VAC,
16 inputs C200H-IA122 AC Input
Unit 100 to 120 VAC,
100 to 120 VDC,
16 inputs CS1W-IA111
100 to 120 VAC,
16 inputs C200H-IA122V CS1W-IA111
200 to 240 VAC,
16 inputs C200H-IA222 200 to 240 VAC,
16 inputs CS1W-IA211
200 to 240 VAC,
16 inputs C200H-IA222V CS1W-IA211
AC/DC
Input Unit 24 VAC/VDC, 16 inputs C200H-IM212 AC/DC
Input Unit 7 mA at 24 VDC,
16 inputs CS1W-ID211
*1
Relay
Output
Unit 2 A at 250 VAC/
24 VDC max., 16 outputs C200H-OC226 Relay
Output
Unit 2 A at 250 VAC/
24 VDC max.,
0.1 A at 120 VDC,
16 outputs CS1W-OC211
2 A at 250 VAC/
24 VDC max., 16 outputs C200H-OC226N CS1W-OC211
2 A at 250 VAC/
24 VDC max., 12 outputs C200H-OC222 CS1W-OC211
2 A at 250 VAC/
24 VDC max., 12 outputs C200H-OC222V CS1W-OC211
2 A at 250 VAC/
24 VDC max., 12 outputs C200H-OC222N CS1W-OC211
2 A at 250 VAC/
24 VDC max., 16 outputs C200H-OC225 CS1W-OC211
Transistor
Output
Unit 0.3 A at 24 VDC,
12 outputs, sinking C200H-OD211 Transistor
Output
Unit 0.5 A at 12 to 24 VDC,
16 outputs CS1W-OD211
0.3 A at 24 VDC,
16 outputs, sinking C200H-OD212 CS1W-OD211
0.3 A at 5 to 24 VDC,
12 outputs, sourcing C200H-OD217 0.5 A at 24 VDC,
16 outputs CS1W-OD212
*8
1 A at 24 VDC,
16 outputs, sourcing,
load short-circuit
protection C200H-OD21A CS1W-OD212
*9
Triac
Output
Unit 0.8 A at 250 VAC max,
16 outputs C200H-OA225 Triac
Output
Unit 0.5 A at 250 VAC max.,
16 outputs CS1W-OA211
0.3 A at 250 VAC max,
12 outputs C200H-OA222 CS1W-OA211
0.3 A at 250 VAC max,
12 outputs C200H-OA222V CS1W-OA211
0.5 A at 250 VAC max,
12 outputs C200H-OA224 CS1W-OA211
CS1W-
AT202 Relay
Output
Unit 2 A at 250 VAC/
24 VDC max.,
independent contacts,
8 outputs C200H-OC224 Relay
Output
Unit 2 A at 250 VAC/
24 VDC max.,
0.1 A at 120 VDC,
independent contacts,
8 outputs CS1W-OC201
2 A at 250 VAC/
24 VDC max.,
independent contacts,
8 outputs C200H-OC224V CS1W-OC201
2 A at 250 VAC/
24 VDC max.,
independent contacts,
8 outputs C200H-OC224N CS1W-OC201

*1. 24 VDC only
*2. Need to add 24 VDC power supply.
*3. There is a restriction to the number of mountable units.
*4. The blown fuse detection bit (Bit 08) cannot be used.
*5. 12 to 24 VDC only
*6. The alarm bits (Bit 08, 09, 10, and 11) cannot be used.
*7. Remove the wire from A8 and connect it to A9. Connect 0 V of power supply to A8.
*8. Remove the wire from A8 and connect it to B9. Connect 0 V of power supply to A8.
*9. The alarm outputs cannot be used.
Note: Including models whose production are discontinued.

last update: February 7, 2018

OMRON CS1W-AT2[][] dimension
CS1W-AT2[][] C200H I/O Terminal Block Conversion Adapter/Dimensions
last update: January 12, 2018

(Unit: mm)

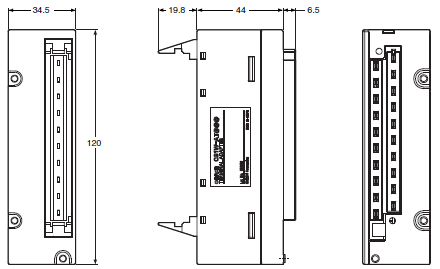

CS1W-AT201

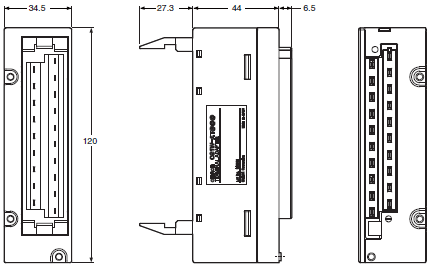

CS1W-AT211
CS1W-AT202

last update: January 12, 2018

OMRON CS1W-AT2[][] lineup
CS1W-AT2[][] C200H I/O Terminal Block Conversion Adapter/Lineup
last update: January 12, 2018
Terminal Block Conversion Adapter

Product name Specifications Model Standards
C200H I/O Terminal Block
Conversion Adapter
8-points, 10-pin type CS1W-AT201 ---
8-points, 19-pin type CS1W-AT202 ---
16-points, 19-pin type CS1W-AT211 ---

last update: January 12, 2018

NO. CS1W-AT2[][]

TYPE:Programmable Controllers Replacement Support Units Copyright Statement

DATE:2021-06-07

Associated products:
NSJ Series Programmable Controllers/Features CJ1W-PTS CJ-series Process Analog I/O Unit/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
CS1W-AT2[][] Data Sheet	- [1463KB]	Feb 06, 201820180206	CS1W-AT2[][] Data Sheet

C200H I/O Terminal Conver- sion Adapter Model	Replaced from: C200H-series I/O Units	Replaced to: CS-series I/O Units
Product name	Specifications	Model	Product name	Specifications	Model
CS1W- AT201	DC Input Unit	12 to 24 VDC, 8 inputs	C200H-ID211	DC Input Unit	7 mA at 24 VDC, 16 inputs	CS1W-ID211
AC Input Unit	100 to 120 VAC, 8 inputs	C200H-IA121	AC Input Unit	100 to 120 VAC, 100 to 120 VDC, 16 inputs	CS1W-IA111
200 to 240 VAC, 8 inputs	C200H-IA221	200 to 240 VAC, 16 inputs	CS1W-IA211
AC/DC Input Unit	12 to 24 VAC/VDC, 8 inputs	C200H-IM211	AC/DC Input Unit	7 mA at 24 VDC, 16 inputs	CS1W-ID211 *1
Non-voltage contacts, 8 inputs, NPN	C200H-ID001	CS1W-ID211 *2
Non-voltage contacts, 8 inputs, PNP	C200H-ID002	CS1W-ID211 *2
Interrupt Input Unit	12 to 24 VDC, 8 inputs	C200HS-INT01	Interrupt Input Unit	7 mA at 24 VDC, 16 inputs	CS1W-INT01 *3
Triac Output Unit	1.2 A at 250 VAC max., 8 outputs	C200H-OA223	Triac Output Unit	0.5 A at 250 VAC max., 16 outputs	CS1W-OA211 *4
1 A at 120 VAC max., 8 outputs	C200H-OA121-E	0.5 A at 250 VAC max., 16 outputs	CS1W-OA211
1 A at 250 VAC max., 8 outputs	C200H-OA221	CS1W-OA211 *4
Relay Output Unit	2 A at 250 VAC/ 24 VDC max., 8 outputs	C200H-OC221	Relay Output Unit	2 A at 250 VAC/ 24 VDC max., 0.1 A at 120 VDC, 16 outputs	CS1W-OC211
2 A at 250 VAC/ 24 VDC max., independent contacts, 5 outputs	C200H-OC223	2 A at 250 VAC/ 24 VDC max., 0.1 A at 120 VDC, independent contacts, 8 outputs	CS1W-OC201
Transistor Output Unit	1 A at 12 to 48 VDC, 8 outputs, sinking	C200H-OD411	Transistor Output Unit	0.5 A at 12 to 24 VDC, 16 outputs	CS1W-OD211 4 5
2.1 A at 24 VDC, 8 outputs, sinking	C200H-OD213	CS1W-OD211 *4
0.8 A at 24 VDC, 8 outputs, sourcing	C200H-OD214	0.5 A at 24 VDC, 16 outputs	CS1W-OD212 *6
0.3 A at 5 to 24 VDC, 8 outputs, sourcing	C200H-OD216	CS1W-OD212 *7
CS1W- AT211	DC Input Unit	24 VDC, 16 inputs	C200H-ID212	DC Input Unit	7 mA at 24 VDC, 16 inputs	CS1W-ID211
AC Input Unit	100 to 120 VAC, 16 inputs	C200H-IA122	AC Input Unit	100 to 120 VAC, 100 to 120 VDC, 16 inputs	CS1W-IA111
100 to 120 VAC, 16 inputs	C200H-IA122V	CS1W-IA111
200 to 240 VAC, 16 inputs	C200H-IA222	200 to 240 VAC, 16 inputs	CS1W-IA211
200 to 240 VAC, 16 inputs	C200H-IA222V	CS1W-IA211
AC/DC Input Unit	24 VAC/VDC, 16 inputs	C200H-IM212	AC/DC Input Unit	7 mA at 24 VDC, 16 inputs	CS1W-ID211 *1
Relay Output Unit	2 A at 250 VAC/ 24 VDC max., 16 outputs	C200H-OC226	Relay Output Unit	2 A at 250 VAC/ 24 VDC max., 0.1 A at 120 VDC, 16 outputs	CS1W-OC211
2 A at 250 VAC/ 24 VDC max., 16 outputs	C200H-OC226N	CS1W-OC211
2 A at 250 VAC/ 24 VDC max., 12 outputs	C200H-OC222	CS1W-OC211
2 A at 250 VAC/ 24 VDC max., 12 outputs	C200H-OC222V	CS1W-OC211
2 A at 250 VAC/ 24 VDC max., 12 outputs	C200H-OC222N	CS1W-OC211
2 A at 250 VAC/ 24 VDC max., 16 outputs	C200H-OC225	CS1W-OC211
Transistor Output Unit	0.3 A at 24 VDC, 12 outputs, sinking	C200H-OD211	Transistor Output Unit	0.5 A at 12 to 24 VDC, 16 outputs	CS1W-OD211
0.3 A at 24 VDC, 16 outputs, sinking	C200H-OD212	CS1W-OD211
0.3 A at 5 to 24 VDC, 12 outputs, sourcing	C200H-OD217	0.5 A at 24 VDC, 16 outputs	CS1W-OD212 *8
1 A at 24 VDC, 16 outputs, sourcing, load short-circuit protection	C200H-OD21A	CS1W-OD212 *9
Triac Output Unit	0.8 A at 250 VAC max, 16 outputs	C200H-OA225	Triac Output Unit	0.5 A at 250 VAC max., 16 outputs	CS1W-OA211
0.3 A at 250 VAC max, 12 outputs	C200H-OA222	CS1W-OA211
0.3 A at 250 VAC max, 12 outputs	C200H-OA222V	CS1W-OA211
0.5 A at 250 VAC max, 12 outputs	C200H-OA224	CS1W-OA211
CS1W- AT202	Relay Output Unit	2 A at 250 VAC/ 24 VDC max., independent contacts, 8 outputs	C200H-OC224	Relay Output Unit	2 A at 250 VAC/ 24 VDC max., 0.1 A at 120 VDC, independent contacts, 8 outputs	CS1W-OC201
2 A at 250 VAC/ 24 VDC max., independent contacts, 8 outputs	C200H-OC224V	CS1W-OC201
2 A at 250 VAC/ 24 VDC max., independent contacts, 8 outputs	C200H-OC224N	CS1W-OC201

Product name	Specifications	Model	Standards
C200H I/O Terminal Block Conversion Adapter	8-points, 10-pin type	CS1W-AT201	---
8-points, 19-pin type	CS1W-AT202	---
16-points, 19-pin type	CS1W-AT211	---

Return to OMRON
