OMRON ZX2 specification

last update: March 03, 2014

Diffuse-reflective Sensor Heads

Model	ZX2-LD50L	ZX2-LD50	ZX2-LD100L	ZX2-LD100
Optical system	Diffuse reflective
Light source (wave length)	Visible-light semiconductor laser with a wavelength of 660 nm and an output of 1mW max.
	EN class 2, FDA class 2 *5
Measurement center point	50 mm		100 mm
Measurement range	±10 mm		±35 mm
Beam shape	Line	Spot	Line	Spot
Beam size *1	Approx. 60 μm × 2.6 mm	Approx. 60 μm dia.	Approx.110 μm × 2.7 mm	Approx.110 μm dia.
Resolution *2	1.5μm		5μm
Linearity *3	±0.05% F.S. (40 to 50 mm)	±0.1% F.S. (40 to 50 mm)	±0.05% F.S. (65 to 100 mm)	±0.1% F.S. (65 to 100 mm)
Temperature characteristic *4	0.02% F.S./°C
Ambient illumination	Incandescent lamp: 10,000 lx max. (on light receiving side)
Ambient temperature	Operating: 0 to 50 °C, Storage: -15 to 70 °C (with no icing or condensation)
Ambient humidity	Operating and storage: 35% to 85% (with no condensation)
Dielectric strength	1,000 VAC, 50/60 Hz for 1 min.
Vibration resistance (destruction)	10 to 150 Hz, 0.7-mm double amplitude, 80 min. each in X, Y, and Z directions
Shock resistance (destruction)	300 m/s2 3 times each in six directions (up/down, left/right, forward/backward)
Degree of protection	IEC60529, IP67
Connection method	Connector connection (standard cable length: 500 mm)
Weight (packed state)	Approx. 160 g (main unit only: Approx. 75 g)
Materials	Case and cover: PBT (polybutylene terephtahalate), Optical window: Glass, Internal thread: Brass, Cable: PVC
Accessories	Instruction sheet, Ferrite core ×1 (made by TDK Corp. ZCAT1730-0730A), Laser warning label (English), FDA

Regular-reflective Sensor Head

Model	ZX2-LD50L
Optical system	Regular reflective
Light source (wave length)	Visible-light semiconductor laser with a wavelength of 660 nm and an output of 0.24 mW max. EN class 1, FDA class 1 *5
Measurement center point	48 mm
Measurement range	±5 mm
Beam shape	Spot
Beam size *1	Approx. 60 μm dia.
Resolution *2	1.5 μm
Linearity *3	±0.3%F.S. (entire range)
Temperature characteristic *4	0.06%F.S./°C
Ambient illumination	Incandescent lamp: 10,000lx max. (on light receiving side)
Ambient temperature	Operating: 0 to 50 °C, Storage: -15 to 70 °C (with no icing or condensation)
Ambient humidity	Operating and storage: 35% to 85% (with no condensation)
Dielectric strength	1,000 VAC, 50/60 Hz for 1 minute
Vibration resistance (destruction)	10 to 150 Hz, 0.7-mm double amplitude, 80 minutes, each in X,Y,and Z directions
Shock resistance (destruction)	300 m/s2 3 times each in six directions (up/down,left/right,forward/backward)
Degree of protection	IEC 60529, IP67
Connection method	Connector connection (standard cable length: 500 mm)
Weight (packed state)	Approx.160g (Sensor Head only: Approx.75g)
Materials	Case and cover: PBT (polybutylene terephtahalate), Optical window: Glass, Internal thread: Brass, Cable: PVC
Accessories	Instruction sheet, Ferrite core ×1 (made by TDK Corp. ZCAT1730-0730A), Laser warning label (English), FDA

Note: False detection outside the measurement range can occur in the case of an object with high reflectance.
*1. Beam size: Defined as 1/e² (13.5 %) of the center optical intensity at the minimum value of the measurement
       range (effective value).
       False detections can occur in the case there is light leakage outside the defined region and the surroundings of the
       target object have a high reflectance in comparison to the target object. Correct measurements may not be
       obtained if the workpiece is smaller than the beam size.
*2. Resolution: indicates the degree of fluctuation (±3σ) of analog output when connected to the ZX2-LDA.
       (The measured value is given for the center distance for OMRON’s standard target object (diffuse-reflective models:
       white ceramic object, regular-reflective models:1/4 λ flat mirror) when the response time of the ZX2-LDA is set to
       128 ms.)
       Indicates the repetition accuracy for when the workpiece is in a state of rest. Not an indication of distance accuracy.
       Resolution performance may not be satisfied in a strong electromagnetic field.
*3. Linearity: indicates the error with respect to the ideal straight line of the displacement output in the case of
       measuring Omron's standard target object. Linearity and measured value may vary depending on target object.
       F.S. indicates the full scope of the measurement range. (ZX2-LD50(L): 20 mm)
*4. Temperature characteristic: Value for the case the space between the sensor head and Omron’ s standard target
       object is secured by an aluminum jig. (Measured at the measurement center distance)
*5. These Sensors are classified as Class 2 laser devices for diffuse-reflective models and Class 1 for regular-reflective
       models under IEC 60825-1 and the regulations of Laser Notice No. 50 for FDA certification. CDRH registration has
       been completed.

Amplifier Units

Model	ZX2-LDA11	ZX2-LDA41
Measurement period *1	Min. 30 μs
Response time	60 μs, 120 μs, 240 μs, 500 μs, 1 ms, 2 ms, 4 ms, 8 ms, 12 ms, 20 ms, 36 ms, 66 ms, 128 ms, 250 ms, 500ms
Analog output *2	4 to 20 mA, Max. load resistance: 300Ω/±5 VDC or 1 to 5 VDC, Output impedance: 100Ω
Judgement outputs (HIGH/PASS/LOW: 3 outputs), error output	NPN open-collector outputs, 30 VDC, 50 mA max. (residual voltage: 1 V max. for load current 10 mA max., 2V max. for load current above 10 mA)	PNP open-collector outputs, 30 VDC, 50 mA max. (residual voltage: 1 V max. for load current 10 mA max., 2 V max. for load current above 10 mA)
Laser OFF input, zero reset input, timing input, reset input, bank input	ON: Short-circuited with 0-V terminal or 1.2 V or less OFF: Open (leakage current: 0.1 mA max.)	ON: Supply voltage short-circuited or supply voltage within -1.2 V OFF: Open (leakage current: 0.1 mA max.)
Functions	Smart tuning, scaling, sample hold, peak hold, bottom hold, peak-to-peak hold, self-peak hold, self-bottom hold, average hold, zero reset, On-delay timer, OFF-delay timer, keep/ clamp switch, (A-B) calculations *3, thickness calculation *3, mutual interference prevention *3, laser deterioration detection, bank function (4 banks), differential function
Indications	Judgement indicators: HIGH (orange), PASS (green), LOW (orange), 11-segment main display (red), 11-segment sub-display (orange), laser ON (green), zero reset (green), enable (green), menu (green), HIGH threshold (orange), LOW threshold (orange)
Power supply voltage	10 to 30 VDC, including 10% ripple (p-p)
Power consumption	3,000 mW max. (at 24 VDC: 125 mA max., at 12 VDC: 250 mA max.)
Ambient temperature	Operating: 0 to 50 °C, Storage: -15 to 70 °C (with no icing or condensation)
Ambient humidity	Operating and storage: 35% to 85% (with no condensation)
Dielectric strength	1,000 VAC, 50/60 Hz for 1 min.
Vibration resistance (destruction)	10 to 150 Hz, 0.7-mm double amplitude, 80 min. each in X, Y, and Z directions
Shock resistance (destruction)	300 m/s2 3 times each in six directions (up/down, left/right, forward/backward)
Degree of protection	IEC60529, IP40
Connection method	Prewired (standard cable length: 2 m)
Weight (packed state)	Approx. 200 g (main unit only: Approx. 135 g)
Materials	Case: PBT (polybutylene terephtahalate), Cover: Polycarbonate, Display: Methacrylic resin, Button: Polyacetal, Cable: PVC
Accessories	Instruction sheet

*1. In the case of Omron’s standard target object (white ceramic)
*2. Select current output (4 to 20 mA) and voltage output (±5V or 1 to 5V) by MENU mode.
*3. Calculating unit (ZX2-CAL) is necessary. Calculations are possible for up to two amplifier units. Mutual interference
      prevention is possible for up to five amplifier units.

Calculating Unit

Model	ZX2-CAL
Applicable Amplifier Units	ZX2-LDA11, ZX2-LDA41
Current consumption	12 mA max. (supplied from the Smart Sensor Amplifier Unit)
Ambient temperature	Operating: 0 to +50°C, storage: -15 to +70°C (with no icing or condensation)
Ambient humidity	Operating and storage: 35% to 85% (with no condensation)
Connection method	Connector
Dielectric strength	1,000 VAC, 50/60 Hz for 1 minute
Vibration resistance (destruction)	10 to 150 Hz, 0.7-mm double amplitude, 80 minutes, each in X,Y,and Z directions
Shock resistance (destruction)	300 m/s2 3 times each in six directions (up/down, left/right, forward/backward)
Materials	Case: ABS, Display: Methacrylic resin
Weight (packed state)	Approx. 50g (Calculating Unit only: Approx. 15g)
Accessories	Instruction sheet

ZX2-series Communications Interface Unit

Model			ZX2-SF11
Power supply voltage			10 to 30 V DC ±10% (including 10% ripple (p-p)) (Supplied from Sensor Amplifier.)
Power consumption			720 mW max. (at 24 V: 30 mA max., at 12 V: 60 mA max.) (Not including Sensor Amplifier current consumption or output current
Applicable Amplifier Units			ZX2-LDA[][] (Production after November 2013)
Applicable Amplifier Unit versions			Sensor Amplifier Unit version: V1.330 or higher (The Sensor Amplifier version is shown on the sub-digital display when the power of the Sensor Amplifier is turned ON.)
Max. No. of Amplifier Units			5
Commu- nications functions	Port		RS-232C (9-pin, D-Sub connector)
	Communications method		Full duplex
	Synchronization method		Start/stop synchronization
	Transmission code		ASCII
	Baud rate		38,400 (at shipping)/9,600 bps switchable
	Data bit length		8 bits
	Parity check		None
	Stop bit length		1 bit
	Data delimiter	Receiving	CR or CR + LF is automatically recognized.
		Sending	CR + LF fixed
Indicators			Power supply: green, Sensor communications: green, Sensor communications error: red, External terminal communications: green, External terminal communications error: red
Protective circuits			Power supply reverse polarity protection
Ambient temperature			Operating: 0 to 50°C, storage: -15 to 60°C (with no icing or condensation)
Ambient humidity			Operating and storage: 35% to 85% (with no condensation)
Insulation resistance			20 MΩ min. (at 500 VDC)
Dielectric strength			1,000 VAC, 50/60 Hz for 1 min, Leakage current: 10 mA max.
Materials			Case: PBT (polybutylene terephthalate), Cover: Polycarbonate
Accessories			Instruction sheet, 2 clamps

last update: March 03, 2014

OMRON ZX2 dimension

last update: April 16, 2018

(Unit: mm)

Tolerance class IT16 applies to dimensions in thes data sheet unless otherwise specified.

Units

Sensor Heads

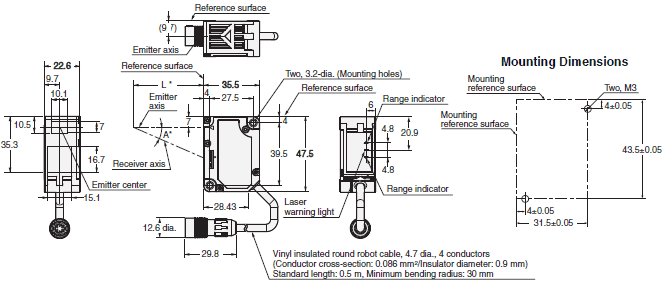

ZX2-LD50
ZX2-LD50L
ZX2-LD100
ZX2-LD100L
ZX2-LD50V

* In the case of ZX2-LD50 (L), L=50, A=21 °
    In the case of ZX2-LD100 (L), L=100, A=11.5 °
Note: Attach the enclosed ferrite core (16.5 dia., length: 30 mm) to the cable within 100 mm from the Sensor Head.

Amplifier Units

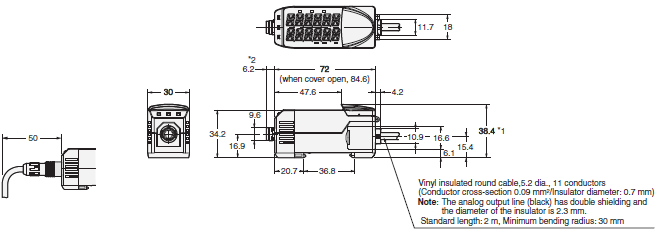

ZX2-LDA11
ZX2-LDA41

*1. Maximum height when cover open: 56
*2. Minimum length when connected: 50

Accessories (sold separately)

Calculating Unit
ZX2-CAL

Sensor Head Extension Cables
ZX2-XC1R
ZX2-XC4R
ZX2-XC9R
ZX2-XC20R

* Length L is as follows.
    ZX2-XC1R: 1 m, ZX2-XC4R: 4 m, ZX2-XC9R: 9 m, ZX2-XC20R: 20 m
    Minimum bending radius: 30 mm
Note: Attach the enclosed ferrite cores (16.5 dia., length: 30 mm) within 100 mm of each end of the extension cable.

ZX2-series Communications Interface Unit

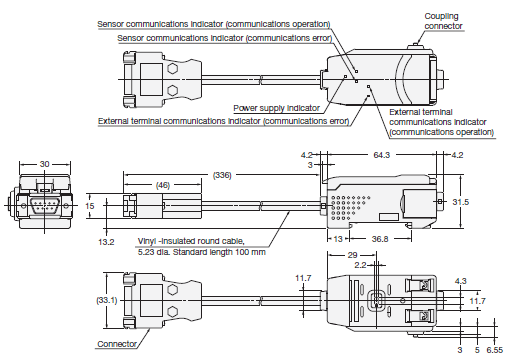

ZX2-SF11

Mounting Bracket

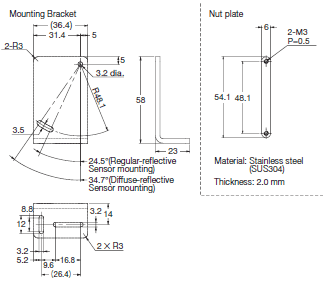

E39-L178

Material: Stainless steel (SUS304)
Thickness: 3.0 mm
Accessories: Phillips screws (M3×30): 2, Nut plate: 1

Mounting Bracket

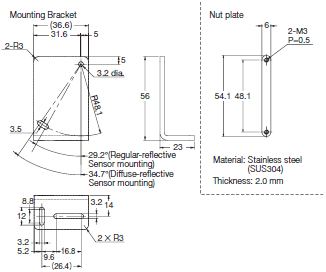

E39-L179

Material: Stainless steel (SUS304)
Thickness: 3.0 mm
Accessories: Phillips screws (M3×30): 2, Nut plate: 1

*Use this Mounting Bracket when installing the ZX2-LD100 (L) as a normal Diffuse-reflective or Regular-reflective Sensor Head.

Installation Method for Regular-reflective Sensor Head

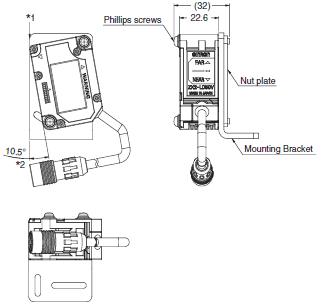

Using a E39-L178 Mounting Bracket:

Note: When securing the Sensor Head in the Mounting Bracket, insert the screws into the side of the Sensor Head where
          the warning label is located and secure the Sensor Head into place.*1. The measurement distance reference position is the end of the Mounting Bracket.*2. For the Regulalr-reflective Sensor Heads, rotate the Sensor Head counterclockwise, secure it in place, and then
      perform any necessary fine adjustments.

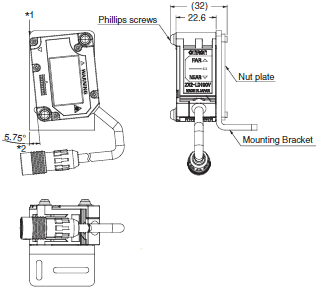

Installation Method for Regular-reflective Sensor Heads
(Installing a Diffuse-reflective Sensor Head as a Regular-reflective Sensor Head)

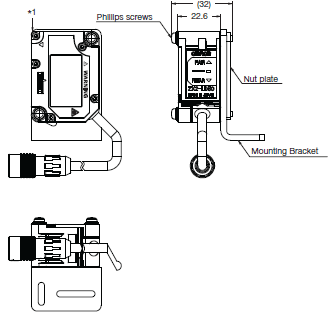

Using a E39-L179 Mounting Bracket:

Note: When securing the Sensor Head in the Mounting Bracket, insert the screws into the side of the Sensor Head where
          the warning label is located and secure the Sensor Head into place.*1. The measurement distance reference position is the end of the Mounting Bracket.*2. For the IInstalling a Diffuse-reflective Sensor as a Regular-reflective Sensor, rotate the Sensor Head
      counterclockwise, secure it in place, and then perform any necessary fine adjustments.

Not Using a Mounting Bracket:

Tilt the Sensor Head towards the workpiece as shown below.

Adjust the installation so that the angle is 10.5° ±0.1°.
* The mounting hole dimensions in parentheses (reference values) are for when the Sensor is installed at 10.5°.

Installation Method for Diffuse-reflective Sensor Heads
Using a E39-L178, E39-L179 Mounting Bracket:

*1 The measurement distance reference position is the Sensor’s sensing surface.
Note: When securing the Sensor Head in the Mounting Bracket, insert the screws into the side of the Sensor Head
            where the warning label is located and secure the Sensor Head into place.

Not Using a Mounting Bracket:

Mount the Sensor Head in relation to the workpiece as shown below.

* ZX2-LD50 (L): 50
    ZX2-LD100 (L): 100

last update: April 16, 2018

OMRON ZX2 catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
ZX2 Data Sheet	- [4844KB]	Apr 16, 201820180416	ZX2 Data Sheet
ZX2 Series Catalog	E406-E1-03 [3134KB]	Apr 16, 201820180416	ZX2 Series Catalog

OMRON ZX2 lineup

last update: November 05, 2013

Units

Sensor Heads

Appearance	Optical system	Beam shape	Sensing distance	Resolution	Model
Diffuse reflection type	Diffuse-reflective	Line beam		1.5 μm	ZX2-LD50L 0.5M
		Spot beam			ZX2-LD50 0.5M
		Line beam		5 μm	ZX2-LD100L 0.5M
		Spot beam			ZX2-LD100 0.5M
	Regular-reflective	Spot beam		1.5 μm	ZX2-LD50V 0.5M

Amplifier Units

Appearance	Power supply	Output type	Model
	DC	NPN	ZX2-LDA11 2M
		PNP	ZX2-LDA41 2M

Accessories (sold separately)

These are not included with the Sensor Head or Amplifier Unit. Please order as necessary.

Calculating Unit

Appearance	Model
	ZX2-CAL

Communications Interface Unit

Appearance	Type	Model
	RS-232C	ZX2-SF11

Sensor Head Extension Cables

Cable Length	Model
1 m	ZX2-XC1R
4 m	ZX2-XC4R
9 m	ZX2-XC9R
20 m	ZX2-XC20R

Note: Extension cables cannot be coupled and used together.

Mounting Brackets

Applicable Sensor Heads	Appearance	Model	Contents
ZX2-LD50V ZX2-LD50L ZX2-LD50		E39-L178	Mounting Bracket: 1 Nut plate: 1 Phillips screws (M3 × 30): 2
ZX2-LD100L ZX2-LD100		E39-L179

last update: November 05, 2013
