OMRON ZFX Dimensions

/Images/l_1892-25-119086-198x198.jpg

last update: October 15, 2012

Easy Vision Being Our Vision

The Omron's new ZFX-C Smart Vision Sensor is a total Image Processing system that includes everything from a camera with an integrated light source to an image-processing unit.

With Omron's newly developed proprietary measurement algorithm, the parameter can be set through only a few steps involving the operation of a touch-panel color monitor.

This "Smart" user interface provides simplicity of usage giving anyone all they can need to perform a complete image enhancement.

The new technology and style of the ZFX-C paves the way to a new era of vision sensors.

"Smart Recipe" with condensed know-how (World's first)

Capturing the image processing know-how Omron has accumulated over many years, the world's first "Smart Recipe" has radically reduced setting up time allowing for greater productivity.

One-touch automatic setting

The essential skills for image processing are now packaged into Omron's unique algorithm. The setting that traditionally required much fumbling is now made easy with the "select from auto listed options" using recipes. Lighting setup, the longtime problem for image processing, and the tricky parameter details involved in measurement setup, can now be done automatically with just the flip of a switch.

Smart Recipe

Smart Recipe is on Omron's invention of 3-step setting procedure.
By adopting a new algorithm to encapsulate "human know-how", the auto setup for lighting and measurement now possible.
Anyone can rapidly perform a high level of image processing.

Step1: Choose best lighting (Patent pending)

The know-how and trial and error that have been indispensable and required much time and effort up to now in lighting setup is now an automated process. By just selecting the best one from the candidate images automatically captured by changing the lighting pattern with the auto-lighting, anyone can easily find the optimal lighting. User can now easily determine settings for shiny work with high degrees of reflection and black monochrome work with low degrees of reflection, something very tricky before. In addition, when a more detailed setup is needed, the customized setup can be used to incorporate know-how.

Built-in lighting camera that enables an advanced automatic lighting

The Built-in lighting camera and improved controller brings about an even higher degree of automatic lighting. With this camera you can produce up to a maximum of 1296 patterns of reflective lighting making the chore of choosing lighting equipment unnecessary. The lighting setup can be managed as digital data so it is possible to store the optimal setup for each job, and it smoothly handles the changing of settings. It is also possible to fine-tune the customized setup can be added.

Step2: Choose measurement icon

The measurement method can be specified by just choosing the icon from out of a total of 9 measurement items for different types of inspection.

Step3: Draw region, press and go

Just specify the region of interest and press Auto key and the system will determine the most suitable parameters for the target image.
Now anyone can easily perform a complex and advanced parameter setting which used to require special knowledge and cumbersome steps.
Customized setting is also possible by fine tuning the parameters automatically set up. The time required to set up parameters can be significantly reduced.

3-step position correction

Even when the position of work changes due to the conveyer condition, the excellent position correction function can come into play allowing adjustment using the work contours, two stage position correction and so on. With the auto setup, position difference can be easily adjusted to enable stable measurement.

Tailored Measurement item

Including two shape measurement items, the system contains 5 categories and 9 types of Shape, Size, Edge, Bright and Hue, Application measurement items.
It responds to the variety of inspection requirements in the manufacturing sites.

Pattern search (Fastest in the industry)

The shape measurement is a fundamental algorithm for image processing. By adopting a new image processor, the pattern search achieves a balance in the three factors of speed, precision and stabilization, something that was an arduous task until now. It now supports a 360-degree revolving search and a sub-pixel processing of 1000 to 1 pixel units as well as a multi area searcher. The robust pattern search can respond to the multitude of inspects and measurements of any application.

Sensitive search

When it comes to the difficult processing of detecting small differences, the Omron's unique sensitive search matches work at a smallest detail and in doing so makes such detection all the more possible.It resists variations in position and density to capture even the smallest detail in the complex patterns.

Defect

It is used to detect smears, scratches, chipping and burrs on the work. Defects are displayed on the screen, which makes it ideal tool for visual inspection.

Region

Detects the existence of work within a region and measures its size based on the area to perform various classification.

Hue

The three factors in color, i.e. hue, saturation and brightness value, are measured and digitalized. And whilst an accurate differentiation of the color is performed, it is also possible to measure the color variety with the deviation measurement function (with color camera connected).

Bright

Measures the brightness within a region. It can be used for checking the presense of a component, etc., by generating average density and density deviation values.

Position

The existence or not and the position of the edge is measured. Oblique edges can now be measured even in complex conditions and even more accurate position measurements can be taken. The peak bottom measurement function that can accurately capture the edges is now supported.

Width

The width of the edge is measured. By using the edge partitioning method, it is possible to measure the maximum and minimum width.

Count

The number of edges inside the area is counted. Based on the number of edges on the pre-registered good model, it counts the edges in the area and determines the correctness.

Visualized Controller

Smallest in class controller build in embedded LCD saves space and time.

Visualized setting and monitoring (Smallest in class)

Despite its small form factor, the enlarged screen significantly improves the visibility and the ease of operation. The method of operation can be selected from 3way - the touch pen, key pad or console.

Intensive camera solutions

8 types of cameras that can be selected for different types of work to achieve optimal measurement.

Built-in lighting camera
Triple-speed camera (IP65)

Line up of 6 types of built-in lighting cameras that do not need lighting selection or setup. The color camera can respond to a wide range of work with a 5-150mm field of view. Through image compression and partial capturing, it can support a high-speed line.

C-mount camera unit
Triple-speed camera

This product line includes C-mount camera that can select the lens to match the field. It can be used in combination with optional lighting such as transmitted lighting, low angle lighting and bar lighting, etc. to support different inspection types.

Innovative triple-speed camera
(Fastest in the industry)

Performs fast transfer of 11.1ms that are 3 times faster than standard cameras and 1.5 times faster than high-speed cameras while maintaining a resolution of the whole screen. In addition, a super speed, minimum 3.2ms transfer is possible with image compressions and partial capturing.

Excellent ease of use

Flexible installation

Flexible installation supported for different mounting site conditions. It can be mounted on DIN rail as well as on the control panel surface. (Optional panel mount adapter available.)

Hybrid interface

A new interface that supports both parallel I/O and terminal platform to dramatically improve the ease of wiring.

last update: October 15, 2012

Purchase the OMRON Other Vision Sensors Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON ZFX Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the ZFX We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON ZFXSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E2KQ-X Chemical-resistant Proximity Sensor/Features
ZE / ZV / ZV2 / XE / XV / XV2 Enclosed Switches/Features
G3PE (Single-phase) Solid State Relays for Heaters/Features
H3CR-A Solid-state Multi-functional Timers/Features
SRT2-ID16P / OD16P Remote I/O Modules/Features

OMRON ZFX catalog
ZFX Smart Sensor (Vision sensor with built-in LCD monitor)/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

ZFX Catalog E381-E1
[2389KB] Jul 30, 201520150730 ZFX Catalog

OMRON ZFX lineup
ZFX Smart Sensor (Vision sensor with built-in LCD monitor)/Lineup
last update: August 03, 2015
Controllers

Appearance Power supply Circuit type Model
1-camera model DC 21.6 to 26.4 V NPN ZFX-C10
PNP ZFX-C15
2-camera model NPN ZFX-C20
PNP ZFX-C25

Cameras

Appearance Type Setting
distance Sensing area Model Remarks
(ZFX-SC50) Camera
with
lighting Monochrome
type 34 mm to
49 mm 4.9 mm x 4.9 mm
to 8.9 mm x 8.9 mm (variable) ZFX-SR10
ZFX-SR10R * Cable
length:
2 m
38 mm to
194 mm 9.8 mm x 9.8 mm
to 49 mm x 49 mm (variable) ZFX-SR50
ZFX-SR50R *
Color type 34 mm to
49 mm 4.9 mm x 4.9 mm
to 8.9 mm x 8.9 mm (variable) ZFX-SC10
ZFX-SC10R *
31 mm to
187 mm 9.8 mm x 9.8 mm
to 49 mm x 49 mm (variable) ZFX-SC50
ZFX-SC50W (IP67)
ZFX-SC50R *
67 mm to
142 mm 49 mm x 49 mm
to 89 mm x 89 mm (variable) ZFX-SC90
ZFX-SC90W (IP67)
ZFX-SC90R *
115 mm
to
227 mm 89 mm x 89 mm
to 148 mm x 148 mm (variable) ZFX-SC150
ZFX-SC150W (IP67)
ZFX-SC150R *
Camera
only Monochrome
type The CCTV lens is selected according
to the range of detection and the
installation distance. ZFX-S A Camera
Cable is
required.
Color type ZFX-SC

* Equipped with a robot cable.

Camera Cables

Type Cable length Model
Camera Cable *1 Normal type 3 m ZFX-VS 3M
8 m ZFX-VS 8M
Robot cable type 3 m ZFX-VSR
Right-angle Camera Cable *2 Normal type (bending direction: A) 3 m ZFX-VSLA 3M
8 m ZFX-VSLA 8M
Robot cable type (bending direction: A) 3 m ZFX-VSRLA 3M
Normal type (bending direction: B) 3 m ZFX-VSLB 3M
8 m ZFX-VSLB 8M
Robot cable type (bending direction: B) 3 m ZFX-VSRLB 3M

*1. It is necessary for ZFX-S and ZFX-SC. ZFX-SR_/SC_ is a cable drawing out type, it doesn't use it.

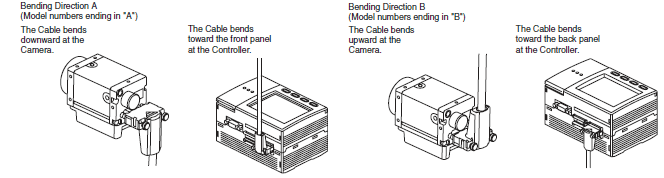

*2. Cable Bending Directions

Camera extension cable

Type Cable length Model
Camera Extension Cable Normal type 3 m ZFX-XC3A *1
8 m ZFX-XC8A *1
Robot cable type 3 m ZFX-XC3AR *1
Camera Extension Cable
(long-distance type) Extension cable *2 15 m ZFX-XC15BR
25 m ZFX-XC25BR
Digital equalizer (camera side) 0.2 m ZFX-XEQ01
Digital equalizer (Controller side) 0.2 m ZFX-XEQ02

Note: The total combined length of the cables connected to the Controller and camera must not exceed 28.4 m
(including the camera cable).
*1. Up to two camera extension cables can be connected to the camera cable as long as the total cable length between
the controller and the camera does not exceed 19 m.
*2. Connect the ZFX-VS[][]/VSR[][] Camera Cable to the Camera and connect the ZFX-XC[]A/XC[]AR Extension Cable to
the Controller.

Other cable

Type Cable length Model
Parallel I/O Cable 2 m ZFX-VP 2M
5 m ZFX-VP 5M
RS-232C Cable 2 m ZFX-XPT2A
5 m ZFX-XPT5A
15 m ZFX-XPT15A
RS-422 Cable 2 m ZFX-XPT2B
5 m ZFX-XPT5B
15 m ZFX-XPT15B
Monitor Cable 2 m FZ-VM 2M
5 m FZ-VM 5M
Special USB cable 1.8 m ZFX-XUSB

Accessories

Type Model
Console 2 m ZFX-KP 2M
5 m ZFX-KP 5M

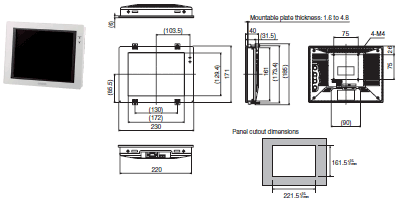

LCD Monitor FZ-M08
Panel Mount Adapters ZFX-XPM
Optional Lighting

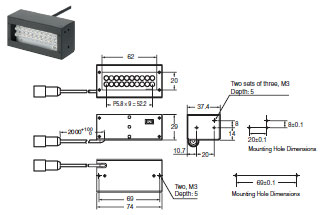

*1 bar lighting ZFV-LTL01
bar double-lighting ZFV-LTL02
bar low-angle lighting ZFV-LTL04
light source for through beam ZFV-LTF01
CCTV Lenses /Extension Tubes 3Z4S-LE series
External Lighting FLV series

*1. It is possible to ZFX-SC50 and ZFX-SC90 use it.

CCTV Lenses

Model 3Z4S-LE
SV-0614V 3Z4S-LE
SV-0813V 3Z4S-LE
SV-1214V 3Z4S-LE
SV-1614V 3Z4S-LE
SV-2514V
Appearance
Focal length 6 mm 8 mm 12 mm 16 mm 25 mm
Brightness F1.4 F1.3 F1.4 F1.4 F1.4
Filter size M27 P0.5 M25.5 P0.5 M27 P0.5 M27 P0.5 M27 P0.5

Model 3Z4S-LE
SV-3518V 3Z4S-LE
SV-5018V 3Z4S-LE
SV-7527V 3Z4S-LE
SV-10035V
Appearance
Focal length 35 mm 50 mm 75 mm 100 mm
Brightness F1.8 F1.8 F2.7 F3.5
Filter size M27 P0.5 M30.5 P0.5 M30.5 P0.5 M30.5 P0.5

Extension Tubes

Model 3Z4S-LE SV-EXR
Contents Set of seven tubes (0.5 mm, 1.0 mm, 2.0 mm, 5 mm, 10 mm, 20 mm, and 40 mm)
Maximum outer diameter: 30 mm

Do not use the 0.5-mm, 1.0-mm, and 2.0-mm Extension Tubes next to each other. These Extension Tubes are placed over the threaded section of the Lens or other Extension Tube. If more than one them are used together, the connection of the threaded section may not be secure.
Reinforcement is required to protect against vibration when Extension Tubes exceeding 30 mm are used.

last update: August 03, 2015

OMRON ZFX specification
ZFX Smart Sensor (Vision sensor with built-in LCD monitor)/Specifications
last update: September 01, 2014
Controllers

Item ZFX-C20 ZFX-C25 ZFX-C10H ZFX-C15H ZFX-C10 ZFX-C15
Number of connected cameras 2 1
Connectable camera ZFX-SR_/SC_/S/SC
Processing resolution When ZFX-SR_/SC_ is connected: 464 (H) x 464 (V)
When ZFX-S/SC is connected: 608 (H) x 464 (V)
Display LCD monitor 3.5" TFT color LCD (320 x 240 pixels)
Indicator "Measuring" indicator (color: green): RUN
Trigger indicator (color: blue): ENABLE
Judgment indicator (color: orange): OUTPUT
Error indicator (color: red): ERROR
External
I/F Parallel
interface Input 12 points (RESET, DSA, DI0 to 8, TRIG)
Output 23 points (OR, ERROR, RUN, ENABLE, GATE, STGOUT0 to 1 (*1) , DO0 to 15)
Circuit type NPN PNP NPN PNP NPN PNP
Serial
interface USB2.0 1 port, FULL SPEED, MINI-B connector
RS-232C 1 port, max. 115200 bps (cannot be used simultaneously with RS-422
interface)
RS-422 1 port, max. 115200 bps (cannot be used simultaneously with RS-232C
interface)
Network
commu-
nications Ethernet 1 port, 100BASE-TX/10BASE-T
Monitor output Analog RGB output, 1 ch (resolution VGA: 640 x 480)
Memory card I/F SD card slot 1 ch
Operation I/F Touch panel, key operation, console connection
Main
functions Number of registered
banks 32 banks
Number of setup items 128 items/1 bank 32 items/1 bank
Meas-
urement
items Shape
inspection Pattern search, sensitive serch, flexible search,
grapgic search Pattern search,
sensitive search
Size
inspection Area, labeling Area
Edge
inspection Position, width, count, angle Position, width, count,
angle
Brightness/
color
inspection Brightness, HUE Brightness, HUE
Application-
based
inspection Defects, grouping Defects
Position correction 1 model search, 2 model search, position, area,
labeling, angle 1 model search,
2 model search,
position, area, angle
Additional
functions Image memory function Max. 100 images (when 2 cameras are connected, 50 images/camera)
Analysis function Logging monitor ---
Menu language Japanese/English (can be switched)
Ratings Power supply voltage 21.6 to 26.4 VDC (including ripple)
Current consumption 1.5 A max. 1.2 A max. 1.0 A max.
Insulation resistance Across all lead wires and controller case: 20 MΩ (by 250 V megger)
Dielectric strength Across all lead wires and controller case, 1000 VAC, 50/60 Hz, 1 min
Operation
envi-
ronment
robust-
ness Ambient temperature
range Operating: 0 to + 50°C, Storage: -15 to +60°C (with no icing or
condensation)
Ambient humidity range Operating and storage: 35% to 85% (with no condensation)
Ambient atmosphere No corrosive gases allowed
Degree of protection IP20 (IEC60529)
Vibration resistance
(durability) Vibration frequency: 10 to 150 Hz Single-amplitude: in0.35 mm
Acceleration: 50 m/s² 10 times for 8 minutes in X, Y, and Z directons
Shock resistance
(destructive) 150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Material Case: Polycarbonate (PC), Plate face: PMMA
Weight Approx. 650 g Approx. 620 g
Accessories Touch pen (ZFX-TP), Exhaust unit (ZFX-EU),
Terminal block adapter (ZFX-XTB)
Terminal block adapter mounting screws (4 p'ces), Ferrite core (2 p'ces),
Instruction Sheet, and Power connector

*1. Only STGOUT0 is functional on the ZFX-C10H/C15H/C10/C15.

Cameras

Item ZFX-SR10/
SR10R ZFX-SR50/
SR50R ZFX-SC10/
SC10R ZFX-SC50/
SC50W/SC50R
Detection range (H x V) 4.9 mm x 4.9 mm
to 8.9 mm x 8.9
mm (variable) 9.8 mm x 9.8 mm
to 49 mm x 49
mm (variable) 4.9 mm x 4.9 mm
to 8.9 mmx 8.9
mm (variable) 9.8 mm x 9.8 mm
to 49 mm x 49
mm (variable)
Setting distance (L) 34 mm to 49 mm 38 mm to 194 mm 34 mm to 49 mm 31 mm to 187 mm
Relationship between setting
distance and detection range
Image capture element All-pixel capture inter-line transfer
type 1/3" CCD (monochrome) All-pixel capture inter-line transfer
type 1/3" CCD (color)
Effective number of pixels 659 (H) x 494 (V)
Pixel size 7.4 μm (H) x 7.4 μm (V)
Shutter speed 1/170s to 1/20000s
Partial function
(partial capture) OFF 1/2 partial, 1/4 partial
Image rate function Fine, Normal, High speed Not available
Frame rate
(at capture of entire screen) 90 fps
Lens mount --- (with Lens)
Lighting Lighting method Pulse lighting
LED Red LED White LED
Type Direct lighting
Guide light Available (center, measurement region) Not available
Optional lighting I/F Not available Available
(ZFV-LT Series)
Indicator Class Risk Group 1 (IEC62471-2)
Ratings Power supply voltage
(supplied from
Controller) 15 VDC 15 VDC, 48 VDC
Current
consumption Approx. 200 mA Approx. 350 mA (15
VDC: approx. 150
mA, 48 VDC: approx.
200 mA)
(including current
consumption when
optional lighting is
connected)
Operation
environ-
ment
robust-
ness Ambient
temperature range Operating: 0 to + 40°C, Storage: -20 to +65°C (with no icing or condensation)
Ambient humidity
range Operating and storage: 35% to 85% (with no condensation)
Ambient atmosphere No corrosive gases allowed
Degree of protection IP65 (IEC60529) ZFX-SC___: IP65 (IEC60529),
ZFX-SC___W: IP67 (IEC60529)
Dielectric strength 1000 VAC 50 Hz/60 Hz 1 min
Vibration resistance
(durability) 10 to 150 Hz Single-amplitude 0.35 mm 10 times for 8 min each in X, Y, and
Z directions
Shock resistance
(destructive) 150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Connection method Cable built-in type (cable length: 2 m)
Cable type ZFX-SC[][][]/SC[][][]W/SR[][]: Normal cable
ZFX-SC[][][]R/SR[][]R: Robot cable
Material ZFX-SR10/SR50/SC10/SC50/SC50W/SC90/SC90W/SC150/SC150W/SC150R:
Case: ABS, mounting fixture: PBT
ZFX-SR10R/SR50R/SC10R/SC50R/SC90R:
Case: ABS, Mounting fixture (base): Aluminum, Mounting fixture (bracket): Stainless steel
Weight ZFX-SR10/SR50/SC10: Approx. 200 g (including mounting fixture and cable)
ZFX-SR10R/SR50R/SC10R: Approx. 270 g (including mounting fixture and cable)
ZFX-SC50/SC50W: Approx. 270 g (including mounting fixture and cable)
ZFX-SR50R: Approx. 400 g (including mounting fixture and cable)
Accessories ZFX-SR10/SR50/SC10:
Mounting fixture (ZFV-XMF) 1 p'ce, Ferrite core 2 p'ce,
Instruction Sheet
ZFX-SR10R/SR50R/SC10R:
Mounting fixture (ZFV-XMF3) 1 set, Ferrite core 2 p'ces,
Instruction Sheet ZFX-SC50/SC50W/
SC90/SC90W:
Mounting fixture
(ZFV-XMF2) 1 p'ce,
Ferrite core 2 p'ces,
Instruction Sheet
ZFX-SC50R/90R:
Mounting fixture
(ZFV-XMF4) 1 set,
Ferrite core 2 p'ces,
Instruction Sheet

Item ZFX-SC90/
SC90W/
SC90R ZFX-SC150/
SC150W/
SC150R ZFX-S
(monochrome
type) ZFX-SC
(color type)
Detection range (H x V) 49 mm x 49 mm
to 89 mm x 89
mm (variable) 89 mm x 89 mm
to 148 mm x 148
mm (variable) The CCTV lens is selected according
to the detection range and the setting
distance.
Setting distance (L) 67 mm to 142 mm 115 mm to
227 mm
Relationship between setting
distance and detection range
Image capture element All-pixel capture inter-line transfer
type 1/3" CCD (color) All-pixel capture
inter-line transfer
type 1/3" CCD
(monochrome) All-pixel capture
inter-line transfer
type 1/3" CCD
(color)
Effective number of pixels 659 (H) x 494 (V)
Pixel size 7.4 μm (H) x 7.4 μm (V)
Shutter speed 1/170s to 1/20000s
Partial function
(partial capture) 1/2 partial, 1/4 partial Not available 1/2 partial,
1/4 partial
Image rate function Not available Fine, Normal,
High speed Not available
Frame rate
(at capture of entire screen) 90 fps
Lens mount --- (with Lens) C mount
Lighting Lighting method Pulse lighting ---
LED White LED
Type Direct lighting
Guide light Not available
Optional
lighting I/F Available
(ZFV-LT Series) Not available Not available
Indicator Class Risk Group 1 (IEC62471-2) ---
Ratings Power supply voltage
(supplied from
Controller) 15 VDC, 48 VDC
Current
consumption Approx. 350 mA (15 VDC: approx. 150
mA, 48 VDC: approx. 200 mA)
(including current consumption when
optional lighting is connected) Approx. 160 mA
Operation
environ-
ment
robust-
ness Ambient
temperature range Operating: 0 to + 40°C,
Storage: -20 to +65°C
(with no icing or condensation) Operating: 0 to + 50°C,
Storage: -25 to +65°C
(with no icing or condensation)
Ambient humidity
range Operating and storage: 35% to 85% (with no condensation)
Ambient atmosphere No corrosive gases allowed
Degree of protection ZFX-SC___: IP65 (IEC60529),
ZFX-SC___W: IP67 (IEC60529) IP20 (IEC60529)
Dielectric strength 1000 VAC 50 Hz/60 Hz 1 min 500VAC 50 Hz/60Hz 1 min
Vibration resistance
(durability) 10 to 150 Hz Single-amplitude 0.35 mm 10 times for 8 min each in X, Y, and Z
directions
Shock resistance
(destructive) 150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Connection method Cable built-in type (cable length: 2 m) Connector connection type
(camera cable ZFX-VS/VSR required)
Cable type ZFX-SC[][][]/SC[][][]W/SR[][]: Normal cable
ZFX-SC[][][]R/SR[][]R: Robot cable
Material ZFX-SR10/SR50/SC10/SC50/
SC50W/SC90/SC90W/SC150/
SC150W/SC150R:
Case: ABS, mounting fixture: PBT
ZFX-SR10R/SR50R/SC10R/SC50R/
SC90R:
Case: ABS, Mounting fixture (base):
Aluminum, Mounting fixture (bracket):
Stainless steel Case: Aluminum die-cast,
Cover: Zinc-plated copper plate 0.5 mm
thick,
Camera mounting base: ABS
Weight ZFX-SC90/SC90W:
Approx. 300 g
(including mounting
fixture and cable)
ZFX-SC90R:
Approx. 400 g
(including mounting
fixture and cable) Approx. 600 g
(including
mounting
fixture and cable) Approx. 80 g
Accessories ZFX-SC50/SC50W/
SC90/SC90W:
Mounting fixture
(ZFV-XMF2) 1 p'ce,
Ferrite core 2 p'ces,
Instruction Sheet
ZFX-SC50R/90R:
Mounting fixture
(ZFV-XMF4) 1 set,
Ferrite core 2 p'ces,
Instruction Sheet Ferrite core
2 p'ces,
Instruction
Sheet Instruction Sheet

last update: September 01, 2014

OMRON ZFX dimension
ZFX Smart Sensor (Vision sensor with built-in LCD monitor)/Dimensions
last update: December 06, 2012

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

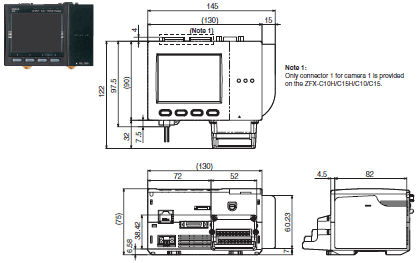

Controllers
ZFX-C20/C25/C10H/C15H/C10/C15

Panel Mount Adapters
ZFX-XPM

Optional Lighting
ZFV-LTL01

ZFV-LTL02

ZFV-LTL04

ZFV-LTF01

Cameras

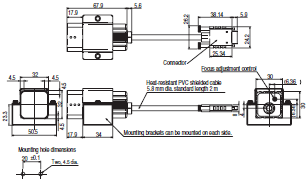

ZFX-SR10/SR50

ZFX-SR10R/SR50R

ZFX-SC10

ZFX-SC10R

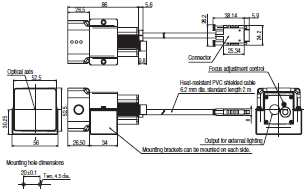

ZFX-SC50/SC50W

ZFX-SC50R

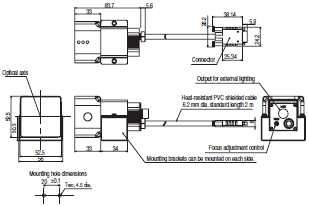

ZFX-SC90/SC90W

ZFX-SC90R

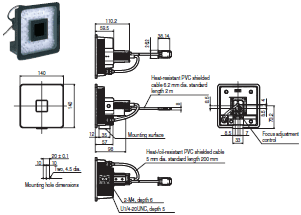

ZFX-SC150/SC150W

ZFX-S/SC

LCD Monitor
FZ-M08

Console
ZFX-KP

last update: December 06, 2012

NO. ZFX

TYPE:Vision Sensors / Machine Vision Systems Other Vision Sensors Copyright Statement

DATE:2021-06-21

Associated products:
FZ-LES Series Lens for FZ-series Small Cameras/Features ZFV-C Smart Sensors with Ultra-High-Speed Color CCD Cameras/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
ZFX Catalog	E381-E1 [2389KB]	Jul 30, 201520150730	ZFX Catalog

Appearance	Type	Setting distance	Sensing area	Model	Remarks
(ZFX-SC50)	Camera with lighting	Monochrome type	34 mm to 49 mm	4.9 mm x 4.9 mm to 8.9 mm x 8.9 mm (variable)	ZFX-SR10 ZFX-SR10R *	Cable length: 2 m
38 mm to 194 mm	9.8 mm x 9.8 mm to 49 mm x 49 mm (variable)	ZFX-SR50 ZFX-SR50R *
Color type	34 mm to 49 mm	4.9 mm x 4.9 mm to 8.9 mm x 8.9 mm (variable)	ZFX-SC10 ZFX-SC10R *
31 mm to 187 mm	9.8 mm x 9.8 mm to 49 mm x 49 mm (variable)	ZFX-SC50 ZFX-SC50W (IP67) ZFX-SC50R *
67 mm to 142 mm	49 mm x 49 mm to 89 mm x 89 mm (variable)	ZFX-SC90 ZFX-SC90W (IP67) ZFX-SC90R *
115 mm to 227 mm	89 mm x 89 mm to 148 mm x 148 mm (variable)	ZFX-SC150 ZFX-SC150W (IP67) ZFX-SC150R *
Camera only	Monochrome type	The CCTV lens is selected according to the range of detection and the installation distance.	ZFX-S	A Camera Cable is required.
Color type	ZFX-SC

Type	Cable length	Model
Camera Cable *1	Normal type	3 m	ZFX-VS 3M
8 m	ZFX-VS 8M
Robot cable type	3 m	ZFX-VSR
Right-angle Camera Cable *2	Normal type (bending direction: A)	3 m	ZFX-VSLA 3M
8 m	ZFX-VSLA 8M
Robot cable type (bending direction: A)	3 m	ZFX-VSRLA 3M
Normal type (bending direction: B)	3 m	ZFX-VSLB 3M
8 m	ZFX-VSLB 8M
Robot cable type (bending direction: B)	3 m	ZFX-VSRLB 3M

Type	Cable length	Model
Camera Extension Cable	Normal type	3 m	*ZFX-XC3A 1**
8 m	*ZFX-XC8A 1**
Robot cable type	3 m	*ZFX-XC3AR 1**
Camera Extension Cable (long-distance type)	Extension cable *2	15 m	ZFX-XC15BR
25 m	ZFX-XC25BR
Digital equalizer (camera side)	0.2 m	ZFX-XEQ01
Digital equalizer (Controller side)	0.2 m	ZFX-XEQ02

Type	Cable length	Model
Parallel I/O Cable	2 m	ZFX-VP 2M
5 m	ZFX-VP 5M
RS-232C Cable	2 m	ZFX-XPT2A
5 m	ZFX-XPT5A
15 m	ZFX-XPT15A
RS-422 Cable	2 m	ZFX-XPT2B
5 m	ZFX-XPT5B
15 m	ZFX-XPT15B
Monitor Cable	2 m	FZ-VM 2M
5 m	FZ-VM 5M
Special USB cable	1.8 m	ZFX-XUSB

Type	Model
Console	2 m	ZFX-KP 2M
5 m	ZFX-KP 5M
LCD Monitor	FZ-M08
Panel Mount Adapters	ZFX-XPM
Optional Lighting *1	bar lighting	ZFV-LTL01
bar double-lighting	ZFV-LTL02
bar low-angle lighting	ZFV-LTL04
light source for through beam	ZFV-LTF01
CCTV Lenses /Extension Tubes	3Z4S-LE series
External Lighting	FLV series

Model	3Z4S-LE SV-0614V	3Z4S-LE SV-0813V	3Z4S-LE SV-1214V	3Z4S-LE SV-1614V	3Z4S-LE SV-2514V
Appearance
Focal length	6 mm	8 mm	12 mm	16 mm	25 mm
Brightness	F1.4	F1.3	F1.4	F1.4	F1.4
Filter size	M27 P0.5	M25.5 P0.5	M27 P0.5	M27 P0.5	M27 P0.5

Model	3Z4S-LE SV-3518V	3Z4S-LE SV-5018V	3Z4S-LE SV-7527V	3Z4S-LE SV-10035V
Appearance
Focal length	35 mm	50 mm	75 mm	100 mm
Brightness	F1.8	F1.8	F2.7	F3.5
Filter size	M27 P0.5	M30.5 P0.5	M30.5 P0.5	M30.5 P0.5

Model	3Z4S-LE SV-EXR
Contents	Set of seven tubes (0.5 mm, 1.0 mm, 2.0 mm, 5 mm, 10 mm, 20 mm, and 40 mm) Maximum outer diameter: 30 mm

Item	ZFX-C20	ZFX-C25	ZFX-C10H	ZFX-C15H	ZFX-C10	ZFX-C15
Number of connected cameras	2	1
Connectable camera	ZFX-SR_/SC_/S/SC
Processing resolution	When ZFX-SR_/SC_ is connected: 464 (H) x 464 (V) When ZFX-S/SC is connected: 608 (H) x 464 (V)
Display	LCD monitor	3.5" TFT color LCD (320 x 240 pixels)
Indicator	"Measuring" indicator (color: green): RUN Trigger indicator (color: blue): ENABLE Judgment indicator (color: orange): OUTPUT Error indicator (color: red): ERROR
External I/F	Parallel interface	Input	12 points (RESET, DSA, DI0 to 8, TRIG)
Output	23 points (OR, ERROR, RUN, ENABLE, GATE, STGOUT0 to 1 (*1) , DO0 to 15)
Circuit type	NPN	PNP	NPN	PNP	NPN	PNP
Serial interface	USB2.0	1 port, FULL SPEED, MINI-B connector
RS-232C	1 port, max. 115200 bps (cannot be used simultaneously with RS-422 interface)
RS-422	1 port, max. 115200 bps (cannot be used simultaneously with RS-232C interface)
Network commu- nications	Ethernet	1 port, 100BASE-TX/10BASE-T
Monitor output	Analog RGB output, 1 ch (resolution VGA: 640 x 480)
Memory card I/F	SD card slot 1 ch
Operation I/F	Touch panel, key operation, console connection
Main functions	Number of registered banks	32 banks
Number of setup items	128 items/1 bank	32 items/1 bank
Meas- urement items	Shape inspection	Pattern search, sensitive serch, flexible search, grapgic search	Pattern search, sensitive search
Size inspection	Area, labeling	Area
Edge inspection	Position, width, count, angle	Position, width, count, angle
Brightness/ color inspection	Brightness, HUE	Brightness, HUE
Application- based inspection	Defects, grouping	Defects
Position correction	1 model search, 2 model search, position, area, labeling, angle	1 model search, 2 model search, position, area, angle
Additional functions	Image memory function	Max. 100 images (when 2 cameras are connected, 50 images/camera)
Analysis function	Logging monitor	---
Menu language	Japanese/English (can be switched)
Ratings	Power supply voltage	21.6 to 26.4 VDC (including ripple)
Current consumption	1.5 A max.	1.2 A max.	1.0 A max.
Insulation resistance	Across all lead wires and controller case: 20 MΩ (by 250 V megger)
Dielectric strength	Across all lead wires and controller case, 1000 VAC, 50/60 Hz, 1 min
Operation envi- ronment robust- ness	Ambient temperature range	Operating: 0 to + 50°C, Storage: -15 to +60°C (with no icing or condensation)
Ambient humidity range	Operating and storage: 35% to 85% (with no condensation)
Ambient atmosphere	No corrosive gases allowed
Degree of protection	IP20 (IEC60529)
Vibration resistance (durability)	Vibration frequency: 10 to 150 Hz Single-amplitude: in0.35 mm Acceleration: 50 m/s² 10 times for 8 minutes in X, Y, and Z directons
Shock resistance (destructive)	150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Material	Case: Polycarbonate (PC), Plate face: PMMA
Weight	Approx. 650 g	Approx. 620 g
Accessories	Touch pen (ZFX-TP), Exhaust unit (ZFX-EU), Terminal block adapter (ZFX-XTB) Terminal block adapter mounting screws (4 p'ces), Ferrite core (2 p'ces), Instruction Sheet, and Power connector

Item	ZFX-SR10/ SR10R	ZFX-SR50/ SR50R	ZFX-SC10/ SC10R	ZFX-SC50/ SC50W/SC50R
Detection range (H x V)	4.9 mm x 4.9 mm to 8.9 mm x 8.9 mm (variable)	9.8 mm x 9.8 mm to 49 mm x 49 mm (variable)	4.9 mm x 4.9 mm to 8.9 mmx 8.9 mm (variable)	9.8 mm x 9.8 mm to 49 mm x 49 mm (variable)
Setting distance (L)	34 mm to 49 mm	38 mm to 194 mm	34 mm to 49 mm	31 mm to 187 mm
Relationship between setting distance and detection range
Image capture element	All-pixel capture inter-line transfer type 1/3" CCD (monochrome)	All-pixel capture inter-line transfer type 1/3" CCD (color)
Effective number of pixels	659 (H) x 494 (V)
Pixel size	7.4 μm (H) x 7.4 μm (V)
Shutter speed	1/170s to 1/20000s
Partial function (partial capture)	OFF	1/2 partial, 1/4 partial
Image rate function	Fine, Normal, High speed	Not available
Frame rate (at capture of entire screen)	90 fps
Lens mount	--- (with Lens)
Lighting	Lighting method	Pulse lighting
LED	Red LED	White LED
Type	Direct lighting
Guide light	Available (center, measurement region)	Not available
Optional lighting I/F	Not available	Available (ZFV-LT Series)
Indicator Class	Risk Group 1 (IEC62471-2)
Ratings	Power supply voltage (supplied from Controller)	15 VDC	15 VDC, 48 VDC
Current consumption	Approx. 200 mA	Approx. 350 mA (15 VDC: approx. 150 mA, 48 VDC: approx. 200 mA) (including current consumption when optional lighting is connected)
Operation environ- ment robust- ness	Ambient temperature range	Operating: 0 to + 40°C, Storage: -20 to +65°C (with no icing or condensation)
Ambient humidity range	Operating and storage: 35% to 85% (with no condensation)
Ambient atmosphere	No corrosive gases allowed
Degree of protection	IP65 (IEC60529)	ZFX-SC___: IP65 (IEC60529), ZFX-SC___W: IP67 (IEC60529)
Dielectric strength	1000 VAC 50 Hz/60 Hz 1 min
Vibration resistance (durability)	10 to 150 Hz Single-amplitude 0.35 mm 10 times for 8 min each in X, Y, and Z directions
Shock resistance (destructive)	150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Connection method	Cable built-in type (cable length: 2 m)
Cable type	ZFX-SC[][][]/SC[][][]W/SR[][]: Normal cable ZFX-SC[][][]R/SR[][]R: Robot cable
Material	ZFX-SR10/SR50/SC10/SC50/SC50W/SC90/SC90W/SC150/SC150W/SC150R: Case: ABS, mounting fixture: PBT ZFX-SR10R/SR50R/SC10R/SC50R/SC90R: Case: ABS, Mounting fixture (base): Aluminum, Mounting fixture (bracket): Stainless steel
Weight	ZFX-SR10/SR50/SC10: Approx. 200 g (including mounting fixture and cable) ZFX-SR10R/SR50R/SC10R: Approx. 270 g (including mounting fixture and cable) ZFX-SC50/SC50W: Approx. 270 g (including mounting fixture and cable) ZFX-SR50R: Approx. 400 g (including mounting fixture and cable)
Accessories	ZFX-SR10/SR50/SC10: Mounting fixture (ZFV-XMF) 1 p'ce, Ferrite core 2 p'ce, Instruction Sheet ZFX-SR10R/SR50R/SC10R: Mounting fixture (ZFV-XMF3) 1 set, Ferrite core 2 p'ces, Instruction Sheet	ZFX-SC50/SC50W/ SC90/SC90W: Mounting fixture (ZFV-XMF2) 1 p'ce, Ferrite core 2 p'ces, Instruction Sheet ZFX-SC50R/90R: Mounting fixture (ZFV-XMF4) 1 set, Ferrite core 2 p'ces, Instruction Sheet

Item	ZFX-SC90/ SC90W/ SC90R	ZFX-SC150/ SC150W/ SC150R	ZFX-S (monochrome type)	ZFX-SC (color type)
Detection range (H x V)	49 mm x 49 mm to 89 mm x 89 mm (variable)	89 mm x 89 mm to 148 mm x 148 mm (variable)	The CCTV lens is selected according to the detection range and the setting distance.
Setting distance (L)	67 mm to 142 mm	115 mm to 227 mm
Relationship between setting distance and detection range
Image capture element	All-pixel capture inter-line transfer type 1/3" CCD (color)	All-pixel capture inter-line transfer type 1/3" CCD (monochrome)	All-pixel capture inter-line transfer type 1/3" CCD (color)
Effective number of pixels	659 (H) x 494 (V)
Pixel size	7.4 μm (H) x 7.4 μm (V)
Shutter speed	1/170s to 1/20000s
Partial function (partial capture)	1/2 partial, 1/4 partial	Not available	1/2 partial, 1/4 partial
Image rate function	Not available	Fine, Normal, High speed	Not available
Frame rate (at capture of entire screen)	90 fps
Lens mount	--- (with Lens)	C mount
Lighting	Lighting method	Pulse lighting	---
LED	White LED
Type	Direct lighting
Guide light	Not available
Optional lighting I/F	Available (ZFV-LT Series)	Not available	Not available
Indicator Class	Risk Group 1 (IEC62471-2)	---
Ratings	Power supply voltage (supplied from Controller)	15 VDC, 48 VDC
Current consumption	Approx. 350 mA (15 VDC: approx. 150 mA, 48 VDC: approx. 200 mA) (including current consumption when optional lighting is connected)	Approx. 160 mA
Operation environ- ment robust- ness	Ambient temperature range	Operating: 0 to + 40°C, Storage: -20 to +65°C (with no icing or condensation)	Operating: 0 to + 50°C, Storage: -25 to +65°C (with no icing or condensation)
Ambient humidity range	Operating and storage: 35% to 85% (with no condensation)
Ambient atmosphere	No corrosive gases allowed
Degree of protection	ZFX-SC___: IP65 (IEC60529), ZFX-SC___W: IP67 (IEC60529)	IP20 (IEC60529)
Dielectric strength	1000 VAC 50 Hz/60 Hz 1 min	500VAC 50 Hz/60Hz 1 min
Vibration resistance (durability)	10 to 150 Hz Single-amplitude 0.35 mm 10 times for 8 min each in X, Y, and Z directions
Shock resistance (destructive)	150 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
Connection method	Cable built-in type (cable length: 2 m)	Connector connection type (camera cable ZFX-VS/VSR required)
Cable type	ZFX-SC[][][]/SC[][][]W/SR[][]: Normal cable ZFX-SC[][][]R/SR[][]R: Robot cable
Material	ZFX-SR10/SR50/SC10/SC50/ SC50W/SC90/SC90W/SC150/ SC150W/SC150R: Case: ABS, mounting fixture: PBT ZFX-SR10R/SR50R/SC10R/SC50R/ SC90R: Case: ABS, Mounting fixture (base): Aluminum, Mounting fixture (bracket): Stainless steel	Case: Aluminum die-cast, Cover: Zinc-plated copper plate 0.5 mm thick, Camera mounting base: ABS
Weight	ZFX-SC90/SC90W: Approx. 300 g (including mounting fixture and cable) ZFX-SC90R: Approx. 400 g (including mounting fixture and cable)	Approx. 600 g (including mounting fixture and cable)	Approx. 80 g
Accessories	ZFX-SC50/SC50W/ SC90/SC90W: Mounting fixture (ZFV-XMF2) 1 p'ce, Ferrite core 2 p'ces, Instruction Sheet ZFX-SC50R/90R: Mounting fixture (ZFV-XMF4) 1 set, Ferrite core 2 p'ces, Instruction Sheet	Ferrite core 2 p'ces, Instruction Sheet	Instruction Sheet

Return to OMRON

Appearance	Power supply	Circuit type	Model
1-camera model	DC 21.6 to 26.4 V	NPN	ZFX-C10
1-camera model		PNP	ZFX-C15
2-camera model		NPN	ZFX-C20
2-camera model		PNP	ZFX-C25

OMRON ZFXSensors/ Vision Sensors / Machine Vision Systems/Other Vision Sensors

OMRON ZFX Dimensions

Easy Vision Being Our Vision

"Smart Recipe" with condensed know-how (World's first)

One-touch automatic setting

Smart Recipe

Step1: Choose best lighting (Patent pending)

Built-in lighting camera that enables an advanced automatic lighting

Step2: Choose measurement icon

Step3: Draw region, press and go

3-step position correction

Tailored Measurement item

Pattern search (Fastest in the industry)

Sensitive search

Defect

Region

Hue

Bright

Position

Width

Count

Visualized Controller

Visualized setting and monitoring (Smallest in class)

Intensive camera solutions

Built-in lighting cameraTriple-speed camera (IP65)

C-mount camera unitTriple-speed camera

Innovative triple-speed camera(Fastest in the industry)

Excellent ease of use

Flexible installation

Hybrid interface

Purchase the OMRON Other Vision Sensors Please fill in the following

OMRON ZFX catalog

English

Global Edition

OMRON ZFX lineup

Controllers

Cameras

Camera Cables

Camera extension cable

Other cable

Accessories

CCTV Lenses

Extension Tubes

OMRON ZFX specification

Controllers

Cameras

OMRON ZFX dimension

Controllers

ZFX-C20/C25/C10H/C15H/C10/C15

Panel Mount Adapters

ZFX-XPM

Optional Lighting

ZFV-LTL01

ZFV-LTL02

ZFV-LTL04

ZFV-LTF01

Cameras

ZFX-SR10/SR50

ZFX-SR10R/SR50R

ZFX-SC10

ZFX-SC10R

ZFX-SC50/SC50W

ZFX-SC50R

ZFX-SC90/SC90W

ZFX-SC90R

ZFX-SC150/SC150W

ZFX-S/SC

LCD Monitor

FZ-M08

Console

ZFX-KP

Built-in lighting camera
Triple-speed camera (IP65)

C-mount camera unit
Triple-speed camera

Innovative triple-speed camera
(Fastest in the industry)
