OMRON R88M-K, R88D-KN[]-ML2Motion / Drives/ Servomotors / Servo Drivers/Copyright Statement

OMRON R88M-K, R88D-KN[]-ML2 Motion / Drives

R88M-K, R88D-KN[]-ML2 G5-series AC Servomotors/Servo Drives with Built-in MECHATROLINK-II Communications/Catalog
R88M-K, R88D-KN[]-ML2 G5-series AC Servomotors/Servo Drives with Built-in MECHATROLINK-II Communications/Lineup
R88M-K, R88D-KN[]-ML2 G5-series AC Servomotors/Servo Drives with Built-in MECHATROLINK-II Communications/Specifications
R88M-K, R88D-KN[]-ML2 G5-series AC Servomotors/Servo Drives with Built-in MECHATROLINK-II Communications/Dimensions
Purchase the OMRON R88M-K, R88D-KN[]-ML2 Copyright Statement

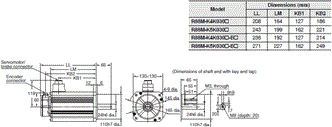

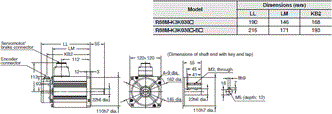

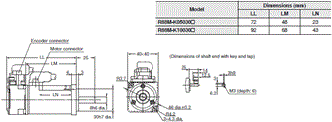

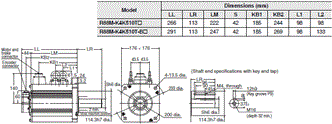

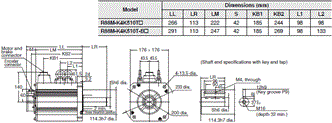

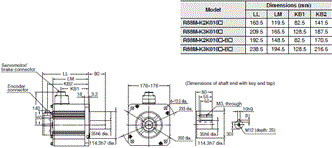

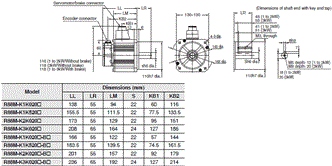

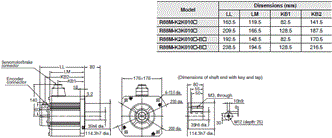

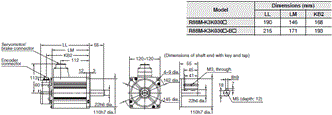

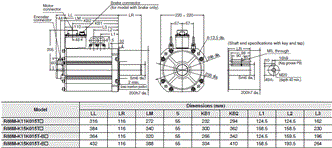

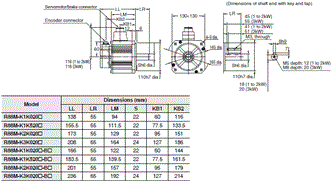

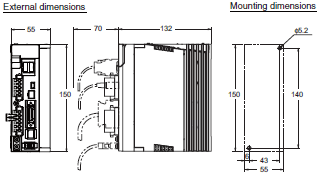

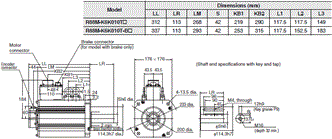

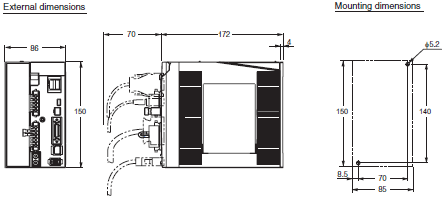

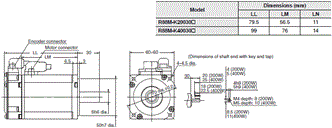

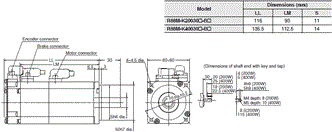

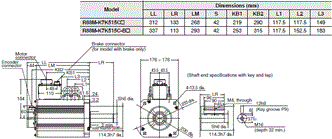

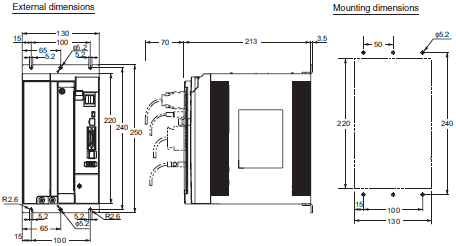

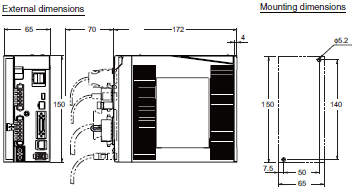

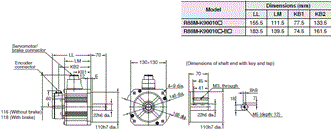

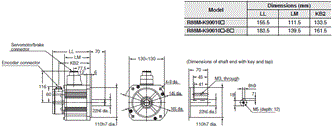

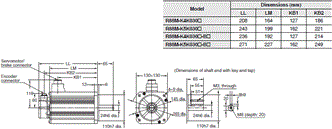

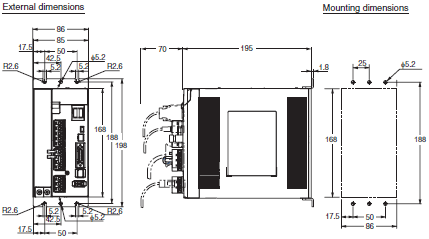

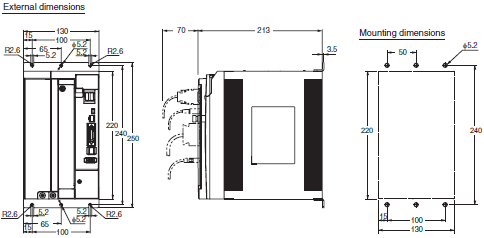

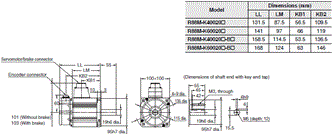

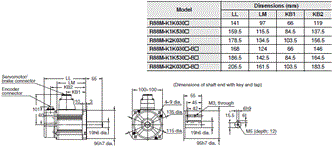

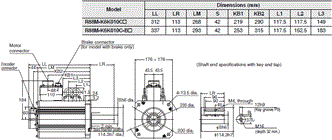

OMRON R88M-K, R88D-KN[]-ML2 Dimensions

/Images/l_2627-25-119008-198x198.jpg

last update: November 6, 2012

• Data transfer using MECHATROLINK-II Communications:
All control data that can be interfaced between the Servo Driver and the Controller is transmitted using data
communications. This enables maximizing the Servomotor performance without restricting the transmission
performance of the control signals.

• Having a communications module built into the Servo Driver significantly saves space in the control panel.

last update: November 6, 2012

Purchase the OMRON Copyright Statement Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON R88M-K, R88D-KN[]-ML2 Motion / Drives,Motion / Drives is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Motion / Drives at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the R88M-K, R88D-KN[]-ML2 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON R88M-K, R88D-KN[]-ML2Motion / Drives tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E8PC IoT Pressure Sensors/Features
NS Series Programmable Terminals/Features
E2EC-M / -Q Stainless Steel Sensing Surface Amplifier Proximity Sensor/Features
ZN-DPX21-S Differential Pressure Station/Features
XW2R (General-purpose devices) Connector-Terminal Block Conversion Units for General-purpose Devi...

OMRON R88M-K, R88D-KN[]-ML2 catalog
R88M-K, R88D-KN[]-ML2 G5-series AC Servomotors/Servo Drives with Built-in MECHATROLINK-II Communications/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

G5 Series Data Sheet I816-E1-07
[19590KB] Jul 05, 201820180705 G5 Series Data Sheet

G5 Series Catalog I815-E1-07
[12846KB] Dec 10, 201820181210 G5 Series Catalog

OMRON R88M-K, R88D-KN[]-ML2 lineup
R88M-K, R88D-KN[]-ML2 G5-series AC Servomotors/Servo Drives with Built-in MECHATROLINK-II Communications/Lineup
last update: November 1, 2017
AC Servo Drives
MECHATROLINK-II Communications

Specifications Model
Power Model Supply Voltage Applicable Servomotor Capacity
Single-phase
100 VAC 50 W R88D-KNA5L-ML2
100 W R88D-KN01L-ML2
200 W R88D-KN02L-ML2
400 W R88D-KN04L-ML2
Single-phase/three-phase
200 VAC 100 W R88D-KN01H-ML2
200 W R88D-KN02H-ML2
400 W R88D-KN04H-ML2
750 W R88D-KN08H-ML2
1 kW R88D-KN10H-ML2
1.5 kW R88D-KN15H-ML2
Three-phase
200 VAC 2 kW R88D-KN20H-ML2
3 kW R88D-KN30H-ML2
5 kW R88D-KN50H-ML2
Three-phase
400 VAC 600 W R88D-KN06F-ML2
1 kW R88D-KN10F-ML2
1.5 kW R88D-KN15F-ML2
2 kW R88D-KN20F-ML2
3 kW R88D-KN30F-ML2
5 kW R88D-KN50F-ML2

AC Servomotors
＜Cylinder Type＞
3,000-r/min servomotors

Specifications Model
With incremental encoder
Straight shaft with key and tap
Voltage Rated output Without oil seals
Without brake 100 V 50 W R88M-K05030H-S2
100 W R88M-K10030L-S2
200 W R88M-K20030L-S2
400 W R88M-K40030L-S2
200 V 50 W R88M-K05030H-S2
100 W R88M-K10030H-S2
200 W R88M-K20030H-S2
400 W R88M-K40030H-S2
750 W R88M-K75030H-S2
1 kW R88M-K1K030H-S2
1.5 kW R88M-K1K530H-S2
2 kW R88M-K2K030H-S2
3 kW R88M-K3K030H-S2
4 kW R88M-K4K030H-S2
5 kW R88M-K5K030H-S2
400 V 750 W R88M-K75030F-S2
1 kW R88M-K1K030F-S2
1.5 kW R88M-K1K530F-S2
2 kW R88M-K2K030F-S2
3 kW R88M-K3K030F-S2
4 kW R88M-K4K030F-S2
5 kW R88M-K5K030F-S2
With brake 100 V 50 W R88M-K05030H-BS2
100 W R88M-K10030L-BS2
200 W R88M-K20030L-BS2
400 W R88M-K40030L-BS2
200 V 50 W R88M-K05030H-BS2
100 W R88M-K10030H-BS2
200 W R88M-K20030H-BS2
400 W R88M-K40030H-BS2
750 W R88M-K75030H-BS2
1 kW R88M-K1K030H-BS2
1.5 kW R88M-K1K530H-BS2
2 kW R88M-K2K030H-BS2
3 kW R88M-K3K030H-BS2
4 kW R88M-K4K030H-BS2
5 kW R88M-K5K030H-BS2
400 V 750 W R88M-K75030F-BS2
1 kW R88M-K1K030F-BS2
1.5 kW R88M-K1K530F-BS2
2 kW R88M-K2K030F-BS2
3 kW R88M-K3K030F-BS2
4 kW R88M-K4K030F-BS2
5 kW R88M-K5K030F-BS2
Note: Models with oil seals are also available.

Specifications Model
With incremental encoder
Straight shaft without key
Voltage Rated output Without oil seals
Without brake 100 V 50 W R88M-K05030H
100 W R88M-K10030L
200 W R88M-K20030L
400 W R88M-K40030L
200 V 50 W R88M-K05030H
100 W R88M-K10030H
200 W R88M-K20030H
400 W R88M-K40030H
750 W R88M-K75030H
1 kW R88M-K1K030H
1.5 kW R88M-K1K530H
2 kW R88M-K2K030H
3 kW R88M-K3K030H
4 kW R88M-K4K030H
5 kW R88M-K5K030H
400 V 750 W R88M-K75030F
1 kW R88M-K1K030F
1.5 kW R88M-K1K530F
2 kW R88M-K2K030F
3 kW R88M-K3K030F
4 kW R88M-K4K030F
5 kW R88M-K5K030F
With brake 100 V 50 W R88M-K05030H-B
100 W R88M-K10030L-B
200 W R88M-K20030L-B
400 W R88M-K40030L-B
200 V 50 W R88M-K05030H-B
100 W R88M-K10030H-B
200 W R88M-K20030H-B
400 W R88M-K40030H-B
750 W R88M-K75030H-B
1 kW R88M-K1K030H-B
1.5 kW R88M-K1K530H-B
2 kW R88M-K2K030H-B
3 kW R88M-K3K030H-B
4 kW R88M-K4K030H-B
5 kW R88M-K5K030H-B
400 V 750 W R88M-K75030F-B
1 kW R88M-K1K030F-B
1.5 kW R88M-K1K530F-B
2 kW R88M-K2K030F-B
3 kW R88M-K3K030F-B
4 kW R88M-K4K030F-B
5 kW R88M-K5K030F-B
Note: Models with oil seals are also available.

Specifications Model
With incremental encoder
Straight shaft with key and tap
Voltage Rated output Without oil seals
Without brake 100 V 50 W R88M-K05030T-S2
100 W R88M-K10030S-S2
200 W R88M-K20030S-S2
400 W R88M-K40030S-S2
200 V 50 W R88M-K05030T-S2
100 W R88M-K10030T-S2
200 W R88M-K20030T-S2
400 W R88M-K40030T-S2
750 W R88M-K75030T-S2
1 kW R88M-K1K030T-S2
1.5 kW R88M-K1K530T-S2
2 kW R88M-K2K030T-S2
3 kW R88M-K3K030T-S2
4 kW R88M-K4K030T-S2
5 kW R88M-K5K030T-S2
400 V 750 W R88M-K75030C-S2
1 kW R88M-K1K030C-S2
1.5 kW R88M-K1K530C-S2
2 kW R88M-K2K030C-S2
3 kW R88M-K3K030C-S2
4 kW R88M-K4K030C-S2
5 kW R88M-K5K030C-S2
With brake 100 V 50 W R88M-K05030T-BS2
100 W R88M-K10030S-BS2
200 W R88M-K20030S-BS2
400 W R88M-K40030S-BS2
200 V 50 W R88M-K05030T-BS2
100 W R88M-K10030T-BS2
200 W R88M-K20030T-BS2
400 W R88M-K40030T-BS2
750 W R88M-K75030T-BS2
1 kW R88M-K1K030T-BS2
1.5 kW R88M-K1K530T-BS2
2 kW R88M-K2K030T-BS2
3 kW R88M-K3K030T-BS2
4 kW R88M-K4K030T-BS2
5 kW R88M-K5K030T-BS2
400 V 750 W R88M-K75030C-BS2
1 kW R88M-K1K030C-BS2
1.5 kW R88M-K1K530C-BS2
2 kW R88M-K2K030C-BS2
3 kW R88M-K3K030C-BS2
4 kW R88M-K4K030C-BS2
5 kW R88M-K5K030C-BS2
Note: Models with oil seals are also available.

Specifications Model
With incremental encoder
Straight shaft without key
Voltage Rated output Without oil seals
Without brake 100 V 50 W R88M-K05030T
100 W R88M-K10030S
200 W R88M-K20030S
400 W R88M-K40030S
200 V 50 W R88M-K05030T
100 W R88M-K10030T
200 W R88M-K20030T
400 W R88M-K40030T
750 W R88M-K75030T
1 kW R88M-K1K030T
1.5 kW R88M-K1K530T
2 kW R88M-K2K030T
3 kW R88M-K3K030T
4 kW R88M-K4K030T
5 kW R88M-K5K030T
400 V 750 W R88M-K75030C
1 kW R88M-K1K030C
1.5 kW R88M-K1K530C
2 kW R88M-K2K030C
3 kW R88M-K3K030C
4 kW R88M-K4K030C
5 kW R88M-K5K030C
With brake 100 V 50 W R88M-K05030T-B
100 W R88M-K10030S-B
200 W R88M-K20030S-B
400 W R88M-K40030S-B
200 V 50 W R88M-K05030T-B
100 W R88M-K10030T-B
200 W R88M-K20030T-B
400 W R88M-K40030T-B
750 W R88M-K75030T-B
1 kW R88M-K1K030T-B
1.5 kW R88M-K1K530T-B
2 kW R88M-K2K030T-B
3 kW R88M-K3K030T-B
4 kW R88M-K4K030T-B
5 kW R88M-K5K030T-B
400 V 750 W R88M-K75030C-B
1 kW R88M-K1K030C-B
1.5 kW R88M-K1K530C-B
2 kW R88M-K2K030C-B
3 kW R88M-K3K030C-B
4 kW R88M-K4K030C-B
5 kW R88M-K5K030C-B
Note: Models with oil seals are also available.

2,000-r/min servomotors

Specifications Model
With incremental encoder
Straight shaft with key and tap
Voltage Rated output Without oil seals
Without brake 200 V 1 kW R88M-K1K020H-S2
1.5 kW R88M-K1K520H-S2
2 kW R88M-K2K020H-S2
3 kW R88M-K3K020H-S2
4 kW R88M-K4K020H-S2
5 kW R88M-K5K020H-S2
400 V 400 W R88M-K40020F-S2
600 W R88M-K60020F-S2
1 kW R88M-K1K020F-S2
1.5 kW R88M-K1K520F-S2
2 kW R88M-K2K020F-S2
3 kW R88M-K3K020F-S2
4 kW R88M-K4K020F-S2
5 kW R88M-K5K020F-S2
With brake 200 V 1 kW R88M-K1K020H-BS2
1.5 kW R88M-K1K520H-BS2
2 kW R88M-K2K020H-BS2
3 kW R88M-K3K020H-BS2
4 kW R88M-K4K020H-BS2
5 kW R88M-K5K020H-BS2
400 V 400 W R88M-K40020F-BS2
600 W R88M-K60020F-BS2
1 kW R88M-K1K020F-BS2
1.5 kW R88M-K1K520F-BS2
2 kW R88M-K2K020F-BS2
3 kW R88M-K3K020F-BS2
4 kW R88M-K4K020F-BS2
5 kW R88M-K5K020F-BS2
Note: Models with oil seals are also available.

Specifications Model
With incremental encoder
Straight shaft without key
Voltage Rated output Without oil seals
Without brake 200 V 1 kW R88M-K1K020H
1.5 kW R88M-K1K520H
2 kW R88M-K2K020H
3 kW R88M-K3K020H
4 kW R88M-K4K020H
5 kW R88M-K5K020H
400 V 400 W R88M-K40020F
600 W R88M-K60020F
1 kW R88M-K1K020F
1.5 kW R88M-K1K520F
2 kW R88M-K2K020F
3 kW R88M-K3K020F
4 kW R88M-K4K020F
5 kW R88M-K5K020F
With brake 200 V 1 kW R88M-K1K020H-B
1.5 kW R88M-K1K520H-B
2 kW R88M-K2K020H-B
3 kW R88M-K3K020H-B
4 kW R88M-K4K020H-B
5 kW R88M-K5K020H-B
400 V 400 W R88M-K40020F-B
600 W R88M-K60020F-B
1 kW R88M-K1K020F-B
1.5 kW R88M-K1K520F-B
2 kW R88M-K2K020F-B
3 kW R88M-K3K020F-B
4 kW R88M-K4K020F-B
5 kW R88M-K5K020F-B
Note: Models with oil seals are also available.

Specifications Model
With incremental encoder
Straight shaft with key and tap
Voltage Rated output Without oil seals
Without brake 200 V 1 kW R88M-K1K020T-S2
1.5 kW R88M-K1K520T-S2
2 kW R88M-K2K020T-S2
3 kW R88M-K3K020T-S2
4 kW R88M-K4K020T-S2
5 kW R88M-K5K020T-S2
400 V 400 W R88M-K40020C-S2
600 W R88M-K60020C-S2
1 kW R88M-K1K020C-S2
1.5 kW R88M-K1K520C-S2
2 kW R88M-K2K020C-S2
3 kW R88M-K3K020C-S2
4 kW R88M-K4K020C-S2
5 kW R88M-K5K020C-S2
With brake 200 V 1 kW R88M-K1K020T-BS2
1.5 kW R88M-K1K520T-BS2
2 kW R88M-K2K020T-BS2
3 kW R88M-K3K020T-BS2
4 kW R88M-K4K020T-BS2
5 kW R88M-K5K020T-BS2
400 V 400 W R88M-K40020C-BS2
600 W R88M-K60020C-BS2
1 kW R88M-K1K020C-BS2
1.5 kW R88M-K1K520C-BS2
2 kW R88M-K2K020C-BS2
3 kW R88M-K3K020C-BS2
4 kW R88M-K4K020C-BS2
5 kW R88M-K5K020C-BS2

Note: Models with oil seals are also available.

Specifications Model
With incremental encoder
Straight shaft without key
Voltage Rated output Without oil seals
Without brake 200 V 1 kW R88M-K1K020T
1.5 kW R88M-K1K520T
2 kW R88M-K2K020T
3 kW R88M-K3K020T
4 kW R88M-K4K020T
5 kW R88M-K5K020T
400 V 400 W R88M-K40020C
600 W R88M-K60020C
1 kW R88M-K1K020C
1.5 kW R88M-K1K520C
2 kW R88M-K2K020C
3 kW R88M-K3K020C
4 kW R88M-K4K020C
5 kW R88M-K5K020C
With brake 200 V 1 kW R88M-K1K020T-B
1.5 kW R88M-K1K520T-B
2 kW R88M-K2K020T-B
3 kW R88M-K3K020T-B
4 kW R88M-K4K020T-B
5 kW R88M-K5K020T-B
400 V 400 W R88M-K40020C-B
600 W R88M-K60020C-B
1 kW R88M-K1K020C-B
1.5 kW R88M-K1K520C-B
2 kW R88M-K2K020C-B
3 kW R88M-K3K020C-B
4 kW R88M-K4K020C-B
5 kW R88M-K5K020C-B

Note: Models with oil seals are also available.

1,000-r/min servomotors

Specifications Model
With incremental encoder
Straight shaft with key and tap
Voltage Rated output Without oil seals
Without brake 200 V 900 W R88M-K90010H-S2
2 kW R88M-K2K010H-S2
3 kW R88M-K3K010H-S2
400 V 900 W R88M-K90010F-S2
2 kW R88M-K2K010F-S2
3 kW R88M-K3K010F-S2
With brake 200 V 900 W R88M-K90010H-BS2
2 kW R88M-K2K010H-BS2
3 kW R88M-K3K010H-BS2
400 V 900 W R88M-K90010F-BS2
2 kW R88M-K2K010F-BS2
3 kW R88M-K3K010F-BS2
Note: Models with oil seals are also available.

Specifications Model
With incremental encoder
Straight shaft without key
Voltage Rated output Without oil seals
Without brake 200 V 900 W R88M-K90010H
2 kW R88M-K2K010H
3 kW R88M-K3K010H
400 V 900 W R88M-K90010F
2 kW R88M-K2K010F
3 kW R88M-K3K010F
With brake 200 V 900 W R88M-K90010H-B
2 kW R88M-K2K010H-B
3 kW R88M-K3K010H-B
400 V 900 W R88M-K90010F-B
2 kW R88M-K2K010F-B
3 kW R88M-K3K010F-B
Note: Models with oil seals are also available.

Specifications Model
With incremental encoder
Straight shaft with key and tap
Voltage Rated output Without oil seals
Without brake 200 V 900 W R88M-K90010T-S2
2 kW R88M-K2K010T-S2
3 kW R88M-K3K010T-S2
400 V 900 W R88M-K90010C-S2
2 kW R88M-K2K010C-S2
3 kW R88M-K3K010C-S2
With brake 200 V 900 W R88M-K90010T-BS2
2 kW R88M-K2K010T-BS2
3 kW R88M-K3K010T-BS2
400 V 900 W R88M-K90010C-BS2
2 kW R88M-K2K010C-BS2
3 kW R88M-K3K010C-BS2

Note: Models with oil seals are also available.

Specifications Model
With incremental encoder
Straight shaft without key
Voltage Rated output Without oil seals
Without brake 200 V 900 W R88M-K90010T
2 kW R88M-K2K010T
3 kW R88M-K3K010T
400 V 900 W R88M-K90010C
2 kW R88M-K2K010C
3 kW R88M-K3K010C
With brake 200 V 900 W R88M-K90010T-B
2 kW R88M-K2K010T-B
3 kW R88M-K3K010T-B
400 V 900 W R88M-K90010C-B
2 kW R88M-K2K010C-B
3 kW R88M-K3K010C-B

Note: Models with oil seals are also available.

Decelerators (Backlash = 3' Max./Backlash = 15' Max.)
Backlash = 3' Max
＜Cylinder Type＞
3,000-r/min servomotors

[Straight shaft without key]
Motor capacity Gear Ratio Model (Straight shaft)
50 W 1/5 R88G-HPG11B05100B
1/9 R88G-HPG11B09050B
1/21 R88G-HPG14A21100B
1/33 R88G-HPG14A33050B
1/45 R88G-HPG14A45050B
100 W 1/5 R88G-HPG11B05100B
1/11 R88G-HPG14A11100B
1/21 R88G-HPG14A21100B
1/33 R88G-HPG20A33100B
1/45 R88G-HPG20A45100B
200 W 1/5 R88G-HPG14A05200B
1/11 R88G-HPG14A11200B
1/21 R88G-HPG20A21200B
1/33 R88G-HPG20A31400B
1/45 R88G-HPG20A45200B
400 W 1/5 R88G-HPG14A05400B
1/11 R88G-HPG20A11400B
1/21 R88G-HPG20A21400B
1/33 R88G-HPG32A33400B
1/45 R88G-HPG32A45400B
750 W
(200 V) 1/5 R88G-HPG20A05750B
1/11 R88G-HPG20A11750B
1/21 R88G-HPG32A21750B
1/33 R88G-HPG32A33750B
1/45 R88G-HPG32A45750B
750 W
(400 V) 1/5 R88G-HPG32A052K0B
1/11 R88G-HPG32A112K0B
1/21 R88G-HPG32A211K5B
1/33 R88G-HPG32A33600SB
1/45 R88G-HPG50A451K5B
1 kW 1/5 R88G-HPG32A052K0B
1/11 R88G-HPG32A112K0B
1/21 R88G-HPG32A211K5B
1/33 R88G-HPG50A314K0B
1/45 R88G-HPG50A451K5B
1.5 kW 1/5 R88G-HPG32A052K0B
1/11 R88G-HPG32A112K0B
1/21 R88G-HPG32A211K5B
1/33 R88G-HPG50A314K0B
1/45 R88G-HPG50A451K5B
2 kW 1/5 R88G-HPG32A052K0B
1/11 R88G-HPG32A112K0B
1/21 R88G-HPG50A212K0B
1/33 R88G-HPG50A314K0B
3 kW 1/5 R88G-HPG32A053K0B
1/11 R88G-HPG50A113K0B
1/21 R88G-HPG50A213K0B
4 kW 1/5 R88G-HPG32A054K0B
1/11 R88G-HPG50A115K0B
5 kW 1/5 R88G-HPG50A055K0B
1/11 R88G-HPG50A115K0B
Note: 1. The standard models have a straight shaft.
2. To order a Servomotor with a straight shaft with key, add “J” to the end of the model number, in the place
indicated by the box.

2,000-r/min servomotors

[Straight shaft without key]
Motor capacity Gear Ratio Model (Straight shaft)
400 W 1/5 R88G-HPG32A052K0B
1/11 R88G-HPG32A112K0B
1/21 R88G-HPG32A211K5B
1/33 R88G-HPG32A33600SB
1/45 R88G-HPG32A45400SB
600 W 1/5 R88G-HPG32A052K0B
1/11 R88G-HPG32A112K0B
1/21 R88G-HPG32A211K5B
1/33 R88G-HPG32A33600SB
1/45 R88G-HPG50A451K5B
1 kW 1/5 R88G-HPG32A053K0B
1/11 R88G-HPG32A112K0SB
1/21 R88G-HPG32A211K0SB
1/33 R88G-HPG50A314K0SB
1/45 R88G-HPG50A451K0SB
1.5 kW 1/5 R88G-HPG32A053K0B
1/11 R88G-HPG32A112K0SB
1/21 R88G-HPG50A213K0B
1/33 R88G-HPG50A314K0SB
2 kW 1/5 R88G-HPG32A053K0B
1/11 R88G-HPG32A112K0SB
1/21 R88G-HPG50A213K0B
1/33 R88G-HPG50A314K0SB
3 kW 1/5 R88G-HPG32A054K0B
1/11 R88G-HPG50A115K0B
1/21 R88G-HPG50A213K0SB
1/25 R88G-HPG65A253K0SB
4 kW 1/5 R88G-HPG50A055K0SB
1/11 R88G-HPG50A115K0SB
1/20 R88G-HPG65A205K0SB
1/25 R88G-HPG65A255K0SB
5 kW 1/5 R88G-HPG50A055K0SB
1/11 R88G-HPG50A115K0SB
1/20 R88G-HPG65A205K0SB
1/25 R88G-HPG65A255K0SB
Note: 1. The standard models have a straight shaft.
2. To order a Servomotor with a straight shaft with key, add “J” to the end of the model number, in the place
indicated by the box.

1,000-r/min servomotors

[Straight shaft without key]
Motor capacity Gear Ratio Model (Straight shaft)
900 W 1/5 R88G-HPG32A05900TB
1/11 R88G-HPG32A11900TB
1/21 R88G-HPG50A21900TB
1/33 R88G-HPG50A33900TB
2 kW 1/5 R88G-HPG32A052K0TB
1/11 R88G-HPG50A112K0TB
1/21 R88G-HPG50A212K0TB
1/25 R88G-HPG65A255K0SB
3 kW 1/5 R88G-HPG50A055K0SB
1/11 R88G-HPG50A115K0SB
1/20 R88G-HPG65A205K0SB
1/25 R88G-HPG65A255K0SB
Note: 1. The standard models have a straight shaft.
2. To order a Servomotor with a straight shaft with key, add “J” to the end of the model number, in the place
indicated by the box.

Backlash = 15' Max
＜Cylinder Type＞
3,000-r/min servomotors

[Straight shaft with key]

Motor capacity Gear Ratio Model (Straight shaft)
50 W 1/5 R88G-VRXF05B100CJ
1/9 R88G-VRXF09B100CJ
1/15 R88G-VRXF15B100CJ
1/25 R88G-VRXF25B100CJ
100 W 1/5 R88G-VRXF05B100CJ
1/9 R88G-VRXF09B100CJ
1/15 R88G-VRXF15B100CJ
1/25 R88G-VRXF25B100CJ
200 W 1/5 R88G-VRXF05B200CJ
1/9 R88G-VRXF09C200CJ
1/15 R88G-VRXF15C200CJ
1/25 R88G-VRXF25C200CJ
400 W 1/5 R88G-VRXF05C400CJ
1/9 R88G-VRXF09C400CJ
1/15 R88G-VRXF15C400CJ
1/25 R88G-VRXF25C400CJ
750 W
(200 V) 1/5 R88G-VRXF05C750CJ
1/9 R88G-VRXF09D750CJ
1/15 R88G-VRXF15D750CJ
1/25 R88G-VRXF25D750CJ

Note: Decelerators (Backlash = 15' Max.)
The new R88G-VRXF Series of the Decelerators (Backlash = 15' Max.) was released in October 2017.
The old R88G-VRSF Series will be discontinued at the end of March 2019.

Accessories and Cables
Connection Cables (Power Cables, Brake Cables, Encoder Cables)
＜Non-flexible Cables＞
Power cable

Specifications Without brake With brake
Model Model
[100 V/200 V]
3,000-r/min Servomotors of 50 to 750 W 3 m R88A-CAKA003S
5 m R88A-CAKA005S
10 m R88A-CAKA010S
15 m R88A-CAKA015S
20 m R88A-CAKA020S
30 m R88A-CAKA030S
40 m R88A-CAKA040S
50 m R88A-CAKA050S
[200 V]
3,000-r/min Servomotors of 1 to 2 kW
2,000-r/min Servomotors of 1 to 2 kW
1,000-r/min Servomotors of 900 W 3 m R88A-CAGB003S R88A-CAGB003B
5 m R88A-CAGB005S R88A-CAGB005B
10 m R88A-CAGB010S R88A-CAGB010B
15 m R88A-CAGB015S R88A-CAGB015B
20 m R88A-CAGB020S R88A-CAGB020B
30 m R88A-CAGB030S R88A-CAGB030B
40 m R88A-CAGB040S R88A-CAGB040B
50 m R88A-CAGB050S R88A-CAGB050B
[400 V]
3,000-r/min Servomotors of 750 W to 2 kW
2,000-r/min Servomotors of 400 W to 2 kW
1,000-r/min Servomotors of 900 W 3 m R88A-CAGB003S R88A-CAKF003B
5 m R88A-CAGB005S R88A-CAKF005B
10 m R88A-CAGB010S R88A-CAKF010B
15 m R88A-CAGB015S R88A-CAKF015B
20 m R88A-CAGB020S R88A-CAKF020B
30 m R88A-CAGB030S R88A-CAKF030B
40 m R88A-CAGB040S R88A-CAKF040B
50 m R88A-CAGB050S R88A-CAKF050B
[200 V] [400 V]
3,000-r/min Servomotors of 3 to 5 kW
2,000-r/min Servomotors of 3 to 5 kW
1,000-r/min Servomotors of 2 to 4.5 kW 3 m R88A-CAGD003S R88A-CAGD003B
5 m R88A-CAGD005S R88A-CAGD005B
10 m R88A-CAGD010S R88A-CAGD010B
15 m R88A-CAGD015S R88A-CAGD015B
20 m R88A-CAGD020S R88A-CAGD020B
30 m R88A-CAGD030S R88A-CAGD030B
40 m R88A-CAGD040S R88A-CAGD040B
50 m R88A-CAGD050S R88A-CAGD050B
[200 V] [400 V]
1,500-r/min Servomotors of 7.5 kW
1,000-r/min Servomotors of 6 kW 3 m R88A-CAGE003S
5 m R88A-CAGE005S
10 m R88A-CAGE010S
15 m R88A-CAGE015S
20 m R88A-CAGE020S
30 m R88A-CAGE030S
40 m R88A-CAGE040S
50 m R88A-CAGE050S
Note: 1. Different connectors are used for the motor power and the brake on 100-V and 200-V, 3,000-r/min Servomotors
of 50 to 750 W and Servomotors of 6 to 15 kW. When using a Servomotor with a brake, two cables are
required: a Power Cable without Brake and a Brake Cable.
2. For non-flexible power cables for Servomotors of 11 or 15 kW, refer to the G5 series USER'S MANUAL and make
your own cable.
Confirm the Manual No. that is listed in Related Manuals.

Brake Cable

Specifications Non-flexible Cables
Model
[100 V][200 V]
3,000-r/min
Servomotors of 50 to 750 W 3 m R88A-CAKA003B
5 m R88A-CAKA005B
10 m R88A-CAKA010B
15 m R88A-CAKA015B
20 m R88A-CAKA020B
30 m R88A-CAKA030B
40 m R88A-CAKA040B
50 m R88A-CAKA050B
[200 V][400 V]
1,500-r/min
Servomotors of 7.5 to 15 kW
1,000-r/min
Servomotors of 6 kW 3 m R88A-CAGE003B
5 m R88A-CAGE005B
10 m R88A-CAGE010B
15 m R88A-CAGE015B
20 m R88A-CAGE020B
30 m R88A-CAGE030B
40 m R88A-CAGE040B
50 m R88A-CAGE050B

Encoder Cable

Specifications Non-flexible Cables
Model
[100 V/200 V]
3,000-r/min Servomotors of 50 to 750 W 3 m R88A-CRKA003C
5 m R88A-CRKA005C
10 m R88A-CRKA010C
15 m R88A-CRKA015C
20 m R88A-CRKA020C
30 m R88A-CRKA030C
40 m R88A-CRKA040C
50 m R88A-CRKA050C
[100 V and 200 V]
3,000-r/min Servomotors of 1.0 kW or more
2,000-r/min Servomotors
1,500-r/min Servomotors
1,000-r/min Servomotors
[400 V]
3,000-r/min Servomotors
2,000-r/min Servomotors
1,500-r/min Servomotors
1,000-r/min Servomotors 3 m R88A-CRKC003N
5 m R88A-CRKC005N
10 m R88A-CRKC010N
15 m R88A-CRKC015N
20 m R88A-CRKC020N
30 m R88A-CRKC030N
40 m R88A-CRKC040N
50 m R88A-CRKC050N

＜Flexible Cables＞
Power cable

Specifications Without brake With brake
Model Model
[100 V/200 V]
3,000-r/min Servomotors of 50 to 750 W 3 m R88A-CAKA003SR Note: There are separate
connectors for power and brakes
for 3,000-r/min Servomotors of
50 to 750W. When a Servomotor
with a brake is used, it is
necessary to use both a
PowerCable for Servomotors
without brakes and Power cable.
5 m R88A-CAKA005SR
10 m R88A-CAKA010SR
15 m R88A-CAKA015SR
20 m R88A-CAKA020SR
30 m R88A-CAKA030SR
40 m R88A-CAKA040SR
50 m R88A-CAKA050SR
[200 V]
3,000-r/min Servomotors of 1 to 2 kW
2,000-r/min Servomotors of 1 to 2 kW
1,000-r/min Servomotors of 900 W 3 m R88A-CAGB003SR R88A-CAGB003BR
5 m R88A-CAGB005SR R88A-CAGB005BR
10 m R88A-CAGB010SR R88A-CAGB010BR
15 m R88A-CAGB015SR R88A-CAGB015BR
20 m R88A-CAGB020SR R88A-CAGB020BR
30 m R88A-CAGB030SR R88A-CAGB030BR
40 m R88A-CAGB040SR R88A-CAGB040BR
50 m R88A-CAGB050SR R88A-CAGB050BR
[400 V]
3,000-r/min Servomotors of 750 W to 2 kW
2,000-r/min Servomotors of 400 W to 2 kW
1,000-r/min Servomotors of 900 W 3 m R88A-CAGB003SR R88A-CAKF003BR
5 m R88A-CAGB005SR R88A-CAKF005BR
10 m R88A-CAGB010SR R88A-CAKF010BR
15 m R88A-CAGB015SR R88A-CAKF015BR
20 m R88A-CAGB020SR R88A-CAKF020BR
30 m R88A-CAGB030SR R88A-CAKF030BR
40 m R88A-CAGB040SR R88A-CAKF040BR
50 m R88A-CAGB050SR R88A-CAKF050BR
[200 V] [400 V]
3,000-r/min Servomotors of 3 to 5 kW
2,000-r/min Servomotors of 3 to 5 kW
1,000-r/min Servomotors of 4.5 kW 3 m R88A-CAGD003SR R88A-CAGD003BR
5 m R88A-CAGD005SR R88A-CAGD005BR
10 m R88A-CAGD010SR R88A-CAGD010BR
15 m R88A-CAGD015SR R88A-CAGD015BR
20 m R88A-CAGD020SR R88A-CAGD020BR
30 m R88A-CAGD030SR R88A-CAGD030BR
40 m R88A-CAGD040SR R88A-CAGD040BR
50 m R88A-CAGD050SR R88A-CAGD050BR
Note: 1. Different connectors are used for the motor power and the brake on 100-V and 200-V, 3,000-r/min Servomotors
of 50 to 750 W and Servomotors of 6 to 15 kW. When using a Servomotor with a brake, two cables are
required: a Power Cable without Brake and a Brake Cable.
Note: 2. For flexible power cables for Servomotors of 11 to 15 kW, refer to the G5 series USER'S MANUAL and make your
own cable.
For flexible power cables for Servomotors of 6 to 7.5 kW, refer to the G5 series USER'S MANUAL and make your
own power cable.

Brake Cable

Specifications Flexible Cables
Model
[100 V] [200 V]
3,000-r/min
Servomotors of 50 to 750 W 3 m R88A-CAKA003BR
5 m R88A-CAKA005BR
10 m R88A-CAKA010BR
15 m R88A-CAKA015BR
20 m R88A-CAKA020BR
30 m R88A-CAKA030BR
40 m R88A-CAKA040BR
50 m R88A-CAKA050BR
Note: For flexible brake cables for Servomotors of 6 to 15 kW, refer to the G5 series USER'S MANUAL and make your own
brake cable. Confirm the Manual No. that is listed in Related Manuals.

Encoder Cable

Specifications Flexible Cables
Model
[100 V/200 V]
3,000-r/min Servomotors of 50 to 750 W
(for both absolute encoders and incremental
encoders) 3 m R88A-CRKA003CR
5 m R88A-CRKA005CR
10 m R88A-CRKA010CR
15 m R88A-CRKA015CR
20 m R88A-CRKA020CR
30 m R88A-CRKA030CR
40 m R88A-CRKA040CR
50 m R88A-CRKA050CR
[100 V and 200 V]
3,000-r/min Servomotors of 1.0 kW or more
2,000-r/min Servomotors
1,500-r/min Servomotors
1,000-r/min Servomotors
[400 V]
3,000-r/min Servomotors
2,000-r/min Servomotors
1,500-r/min Servomotors
1,000-r/min Servomotors 3 m R88A-CRKC003NR
5 m R88A-CRKC005NR
10 m R88A-CRKC010NR
15 m R88A-CRKC015NR
20 m R88A-CRKC020NR
30 m R88A-CRKC030NR
40 m R88A-CRKC040NR
50 m R88A-CRKC050NR

Cable/Connector
Absolute Encoder Battery Cable

Name Length model
Absolute Encoder Battery Cable (Battery not included) 0.3 m R88A-CRGD0R3C
Absolute Encoder Battery Cable (One R88A-BAT01G Battery included) 0.3 m R88A-CRGD0R3C-BS

Absolute Encoder Backup Battery

Specifications Model
2,000 mA ・ h 3.6 V R88A-BAT01G

Analog Monitor Cable

Name Length Model
Analog Monitor Cable 1 m R88A-CMK001S

Servo Drive Connectors (common)

Name Connects to Model
Encoder Connector CN2 R88A-CNW01R
External Scale Connector CN4 R88A-CNK41L
Safety Bypass Connector CN8 R88A-CNK81S

Servo Drive Connectors

Name Connects to Model
Control I/O Connector CN1 R88A-CNW01C

Servomotor Connector

Name Model
Applicable Servomotor Capacity
Servomotor Connector for Encoder Cable [100 V/200 V]
3,000 r/min (50 to 750 W) R88A-CNK02R
[100 V/200 V]
3,000 r/min (1 to 5 kW)
2,000r/min, 1,000r/min
[400 V]
3,000 r/min, 2,000 r/min, 1,000 r/min R88A-CNK04R
Power Cable Connector (750 W max.) R88A-CNK11A
Brake Cable Connector (750 W max.) R88A-CNK11B

External Encoder Cable

Name Lengths Model
Serial Communications Cable 10 m R88A-CRKE010SR

Control Cables
Control Cables (for Connector Terminal Block/CN1)

Name Model
Specifications
Connector Terminal
Block Cables MECHATROLINK-II Communications
EtherCAT Communications Length 1.0 m XW2Z-100J-B34
Length 2.0 m XW2Z-200J-B34
Connector Terminal
Block Conversion Unit Conversion Unit for General-purpose
Controllers (M3 screws) Through type XW2B-20G4
Conversion Unit for General-purpose
Controllers (M3.5 screws) XW2B-20G5
Conversion Unit for General-purpose
Controllers (M3 screws) Slim type XW2D-20G6

Communication Cables
MECHATROLINK-II Communications
MECHATROLINK-related Devices and Cables (Manufactured by Yaskawa Corporation)

Name Model
(OMRON model
number) Yaskawa model number
Length
MECHATROLINK-II Cables
(without ring core and USB connector on
both ends)
* Can be connected to R88D-GN and
R88D-KN only. 0.5 m FNY-W6002-A5 JEPMC-W6002-A5-E
1.0 m FNY-W6002-01 JEPMC-W6002-01-E
3.0 m FNY-W6002-03 JEPMC-W6002-03-E
5.0 m FNY-W6002-05 JEPMC-W6002-05-E
MECHATROLINK-II Cables
(with ring core and USB connector on both
ends) 0.5 m FNY-W6003-A5 JEPMC-W6003-A5
1.0 m FNY-W6003-01 JEPMC-W6003-01
3.0 m FNY-W6003-03 JEPMC-W6003-03
5.0 m FNY-W6003-05 JEPMC-W6003-05
10.0 m FNY-W6003-10 JEPMC-W6003-10
20.0 m FNY-W6003-20 JEPMC-W6003-20
30.0 m FNY-W6003-30 JEPMC-W6003-30
MECHATROLINK-II Terminating
Resistor Terminating resistance FNY-W6022 JEPMC-W6022
MECHATROLINK-II Repeater Communications Repeater --- JEPMC-REP2000-E

Peripheral Devices (External Regeneration Resistors, Reactors, Mounting Brackets)
External Regeneration Resistors

Specifications Model
80 W 50 Ω R88A-RR08050S
80 W 100 Ω R88A-RR080100S
220 W 47 Ω R88A-RR22047S1
500 W 20 Ω R88A-RR50020S

Reactors

Specifications Model
MECHATROLINK-II Communications
R88D-KNA5L-ML2/-KN01H-ML2 (For single-phase input) 3G3AX-DL2002
R88D-KN01L-ML2/-KN02H-ML2 (For single-phase input) 3G3AX-DL2004
R88D-KN02L-ML2/-KN04H-ML2 (For single-phase input) 3G3AX-DL2007
R88D-KN04L-ML2/-KN08H-ML2/-KN10H-ML2 (For single-phase input) 3G3AX-DL2015
R88D-KN15H-ML2 (For single-phase input) 3G3AX-DL2022
R88D-KN01H-ML2/-KN02H-ML2/-KN04H-ML2/-KN08H-ML2/-KN10H-ML2/-KN15H-ML2
(For three-phase input) 3G3AX-AL2025
R88D-KN20H-ML2/-KN30H-ML2 3G3AX-AL2055
R88D-KN50H-ML2 3G3AX-AL2110
R88D-KN06F-ML2/-KN10F-ML2/-KN15F-ML2 3G3AX-AL4025
R88D-KN20F-ML2/-KN30F-ML2 3G3AX-AL4055
R88D-KN50F-ML2 3G3AX-AL4110
- 3G3AX-AL4220

Mounting Brackets (L Brackets for Rack Mounting)

Specifications Model
MECHATROLINK-II Communications
R88D-KNA5L-ML2/-KN01L-ML2/-KN01HML2/-KN02H-ML2 R88A-TK01K
R88D-KN02L-ML2/-KN04H-ML2 R88A-TK02K
R88D-KN04L-ML2/-KN08H-ML2 R88A-TK03K
R88D-KN10H-ML2/-KN15H-ML2/-KN06FML2/-KN10F-ML2/-KN15F-ML2 R88A-TK04K
Note: Mounting brackets are provided with Servo Drives of 2 to 15 kW.

Software
How to Select Required Support Software for Your Controller

The required Support Software depends on the Controller to connect. Please check the following table when purchasing the Support Software.
Item Omron PLC System Omron Machine Automation Controller System
Controller CS, CJ, CP, and other series NJ-series
AC
Servomotor/
Drivers G5-series
EtherCAT Communications
EtherCAT Communications Linear Motor
General-purpose input type(PulseTrain or
Analog inputs)
MECHATROLINK-II Communications G5-series
EtherCAT Communications (Unit version 2.1 or
later recommended)
EtherCAT Communications Linear Motor
Software FA Intergrated Tool Package CX-One Automation Software Sysmac Studio

FA Integrated Tool Package CX-One

Product
name Specifications Model Stand-
ards
Number of
licenses Media
FA Integrated
Tool Package
CX-One
Ver.4.[] The CX-One is a comprehensive software
package that integrates Support Software
for OMRON PLCs and components.
CX-One runs on following OS.
OS: Windows XP (Service Pack 3 or higher,
32-bit version) /
Windows Vista (32-bit/64-bit version) /
Windows 7 (32-bit/64-bit version) /
Windows 8 (32-bit/64-bit version) /
Windows 8.1 (32-bit/64-bit version)/
Windows 10 (32-bit/64-bit version)

CX-One Version.4.[] includes CX-Drive Ver.2.[].
For details, refer to the CX-One catalog
(Cat. No. R134). 1 license
* DVD CXONE-AL01D-V4 -

* Multi licenses (3, 10, 30, or 50 licenses) and DVD media without licenses are also available for the CX-One.

Automation Software Sysmac Studio

Please purchase a DVD and required number of licenses the first time you purchase the Sysmac Studio. DVDs and licenses are available individually. Each model of licenses does not include any DVD.

Product
name Specifications Model Stand-
ards
Number of
licenses Media
Sysmac
Studio
Standard
Edition
Ver.1.[][] The Sysmac Studio is the software that provides
an integrated environment for setting,
programming, debugging and maintenance of
machine automation controllers including the
NJ/NX-series CPU Units, NY-series Industrial PC,
EtherCAT Slave, and the HMI.

Sysmac Studio runs on the following OS.
Windows 7 (32-bit/64-bit version) /
Windows 8 (32-bit/64-bit version) /
Windows 8.1 (32-bit/64-bit version) /
Windows 10 (32-bit/64-bit version)

The Sysmac Studio Standard Edition DVD includes
Support Software to set up EtherNet/IP Units,
DeviceNet slaves, Serial Communications Units,
and Support Software for creating screens on
HMIs (CXDesigner).
For details, refer to your OMRON website. -
(Media only) DVD SYSMAC-SE200D -
1 license * - SYSMAC-SE201L

* Multi licenses are available for the Sysmac Studio (3, 10, 30, or 50 licenses).

last update: November 1, 2017

OMRON R88M-K, R88D-KN[]-ML2 specification
R88M-K, R88D-KN[]-ML2 G5-series AC Servomotors/Servo Drives with Built-in MECHATROLINK-II Communications/Specifications
last update: May 7, 2018
AC Servo Drives
General Specifications

Item Specifications
Ambient operating temperature and operating
humidity 0 to +55C, 85% max. (with no condensation)
Storage ambient temperature and humidity -20 to +65C, 85% max. (with no condensation)
Operating and storage atmosphere No corrosive gases
Vibration resistance 10 to 60 Hz and at an acceleration of 5.88 m/s² or less (Not to be
run continuously at the resonance point)
Insulation resistance Between power supply terminal/power terminal and FG terminal:
0.5 MΩ min. (at 500 VDC Megger)
Dielectric strength Between power supply/power line terminals and FG terminal:
1,500 VAC for 1 min at 50/60 Hz
Protective structure Built into panel
International
standard EC directives EMC directive EN55011, EN61000-6-2, IEC61800-3
Low voltage
directive EN61800-5-1
Machinery
directives EN954-1 (Cat.3), EN ISO 13849-1: 2008 (PLc,d), ISO 13849-1: 2006
(PLc,d), EN61508 (SIL2), EN62061 (SIL2), EN61800-5-2 (STO),
IEC61326-3-1 (SIL2)
UL standards UL508C
CSA standards CSA C22.2 No.14
Korean Radio Regulations (KC) Certified

Note: 1. The above items reflect individual evaluation testing. The results may differ under compound conditions.
Note: 2. Always disconnect all connections to the Servo Drive before you perform insulation resistance tests on it. If you
perform an insulation resistance test while the Servo Drive is connected, the Servo Drive may be damaged.
Never perform dielectric strength tests on the Servo Drive. Failure to follow this precaution may result in
damaging internal elements.
Note: 3. Some Servo Drive parts will require maintenance. For details, refer to the G5 series USER'S MANUAL.
Confirm the Manual No. that is listed in Related Manuals.

Characteristics
Servo Driver with 100 VAC Input Power
for Single-phase input type

Item R88D-KNA5L-ML2 R88D-KN01L-ML2 R88D-KN02L-ML2 R88D-KN04L-ML2
Continuous output current (rms) 1.2 A 1.7 A 2.5 A 4.6 A
Input
power
supply Main circuit Power supply
capacity 0.4 KVA 0.4 KVA 0.5 KVA 0.9 KVA
Power supply
voltage Single-phase 100 to 120 VAC (85 to 132 V), 50/60 Hz
Rated current 1.7 A 2.6 A 4.3 A 7.6 A
Heat value *1 11 W 16.6 W 21 W 25 W
Control
circuit Power supply
voltage Single-phase 100 to 120 VAC (85 to 132 V), 50/60 Hz
Heat value *1 4 W 4 W 4 W 4 W
Weight Approx. 0.8 kg Approx. 0.8 kg Approx. 1.0 kg Approx. 1.6 kg
Maximum applicable motor capacity 50 W 100 W 200 W 400 W
Applicable
Servo-
motors
(R88M-) 3,000 r/min
Servomotors [INC] K05030H K10030L K20030L K40030L
[ABS] K05030T K10030S K20030S K40030S
2,000 r/min
Servomotors [ABS] - - - -
1,000 r/min
Servomotors [ABS] - - - -

*1. The heat value is given for rated operation.

Servo Driver with 200 VAC Input Power
for Single-phase/Three-phase input type

Item R88D-
KN01H-ML2 R88D-

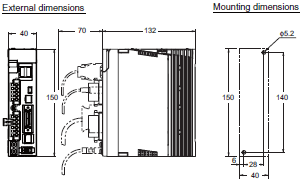

KN02H-ML2 R88D-
KN04H-ML2 R88D-
KN08H-ML2 R88D-
KN10H-ML2 R88D-
KN15H-ML2
Continuous output current (rms) 1.2 A 1.6 A 2.6 A 4.1 A 5.9 A 9.4 A
Input
power
supply Main circuit Power supply
capacity 0.5 KVA 0.5 KVA 0.9 KVA 1.3 KVA 1.8 KVA 2.3 KVA
Power supply
voltage Single-phase or Three-phase 200 to 240 VAC (170 to 264 V), 50/60 Hz
Rated current 1.6/0.9 A *1 2.4/1.3 A *1 4.1/2.4 A *1 6.6/3.6 A *1 9.1/5.2 A *1 14.2/8.1 A *1
Heat value *2 14.3/13.7W *1 23/19 W *1 33/24 W *1 30/35.5 W *1 57/49 W *1 104/93 W *1
Control
circuit Power supply
voltage Single-phase 200 to 240 VAC (170 to 264 V), 50/60 Hz
Heat value *2 4 W 4 W 4 W 4 W 7 W 7 W
Weight Approx.
0.8 kg Approx.
0.8 kg Approx.
1.1 kg Approx.
1.6 kg Approx.
1.8 kg Approx.
1.8 kg
Maximum applicable motor capacity 100 W 200 W 400 W 750 W 1 kW 1.5 kW
Applicable
Servo-
motors
(R88M-) 3,000 r/min
Servomotors [INC] K05030H
K10030H K20030H K40030H K75030H - K1K030H
K1K530H
[ABS] K05030T
K10030T K20030T K40030T K75030T - K1K030T
K1K530T
2,000 r/min
Servomotors [INC] - - - - K1K020H K1K520H
[ABS] - - - - K1K020T K1K520T
1,000 r/min
Servomotors [INC] - - - - - K90010H
[ABS] - - - - - K90010T

*1. The left value is for single-phase input power and the right value is for three-phase input power.
*2. The heat value is given for rated operation.

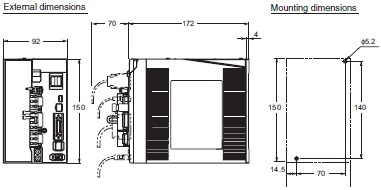

Servo Driver with 200 VAC Input Power
for Three-phase input type

Item R88D-KN20H-ML2 R88D-KN30H-ML2 R88D-KN50H-ML2
Continuous output current (rms) 13.4 A 18.7 A 33.0 A
Input power
supply Main circuit Power supply capacity 3.3 KVA 4.5 KVA 7.5 KVA
Power supply voltage Three-phase 200 to 230 VAC (170 to 253 V), 50/60 Hz
Rated current 11.8 A 15.1 A 21.6 A
Heat value *1 139 W 108 W 328 W
Control circuit Power supply voltage Single-phase 200 to 230 VAC (170 to 253 V), 50/60 Hz
Heat value *1 10 W 13 W 13 W
Weight Approx. 2.7 kg Approx. 4.8 kg Approx. 4.8 kg
Maximum applicable motor capacity 2 kW 3 kW 5 kW
Applicable
Servomotors
(R88M-) 3,000 r/min
Servomotors [INC] K2K030H K3K030H K4K030H
K5K030H
[ABS] K2K030T K3K030T K4K030T
K5K030T
2,000 r/min
Servomotors [INC] K2K020H K3K020H K4K020H
K5K020H
[ABS] K2K020T K3K020T K4K020T
K5K020T
1,000 r/min
Servomotors [INC] - K2K010H K3K010H
[ABS] - K2K010T K3K010T

*1. The heat value is given for rated operation.

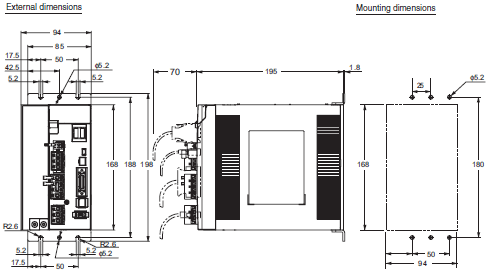

Servo Driver with 400 VAC Input Power
for Three-phase input type

Item R88D-
KN06F-ML2 R88D-
KN10F-ML2 R88D-
KN15F-ML2 R88D-
KN20F-ML2 R88D-
KN30F-ML2 R88D-
KN50F-ML2
Continuous output current (rms) 1.5 A 2.9 A 4.7 A 6.7 A 9.4 A 16.5 A
Input
power
supply Main circuit Power supply
capacity 1.2 KVA 1.8 KVA 2.3 KVA 3.8 KVA 4.5 KVA 6.0 KVA
Power supply
voltage Single-phase 380 to 480 VAC (323 to 528 V), 50/60 Hz
Rated current 2.1 A 2.8 A 3.9 A 5.9 A 7.6 A 12.1 A
Heat value *1 32.2 W 48 W 49 W 65 W 108 W 200 W
Control
circuit Power supply
voltage 24 VDC (20.4 to 27.6)
Heat value *1 7 W 7 W 7 W 10 W 13 W 13 W
Weight Approx.
1.9 kg Approx.
1.9 kg Approx.
1.9 kg Approx.
2.7 kg Approx.
4.7 kg Approx.
4.7 kg
Maximum applicable motor capacity 600 W 1 kW 1.5 kW 2 kW 3 kW 5 kW
Applicable
Servo-
motors
(R88M-) 3,000 r/min
Servomotors [INC] - K75030F K1K030F
K1K530F K2K030F K3K030F K4K030F
K5K030F
[ABS] - K75030C K1K030C
K1K530C K2K030C K3K030C K4K030C
K5K030C
2,000 r/min
Servomotors [INC] K40020F
K60020F K1K020F K1K520F K2K020F K3K020F K4K020F
K5K020F
[ABS] K40020C
K60020C K1K020C K1K520C K2K020C K3K020C K4K020C
K5K020C
1,000 r/min
Servomotors [INC] - - K90010F - K2K010F K3K010F
[ABS] - - K90010C - K2K010C K3K010C

*1. The heat value is given for rated operation.

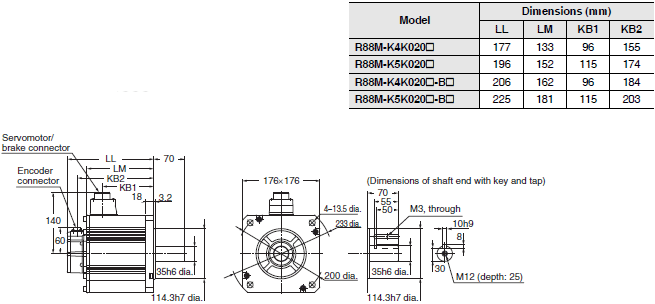

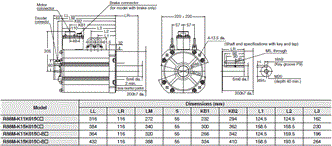

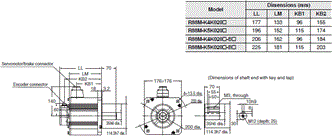

AC Servomotors
General Specifications

Item 3,000-r/min motors 1,000-r/min motors
1,500-r/min motors
2,000-r/min motors
50 to 750 W 1 to 5 kW 900 W to 15 kW
Ambient operating temperature
and operating humidity 0 to 40°C
20 to 85% RH (with no condensation)
Storage ambient temperature
and humidity -20 to +65°C, 20% to 85% RH (with no condensation)
Guaranteed maximum temperature: 72 hours at 80°C
Operating and storage atmosphere No corrosive gases
Vibration resistance *1 Acceleration of 49 m/s² *2
24.5 m/s² max. in X, Y, and Z directions when the motor is stopped
Impact resistance Acceleration of 98 m/s² max. 3 times each in X, Y, and Z directions
Insulation resistance Between power terminal and FG terminal: 20 MΩ min. (at 500 VDC Megger)
Dielectric strength 1,500 VAC between power terminal and FG terminal (sensed current 10 mA)
for 1 min (voltage 100 V, 200 V)
1,800 VAC between power terminal and FG terminal (sensed current 10 mA)
for 1 min (voltage 400 V)
1,000 VAC between brake terminal and FG terminal (sensed current 10 mA)
for 1 min
Insulation class Class B Class F
Protective structure IP67 (except for through-shaft parts and motor and encoder connector pins)
Interna-
tional
standard EC
directive Low voltage
directive EN60034-1/-5
UL standards UL1004-1 UL1004-1,
UL1004-6 *3
CSA standards CSA C22.2 No.100

*1. The amplitude may be amplified by machine resonance. Do not exceed 80% of the specified value for extended
periods of time.
*2. 24.5m/s² is specified for 1,500-r/min Servomotors of 7.5 to 15 kW and 1,000-r/min Servomotors of 4.5 to 6 kW.
*3. UL 1004-6 applies only to 1,500-r/min Servomotors of 7.5 to 15 kW and 1,000-r/min Servomotors of 4.5 to 6 kW.
Note: 1. Do not use the cable when it is laying in oil or water.
Note: 2. Do not expose the cable outlet or connections to stress due to bending or the weight of the cable itself.
Note: 3. Always disconnect all connections to the Servo Motor before you perform insulation resistance tests on it. If you
perform an insulation resistance test while the Servo Motor is connected, the Servo Motor may be damaged.
Never perform dielectric strength tests on the Servo Motor. Failure to follow this precaution may result in
damaging internal elements.
Note: 4. To conform EMC directive, the tips on wiring and installation written in the G5 series user's manual must be
followed.Confirm the Manual No. that is listed in Related Manuals.

Characteristics
＜Cylinder type＞

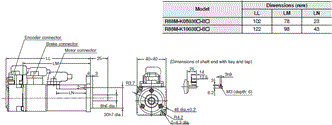

3,000 r/min Servomotors (100 VAC Input Power)

Model (R88M-) K05030H K10030L K20030L K40030L
Item Unit K05030T K10030S K20030S K40030S
Rated output *1 W 50 100 200 400
Rated torque *1 N • m 0.16 0.32 0.64 1.3
Rated rotation speed r/min 3,000
Momentary maximum rotation speed r/min 6,000
Momentary maximum torque *1 N • m 0.48 0.95 1.91 3.8
Rated current *1 A (rms) 1.1 1.6 2.5 4.6
Momentary maximum current *1 A (0-p) 4.7 6.9 10.6 19.5
Rotor
inertia Without brake kg • m² 0.025 × 10^-4 0.051 × 10^-4 0.14 × 10^-4 0.26 × 10^-4
With brake kg • m² 0.027 × 10^-4 0.054 × 10^-4 0.16 × 10^-4 0.28 × 10^-4
Applicable load inertia - 30 times the rotor inertia max. *2
Torque constant *1 N • m/A 0.11±10% 0.14±10% 0.20±10% 0.21±10%
Power
rate *1 Without brake kW/s 10.1 19.8 28.9 62.4
With brake kW/s 9.4 18.7 25.3 37.8
Mechanical
time
constant Without brake ms 1.43 1.03 0.61 0.48
With brake ms 1.54 1.09 0.70 0.52
Electrical time constant ms 0.82 0.91 3.0 3.4
Allowable radial load *3 N 68 68 245 245
Allowable thrust load *3 N 58 58 98 98
Weight Without brake kg Approx. 0.31 Approx. 0.45 Approx. 0.78 Approx. 1.2
With brake kg Approx. 0.51 Approx. 0.65 Approx. 1.2 Approx. 1.6
Radiator plate dimensions (material) 100 × 80 × t10 (AI) 130 × 120 × t12 (AI)
Applicable drivers (R88D-) KTA5L/
KNA5L-ML2/
KNA5L-ECT KT01L/
KN01L-ML2/
KN01L-ECT KT02L/
KN02L-ML2/
KN02L-ECT KT04L/
KN04L-ML2/
KN04L-ECT
Brake
specifica-
tions Brake inertia kg • m² 2 × 10^-7 2 × 10^-7 1.8 × 10^-6 1.8 × 10^-6
Excitation voltage *4 V 24 VDC±5%
Power consumption
(at 20°C) W 7 7 9 9
Current consumption
(at 20°C) A 0.3 0.3 0.36 0.36
Static friction torque N • m 0.29 min. 0.29 min. 1.27 min. 1.27 min.
Attraction time ms 35 max. 35 max. 50 max. 50 max.
Release time ms 20 max. *5 20 max. *5 15 max. *5 15 max. *5
Backlash ±1°
Allowable work per
braking J 39.2 39.2 137 137
Allowable total work J 4.9 × 10³ 4.9 × 10³ 44.1 × 10³ 44.1 × 10³
Allowable angular
acceleration rad/s² 30,000 max. (Speed of 2,800 r/min or more must not be
changed in less than 10 ms)
Brake limit - 10 million times min.
Rating - Continuous
Insulation class - Type F

*1. These are the values when the motor is combined with a driver at normal temperature (20°C, 65%). The momentary
maximum torque indicates the standard value.
*2. Applicable load inertia.
• The operable load inertia ratio (load inertia/rotor inertia) depends on the mechanical configuration and its rigidity.
For a machine with high rigidity, operation is possible even with high load inertia. Select an appropriate motor and
confirm that operation is possible.
• If the dynamic brake is activated frequently with high load inertia, the Dynamic Brake Resistor may burn. Do not
repeatedly turn the servo ON/OFF while the dynamic brake is enabled.
• The dynamic brake is designed only for emergency stops. Design the system so that the Servomotor remains
stopped for at least 10 minutes after applying the dynamic brake. Otherwise the dynamic brake circuits may fail.
*3. The allowable radial and thrust loads are the values determined for a limit of 20,000 hours at normal operating
temperatures. The allowable radial loads are applied as shown in the following diagram.

*4. This is a non-excitation brake. (It is released when excitation voltage is applied.)
*5. Direct current switching with a varistor (TNR15G271K by Nippon Chemi-Con Corporation or Z15D271 by Ishizuka
Electronics Co.).

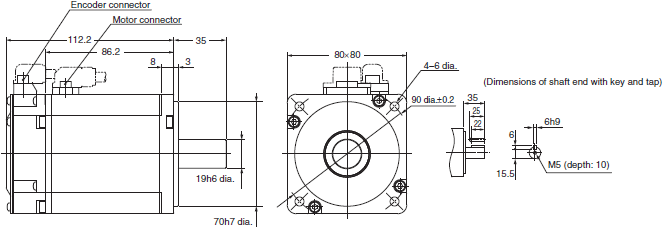

3,000 r/min Servomotors (200 VAC Input Power)

Model (R88M-) K05030H K10030H K20030H K40030H K75030H
Item Unit K05030T K10030T K20030T K40030T K75030T
Rated output *1 W 50 100 200 400 750
Rated torque *1 N • m 0.16 0.32 0.64 1.3 2.4
Rated rotation speed r/min 3,000
Momentary maximum
rotation speed r/min 6,000
Momentary maximum torque
*1 N • m 0.48 0.95 1.91 3.8 7.1
Rated current *1 A (rms) 1.1 1.1 1.5 2.4 4.1
Momentary maximum
current *1 A (0-p) 4.7 4.7 6.5 10.2
Rotor
inertia Without brake kg • m² 0.025 × 10^-4 0.051 × 10^-4 0.14 × 10^-4 0.26 × 10^-4 0.87 × 10^-4
With brake kg • m² 0.027 × 10^-4 0.054 × 10^-4 0.16 × 10^-4 0.28 × 10^-4 0.97 × 10^-4
Applicable load inertia - 30 times the rotor inertia max. *2 20 times the
rotor inertia
max. *2
Torque constant *1 N • m/A 0.11±10% 0.21±10% 0.32±10% 0.40±10% 0.45±10%
Power
rate *1 Without brake kW/s 10.1 19.8 28.9 62.3 65.4
With brake kW/s 9.4 18.7 25.3 57.8 58.7
Mechan-
ical time
constant Without brake ms 1.43 1.07 0.58 0.43 0.37
With brake ms 1.54 1.13 0.66 0.46 0.42
Electrical time constant ms 0.82 0.90 3.2 3.4 5.3
Allowable radial load *3 N 68 68 245 245 392
Allowable thrust load *3 N 58 58 98 98 147
Weight Without brake kg Approx. 0.31 Approx. 0.46 Approx. 0.79 Approx. 1.2 Approx. 2.3
With brake kg Approx. 0.51 Approx. 0.66 Approx. 1.2 Approx. 1.6 Approx. 3.1
Radiator plate dimensions (material) 100 × 80 × t10 (AI) 130 × 120 × t12 (AI) 170 × 160
× t12 (AI)
Applicable drivers (R88D-) KT01H/
KN01H-ML2/
KN01H-ECT KT01H/
KN01H-ML2/
KN01H-ECT KT02H/
KN02H-ML2/
KN02H-ECT KT04H/
KN04H-ML2/
KN04H-ECT KT08H/
KN08H-ML2/
KN08H-ECT
Brake
specifica-
tions Brake inertia kg • m² 2 × 10^-7 2 × 10^-7 1.8 × 10^-6 1.8 × 10^-6 0.75× 10^-5
Excitation
voltage *4 V 24 VDC±5%
Power
consumption
(at 20°C) W 7 7 9 9 10
Current
consumption
(at 20°C) A 0.3 0.3 0.36 0.36 0.42
Static friction
torque N • m 0.29 min. 0.29 min. 1.27 min. 1.27 min. 2.45 min.
Attraction time ms 35 max. 35 max. 50 max. 50 max. 70 max.
Release time ms 20 max. *5 20 max. *5 15 max. *5 15 max. *5 20 max. *5
Backlash ±1°
Allowable work
per braking J 39.2 39.2 137 137 196
Allowable total
work J 4.9 × 10³ 4.9 × 10³ 44.1 × 10³ 44.1 × 10³ 1.47 × 10⁵
Allowable
angular
acceleration rad/s² 30,000 max. (Speed of 2,800 r/min or more must not be
changed in less than 10 ms)
Brake limit - 10 million times min.
Rating - Continuous
Insulation class - Type F
