OMRON S8VK-T Dimensions
/Images/l_3369-25-215070-198x198.jpglast update: May 07, 2014
Compact power supplies…
Omron has developed a new and exciting family of compact power supplies. With the same high quality and practical design that made our previous series safe, reliable, and easy to install, the new S8VK series is even tougher, more compact and easier to use.
Omron is a world leader in the development and manufacture of industrial power supplies.
We launched our first compact product, the S82K, in 1987 and our S8VS compact series has been an automatic choice with customers since 2002.
To ensure that we provide the perfect solution to match every customer’s need, Omron has launched 4 different families: the cost effective S8VK-C, the standard with single-phase input S8VK-G, the standard with three-phase input S8VK-T, and the redundancy unit S8VK-R.
…that make a world of difference!
Three compelling reasons why the S8VK is the right power supply for you:
Resistant in tough environments
Omron is confident that the quality of the S8VK will exceed your high expectations. Its robust design and construction withstand harsh environments and provide stable operation over a wide operating temperature range. Because of high MTBF figures, your S8VK will keep running in stable condition for a long term.
Easy and fast installation
The S8VK series not only offers you greater flexibility when designing your machine, it also saves you time and reduces costs thanks to the minimal wiring requirements and easy one-handed mounting provided by the enhanced DIN-rail mounting clip.
The most compact class on the market
Designed with space saving in mind, the S8VK series is our most compact power-supply range ever and the most compact class on today’s market.
Resistant in tough environments
Wherever the S8VK is installed within the range of the S8VK derating curve, it will give the same reliable performance for the duration of its service life. The wide operating temperature range of between -40°C to 70°C (S8VK-G/T/R) guarantees stable operation in any environment where other power supplies may be found lacking. But its robust design advantages don't end there because the S8VK also offers high resistance to the vibration transmitted by machinery in close proximity, this is due to the vibration-resistant DIN-rail mounting clip.
Easy and fast installation
Making your life easier
Simply click onto a standard DIN rail using one hand to mount in a flash. Effortless and time saving! In addition, the S8VK features a double set of DC output terminals (three for the negative terminal), which means you also spend less time and effort on wiring.
Long-life guaranteed
Designed to international safety standards for global markets, the S8VK even has approvals for marine applications (S8VK-G/T/R) and carries an across-the-board, warranty on all models no matter which country your machine is exported to! Because of high MTBF figures, your S8VK will keep running in stable condition for a long term.
The most compact class on the market
Designed with downsizing in mind
Omron knows that size is important for machine designers, which is why we have applied our developed technology using thermal simulation for the design of the S8VK. This enabled the S8VK compact size body. This gives a high power density in a compact package. And the S8VK has an even sleeker exterior than any previous models.
last update: May 07, 2014
Purchase the OMRON Switch mode power supplies Please fill in the following
If you have just landed here, this product OMRON S8VK-T Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the S8VK-T We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON S8VK-TPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
SYSMAC-SE2[][][] Automation Software Sysmac Studio/Features
NX-EIC202 NX-series EtherNet/IP™ Coupler Unit/Features
CS1W-MAD44 SYSMAC CS-series Analog I/O Unit/Features
EWS-DE10 Energy Savings Analysis Software/Features
XW2R (PLCs) Connector-Terminal Block Conversion Units for PLCs/Features
OMRON S8VK-T dimension
S8VK-T Switch Mode Power Supply (120/240/480/960 W Models)/Dimensionslast update: July 01, 2016

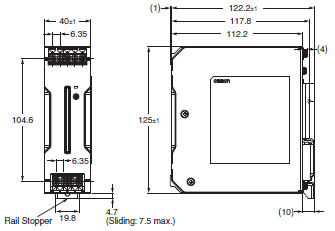

S8VK-T12024 (120 W)

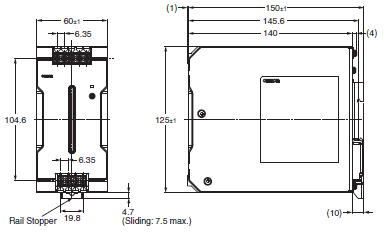

S8VK-T24024 (240 W)

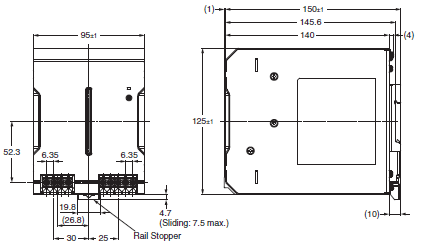

S8VK-T48024 (480 W)

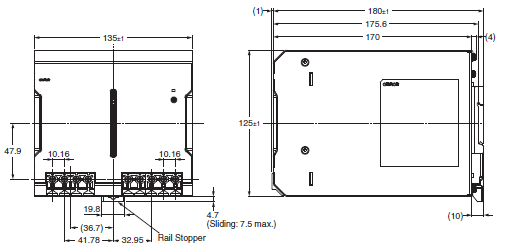

S8VK-T96024 (960 W)
DIN Rail (Order Separately)
Mounting Rail (Material: Aluminum)
PFP-100N
PFP-50N
PFP-100N2
End Plate
PFP-M
Note: If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic
filings may result from aluminum abrasion.

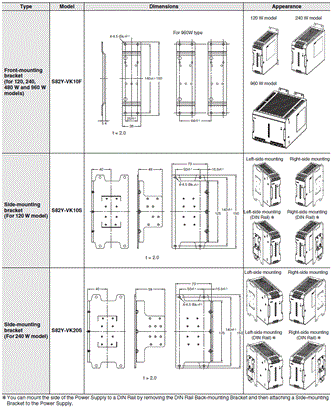

Mounting Brackets

last update: July 01, 2016
OMRON S8VK-T specification
S8VK-T Switch Mode Power Supply (120/240/480/960 W Models)/Specificationslast update: December 01, 2016
Ratings, Characteristics, and Functions
| Power rating | 120 W | 240 W | ||
|---|---|---|---|---|
| Output voltage | 24 V | 24 V | ||
| Efficiency | 3-phase, 400 VAC input *11 | 89% typ. | 89% typ. | |
| Input | Voltage range *1 | 3-phase, 380 to 480 VAC (allowable range: 320 to 576 VAC) 2-phase, 380 to 480 VAC (allowable range: 340 to 576 VAC) 450 to 600 VDC (allowable range: 450 to 810 VDC) *8 | ||
| Frequency *1 | 50/60 Hz (47 to 63 Hz) | |||
| Current | 3-phase, 400 VAC input *11 | 0.38 A typ. | 0.69 A typ. | |
| Power factor | - | - | ||
| Leakage current | 3-phase, 400 VAC input | 3.5 mA max./1.3 mA typ. | 3.5 mA max./1.4 mA typ. | |
| Inrush current (for a cold start at 25°C) *2 | 3-phase, 400 VAC input | 28 A typ. | 29 A typ. | |
| Output | Rated output current | 5 A | 10 A | |
| Boost current | 6 A | 12 A | ||
| Voltage adjustment range *3 | 22.5 to 29.5 VDC (with V.ADJ) (guaranteed) | |||
| Ripple & Noise voltage *4 | 3-phase, 400 VAC input *11 | 160 mV p-p max. at 20 MHz of bandwidth | 190 mV p-p max. at 20 MHz of bandwidth | |
| Input variation influence *13 | 0.5% max. | |||
| Load variation influence *12 | 1.5% max. | |||
| Temperature variation influence | 3-phase, 400 VAC input | 0.05%/°C max. | ||
| Start up time *2 | 3-phase, 400 VAC input *11 | 700 ms typ. | 600 ms typ. | |
| Hold time *2 | 3-phase, 400 VAC input *11 | 30 ms typ. | 20 ms typ. | |
| Additional functions | Overload protection | Yes, automatic reset | Yes, automatic reset | |
| Overvoltage protection | Yes, 130% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again) *5 | |||
| Series operation | Yes (For up to two Power Supplies, external diodes are required.) | |||
| Parallel operation | Yes (Refer to Engineering Data) (For up to two Power Supplies) | |||
| Output indicator | Yes (LED: Green), lighting from 80% to 90% or more of rated voltage | |||
| Insulation | Withstand voltage | 3.0 kVAC for 1 min. (between all input terminals and output terminals) cutoff current 20 mA 2.5 kVAC for 1 min. (between all input terminals and PE terminal) cutoff current 20 mA 1.0 kVAC for 1 min. (between all output terminals and PE terminal) cutoff current 30 mA | ||
| Insulation resistance | 100 MΩ min. (between all output terminals and all input terminals/PE terminal) at 500 VDC | |||
| Envi- ronment | Ambient operating temperature | -40 to 70°C (However, only startup is guaranteed for between -40°C to -25°C. (3-phase only)) (Derating is required according to the temperature.) (with no condensation or icing) | ||
| Storage temperature | -40 to 85°C (with no condensation or icing) | |||
| Ambient operating humidity | 0% to 95% (Storage humidity: 0% to 95%) | |||
| Vibration resistance | 10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z directions | |||
| Shock resistance | 150 m/s2, 3 times each in ±X, ±Y, and ±Z directions | |||
| Reliability | MTBF | 135,000 hrs min. | ||
| Life expectancy *10 | 10 years min. | |||
| Con- struction | Weight | 700 g max. | 1,000 g max. | |
| Cooling fan | No | |||
| Degree of protection | IP20 by EN/IEC 60529 | |||
| Standards | Harmonic current emissions | Conforms to EN 61000-3-2 | ||
| EMI | Conducted Emission | Conforms to EN 61204-3 Class B EN 55011 Class B | ||
| Radiated Emission | Conforms to EN 61204-3 Class B EN 55011 Class B | |||
| EMS | Conforms to EN 61204-3 high severity levels | |||
| Approved Standards *6 | UL Listed: UL 508 *7 EN: EN 50178 Lloyd's standards *9 ANSI/ISA 12.12.01 *7 | UL Listed: UL 508 *7 UL UR: UL 60950-1 (Recognition) cUR: CSA C22.2 No.60950-1 CSA: CSA C22.2 No.60950-1 EN: EN 50178, EN 60950-1 Lloyd's standards *9 ANSI/ISA 12.12.01 *7 | ||
| Conformed Standards | SELV (EN 50178), PELV (EN 60204-1, EN 50178) Safety of Power Transformers (EN 61558-2-16) EN 50274 for Terminal parts | SELV (EN 60950-1/EN 50178/ UL 60950-1) PELV (EN 60204-1, EN 50178) Safety of Power Transformers (EN 61558-2-16) EN 50274 for Terminal parts | ||
| SEMI | Conforms to F47-0706 (3-phase, 380 to 480 VAC input) | |||
| Power rating | 480 W | 960 W (768 W *18) | ||
|---|---|---|---|---|
| Output voltage | 24 V | 24 V | ||
| Efficiency | 3-phase, 400 VAC input *11 | 91% typ. | 92% typ. | |
| Input | Voltage range *1 | 3-phase, 380 to 480 VAC (allowable range: 320 to 576 VAC) 2-phase, 380 to 480 VAC (allowable range: 340 to 576 VAC) 450 to 600 VDC (allowable range: 450 to 810 VDC) *8 | 3-phase, 380 to 480 VAC (allowable range: 320 to 576 VAC) 2-phase, 380 to 480 VAC (allowable range: 340 to 576 VAC) | |
| Frequency *1 | 50/60 Hz (47 to 63 Hz) | |||
| Current | 3-phase, 400 VAC input *11 | 1.2 A typ. | 2.1 A typ. | |
| Power factor | - | - | ||
| Leakage current | 3-phase, 400 VAC input | 3.5 mA max./1.0 mA typ. | 3.5 mA max./1.2 mA typ. | |
| Inrush current (for a cold start at 25°C) *2 | 3-phase, 400 VAC input | 28 A typ. | ||
| Output | Rated output current | 20 A | 40 A at 3-phase (32 A at 2-phase) | |
| Boost current | 24 A | 48 A at 3-phase (Not possible at 2-phase) | ||
| Voltage adjustment range *3 | 22.5 to 29.5 VDC (with V.ADJ) (guaranteed) | 22.5 to 29.5 VDC (with V.ADJ) (guaranteed) *14 | ||
| Ripple & Noise voltage *4 | 3-phase, 400 VAC input *11 | 130 mV p-p max. at 20 MHz of bandwidth | 90 mV p-p max. at 20 MHz of bandwidth | |
| Input variation influence *13 | 0.5% max. | |||
| Load variation influence *12 | 1.5% max. | |||
| Temperature variation influence | 3-phase, 400 VAC input | 0.05%/°C max. | ||
| Start up time *2 | 3-phase, 400 VAC input *11 | 500 ms typ. | 700 ms typ. | |
| Hold time *2 | 3-phase, 400 VAC input *11 | 20 ms typ. | 20 ms typ. | |
| Additional functions | Overload protection | Yes, automatic reset | ||
| Overvoltage protection | Yes, 130% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again) *5 | |||
| Series operation | Yes (For up to two Power Supplies, external diodes are required.) | |||
| Parallel operation | Yes (Refer to Engineering Data) (For up to two Power Supplies) | |||
| Output indicator | Yes (LED: Green), lighting from 80% to 90% or more of rated voltage | |||
| Insulation | Withstand voltage | 3.0 kVAC for 1 min. (between all input terminals and output terminals) cutoff current 20 mA 2.5 kVAC for 1 min. (between all input terminals and PE terminal) cutoff current 20 mA 1.0 kVAC for 1 min. (between all output terminals and PE terminal) cutoff current 30 mA | ||
| Insulation resistance | 100 MΩ min. (between all output terminals and all input terminals/PE terminal) at 500 VDC | |||
| Envi- ronment | Ambient operating temperature | -40 to 70°C (However, only startup is guaranteed for between -40°C to -25°C. (3-phase only)) (Derating is required according to the temperature.) (with no condensation or icing) | ||
| Storage temperature | -40 to 85°C (with no condensation or icing) | |||
| Ambient operating humidity | 0% to 95% (Storage humidity: 0% to 95%) | |||
| Vibration resistance | 10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z directions | |||
| Shock resistance | 150 m/s2, 3 times each in ±X, ±Y, and ±Z directions | |||
| Reliability | MTBF | 135,000 hrs min. | ||
| Life expectancy *10 | 10 years min. | |||
| Con- struction | Weight | 1,600 g max. | 2,700 g max. | |
| Cooling fan | No | |||
| Degree of protection | IP20 by EN/IEC 60529 | |||
| Standards | Harmonic current emissions | Conforms to EN 61000-3-2 *15 | ||
| EMI | Conducted Emission | Conforms to EN 61204-3 Class B EN 55011 Class B *16 | ||
| Radiated Emission | Conforms to EN 61204-3 Class B EN 55011 Class B *16 | |||
| EMS | Conforms to EN 61204-3 high severity levels | |||
| Approved Standards *6 | UL Listed: UL 508 *7 UL UR: UL 60950-1 (Recognition) cUR: CSA C22.2 No.60950-1 CSA: CSA C22.2 No.60950-1 EN: EN 50178, EN 60950-1 Lloyd's standards ANSI/ISA 12.12.01 *7 | |||
| Conformed Standards | SELV (EN 60950-1/EN 50178/UL 60950-1) PELV (EN 60204-1, EN 50178) Safety of Power Transformers (EN 61558-2-16) EN 50274 for Terminal parts | |||
| SEMI | Conforms to F47-0706 (3-phase, 380 to 480 VAC input) *17 | |||
*1. Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but
the rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. For a cold start at 25°C. Refer to Engineering Data on Data Sheet for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than 29.5 VDC of the voltage
adjustment range.
When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be sure that the
load is not damaged.
*4. A characteristic when the ambient operating temperature is between –25 to 70°C.
*5. Refer to Overvoltage Protection on Data Sheet for the time when input voltage shuts off and input turns on again.
*6. To meet safety standards, the S8VK-T must be protected with an external circuit-breaker or a fuse.
Be sure to use an external circuit-breaker or a fuse. Refer to Precautions for Safe Use on Data Sheet for details.
*7. The following supplementary Fuse/Circuit Breaker must be installed in accordance with NEC.:
Model FAZ-D5/3-NA, FAZ-D5/3-RT or FAZ-D5/3-DU, EATON INDUSTRIES (AUSTRIA) GMBH (E235139),
Model KLKD5, LITTELFUSE INC. (E10480)
*8. Safety Standards for a DC Input
The following standards apply to a 450 to 600 VDC input: UL 60950-1, EN 50178, EN 60950-1, and Lloyd's standards.
*9. In the case of using side-mounting bracket (S82Y-VK10S, S82YVK20S), Lloyd's Standards are not applicable.
*10. The value is when rated output current is 50% or less, the ambient operating temperature is 40°C or less, standard
mounting, and rated input voltage.
*11. The value is when both rated output voltage and rated output current are satisfied.
*12. 380 to 480 VAC input, in the range of 0 A to the rated output current.
*13. This is the maximum variation in the output voltage when the input voltage is gradually changed within the allowable
input voltage range at the rated output voltage and rated output current.
*14. Use at 26.4 VDC or lower for 2-phase input.
*15. The S8VK-T Power Supply conforms to EN 61000-3-2 under the following conditions for 2-phase input.
480 W: rated output voltage, and 65% or less of rated output current
960 W: rated output voltage, and 45% or less of rated output current
*16. The S8VK-T Power Supply conforms to EMI under the following conditions for 2-phase input.
480 W: Conforms to class B: rated output voltage, and 65% or less of rated output current/
Conforms to class A: rated output voltage, and 65% to 100% of rated output current
960 W: Conforms to class B: rated output voltage, and 45% or less of rated output current/
Conforms to class A: rated output voltage, and 45% to 100% of rated output current
*17. 480 W: rated output voltage, and 50% or less of rated output current.
960 W: rated output voltage, and 92.5% or less of rated output current.
*18. When using 2-phase input. Refer to 2-Phase Input Operation For 960 W Model in Precautions for Safe Use on Data
Sheet for details.
last update: December 01, 2016
OMRON S8VK-T lineup
S8VK-T Switch Mode Power Supply (120/240/480/960 W Models)/Lineuplast update: May 07, 2014
Note: For details on normal stock models, contact your nearest OMRON representative.
| Power ratings | Input voltage | Output Voltage | Output current | Boost Current | Model number |
|---|---|---|---|---|---|
| 120 W | 2-phase and 3-phase 380 to 480 VAC 450 to 600 VDC | 24 V | 5 A | 6 A | S8VK-T12024 |
| 240 W | 24 V | 10 A | 12 A | S8VK-T24024 | |
| 480 W | 24 V | 20 A | 24 A | S8VK-T48024 | |
| 960 W | 3-phase 380 to 480 VAC | 24 V | 40 A | 48 A | S8VK-T96024 |
| 2-phase 380 to 480 VAC | 24 V | 32 A | - |
Mounting Brackets
| Name | Model | Qty used |
|---|---|---|
| Front-mounting bracket (for 120, 240 and 480 W models) | S82Y-VK10F | 1 |
| Front-mounting bracket (for 960 W model) | S82Y-VK10F | 2 |
| Side-mounting bracket (for 120 W model) | S82Y-VK10S | 1 |
| Side-mounting bracket (for 240 W model) | S82Y-VK20S | 1 |
Note: Be sure to use the accessory screws.
Mounting screw tightening torque (recommended): 4.43 to 5.31 lb-in (0.5 to 0.6 Nm)
last update: May 07, 2014
