Meeting the need for "easier management of temperature and humidity data"
Omron Precision Thermo-Humidity Loggers use sensors with the highest precision in their class and the first SD Card data collection system.
This enables precise control of temperature and humidity at multiple points along the manufacturing line and more efficient data collection.
The logger has alarm output providing immediate alerts when trouble occurs, helping meet strict quality control standards.
(First in its class!)
SD Card system makes data collection more efficient
- Data can be collected only when needed by simply inserting an SD Card
- Thermo-Humidity Logger memory can store up to approx. 8,500 pieces of data
- Measured data is transferred to CSV format and stored in an SD Card
- Data continues to be recorded in built-in memory even while data is being collected onto SD Card
- Store data up to maximum memory capacity by keeping SD Card continually inserted
(approx. 17 million pieces of data per 1GB. Store up to five years of data when measurements are made every 10 seconds)
Compact body with useful features!
∗ Photo shows actual size
(Top in its class)
Remarkably high measurement accuracy
Precision measurement ensures a temperature resolution of 0.1°C and humidity accuracy of plus/minus 2.5%.
This enables more precise control of temperature and humidity, which contributes to improvement in product quality.
(First in its class!)
Alarm output for immediate response when trouble occurs
Example: When temperature exceeds threshold value, an error indicator lights up
The logger has an alarm output. Unusual temperature and humidity are made visible, enabling you to make a quick response and to make it easy to systemize manufacturing lines.
(PC Software)
Create graphs easily by simply designating the SD Card drive!
Insert the SD card containing collected data into a PC, and simply designate the drive in order to manage and graph the recorded data. Measurement data is stored in CSV format, allowing for easy temperature and humidity data management.
Note: Download the PC Software Station Utility from the following OMRON website (http://www.fa.omron.co.jp/station-u-e).
last update: December 01, 2016
Purchase the OMRON Thermo-Humidity Station, Illumination Sensor Please fill in the following
If you have just landed here, this product OMRON ZN-THS-S / THX11-S Energy Conservation Support / Environment Measure Equipment,Energy Conservation Support / Environment Measure Equipment is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Energy Conservation Support / Environment Measure Equipment at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the ZN-THS-S / THX11-S We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON ZN-THS-S / THX11-SEnergy Conservation Support / Environment Measure Equipment tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
CX-Designer FA Integrated Tool Package CX-One/Features
EE-[] Photomicro Sensors Accessories/Features
E6A2-C Incremental 25-mm-dia. Rotary Encoder/Features
Cobra 450 SCARA Robots/Features
XW2D Slim Connector-Terminal Block Conversion Units/Features
OMRON ZN-THS-S / THX11-S catalog
ZN-THS-S / THX11-S Precision Thermo-Humidity Logger/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 ZN-THS-S/THX11-SA Catalog | E409-E1-01 [1497KB] | Jun 20, 201720170620 | ZN-THS-S/THX11-SA Catalog |
OMRON ZN-THS-S / THX11-S lineup
ZN-THS-S / THX11-S Precision Thermo-Humidity Logger/Lineuplast update: July 31, 2013
Sensor head
| Model | ZN-THS17-S | ZN-THS17C-S * | ZN-THS11-S | ZN-THS11C-S * |
|---|---|---|---|---|
| Appearance |  Sensor head: Anchored type |  Sensor head: 1.5 m type | ||
* Please choose this form when you buy it with the calibration certificate.
Logger
| Model | ZN-THX11-SA |
|---|---|
| Appearance |  |
Calibration service
| Subject to calibration | Content | Model |
|---|---|---|
| Sensor head Anchored type | Certificate of Calibration, Test Transcript Traceability chart | ZN-THS11-CAL |
| Sensor head 1.5 m type | Certificate of Calibration, Test Transcript Traceability chart | ZN-THS17-CAL |
- As the sensor head and station are digitally connected, this calibration service is available only for the sensor head.
- It is necessary to ship the product back to OMRON in Japan.
Accessaories (Order separately)
| Item | Model | |
|---|---|---|
| Mounting Magnet * | ZN9-EM01-S | |
| DC cable (ZN9-ED01-S comes with ZN-THX11-SA) | Straight type | ZN9-ED01-S |
| Right angle type | ZN9-ED02-S | |
| AC Adaptor for ZN-[][]X-S 100 to 240 VAC/50 to 60 Hz Operating temperature range: 0 to 40°C | PSE, CE, UL STD/A-type plug | ZN9-ACP01-S |
* When the magnet is used, the vibration resistance becomes 55 Hz or less. (Two logger installation screws are attached.)
last update: July 31, 2013

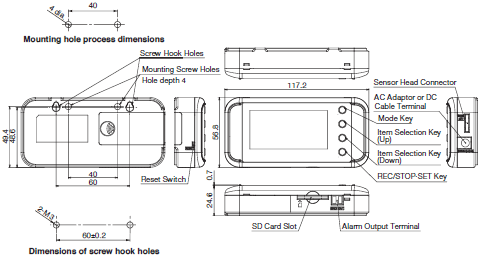

OMRON ZN-THS-S / THX11-S dimension
