Catalog Name	Catalog Number [size]	Last Update
EE-[] Data Sheet	- [2170KB]	Nov 09, 201620161109	EE-[] Data Sheet

OMRON EE-[] lineup

last update: July 16, 2015

Accessories (Order Separately)

Connectors and Connector Hold-down Clips

Applicable Sensor models EE-SX67[] (A, P, R), EE-SX47[], EE-SY67[], EE-SPY31[]/41[], EE-SPX303N/403N, EE-SPW311/411
Type		Cable length	Model	Remarks
Connector			EE-1001
			EE-1001-1	L terminal and positive (+) terminal are already short-circuited.
			EE-1009 *1
Connector	Connector with Cable	1 m	EE-1006 1M
			EE-1010 1M *1
		2 m	EE-1006 2M	4 conductors
			EE-1006D	3 conductors
			EE-1006L	2 conductors
			EE-1010 2M *1
	Connector with Robot Cable	1 m	EE-1010-R 1M *1
		2 m	EE-1010-R 2M*1
NPN/PNP Conversion Connector		0.46 m (total length)	EE-2002
Connector Hold-down Clip			EE-1006A	For EE-1006, EE-SX670[], 470, EE-SY671, and 672 only.
Connector Parts *2	Case (housing)		EE-1006H	100 per carton
	Dispersion Pins		EE-1006C	500 per carton
	Special Crimping Tool		EE-1006T	Appearance

*1. EE-1009- or EE-1010-series Connectors have a builtin locking mechanism to prevent cable disconnection when only the cable is pulled. To remove the Connector from the Sensor, grip the top and bottom of the Connector firmly and push into the Sensor once before pulling out. The locking mechanism prevents the Connector from being removed by pulling on the cable only and enables removal only when the Connector (housing) is pulled.
*2. The case (housing) and dispersion pins (for hand-crimping) for EE-1006 Connectors can be ordered separately. Use the EE-1006T Special Crimping Tool to prepare the Connector.

Applicable Sensor models EE-SX95[]-C1J-R
Item	Cable length	Model	Remarks
Connector with Robot Cable	2 m	EE-1016-R 2M

Applicable Sensor models EE-SX97[]-C1, EE-SX97[]P-C1
Item	Cable length	Model	Remarks
Connector with Cable	1 m	EE-1017 1M
	3 m	EE-1017 3M
Connector with Robot Cable	1 m	EE-1017-R 1M
	3 m	EE-1017-R 3M

Applicable Sensor models EE-SPX74[]/84[]
Item	Cable length	Model	Remarks
Connector with Cable	1 m	EE-1013 1M

Applicable Sensor models EE-SPX301/401, EE-SPY30[]/40[], EE-SPZ301-A/401-A
Item		Cable length	Model	Remarks
Connector			EE-1002
Connector	Connector with Cable	1 m	EE-1003
NPN/PNP Conversion Connector		0.46 m (total length)	EE-2001
Connector Hold-down Clip			EE-1003A	For EE-1003 only.

last update: July 16, 2015

OMRON EE-[] specification

last update: November 09, 2016

Product		Connector *1 *4	Connector with Cable *1	Connector with Robot Cable *1	Connector *4	Connector (short- circuited between positive (+) and L ter- minals) *2 *4	Connector with Cable
Model		EE-1009	EE-1010	EE-1010-R	EE-1001	EE-1001-1	EE-1006
Appearance
Contact resistance		20 mΩ max. (at 20 mV max., 100 mA max.)			15 mΩ max. (at 100 VDC max.)		10 mΩ max. (100 VDC max.)
Insertion/removal durability *3		50 times min.			---
Insertion strength		No. of poles ✕ 6 N max.			68.6 N max.		50 N max.
Surplus strength (housing holding strength)		No. of poles ✕ 0.4 N max.			---		20 N max.
Standard cable length		---	1 m, 2 m		---		1 m, 2 m
Lock strength *3		No. of poles ✕ 29 N min.			---
Ambient humidity		- 10 to +60 °C			- 10 to +75 °C		- 10 to 60 °C
Material	Housing	Polybutylene phthalate (PBT)
	Contact	Phosphor bronze
Applicable Photomicrosensors		EE-SX67[] (A, P, R) (Connector Models only), EE-SX47[], EE-SY67[], EE-SPY31[]/41[], EE-SPX303N/403N, EE-SPW311/411

Product		Connector *4	Connector with Cable	Connector with Cable	Connector with Robot Cable	Connector with Cable	Connector with Robot Cable
Model		EE-1002	EE-1003	EE-1013	EE-1016-R	EE-1017	EE-1017-R
Appearance
Contact resistance		10 mΩ max. (at 10 mADC and 1 ADC)	20 mΩ max. (at minute current of 1 kHz and 500 VDC)		25 mΩ max. (at 10 mA DC and 20 mV max.)
Insertion strength		20 N max.	23.5 N max.	40 N max.	20 N max.
Surplus strength (housing holding strength)		15 N max. (initial) 10 N max. (ten times)	3.5 N max.	10 N max.	15 N min.	1.5 N min.
Cable length		---	1 m		2 m	1 m, 3 m
Ambient humidity		-10 to +75°C	-10 to +60°C	-10 to +55°C	-25 to +85°C	-10 to +60°C
Material	Housing	Nylon
	Contact	Phosphor bronze (solder plating)
Applicable Photomicrosensors		EE-SPX301/401, EE-SPY30[]/40[], EE-SPZ301-A/401-A		EE-SPX74[]/84[]	EE-SX95[]-C1J-R	EE-SX97[]C1, EE-SX97[]P-C1

*1. The Connector has a built-in locking mechanism. To remove the Connector from the Sensor,
       grip the top and bottom of the Connector housing, as shown in the following diagram, and
       then pull out the Connector.
*2. EE-SX67[] and EE-SY67[] are the best used in the light-ON state.
*3. The insertion/removal durability and lock strength apply only to the lock mechanism.
       They do not apply to the EE-1001, EE-1001-1, and EE-1006, which do not have lock
       mechanisms.
*4. Do not store the type EE-1009, EE-1001, EE-1001-1 and EE-1002 under the following
       conditions since their terminals may discolor.
       (1) In the place exposed to the direct sunlight, the high temperature or high humidity.

last update: November 09, 2016

OMRON EE-[] dimension

last update: July 13, 2016

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Photomicrosensor Connectors and Connector Hold-down Clips

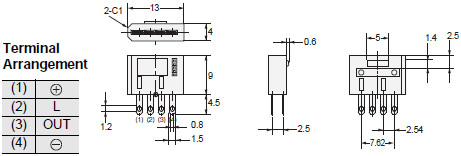

Connector

EE-1001

Connector (short-circuited between positive (+) and L terminals)

EE-1001-1

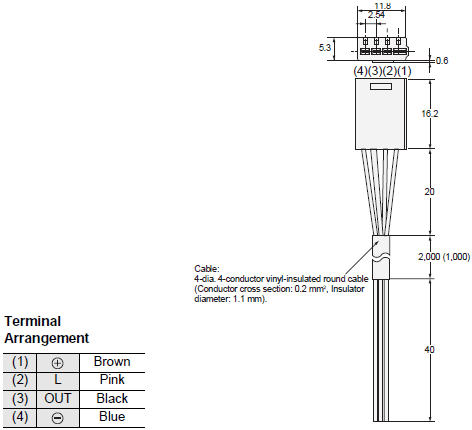

Connector with Cable

EE-1006 2M (EE-1006 1M)

Applicable Photomicrosensors:
EE-SX67[] (A,P,R) (Connector Models only), EE-SX47[], EE-SY67[], EE-SPY31[]/41[], EE-SPX303N/403N, EE-SPW311/411

Connector Hold-down Clip

EE-1006A

(Can be used only with EE-1006 Connectors for the Photomicrosensors listed below.)
Applicable Photomicrosensors: For EE-SX670[], 470[], EE-SY671, and 672 only.

Photomicrosensor Connectors

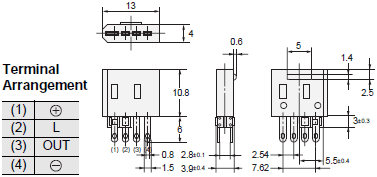

Connectors

EE-1009

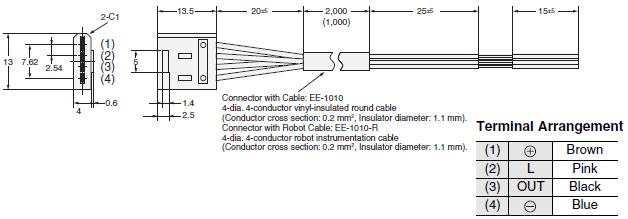

Connector with Cable/Connector with Robot Cable

EE-1010 2M (EE-1010 1M)
EE-1010-R 2M (EE-1010-R 1M)

Applicable Photomicrosensors:
EE-SX67[] (A,P,R) (Connector Models only), EE-SX47[], EE-SY67[], EE-SPY31[]/41[], EE-SPX303N/403N, EE-SPW311/411

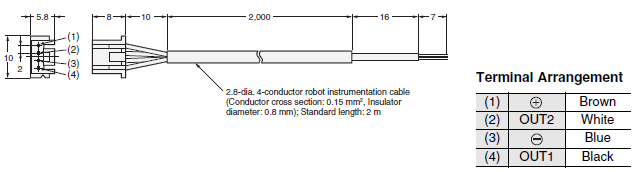

Connector with Robot Cable

EE-1016-R

Applicable Photomicrosensors: EE-SX95[]-C1J-R

Photomicrosensor Connectors and Connector Hold-down Clips

Connector

EE-1002

Applicable Photomicrosensors: EE-SPX301/401, EE-SPY30[]/40[], EE-SPZ301-A/401-A

Connector with Cable

EE-1003

Cable: 1.61-dia. 1-conductor vinyl-insulated round cable (Conductor cross section: 0.33 mm²).
Applicable Photomicrosensors: EE-SPX301/401, EE-SPY30[]/40[], EE-SPZ301-A/401-A

Connector Hold-down Clips (For EE-1003 only)

EE-1003A

Applicable Photomicrosensors: EE-SPX301/401, EE-SPY30[]/40[], EE-SPZ301-A/401-A

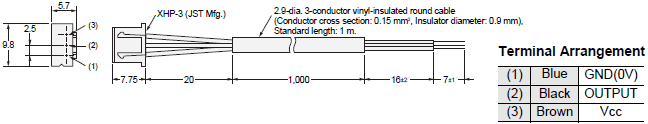

Connector with Cable

EE-1013

Applicable Photomicrosensors: EE-SPX74[]/84[]

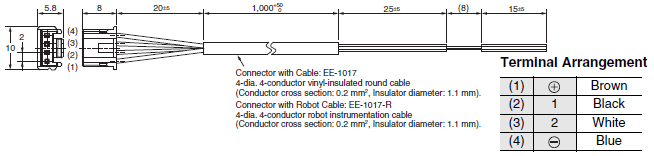

Connector with Cable/Connector with Robot Cable

EE-1017
EE-1017-R

Applicable Photomicrosensors: EE-SX97[]-C1, EE-SX97[]P-C1

NPN to PNP Transistor Output Conversion Connectors

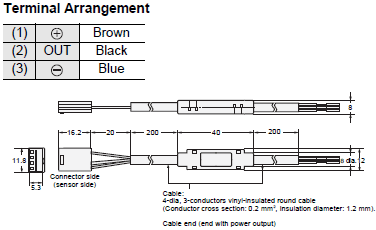

NPN/PNP Conversion Connector

EE-2001

Applicable Photomicrosensors: EE-SPX301/401, EE-SPY30[]/40[], EE-SPZ301-A/401-A

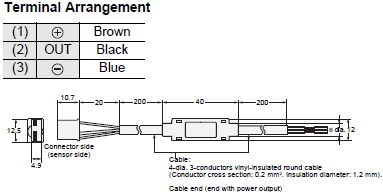

NPN/PNP Conversion Connector

EE-2002 *

* The EE-SX67[] and EESY67[] do not support Light-ON mode.
Applicable Photomicrosensors:
EE-SX67[]/[]A (Connector Models only), EE-SX47[], EE-SY67[], EE-SPY31[]/41[], EE-SPX303N/403N, EE-SPW311/411
