OMRON E6A2-C Dimensions

/Images/l_486-25-118784-198x198.jpg

last update: April 21, 2017

• Incremental model

• External diameter of 25 mm.

• Resolution of up to 500 ppr.

last update: April 21, 2017

Purchase the OMRON Incremental Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON E6A2-C Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E6A2-C We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E6A2-CSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E3X-DRT21 / SRT21 / CIF11 Communications Units for E3X-DA-N-series Fiber Amplifiers/Features
D4NL Guard Lock Safety-door Switch/Features
V640 Series RFID System (Conforms to SEMI standard, Electromagnetic Inductive 134 kHz)/Features
Cobra 500 SCARA Robots/Features
K8DS-PU Three-phase Undervoltage and Phase-sequence Phase-loss Relay/Features

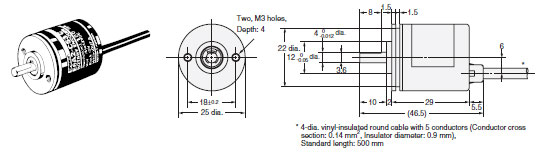

OMRON E6A2-C dimension
E6A2-C Incremental 25-mm-dia. Rotary Encoder/Dimensions
last update: February 18, 2013

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Encoder
E6A2-C

last update: February 18, 2013

OMRON E6A2-C specification
E6A2-C Incremental 25-mm-dia. Rotary Encoder/Specifications
last update: February 18, 2013

Model E6A2-CWZ3E E6A2-CWZ3C E6A2-CWZ5C

Power supply voltage 5 VDC -5% to 12 V +10%,
ripple (p-p): 5% max. 12 VDC -10% to 24 VDC +15%,
ripple (p-p): 5% max.

Current consumption *1 50 mA max. 30 mA max.

Resolution
(pulses/rotation) 100, 200, 360, 500

Output phases Phases A, B, and Z

Output configuration Voltage output NPN open-collector output

Output capacity Output resistance: 2 kΩ
Output current: 20 mA max.
Residual voltage: 0.4 V max.
(Output current: 20 mA max.) Applied voltage: 30 VDC max.
Sink current: 30 mA max.
Residual voltage: 0.4 V max.
(at sink current of 30 mA)

Maximum response
frequency *2 30 kHz

Phase difference
between outputs Phase difference between phases A and B: 90°±45°

Output duty factor ---

Rise and fall times of
output 1.0 μs max. (Cable length:
500 mm, Sink current: 10 mA) 1.0 μs max. (Cable length: 500 mm,
Control output voltage: 5 V, Load resistance: 1 kΩ)

Starting torque 1 mNm max.

Moment of inertia 1 × 10^-7 kgm² max.

Shaft loading Radial 10 N

Thrust 50 N

Maximum permissible
speed 5,000 r/min

Ambient temperature
range Operating: -10 to 55°C (with no icing), Storage: -25 to 80°C (with no icing)

Ambient humidity range Operating/storage: 35% to 85% (with no condensation)

Insulation resistance 20 MΩ min. (at 500 VDC) between current-carrying parts and case

Dielectric strength 500 VAC, 50/60 Hz for 1 min between current-carrying parts and case

Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions

Shock resistance Destruction: 500 m/s² 3 times each in X, Y, and Z directions

Degree of protection *3 IEC 60529 IP50

Connection method Pre-wired Models (Standard cable length: 500 mm)

Material Case: Aluminum alloy, Main unit: Aluminum, Shaft: SUS420J2, Mounting Bracket: Galvanized iron

Weight (packed state) Approx. 35 g

Accessories Coupling, Servo Mounting Bracket (provided with the E6A2-CWZ[]), Hexagonal wrench, Instruction manual

Model E6A2-CW3E E6A2-CW3C E6A2-CW5C

Power supply voltage 5 VDC -5% to 12 V +10%,
ripple (p-p): 5% max. 12 VDC -10% to 24 VDC +15%,
ripple (p-p): 5% max.

Current consumption *1 30 mA max. 20 mA max.

Resolution
(pulses/rotation) 100, 200, 360, 500

Output phases Phases A and B

Output configuration Voltage output NPN open-collector output

Output capacity Output resistance: 2 kΩ
Output current: 20 mA max.
Residual voltage: 0.4 V max.
(Output current: 20 mA max.) Applied voltage: 30 VDC max.
Sink current: 30 mA max.
Residual voltage: 0.4 V max.
(at sink current of 30 mA)

Maximum response
frequency *2 30 kHz

Phase difference
between outputs Phase difference between phases A and B: 90°±45°

Output duty factor ---

Rise and fall times of
output 1.0 μs max. (Cable length:
500 mm, Sink current: 10 mA) 1.0 μs max. (Cable length: 500 mm,
Control output voltage: 5 V, Load resistance: 1 kΩ)

Starting torque 1 mNm max.

Moment of inertia 1 × 10^-7 kgm² max.

Shaft
loading Radial 10 N

Thrust 50 N

Maximum permissible
speed 5,000 r/min

Ambient temperature
range Operating: -10 to 55°C (with no icing), Storage: -25 to 80°C (with no icing)

Ambient humidity range Operating/storage: 35% to 85% (with no condensation)

Insulation resistance 20 MΩ min. (at 500 VDC) between current-carrying parts and case

Dielectric strength 500 VAC, 50/60 Hz for 1 min between current-carrying parts and case

Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions

Shock resistance Destruction: 500 m/s² 3 times each in X, Y, and Z directions

Degree of protection *3 IEC 60529 IP50

Connection method Pre-wired Models (Standard cable length: 500 mm)

Material Case: Aluminum alloy, Main unit: Aluminum, Shaft: SUS420J2, Mounting Bracket: Galvanized iron

Weight (packed state) Approx. 35 g

Accessories Coupling, Servo Mounting Bracket (provided with the E6A2-CWZ[]), Hexagonal wrench, Instruction manual

Model E6A2-CS3E E6A2-CS3C E6A2-CS5C

Power supply voltage 5 VDC -5% to 12 V +10%,
ripple (p-p): 5% max. 12 VDC -10% to 24 VDC +15%,
ripple (p-p): 5% max.

Current consumption *1 30 mA max. 20 mA max.

Resolution
(pulses/rotation) 10, 20, 60, 100, 200, 300, 360, 500

Output phases Phase A

Output configuration Voltage output NPN open-collector output

Output capacity Output resistance: 2 kΩ
Output current: 20 mA max.
Residual voltage: 0.4 V max.
(Output current: 20 mA max.) Applied voltage: 30 VDC max.
Sink current: 30 mA max.
Residual voltage: 0.4 V max.
(at sink current of 30 mA)

Maximum response
frequency *2 30 kHz

Phase difference
between outputs ---

Output duty factor 50±25%

Rise and fall times of
output 1.0 μs max. (Cable length:
500 mm, Sink current: 10 mA) 1.0 μs max. (Cable length: 500 mm,
Control output voltage: 5 V, Load resistance: 1 kΩ)

Starting torque 1 mNm max.

Moment of inertia 1 × 10^-7 kgm² max.

Shaft
loading Radial 10 N

Thrust 50 N

Maximum permissible
speed 5,000 r/min

Ambient temperature
range Operating: -10 to 55°C (with no icing), Storage: -25 to 80°C (with no icing)

Ambient humidity range Operating/storage: 35% to 85% (with no condensation)

Insulation resistance 20 MΩ min. (at 500 VDC) between current-carrying parts and case

Dielectric strength 500 VAC, 50/60 Hz for 1 min between current-carrying parts and case

Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions

Shock resistance Destruction: 500 m/s² 3 times each in X, Y, and Z directions

Degree of protection *3 IEC 60529 IP50

Connection method Pre-wired Models (Standard cable length: 500 mm)

Material Case: Aluminum alloy, Main unit: Aluminum, Shaft: SUS420J2, Mounting Bracket: Galvanized iron

Weight (packed state) Approx. 35 g

Accessories Coupling, Servo Mounting Bracket (provided with the E6A2-CWZ[]), Hexagonal wrench, Instruction manual

*1. An inrush current of approximately 9 A will flow for approximately 0.3 ms when the power is turned ON.
*2. The maximum electrical response speed is determined by the resolution and maximum response frequency as
follows:
　
This means that the E6A2-C Rotary Encoder will not operate electrically if its speed exceeds the maximum electrical
response speed.
*3. No protection is provided against water or oil.

last update: February 18, 2013

OMRON E6A2-C lineup
E6A2-C Incremental 25-mm-dia. Rotary Encoder/Lineup
last update: February 18, 2013
Encoders

Power supply
voltage Output
configuration Output
phases Resolution
(pulses/rotation) Model
5 to 12 VDC Voltage output Phases A,
B, and Z 100, 200, 360 E6A2-CWZ3E (resolution) 0.5M
Example: E6A2-CWZ3E 100P/R 0.5M
500
Open-collector
output
(NPN output) 100, 200, 360 E6A2-CWZ3C (resolution) 0.5M
Example: E6A2-CWZ3C 100P/R 0.5M
500
12 to 24 VDC 100, 200, 360 E6A2-CWZ5C (resolution) 0.5M
Example: E6A2-CWZ5C 100P/R 0.5M
500
5 to 12 VDC Voltage output Phases A
and B 100, 200, 360 E6A2-CW3E (resolution) 0.5M
Example: E6A2-CW3E 100P/R 0.5M
500
Open-collector
output
(NPN output) 100, 200, 360 E6A2-CW3C (resolution) 0.5M
Example: E6A2-CW3C 100P/R 0.5M
500
12 to 24 VDC 100, 200, 360 E6A2-CW5C (resolution) 0.5M
Example: E6A2-CW5C 100P/R 0.5M
500
5 to 12 VDC Voltage output Phase A 10, (20) *, 60, 100, 200, 300, 360 E6A2-CS3E (resolution) 0.5M
Example: E6A2-CS3E 10P/R 0.5M
500
Open-collector
output
(NPN output) 10, 20, 60, 100, 200, 300, 360 E6A2-CS3C (resolution) 0.5M
Example: E6A2-CS3C 10P/R 0.5M
500
12 to 24 VDC 10, 20, 60, 100, 200, 300, 360 E6A2-CS5C (resolution) 0.5M
Example: E6A2-CS5C 10P/R 0.5M
500
* Only a 2-m cable is available for the 20P/R Model.

Accessories (Order Separately)

Name Model Remarks

Coupling E69-C04B Provided with the product.

Servo Mounting Bracket E69-1 Provided with the E6A2-CWZ[].

last update: February 18, 2013

OMRON E6A2-C catalog
E6A2-C Incremental 25-mm-dia. Rotary Encoder/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

E6A2-C Data Sheet -
[545KB] Jan 22, 201420140122 E6A2-C Data Sheet

NO. E6A2-C

TYPE:Rotary Encoders Incremental Copyright Statement

DATE:2021-06-08

Associated products:
EE-[] Photomicro Sensors Accessories/Features E6B2-C Incremental 40-mm-dia. Rotary Encoder/Features

Model	E6A2-CWZ3E	E6A2-CWZ3C	E6A2-CWZ5C
Power supply voltage	5 VDC -5% to 12 V +10%, ripple (p-p): 5% max.	12 VDC -10% to 24 VDC +15%, ripple (p-p): 5% max.
*Current consumption 1**	50 mA max.	30 mA max.
Resolution (pulses/rotation)	100, 200, 360, 500
Output phases	Phases A, B, and Z
Output configuration	Voltage output	NPN open-collector output
Output capacity	Output resistance: 2 kΩ Output current: 20 mA max. Residual voltage: 0.4 V max. (Output current: 20 mA max.)	Applied voltage: 30 VDC max. Sink current: 30 mA max. Residual voltage: 0.4 V max. (at sink current of 30 mA)
Maximum response frequency *2	30 kHz
Phase difference between outputs	Phase difference between phases A and B: 90°±45°
Output duty factor	---
Rise and fall times of output	1.0 μs max. (Cable length: 500 mm, Sink current: 10 mA)	1.0 μs max. (Cable length: 500 mm, Control output voltage: 5 V, Load resistance: 1 kΩ)
Starting torque	1 mNm max.
Moment of inertia	1 × 10^-7 kgm² max.
Shaft loading	Radial	10 N
Thrust	50 N
Maximum permissible speed	5,000 r/min
Ambient temperature range	Operating: -10 to 55°C (with no icing), Storage: -25 to 80°C (with no icing)
Ambient humidity range	Operating/storage: 35% to 85% (with no condensation)
Insulation resistance	20 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength	500 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance	Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction: 500 m/s² 3 times each in X, Y, and Z directions
*Degree of protection 3**	IEC 60529 IP50
Connection method	Pre-wired Models (Standard cable length: 500 mm)
Material	Case: Aluminum alloy, Main unit: Aluminum, Shaft: SUS420J2, Mounting Bracket: Galvanized iron
Weight (packed state)	Approx. 35 g
Accessories	Coupling, Servo Mounting Bracket (provided with the E6A2-CWZ[]), Hexagonal wrench, Instruction manual

Model	E6A2-CW3E	E6A2-CW3C	E6A2-CW5C
Power supply voltage	5 VDC -5% to 12 V +10%, ripple (p-p): 5% max.	12 VDC -10% to 24 VDC +15%, ripple (p-p): 5% max.
*Current consumption 1**	30 mA max.	20 mA max.
Resolution (pulses/rotation)	100, 200, 360, 500
Output phases	Phases A and B
Output configuration	Voltage output	NPN open-collector output
Output capacity	Output resistance: 2 kΩ Output current: 20 mA max. Residual voltage: 0.4 V max. (Output current: 20 mA max.)	Applied voltage: 30 VDC max. Sink current: 30 mA max. Residual voltage: 0.4 V max. (at sink current of 30 mA)
Maximum response frequency *2	30 kHz
Phase difference between outputs	Phase difference between phases A and B: 90°±45°
Output duty factor	---
Rise and fall times of output	1.0 μs max. (Cable length: 500 mm, Sink current: 10 mA)	1.0 μs max. (Cable length: 500 mm, Control output voltage: 5 V, Load resistance: 1 kΩ)
Starting torque	1 mNm max.
Moment of inertia	1 × 10^-7 kgm² max.
Shaft loading	Radial	10 N
Thrust	50 N
Maximum permissible speed	5,000 r/min
Ambient temperature range	Operating: -10 to 55°C (with no icing), Storage: -25 to 80°C (with no icing)
Ambient humidity range	Operating/storage: 35% to 85% (with no condensation)
Insulation resistance	20 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength	500 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance	Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction: 500 m/s² 3 times each in X, Y, and Z directions
*Degree of protection 3**	IEC 60529 IP50
Connection method	Pre-wired Models (Standard cable length: 500 mm)
Material	Case: Aluminum alloy, Main unit: Aluminum, Shaft: SUS420J2, Mounting Bracket: Galvanized iron
Weight (packed state)	Approx. 35 g
Accessories	Coupling, Servo Mounting Bracket (provided with the E6A2-CWZ[]), Hexagonal wrench, Instruction manual

Model	E6A2-CS3E	E6A2-CS3C	E6A2-CS5C
Power supply voltage	5 VDC -5% to 12 V +10%, ripple (p-p): 5% max.	12 VDC -10% to 24 VDC +15%, ripple (p-p): 5% max.
*Current consumption 1**	30 mA max.	20 mA max.
Resolution (pulses/rotation)	10, 20, 60, 100, 200, 300, 360, 500
Output phases	Phase A
Output configuration	Voltage output	NPN open-collector output
Output capacity	Output resistance: 2 kΩ Output current: 20 mA max. Residual voltage: 0.4 V max. (Output current: 20 mA max.)	Applied voltage: 30 VDC max. Sink current: 30 mA max. Residual voltage: 0.4 V max. (at sink current of 30 mA)
Maximum response frequency *2	30 kHz
Phase difference between outputs	---
Output duty factor	50±25%
Rise and fall times of output	1.0 μs max. (Cable length: 500 mm, Sink current: 10 mA)	1.0 μs max. (Cable length: 500 mm, Control output voltage: 5 V, Load resistance: 1 kΩ)
Starting torque	1 mNm max.
Moment of inertia	1 × 10^-7 kgm² max.
Shaft loading	Radial	10 N
Thrust	50 N
Maximum permissible speed	5,000 r/min
Ambient temperature range	Operating: -10 to 55°C (with no icing), Storage: -25 to 80°C (with no icing)
Ambient humidity range	Operating/storage: 35% to 85% (with no condensation)
Insulation resistance	20 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength	500 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance	Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction: 500 m/s² 3 times each in X, Y, and Z directions
*Degree of protection 3**	IEC 60529 IP50
Connection method	Pre-wired Models (Standard cable length: 500 mm)
Material	Case: Aluminum alloy, Main unit: Aluminum, Shaft: SUS420J2, Mounting Bracket: Galvanized iron
Weight (packed state)	Approx. 35 g
Accessories	Coupling, Servo Mounting Bracket (provided with the E6A2-CWZ[]), Hexagonal wrench, Instruction manual

Power supply voltage	Output configuration	Output phases	Resolution (pulses/rotation)	Model
5 to 12 VDC	Voltage output	Phases A, B, and Z	100, 200, 360	E6A2-CWZ3E (resolution) 0.5M Example: E6A2-CWZ3E 100P/R 0.5M
500
Open-collector output (NPN output)	100, 200, 360	E6A2-CWZ3C (resolution) 0.5M Example: E6A2-CWZ3C 100P/R 0.5M
500
12 to 24 VDC	100, 200, 360	E6A2-CWZ5C (resolution) 0.5M Example: E6A2-CWZ5C 100P/R 0.5M
500
5 to 12 VDC	Voltage output	Phases A and B	100, 200, 360	E6A2-CW3E (resolution) 0.5M Example: E6A2-CW3E 100P/R 0.5M
500
Open-collector output (NPN output)	100, 200, 360	E6A2-CW3C (resolution) 0.5M Example: E6A2-CW3C 100P/R 0.5M
500
12 to 24 VDC	100, 200, 360	E6A2-CW5C (resolution) 0.5M Example: E6A2-CW5C 100P/R 0.5M
500
5 to 12 VDC	Voltage output	Phase A	10, (20) *, 60, 100, 200, 300, 360	E6A2-CS3E (resolution) 0.5M Example: E6A2-CS3E 10P/R 0.5M
500
Open-collector output (NPN output)	10, 20, 60, 100, 200, 300, 360	E6A2-CS3C (resolution) 0.5M Example: E6A2-CS3C 10P/R 0.5M
500
12 to 24 VDC	10, 20, 60, 100, 200, 300, 360	E6A2-CS5C (resolution) 0.5M Example: E6A2-CS5C 10P/R 0.5M
500

Name	Model	Remarks
Coupling	E69-C04B	Provided with the product.
Servo Mounting Bracket	E69-1	Provided with the E6A2-CWZ[].

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
E6A2-C Data Sheet	- [545KB]	Jan 22, 201420140122	E6A2-C Data Sheet

Return to OMRON
