• Up to four analog set values can be output for each Unit.

• All outputs are isolated.

• Output rate-of-change limit

• Output high/low limits

• Output scaling (±32,000)

• Control output answer input (CS1W-PMV01 only)

last update: December 19, 2013

Purchase the OMRON CS1 Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON CS1W-PMV Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the CS1W-PMV We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON CS1W-PMVAutomation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E3NC-S Ultra-compact CMOS Smart Laser Sensor/Features
E3JK (NEW) Built-in Power Supply Photoelectric Sensor/Features
E6F-A Absolute 60-mm-dia. Rotary Encoder/Features
G9B Stepping Relay Unit/Features
CRT1-VAD04[][] / VDA02[][] Analog I/O Slave Units with MIL Connectors/e-CON Connectors/Features

OMRON CS1W-PMV dimension
CS1W-PMV SYSMAC CS-series Process Analog I/O Units/Dimensions
last update: September 24, 2012

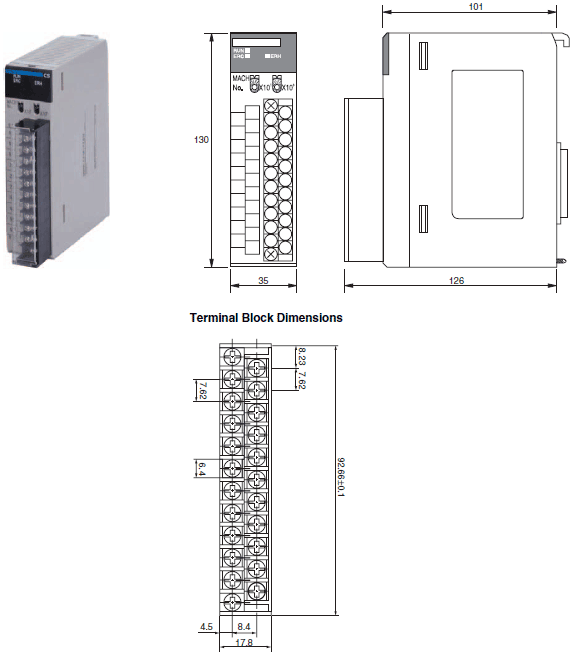

CS1W-PMV01/PMV02

last update: September 24, 2012

OMRON CS1W-PMV specification
CS1W-PMV SYSMAC CS-series Process Analog I/O Units/Specifications
last update: September 24, 2012
General Specifications

The specifications shown in the following table apply to all the CS-series Process Analog I/O Units.

Item Specification

Applicable PLC CS-series PLCs

Unit type CS-series Special I/O Unit

Structure Backplane-mounted, single slot size

Dimensions 35 × 130 × 126 mm (W × H × D)

Weight 450 g max.

External connection terminals 21-point removable terminal block (M3 screws, Tightening torque: 0.5 Nm)

Unit number switch setting 00 to 95

Self-diagnosis function Results of self-diagnosis shown on indicators.

Mountable Racks CPU Rack or CS-series Expansion Rack

Maximum number of Units 80 Units (10 Units × 8 Racks)
Confirm that the total current consumption of all the Units (including the CPU Unit) mounted
to a single CPU Rack or Expansion Rack does not exceed the maximum power supply capacity
of the Power Supply Unit.

Ambient operating temperature 0 to 55 ° C

Ambient operating humidity 10% to 90% (with no condensation)

Current consumption

Name Model Current consumption (power)

5 V 26 V

Isolated-type Analog Output Unit CS1W-PMV01 0.15 A (0.75 W) 0.16 A (4.2 W)

CS1W-PMV02 0.12 A (0.60 W) 0.12 A (3.2 W)

(Reference) Maximum current and total power supplied

Power Supply Unit Maximum current supplied (power) Maximum total power

5 V 26 V 24 V

C200HW-PA204 4.6 A (23 W) 0.6 A (15.6 W) None 30 W

C200HW-PA204C 4.6 A (23 W) 0.6 A (15.6 W) None 30 W

C200HW-PA204S 4.6 A (23 W) 0.6 A (15.6 W) 0.8 A (19.2 W) 30 W

C200HW-PA204R 4.6 A (23 W) 0.6 A (15.6 W) None 30 W

C200HW-PD024 4.6 A (23 W) 0.6 A (15.6 W) None 30 W

C200HW-PA209R 9 A (45 W) 1.3 A (33.8 W) None 45 W

C200HW-PD025 5.3 A 1.3 A None 40 W

CS1D-PA207R 7 A (35 W) 1.3 A (33.8 W) None 35 W

CS1D-PD024 4.3 A (21.5 W) 0.56 A (14.6 W) None 28 W

CS1D-PD025 5.3 A 1.3 A None 40 W

CS1W-PMV01 Isolated-type Analog Output Unit
Specifications

Item Specifications

Model CS1W-PMV01

Applicable PLC CS Series

Unit type CS-series Special I/O Unit

Mounting position CS-series CPU Rack or CS-series Expansion Rack (Cannot be mounted to C200H Expansion I/O Rack or
SYSMAC BUS Remote I/O Slave Rack.)

Maximum number of
Units 80 (within the allowable current consumption and power consumption range)

Unit numbers 00 to 95 (Cannot duplicate Special I/O Unit numbers.)

Areas for
data
exchange
with
CPU Unit Special I/O
Unit Area 10 words/Unit
CPU Unit to Analog Output Unit:
Analog output values for each output
Analog Output Unit to CPU Unit:
Answer input values for each output, output disconnection

DM Area
words
allocated
to Special
I/O Units 100 words/Unit
CPU Unit to Analog Output Unit:
Output hold for when CPU Unit error occurs, high/low limit values, rate-of-change limit values (positive and
negative directions), number of values for answer input moving average, zero/span adjustment for control
outputs and answer inputs, etc.

Number of outputs 4

Output signal types Either 4 to 20 mA or 1 to 5 V (separate for each of the four outputs).
Switched according to the connection terminals.

User-defined scaling in
industrial units None

Data storage in the
CIO Area 0 to 4,000 (0000 to 0FA0 hex), fixed
0: 4 mA or 1 V; 4,000: 20 mA or 5 V
The values derived from carrying out the following processing in order of the values in the allocated words
in the CIO Area are output in analog.
1) Output hold → 2) Rate-of-change limit → 3) Zero/span adjustment → 4) High/low limits
Therefore, the values after processing are confirmed by analog inputs.

Accuracy (25 ° C) When 4 to 20 mA: ± 0.1% of full scale
When 1 to 5 V: ± 0.2% of full scale

Temperature
coefficient ± 0.015%/ ° C of full scale

Resolution 1/4,000 of full scale

Warmup time 10 min

Output response time 0.2 s (travel time from output 0% to 100%, for step output)

D/A conversion period 100 ms/4 outputs

Maximum time to store
data in CPU Unit Conversion period + one CPU Unit cycle

Output signal range Approx. - 20 to 115%

Allowable load
resistance When 4 to 20 mA: 404 Ω max. (when output range is - 20 to 115%) or 458 Ω max. (when output range is
- 20 to 100%) (Refer to note.)
When 1 to 5 V: 250 k Ω max.

Output impedance When 1 to 5 V: 250 Ω (typical)

Voltage when open
between terminals Approx. 15 V

Answer input function The actual analog output values (4 to 20 mA or 1 to 5 V) from the Unit's output terminals can be read.
Data stored to allocated words of CIO Area:
0 to 4,000 (0000 to 0FA0 hex), fixed. (When 4 mA or 1 V: 0; when 20 mA or 5 V: 4,000)
Accuracy: ± 0.2% of full scale
Resolution: 1/2000
Temperature coefficient: ± 0.015%/ ° C

Current output
disconnection
detection function When the actual output of 4 to 20 mA from the Analog Output Unit's output terminals is 0.5 mA or less, it
is regarded as an external output circuit current loop disconnection, and the Output Disconnection Flag
turns ON.

Function Rate-of-
change
limit This function can be used to control the speed of up and down changes in analog output values.

Output
high/
low limits This function can be used to place high and low limits on analog output values.

Output
hold This function holds the analog output value to the previous value or to a specified preset value when any of
the following CPU Unit errors occurs, and outputs the analog output value in the CIO Area when the error
is cleared.
CPU Unit fatal error (including FALS execution)
CPU error in CPU Unit
All outputs turned OFF with Output OFF Bit

Isolation Between outputs and between output terminals and PLC signals: Isolation by transformer and photocoupler

Insulation resistance 20 M Ω (at 500 V DC) between outputs

Dielectric strength Between outputs: 1,000 V AC, at 50/60 Hz, for 1 min, leakage current 10 mA max.

External connections Terminal block (detachable)

Unit number settings Set by rotary switches on front panel, from 0 to 95.

Indicators Three LED indicators on front panel (for normal operation, errors detected at the Analog Output Unit, and
errors related to the CPU Unit).

Front panel connector Output connector terminal block (detachable)

Effect on CPU Unit cycle
time 0.3 ms

Current consumption 5 V DC at 150 mA max., 26 V DC at 160 mA max.

Dimensions 35 × 130 × 126 mm (W × H × D)
Note: The height including the Backplane is 145 mm.

Weight 450 g max.

Standard accessories None

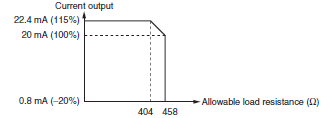

Note: The following diagram shows the relationship between the allowable load resistance and the current output.

Output Values According to CPU Unit Status

Analog output values from the Analog Output Unit will be as shown in the following table, depending on the status of the CPU Unit.

CPU Unit status Analog output values from Unit

Fatal error (including FALS(007) execution) The output hold function holds the previous value or a specified preset value.

CPU error

All outputs turned OFF with Output OFF Bit

Change of operation mode from RUN or
Monitor to Program
(See note.) When the CPU Unit's I/O Memory Hold
Flag (A500.12) is OFF. The output value in the CIO Area is cleared, and
that value (0000 hex) is output refreshed.

When the CPU Unit's I/O Memory Hold
Flag (A500.12) is ON. The output value in the CIO Area is held at the
value prior to the operation mode change, and
that is output refreshed.

Fatal error or CPU standby after turning
ON the power supply Either 0 mA or 0 V is output.

Special I/O Unit cyclic refresh disabled Outputs can be refreshed by means of IORF(097) in the ladder diagram program.

Note: Regardless of the CPU Unit's operation mode (including Program Mode), the analog output value in the allocated
words of the CIO Area is always output refreshed. As shown in the above table, however, when the operation
mode is changed to Program Mode, the analog output value in the CIO Area is either cleared or held depending
on the status of the CPU Unit's I/O Memory Hold Flag (A500.12). In particular, be careful when this flag is ON,
because the value prior to the mode change will be held and that value will be output refreshed.

CS1W-PMV02 Isolated-type Analog Output Unit
Specifications

Item Specifications

Model CS1W-PMV02

Applicable PLC CS Series

Unit type CS-series Special I/O Unit

Mounting position CS-series CPU Rack or CS-series Expansion Rack (Cannot be mounted to C200H Expansion I/O Rack or
SYSMAC BUS Remote I/O Slave Rack.)

Maximum number of
Units 80 (within the allowable current consumption and power consumption range)

Unit numbers 00 to 95 (Cannot duplicate Special I/O Unit numbers.)

Areas for
data
exchange
with
CPU Unit Special I/O
Unit Area 10 words/Unit
CPU Unit to Analog Output Unit: Analog output values for each output
Analog Output Unit to CPU Unit: None

DM Area
words
allocated
to Special
I/O Units 100 words/Unit
CPU Unit to Analog Output Unit:
Output hold for when CPU Unit error occurs, high/low limit values, rate-of-change limit values, zero/span
adjustment for control outputs, etc.

Number of outputs 4

Output signal types 0 to 10 V, 0 to 5 V, 0 to 1 V, - 10 to 10 V, - 5 to 5 V, - 1 to 1 V
(Each output point can be set individually.)

User-defined scaling in
industrial units Scaling is possible for each of the above signal types individually.
(The data corresponding to the minimum and maximum output values can be set freely.)

Data storage in the
CIO Area ± 32,000 (8300 to FFFF hex, 0000 to 7D00 hex)

Accuracy (25 °C) ± 0.1% of full scale

Temperature coefficient ± 0.015%/ ° C of full scale

Resolution - 10 to 10 V, - 1 to 1 V: 1/16,000 of full scale
0 to 10 V, 0 to 1 V, - 5 to 5 V: 1/8,000 of full scale
0 to 5 V: 1/4,000 of full scale

Warmup time 10 min

Output response time 50 ms max. (travel time from output 0% to 90%, for step output)

D/A conversion period 40 ms/4 outputs

Maximum output delay
time Output response time + conversion period + one CPU Unit cycle

Output signal range - 15 to 115% ( - 7.5 to 107.5% for ± 10-V and ± 1-V ranges)

Allowable load resistance 10 k Ω min.

Output impedance 0.5 Ω max.

Voltage when open
between terminals ---

Answer input function None

Current output
disconnection
detection function None

Function Rate-of-
change
limit This function can be used to control the speed of up and down changes in analog output values.

Output
high/
low limits This function can be used to place high and low limits on analog output values.

Output
hold This function holds the analog output value to the previous value or to a specified preset value when any
of the following CPU Unit errors occurs. Normal operation is restored when the CPU Unit error is cleared.
CPU Unit fatal error (including FALS execution)
CPU error in CPU Unit
CPU Unit's load interrupted

Isolation Between outputs and between output terminals and PLC signals: Isolation by transformer and photocoupler

Insulation resistance 20 M Ω (at 500 V DC) between outputs

Dielectric strength Between outputs: 1,000 V AC, at 50/60 Hz, for 1 min, leakage current 10 mA max.

External connections Terminal block (detachable)

Unit number settings Set by rotary switches on front panel, from 0 to 95.

Indicators Three LED indicators on front panel (for normal operation, errors detected at the Analog Output Unit, and
errors related to the CPU Unit).

Front panel connector Output connector terminal block (detachable)

Effect on CPU Unit cycle
time 0.3 ms

Current consumption 5 V DC at 120 mA max., 26 V DC at 120 mA max.

Dimensions 35 × 130 × 126 mm (W × H × D)
Note: The height including the Backplane is 145 mm.

Weight 450 g max.

Standard accessories None

Output Values According to CPU Unit Status

Analog output values from the Analog Output Unit will be as shown in the following table, depending on the status of the CPU Unit.

CPU Unit status Analog output values from Unit

Fatal error (including FALS(007) execution) The output hold function holds the previous value or a specified preset value.

CPU error

All outputs turned OFF with Output OFF Bit

Change of operation mode from RUN or
Monitor to Program
(See note.) When the CPU Unit's I/O Memory
Hold Flag (A500.12) is OFF. The output value in the CIO Area is cleared, and
that value (0000 hex) is output refreshed.

When the CPU Unit's I/O Memory
Hold Flag (A500.12) is ON. The output value in the CIO Area is held at the
value prior to the operation mode change, and
that is output refreshed.

Fatal error or CPU standby after turning ON
the power supply 0 V is output.

Special I/O Unit cyclic refresh disabled Outputs can be refreshed by means of IORF(097) in the ladder diagram program.

Note: Regardless of the CPU Unit's operation mode (including Program Mode), the analog output value in the allocated
words of the CIO Area is always output refreshed. As shown in the above table, however, when the operation
mode is changed to Program Mode, the analog output value in the CIO Area is either cleared or held depending
on the status of the I/O Memory Hold Flag (A500.12). In particular, be careful when this flag is ON, because the
value prior to the mode change will be held and that value will be output refreshed.

last update: September 24, 2012

OMRON CS1W-PMV lineup
CS1W-PMV SYSMAC CS-series Process Analog I/O Units/Lineup
last update: September 24, 2012
International Standards

The standards indicated in the "Standards" column are those current for UL, CSA, cULus, cUL, NK, and Lloyd standards and EC Directives as of the end of September 2008. The standards are abbreviated as follows: U: UL, U1: UL (Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus, UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, and CE: EC Directives.
Ask your OMRON representative for the conditions under which the standards were met.

Isolated-type Analog Output Unit

Unit
type Product
name Output
points Signal
range
selection Signal range Conver-
sion
speed
(resolu-
tion) External
connec-
tion No. of
unit
numbers
allocated Current
consump-
tion (A) Model Stand-
ards

5V 24V

CS1
Special
I/O
Units Isolated-
type
Analog
Output
Unit 4
inputs Set
separately
for each
input 4 to 20 mA,
1 to 5 V 100 ms/
4 inputs Removable
terminal
block 1 0.15 0.16 CS1W-PMV01 UC1, CE

4
inputs 0 to 10 V, ± 10 V,
0 to 5 V, ± 5 V,
0 to 1 V, ± 1 V 40 ms/
4 inputs 0.12 0.12 CS1W-PMV02

last update: September 24, 2012

OMRON CS1W-PMV catalog
CS1W-PMV SYSMAC CS-series Process Analog I/O Units/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

CS1W-PTS/PDC/PTW/PTR/PPS/PMV Data Sheet -
[3780KB] Sep 11, 201220120911 CS1W-PTS/PDC/PTW/PTR/PPS/PMV Data Sheet

NO. CS1W-PMV

TYPE:Programmable Controllers CS1 Special I/O Units

DATE:2021-06-13

Associated products:
CS1W-SRM21 CS-series CompoBus/S Master Unit/Features CS1W-MAD44 SYSMAC CS-series Analog I/O Unit/Features

Item	Specification
Applicable PLC	CS-series PLCs
Unit type	CS-series Special I/O Unit
Structure	Backplane-mounted, single slot size
Dimensions	35 × 130 × 126 mm (W × H × D)
Weight	450 g max.
External connection terminals	21-point removable terminal block (M3 screws, Tightening torque: 0.5 Nm)
Unit number switch setting	00 to 95
Self-diagnosis function	Results of self-diagnosis shown on indicators.
Mountable Racks	CPU Rack or CS-series Expansion Rack
Maximum number of Units	80 Units (10 Units × 8 Racks) Confirm that the total current consumption of all the Units (including the CPU Unit) mounted to a single CPU Rack or Expansion Rack does not exceed the maximum power supply capacity of the Power Supply Unit.
Ambient operating temperature	0 to 55 ° C
Ambient operating humidity	10% to 90% (with no condensation)

Name	Model	Current consumption (power)
5 V	26 V
Isolated-type Analog Output Unit	CS1W-PMV01	0.15 A (0.75 W)	0.16 A (4.2 W)
CS1W-PMV02	0.12 A (0.60 W)	0.12 A (3.2 W)

Power Supply Unit	Maximum current supplied (power)	Maximum total power
5 V	26 V	24 V
C200HW-PA204	4.6 A (23 W)	0.6 A (15.6 W)	None	30 W
C200HW-PA204C	4.6 A (23 W)	0.6 A (15.6 W)	None	30 W
C200HW-PA204S	4.6 A (23 W)	0.6 A (15.6 W)	0.8 A (19.2 W)	30 W
C200HW-PA204R	4.6 A (23 W)	0.6 A (15.6 W)	None	30 W
C200HW-PD024	4.6 A (23 W)	0.6 A (15.6 W)	None	30 W
C200HW-PA209R	9 A (45 W)	1.3 A (33.8 W)	None	45 W
C200HW-PD025	5.3 A	1.3 A	None	40 W
CS1D-PA207R	7 A (35 W)	1.3 A (33.8 W)	None	35 W
CS1D-PD024	4.3 A (21.5 W)	0.56 A (14.6 W)	None	28 W
CS1D-PD025	5.3 A	1.3 A	None	40 W

Item	Specifications
Model	CS1W-PMV01
Applicable PLC	CS Series
Unit type	CS-series Special I/O Unit
Mounting position	CS-series CPU Rack or CS-series Expansion Rack (Cannot be mounted to C200H Expansion I/O Rack or SYSMAC BUS Remote I/O Slave Rack.)
Maximum number of Units	80 (within the allowable current consumption and power consumption range)
Unit numbers	00 to 95 (Cannot duplicate Special I/O Unit numbers.)
Areas for data exchange with CPU Unit	Special I/O Unit Area	10 words/Unit CPU Unit to Analog Output Unit: Analog output values for each output Analog Output Unit to CPU Unit: Answer input values for each output, output disconnection
DM Area words allocated to Special I/O Units	100 words/Unit CPU Unit to Analog Output Unit: Output hold for when CPU Unit error occurs, high/low limit values, rate-of-change limit values (positive and negative directions), number of values for answer input moving average, zero/span adjustment for control outputs and answer inputs, etc.
Number of outputs	4
Output signal types	Either 4 to 20 mA or 1 to 5 V (separate for each of the four outputs). Switched according to the connection terminals.
User-defined scaling in industrial units	None
Data storage in the CIO Area	0 to 4,000 (0000 to 0FA0 hex), fixed 0: 4 mA or 1 V; 4,000: 20 mA or 5 V The values derived from carrying out the following processing in order of the values in the allocated words in the CIO Area are output in analog. 1) Output hold → 2) Rate-of-change limit → 3) Zero/span adjustment → 4) High/low limits Therefore, the values after processing are confirmed by analog inputs.
Accuracy (25 ° C)	When 4 to 20 mA: ± 0.1% of full scale When 1 to 5 V: ± 0.2% of full scale
Temperature coefficient	± 0.015%/ ° C of full scale
Resolution	1/4,000 of full scale
Warmup time	10 min
Output response time	0.2 s (travel time from output 0% to 100%, for step output)
D/A conversion period	100 ms/4 outputs
Maximum time to store data in CPU Unit	Conversion period + one CPU Unit cycle
Output signal range	Approx. - 20 to 115%
Allowable load resistance	When 4 to 20 mA: 404 Ω max. (when output range is - 20 to 115%) or 458 Ω max. (when output range is - 20 to 100%) (Refer to note.) When 1 to 5 V: 250 k Ω max.
Output impedance	When 1 to 5 V: 250 Ω (typical)
Voltage when open between terminals	Approx. 15 V
Answer input function	The actual analog output values (4 to 20 mA or 1 to 5 V) from the Unit's output terminals can be read. Data stored to allocated words of CIO Area: 0 to 4,000 (0000 to 0FA0 hex), fixed. (When 4 mA or 1 V: 0; when 20 mA or 5 V: 4,000) Accuracy: ± 0.2% of full scale Resolution: 1/2000 Temperature coefficient: ± 0.015%/ ° C
Current output disconnection detection function	When the actual output of 4 to 20 mA from the Analog Output Unit's output terminals is 0.5 mA or less, it is regarded as an external output circuit current loop disconnection, and the Output Disconnection Flag turns ON.
Function	Rate-of- change limit	This function can be used to control the speed of up and down changes in analog output values.
Output high/ low limits	This function can be used to place high and low limits on analog output values.
Output hold	This function holds the analog output value to the previous value or to a specified preset value when any of the following CPU Unit errors occurs, and outputs the analog output value in the CIO Area when the error is cleared. CPU Unit fatal error (including FALS execution) CPU error in CPU Unit All outputs turned OFF with Output OFF Bit
Isolation	Between outputs and between output terminals and PLC signals: Isolation by transformer and photocoupler
Insulation resistance	20 M Ω (at 500 V DC) between outputs
Dielectric strength	Between outputs: 1,000 V AC, at 50/60 Hz, for 1 min, leakage current 10 mA max.
External connections	Terminal block (detachable)
Unit number settings	Set by rotary switches on front panel, from 0 to 95.
Indicators	Three LED indicators on front panel (for normal operation, errors detected at the Analog Output Unit, and errors related to the CPU Unit).
Front panel connector	Output connector terminal block (detachable)
Effect on CPU Unit cycle time	0.3 ms
Current consumption	5 V DC at 150 mA max., 26 V DC at 160 mA max.
Dimensions	35 × 130 × 126 mm (W × H × D) Note: The height including the Backplane is 145 mm.
Weight	450 g max.
Standard accessories	None

CPU Unit status	Analog output values from Unit
Fatal error (including FALS(007) execution)	The output hold function holds the previous value or a specified preset value.
CPU error
All outputs turned OFF with Output OFF Bit
Change of operation mode from RUN or Monitor to Program (See note.)	When the CPU Unit's I/O Memory Hold Flag (A500.12) is OFF.	The output value in the CIO Area is cleared, and that value (0000 hex) is output refreshed.
When the CPU Unit's I/O Memory Hold Flag (A500.12) is ON.	The output value in the CIO Area is held at the value prior to the operation mode change, and that is output refreshed.
Fatal error or CPU standby after turning ON the power supply	Either 0 mA or 0 V is output.
Special I/O Unit cyclic refresh disabled	Outputs can be refreshed by means of IORF(097) in the ladder diagram program.

Item	Specifications
Model	CS1W-PMV02
Applicable PLC	CS Series
Unit type	CS-series Special I/O Unit
Mounting position	CS-series CPU Rack or CS-series Expansion Rack (Cannot be mounted to C200H Expansion I/O Rack or SYSMAC BUS Remote I/O Slave Rack.)
Maximum number of Units	80 (within the allowable current consumption and power consumption range)
Unit numbers	00 to 95 (Cannot duplicate Special I/O Unit numbers.)
Areas for data exchange with CPU Unit	Special I/O Unit Area	10 words/Unit CPU Unit to Analog Output Unit: Analog output values for each output Analog Output Unit to CPU Unit: None
DM Area words allocated to Special I/O Units	100 words/Unit CPU Unit to Analog Output Unit: Output hold for when CPU Unit error occurs, high/low limit values, rate-of-change limit values, zero/span adjustment for control outputs, etc.
Number of outputs	4
Output signal types	0 to 10 V, 0 to 5 V, 0 to 1 V, - 10 to 10 V, - 5 to 5 V, - 1 to 1 V (Each output point can be set individually.)
User-defined scaling in industrial units	Scaling is possible for each of the above signal types individually. (The data corresponding to the minimum and maximum output values can be set freely.)
Data storage in the CIO Area	± 32,000 (8300 to FFFF hex, 0000 to 7D00 hex)
Accuracy (25 °C)	± 0.1% of full scale
Temperature coefficient	± 0.015%/ ° C of full scale
Resolution	- 10 to 10 V, - 1 to 1 V: 1/16,000 of full scale 0 to 10 V, 0 to 1 V, - 5 to 5 V: 1/8,000 of full scale 0 to 5 V: 1/4,000 of full scale
Warmup time	10 min
Output response time	50 ms max. (travel time from output 0% to 90%, for step output)
D/A conversion period	40 ms/4 outputs
Maximum output delay time	Output response time + conversion period + one CPU Unit cycle
Output signal range	- 15 to 115% ( - 7.5 to 107.5% for ± 10-V and ± 1-V ranges)
Allowable load resistance	10 k Ω min.
Output impedance	0.5 Ω max.
Voltage when open between terminals	---
Answer input function	None
Current output disconnection detection function	None
Function	Rate-of- change limit	This function can be used to control the speed of up and down changes in analog output values.
Output high/ low limits	This function can be used to place high and low limits on analog output values.
Output hold	This function holds the analog output value to the previous value or to a specified preset value when any of the following CPU Unit errors occurs. Normal operation is restored when the CPU Unit error is cleared. CPU Unit fatal error (including FALS execution) CPU error in CPU Unit CPU Unit's load interrupted
Isolation	Between outputs and between output terminals and PLC signals: Isolation by transformer and photocoupler
Insulation resistance	20 M Ω (at 500 V DC) between outputs
Dielectric strength	Between outputs: 1,000 V AC, at 50/60 Hz, for 1 min, leakage current 10 mA max.
External connections	Terminal block (detachable)
Unit number settings	Set by rotary switches on front panel, from 0 to 95.
Indicators	Three LED indicators on front panel (for normal operation, errors detected at the Analog Output Unit, and errors related to the CPU Unit).
Front panel connector	Output connector terminal block (detachable)
Effect on CPU Unit cycle time	0.3 ms
Current consumption	5 V DC at 120 mA max., 26 V DC at 120 mA max.
Dimensions	35 × 130 × 126 mm (W × H × D) Note: The height including the Backplane is 145 mm.
Weight	450 g max.
Standard accessories	None

CPU Unit status	Analog output values from Unit
Fatal error (including FALS(007) execution)	The output hold function holds the previous value or a specified preset value.
CPU error
All outputs turned OFF with Output OFF Bit
Change of operation mode from RUN or Monitor to Program (See note.)	When the CPU Unit's I/O Memory Hold Flag (A500.12) is OFF.	The output value in the CIO Area is cleared, and that value (0000 hex) is output refreshed.
When the CPU Unit's I/O Memory Hold Flag (A500.12) is ON.	The output value in the CIO Area is held at the value prior to the operation mode change, and that is output refreshed.
Fatal error or CPU standby after turning ON the power supply	0 V is output.
Special I/O Unit cyclic refresh disabled	Outputs can be refreshed by means of IORF(097) in the ladder diagram program.

Unit type	Product name	Output points	Signal range selection	Signal range	Conver- sion speed (resolu- tion)	External connec- tion	No. of unit numbers allocated	Current consump- tion (A)	Model	Stand- ards
5V	24V
CS1 Special I/O Units	Isolated- type Analog Output Unit	4 inputs	Set separately for each input	4 to 20 mA, 1 to 5 V	100 ms/ 4 inputs	Removable terminal block	1	0.15	0.16	CS1W-PMV01	UC1, CE
4 inputs	0 to 10 V, ± 10 V, 0 to 5 V, ± 5 V, 0 to 1 V, ± 1 V	40 ms/ 4 inputs	0.12	0.12	CS1W-PMV02

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
CS1W-PTS/PDC/PTW/PTR/PPS/PMV Data Sheet	- [3780KB]	Sep 11, 201220120911	CS1W-PTS/PDC/PTW/PTR/PPS/PMV Data Sheet

Return to OMRON
