OMRON E2E (Small-diameter) lineup

last update: December 11, 2013

Sensors

Shielded Models

Ap- pear- ance	Sen- sing dis- tance	Connecting method	Cable speci- fications	Oper- ation mode	Wire color/ pin ar- rangement	Model
						NPN output	PNP output
3 dia.	0.8 mm	Pre-wired Models (2 m)	PVC (oil- resistant)	NO	Brown: +V Black: Output Blue: 0 V	E2E-C03SR8-WC-C1 2M *1	E2E-C03SR8-WC-B1 2M *1
				NC		E2E-C03SR8-WC-C2 2M *1	E2E-C03SR8-WC-B2 2M *1
		M8 Pre-wired Connector Models (0.3 m)	PVC (oil- resistant)	NO	1: +V, 3: 0 V, 4: Control output	E2E-C03SR8-CJ-C1 0.3M	E2E-C03SR8-CJ-B1 0.3M
				NC		E2E-C03SR8-CJ-C2 0.3M	E2E-C03SR8-CJ-B2 0.3M
4 dia.	1.2 mm	Pre-wired Models (2 m)	PVC (oil- resistant)	NO	Brown: +V Black: Output Blue: 0 V	E2E-C04S12-WC-C1 2M *1 *2 *3	E2E-C04S12-WC-B1 2M *1 *2 *3
				NC		E2E-C04S12-WC-C2 2M *1 *2 *3	E2E-C04S12-WC-B2 2M *1 *2 *3
		M8 Pre-wired Connector Models (0.3 m)	PVC (oil- resistant)	NO	1: +V, 3: 0 V, 4: Control output	E2E-C04S12-CJ-C1 0.3M	E2E-C04S12-CJ-B1 0.3M
				NC		E2E-C04S12-CJ-C2 0.3M	E2E-C04S12-CJ-B2 0.3M
		M8 Connector Models	---	NO		E2E-C04S12-MC-C1	E2E-C04S12-MC-B1
				NC		E2E-C04S12-MC-C2	E2E-C04S12-MC-B2
6.5 dia.	2 mm	Pre-wired Models (2 m)	PVC (oil- resistant)	NO	Brown: +V Black: Output Blue: 0 V	E2E-C06S02-WC-C1 2M *1 *2 *3	E2E-C06S02-WC-B1 2M *1 *2 *3
				NC		E2E-C06S02-WC-C2 2M *1 *2 *3	E2E-C06S02-WC-B2 2M *1 *2 *3
		M8 Pre-wired Connector Models (0.3 m)	PVC (oil- resistant)	NO	1: +V, 3: 0 V, 4: Control output	E2E-C06S02-CJ-C1 0.3M	E2E-C06S02-CJ-B1 0.3M
				NC		E2E-C06S02-CJ-C2 0.3M	E2E-C06S02-CJ-B2 0.3M
		M8 Connector Models	---	NO		E2E-C06S02-MC-C1	E2E-C06S02-MC-B1
				NC		E2E-C06S02-MC-C2	E2E-C06S02-MC-B2
M4	0.8 mm	Pre-wired Models (2 m)	PVC (oil- resistant)	NO	Brown: +V Black: Output Blue: 0 V	E2E-S04SR8-WC-C1 2M *1	E2E-S04SR8-WC-B1 2M *1
				NC		E2E-S04SR8-WC-C2 2M *1	E2E-S04SR8-WC-B2 2M *1
		M8 Pre-wired Connector Models (0.3 m)	PVC (oil- resistant)	NO	1: +V, 3: 0 V, 4: Control output	E2E-S04SR8-CJ-C1 0.3M	E2E-S04SR8-CJ-B1 0.3M
				NC		E2E-S04SR8-CJ-C2 0.3M	E2E-S04SR8-CJ-B2 0.3M
M5	1.2 mm	Pre-wired Models (2 m)	PVC (oil- resistant)	NO	Brown: +V Black: Output Blue: 0 V	E2E-S05S12-WC-C1 2M *1 *2 *3	E2E-S05S12-WC-B1 2M *1 *2 *3
				NC		E2E-S05S12-WC-C2 2M *1 *2 *3	E2E-S05S12-WC-B2 2M *1 *2 *3
		M8 Pre-wired Connector Models (0.3 m)	PVC (oil- resistant)	NO	1: +V, 3: 0 V, 4: Control output	E2E-S05S12-CJ-C1 0.3M	E2E-S05S12-CJ-B1 0.3M
				NC		E2E-S05S12-CJ-C2 0.3M	E2E-S05S12-CJ-B2 0.3M
		M8 Connector Models	---	NO		E2E-S05S12-MC-C1	E2E-S05S12-MC-B1
				NC		E2E-S05S12-MC-C2	E2E-S05S12-MC-B2

*1 Models with 5-m cable length are also available with "5M" suffix. (Example: E2E-C04S12-WC-C1 5M)
*2 Models with robot (bending-resistant) cable are also available with "-R" in the model number. (Example: E2E-C04S12-WC-C1-R 2M)
*3 Models with 5-m robot (bending-resistant) cable are also available with "-R" and the "5M" suffix in the model number. (Example: E2E-C04S12- WC-C1-R 5M)

Unshielded Models

Ap- pear- ance	Sen- sing dis- tance	Connecting method	Cable speci- fications	Oper- ation mode	Wire color/ pin ar- rangement	Model
						NPN output	PNP output
3 dia.	2 mm	Pre-wired Models (2 m)	PVC (oil- resistant)	NO	Brown: +V Black: Output Blue: 0 V	E2E-C03N02-WC-C1 2M *1	E2E-C03N02-WC-B1 2M *1
				NC		E2E-C03N02-WC-C2 2M *1	E2E-C03N02-WC-B2 2M *1
		M8 Pre-wired Connector Models (0.3 m)	PVC (oil- resistant)	NO	1: +V, 3: 0 V, 4: Control output	E2E-C03N02-CJ-C1 0.3M	E2E-C03N02-CJ-B1 0.3M
				NC		E2E-C03N02-CJ-C2 0.3M	E2E-C03N02-CJ-B2 0.3M
4 dia.	3 mm	Pre-wired Models (2 m)	PVC (oil- resistant)	NO	Brown: +V Black: Output Blue: 0 V	E2E-C04N03-WC-C1 2M *1 *2	E2E-C04N03-WC-B1 2M *1 *2
				NC		E2E-C04N03-WC-C2 2M *1 *2	E2E-C04N03-WC-B2 2M *1 *2
		M8 Pre-wired Connector Models (0.3 m)	PVC (oil- resistant)	NO	1: +V, 3: 0 V, 4: Control output	E2E-C04N03-CJ-C1 0.3M	E2E-C04N03-CJ-B1 0.3M
				NC		E2E-C04N03-CJ-C2 0.3M	E2E-C04N03-CJ-B2 0.3M
		M8 Connector Models	---	NO		E2E-C04N03-MC-C1	E2E-C04N03-MC-B1
				NC		E2E-C04N03-MC-C2	E2E-C04N03-MC-B2
6.5 dia.	4 mm	Pre-wired Models (2 m)	PVC (oil- resistant)	NO	Brown: +V Black: Output Blue: 0 V	E2E-C06N04-WC-C1 2M *1 *2	E2E-C06N04-WC-B1 2M *1 *2
				NC		E2E-C06N04-WC-C2 2M *1 *2	E2E-C06N04-WC-B2 2M *1 *2
		M8 Pre-wired Connector Models (0.3 m)	PVC (oil- resistant)	NO	1: +V, 3: 0 V, 4: Control output	E2E-C06N04-CJ-C1 0.3M	E2E-C06N04-CJ-B1 0.3M
				NC		E2E-C06N04-CJ-C2 0.3M	E2E-C06N04-CJ-B2 0.3M
		M8 Connector Models	---	NO		E2E-C06N04-MC-C1	E2E-C06N04-MC-B1
				NC		E2E-C06N04-MC-C2	E2E-C06N04-MC-B2
M4	2 mm	Pre-wired Models (2 m)	PVC (oil- resistant)	NO	Brown: +V Black: Output Blue: 0 V	E2E-S04N02-WC-C1 2M *1	E2E-S04N02-WC-B1 2M *1
				NC		E2E-S04N02-WC-C2 2M *1	E2E-S04N02-WC-B2 2M *1
		M8 Pre-wired Connector Models (0.3 m)	PVC (oil- resistant)	NO	1: +V, 3: 0 V, 4: Control output	E2E-S04N02-CJ-C1 0.3M	E2E-S04N02-CJ-B1 0.3M
				NC		E2E-S04N02-CJ-C2 0.3M	E2E-S04N02-CJ-B2 0.3M
M5	3 mm	Pre-wired Models (2 m)	PVC (oil- resistant)	NO	Brown: +V Black: Output Blue: 0 V	E2E-S05N03-WC-C1 2M *1 *2	E2E-S05N03-WC-B1 2M *1 *2
				NC		E2E-S05N03-WC-C2 2M *1 *2	E2E-S05N03-WC-B2 2M *1 *2
		M8 Pre-wired Connector Models (0.3 m)	PVC (oil- resistant)	NO	1: +V, 3: 0 V, 4: Control output	E2E-S05N03-CJ-C1 0.3M	E2E-S05N03-CJ-B1 0.3M
				NC		E2E-S05N03-CJ-C2 0.3M	E2E-S05N03-CJ-B2 0.3M
		M8 Connector Models	---	NO		E2E-S05N03-MC-C1	E2E-S05N03-MC-B1
				NC		E2E-S05N03-MC-C2	E2E-S05N03-MC-B2

*1 Models with 5-m cable length are also available with "5M" suffix. (Example: E2E-C04N03-WC-C1 5M)
*2 Models with robot (bending-resistant) cable are also available with "-R" in the model number. (Example: E2E-C04N03-WC-C1-R 2M)

Accessories (Sold separately)

Mounting Brackets

A Mounting Bracket is not provided with the Sensor. It must be ordered separately as required.

Appearance	Model	Quantity	Remarks
	Y92E-SC03	1	Mounting block for 3 dia., M3-20 Hexagon socket head cap screws: 2pieces, M3 × P0.5 Hexagon nuts: 2pieces, Washers: 2pieces
	Y92E-SC04	1	Mounting block for 4 dia., M3-20 Hexagon socket head cap screws: 2pieces, M3 × P0.5 Hexagon nuts: 2pieces, Washers: 2pieces
	Y92E-SC06	1	Mounting block for 6.5 dia., M3-20 Hexagon socket head cap screws: 2pieces, M3 × P0.5 Hexagon nuts: 2pieces, Washers: 2pieces
	Y92E-SS04	1	L-shaped Mounting Bracket for M4 screws
	Y92E-SS05	1	L-shaped Mounting Bracket for M5 screws

Nut Set

Model	Applicable sensor outer diameter	Set contents
Y92E-NWS04	M4	Clamping nuts: 2 pieces, toothed washer: 1 piece
Y92E-NWS05	M5

Protective Stainless-steel Spiral Tube against Wire Breakage

A Spiral Tube is not provided with the Sensor. It must be ordered separately as required.

Model	Applicable sensor outer diameter	Length
Y92E-STS04-05	M4	0.5 m
Y92E-STS04-10		1 m
Y92E-STS05-05	M5	0.5 m
Y92E-STS05-10		1 m

Sensor I/O Connector (Socket on One Cable End)

A Sensor I/O Connector is not provided with the Sensor. It must be ordered separately as required.

Size	Cable specifications	Number of cable wires (conductors)	Cable length L (m)	Straight	Right-angle
				Model
M8	Vibration-proof robot cable	3	2	XS3F-M321-302-R	XS3F-M322-302-R
			5	XS3F-M321-305-R	XS3F-M322-305-R

last update: December 11, 2013

OMRON E2E (Small-diameter) dimension

last update: May 8, 2017

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

Pre-wired Models (Shielded)

Mounting Hole Dimensions

E2E-C03SR8-WC-[][]

E2E-C04S12-WC-[][]

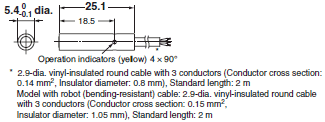

E2E-C05S01-WC-[][]

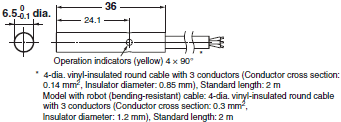

E2E-C06S02-WC-[][]

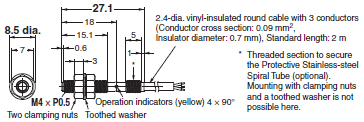

E2E-S04SR8-WC-[][]

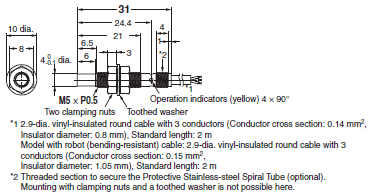

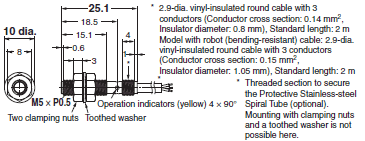

E2E-S05S12-WC-[][]

M8 Pre-wired Connector Models (0.3 m) (Shielded)

E2E-C03SR8-CJ-[][]

E2E-C04S12-CJ-[][]

E2E-C06S02-CJ-[][]

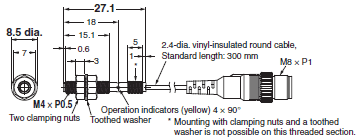

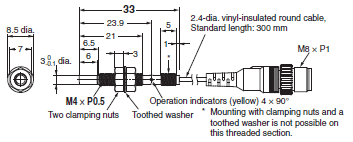

E2E-S04SR8-CJ-[][]

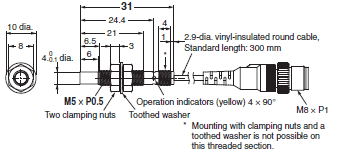

E2E-S05S12-CJ-[][]

M8 Connector Models (Shielded)

E2E-C04S12-MC-[][]

E2E-C06S02-MC-[][]

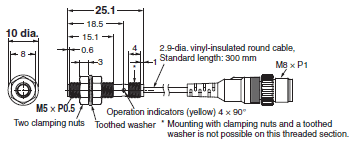

E2E-S05S12-MC-[][]

Pre-wired Models (Unshielded)

Mounting Hole Dimensions

E2E-C03N02-WC-[][]

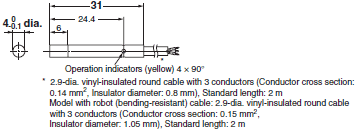

E2E-C04N03-WC-[][]

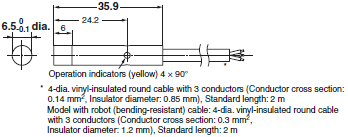

E2E-C06N04-WC-[][]

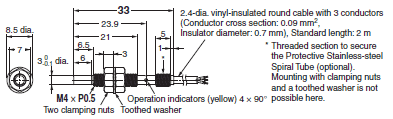

E2E-S04N02-WC-[][]

E2E-S05N03-WC-[][]

M8 Pre-wired Connector Models (0.3 mm) (Unshielded)

E2E-C03N02-CJ-[][]

E2E-C04N03-CJ-[][]

E2E-C06N04-CJ-[][]

E2E-S04N02-CJ-[][]

E2E-S05N03-CJ-[][]

M8 Connector Models (Unshielded)

E2E-C04N03-MC-[][]

E2E-C06N04-MC-[][]

E2E-S05N03-MC-[][]

Accessories (Sold Separately)

Mounting Brackets

Y92E-SC03 (3-dia. block)

Material: Iron

Y92E-SC04 (4-dia. block)

Material: Iron

Y92E-SC05 (5.4-dia. block)

Material: Iron

Y92E-SC06 (6.5-dia. block)

Material: Iron

Y92E-SS04 (for M4 screw)

Material: Iron

Y92E-SS05 (for M5 screw)

Material: Iron

Protective Stainless-steel Spiral Tubes against Wire Breakage

Y92E-STS04-[]

L = 0.5 m (Y92E-STS04-05), 1 m (Y92E-STS04-10)

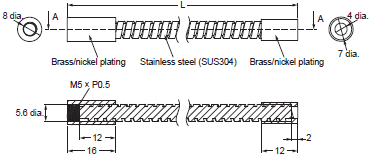

Y92E-STS05-[]

L = 0.5 m (Y92E-STS05-05), 1 m (Y92E-STS05-10)

Sensor I/O Connectors

XS3F-M32[]-3[][]-R

Straight

Right-angle

last update: May 8, 2017

OMRON E2E (Small-diameter) specification

last update: December 04, 2014

Size		3 dia.		4 dia.		5.4 dia.
Type		Shielded	Unshielded	Shielded	Unshielded	Shielded
Model		E2E- C03SR8[]	E2E- C03N02[]	E2E- C04S12[]	E2E- C04N03[]	E2E- C05S01[]
Sensing distance (at 23°C)		0.8 mm ±10%	2 mm ±10%	1.2 mm ±10%	3 mm ±10%	1mm ±10%
Setting distance *1 (Sensing distance × 0.7)		0 to 0.56 mm	0 to 1.4 mm	0 to 0.84 mm	0 to 2.1 mm	0 to 0.7 mm
Differential travel		15% max. of sensing distance
Detectable object		Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Catalog.)
Standard sensing object		Iron, 3 × 3 × 1 mm	Iron, 6 × 6 × 1 mm	Iron, 4 × 4 × 1 mm	Iron, 9 × 9 × 1 mm	Iron, 5.4 × 5.4 × 1 mm
Response frequency *2		5 kHz	3.5 kHz	4 kHz	2 kHz	4 kHz
Power supply voltage *3		10 to 30 VDC (including 10% ripple (p-p))
Current consumption		10 mA max.
Control output *4	Load current	50 mA max.		100 mA max.
	Residual voltage	2 V max. *5
Indicators		Operation indicator: Yellow (complies with European standard EN60947-5-2) Lights during output.
Operation mode		B1/B2: PNP open collector, C1/C2: NPN open collector B1/C1 models: NO, B2/C2 models: NC
Protection circuits		Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Load short-circuit protection
Ambient temperature range		Operation and storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range		Operation and storage: 35% to 95% (with no condensation)
Temperature influence		±15% max. of sensing distance at 23°C within temperature range of -25 to 70°C
Voltage influence		±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		500 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance		Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance		Destruction: 500 m/s2 10 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP67, in-house standards: oil-resistant *6
Con- necting method	Pre-wired Models	Yes		Yes		Yes
	M8 Pre-wired Connector Models	Yes		Yes		No
	M8 Connector Models	No		Yes		No
Weight (packed state)	Pre-wired Models	Approx. 25 g	Approx. 30 g	Approx. 35 g	Approx. 35 g	Approx. 35 g
	M8 Pre-wired Connector Models	Approx. 20 g	Approx. 20 g	Approx. 15 g	Approx. 20 g	---
	M8 Connector Models	---	---	Approx. 10 g	Approx. 10 g	---
Materi- als	Case	SUS303 (EN 1.4305) *7				Nickelplated brass
	Sensing surface	Heat-resistant ABS
	Clamping nuts *8	No
	Toothed washer *8	No
	Cable	Polyvinyl chloride (PVC)
Acces- sories	Instruction manual	Yes
	Model label	Yes
	Mounting brackets	Sold separately

Size		6.5 dia.		M4		M5
Type		Shielded	Unshielded	Shielded	Unshielded	Shielded	Unshielded
Model		E2E- C06S02[]	E2E- C06N04[]	E2E- S04SR8[]	E2E- S04N02[]	E2E- S05S12[]	E2E- S05N03[]
Sensing distance (at 23°C)		2 mm ±10%	4 mm ±10%	0.8 mm ±10%	2 mm ±10%	1.2 mm ±10%	3 mm ±10%
Setting distance *1 (Sensing distance × 0.7)		0 to 1.4 mm	0 to 2.8 mm	0 to 0.56 mm	0 to 1.4 mm	0 to 0.84 mm	0 to 2.1 mm
Differential travel		15% max. of sensing distance
Detectable object		Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Catalog.)
Standard sensing object		Iron, 6.5 × 6.5 × 1 mm	Iron, 12 × 12 × 1 mm	Iron, 3 × 3 × 1 mm	Iron, 6 × 6 × 1 mm	Iron, 4 × 4 × 1 mm	Iron, 9 × 9 × 1 mm
Response frequency *2		3 kHz	3 kHz	5 kHz	3.5 kHz	4 kHz	2 kHz
Power supply voltage *3		10 to 30 VDC (including 10% ripple (p-p))
Current consumption		10 mA max.
Control output *4	Load current	200 mA max. (60 to 70°C: 100 mA)		50 mA max.		100 mA max.
	Residual voltage	2 V max. *5
Indicators		Operation indicator: Yellow (complies with European standard EN60947-5-2) Lights during output.
Operation mode		B1/B2: PNP open collector, C1/C2: NPN open collector B1/C1 models: NO, B2/C2 models: NC
Protection circuits		Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Load short-circuit protection
Ambient temperature range		Operation and storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range		Operation and storage: 35% to 95% (with no condensation)
Temperature influence		±15% max. of sensing distance at 23°C within temperature range of -25 to 70°C
Voltage influence		±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		500 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance		Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance		Destruction: 500 m/s2 10 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP67, in-house standards: oil-resistant *6
Con- necting method	Pre-wired Models	Yes		Yes		Yes
	M8 Pre-wired Connector Models	Yes		Yes		Yes
	M8 Connector Models	Yes		No		Yes
Weight (packed state)	Pre-wired Models	Approx. 55 g	Approx. 55 g	Approx. 30 g	Approx. 30 g	Approx. 35 g	Approx. 40 g
	M8 Pre-wired Connector Models	Approx. 20 g	Approx. 25 g	Approx. 20 g	Approx. 20 g	Approx. 20 g	Approx. 20 g
	M8 Connector Models	Approx. 10 g	Approx. 15 g	---	---	Approx. 15 g	Approx. 15 g
Materi- als	Case	SUS303 (EN 1.4305) *7
	Sensing surface	Heat-resistant ABS
	Clamping nuts *8	No		SUS430 (EN 1.4016) *7
	Toothed washer *8	No		SUS303 (EN 1.4305) *7
	Cable	Polyvinyl chloride (PVC)
Acces- sories	Instruction manual	Yes
	Model label	Yes
	Mounting brackets	Sold separately

*1. Using within the set distance enables high-speed responsiveness and a more stable repeat accuracy.
*2. The response frequency is an average value.
*3. When used at a power of 12 V, the Sensor is less susceptible to the effects of internal self heat generation and
       therefore a more stable repeat accuracy can be obtained.
*4. When the control output is 20 mA or less, the Sensor is less susceptible to the effects of internal self heat
       generation and therefore a more stable repeat accuracy can be obtained.
*5. 3 dia., M4: load current 50 mA, cable length 2 m
       4 dia., 5.4 dia., M5: load current 100 mA, cable length 2 m
       6.5 dia.: load current 200 mA, cord length 2 m
*6. Oil resistance in-house standard: Performance with respect to water insoluble oil. (Test at right)
*7. Material name in EN standards.
*8. Clamping nuts: 2 pieces, toothed washer: 1 piece

Oil resistance test

After the test time elapses, the characteristics below are checked for problems.
(1) Visual appearance (no damage that affects product characteristics)
(2) Operation check (ON/OFF)
(3) Insulation resistance (50 MΩ min. at 500 VDC)
(4) Dielectric strength (500 VAC, 1 min.)
(5) Water resistance (IP67)

last update: December 04, 2014

OMRON E2E (Small-diameter) catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
E2E Data Sheet	D115-E1-03 [4330KB]	Jun 08, 201720170608	E2E Data Sheet

• NO. E2E (Small-diameter)
• TYPE:Proximity Sensors Cylindrical Copyright Statement
• DATE:2021-06-21
• Associated products:
  E2B Cylindrical Proximity Sensor/Features E2EF Proximity Sensor with All-stainless Housing/Features
