OMRON TP70 specification

last update: December 05, 2013

Approved Standards

Agency	Standard	File No.
CCC (CQC)	GB14048.5	2013010305630190

Approved Standard Ratings

CCC (GB14048.5)

Applicable category and ratings
AC-15 3A/240V DC-13 0.27A/250V

Ratings

Rated voltage	Carry current	Current (A)		Volt-amperes (V)
		Make	Break	Make	Break
120 VAC 240 VAC	10 A	60 30	6 3	7,200	720
125 VDC 250 VDC	2.5 A	0.55 0.27	0.55 0.27	69	69

Characteristics

Degree of protection *1			IP65
Vibration resistance			Malfunction: 10 to 55 Hz, 0.65-mm single amplitude, 100 m/s2 max.
Shock resistance	Destruction		1,000 m/s2 max.
	Malfunction		20 m/s2 max.
Operating environment	Ambient operating temperature		-10 ° C to +70 ° C
	Ambient operating humidity		35% to 95%RH
Built-in switch specifications	Switch model		D4N-2187
	Allowable operating speed		1 mm/s to 0.5 m/s
	Allowable operating frequency	Mechanical	60 operations/min
		Electrical	30 operations/min (with resistive load)
	Durability *2	Mechanical	1,000,000 operations min.
		Electrical	200,000 operations min. (for a resistive load of 10 A at 125 VAC)
	Contact type		SPST-NO+SPST-NC
	Terminal type		Screw terminals
Emergency- stop switch specifications	Switch model		A165E-M-02
	Operating method		Slow action, Direct-opening mechanism
	Operating functions		Push to lock, turn to reset Contact is opened by pushing in switch and closed by returning switch to original position.
	Contact type		DPST-NC
	Operating part		Size: 40 dia. Color: red, non-illuminated
	Terminal type		Soldered terminals

Note:Note:

Note:The values in the above table are the initial values.

Note:For more details on specifications, refer to individual specification sheets for the relevant models.

Note:The specification given for the degree of protection is for the built-in switch (D4N-2187) and does not apply to the casing for the whole product.

Note:The durability values shown above are for operation at an ambient temperature of 5°C to 35°C, an ambient humidity of 40% to 70%RH, with an operating stroke of 30 mm at a point 20 mm away from the end of the actuator.
Contact your OMRON representative for details on other operating conditions.

last update: December 05, 2013

OMRON TP70 lineup

last update: September 24, 2012

List of Models

Name	Mounting method	Model
On-site Flexible Rod Switch (integrated switch only)	Front mounting	TP70-1A1
	Base mounting	TP70-1A2
	C-clamp mounting	TP70-1A3
On-site Flexible Rod Switch (with separable emergency-stop switch)	Front mounting	TP70-1S1
	Base mounting	TP70-1S2
	C-clamp mounting	TP70-1S3

last update: September 24, 2012

OMRON TP70 dimension

last update: May 18, 2017

(Unit: mm)

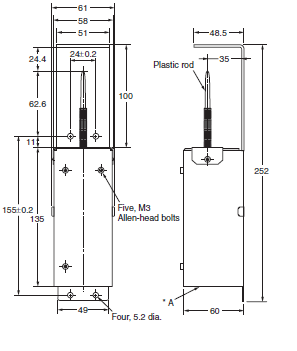

TP70-1A1

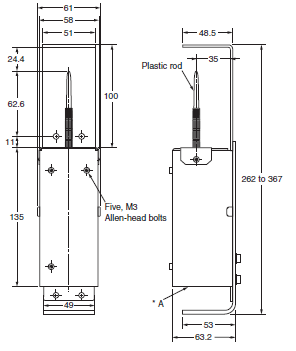

TP70-1A2

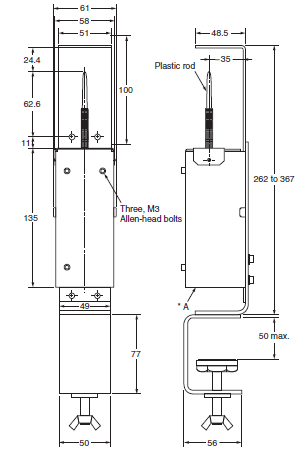

TP70-1A3

Note: Unless otherwise specified, a tolerance of ±4 mm applies to all dimensions.
* There is no base plate at A.

Operating Characteristics

last update: May 18, 2017
