• Provides stable detection of transparent films, transparent bottles, PET bottles, and other similar workpieces.
• Compact design with built-in amplifier allows easy mounting on small conveyor lines.
• Detects as far as 500 mm away.
• Equipped with stability indicator.
last update: May 23, 2013
Purchase the OMRON Copyright Statement Please fill in the following
If you have just landed here, this product OMRON E4E2 Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E4E2 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E4E2Sensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
NT11 / NT21 Programmable Terminals/Features
CJ1W-NC[]81 / []82 CJ-series Position Control Units with EtherCAT interface/Features
A2A Subminiature Pushbutton Switch (Cylindrical 10.5-dia.)/Features
G3NA Solid State Relays/Features
S8T-DCBU-02 Buffer Block/Features
OMRON E4E2 catalog
E4E2 Compact Ultrasonic Sensor/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 E4E2 Data Sheet | - [958KB] | Dec 19, 201320131219 | E4E2 Data Sheet |
OMRON E4E2 lineup
E4E2 Compact Ultrasonic Sensor/Lineuplast update: May 23, 2013
| Sensing method | Sensing distance | Output configuration | Model |
|---|---|---|---|
| Through-beam | 500 mm | NPN open collector NO (normally open) | E4E2-TS50C1 2M |
| NPN open collector NC (normally closed) | E4E2-TS50C2 2M |
last update: May 23, 2013
OMRON E4E2 dimension
E4E2 Compact Ultrasonic Sensor/Dimensionslast update: May 23, 2013
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

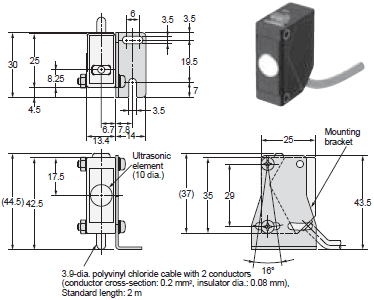

Emitter
E4E2-TS50TC1

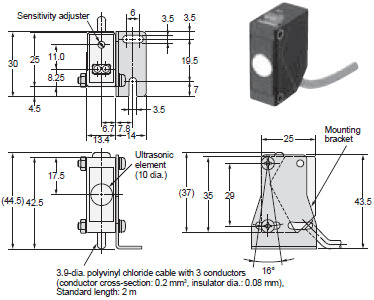

Receiver
