OMRON G6B-4[][]ND Dimensions

/Images/l_901-25-136366-198x198.jpg

last update: April 10, 2017

• Equipped with four G6B Mini-relays that are compact, highly sensitive, and highly resistant to dielectric surges, and that can switch 5 amps of power.

• Sealed plastic construction used for relays.

• Easy wiring with separated input/output terminals.

• Special P6B Mounting Socket used to facilitate maintenance (except for high-reliability models).

• UL and CSA certification for standard models (except for high-reliability models). VDE certification for G6B-4BND/47BND/48BND for 12/24 VDC.

• DIN Track mounting, and screw mounting models are available.

• SSR-equipped G3S4 models are also available.

last update: April 10, 2017

Purchase the OMRON Copyright Statement Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON G6B-4[][]ND Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G6B-4[][]ND We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G6B-4[][]NDRelays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

G7Z Power Relays/Features
E3ZS Single-beam Safety Sensor/Features
E5AR-T Programmable Digital Controller/Features
ES1B Infrared Thermosensor/Features
H5L Daily Time Switch/Features

OMRON G6B-4[][]ND dimension
G6B-4[][]ND Terminal Relay/Dimensions
last update: April 10, 2017

(Unit: mm)

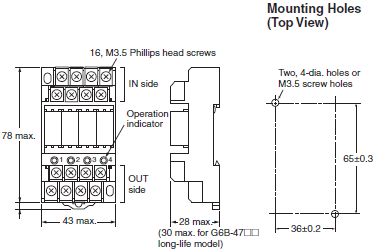

Philip Screw Terminals

G6B-4BND
G6B-47BND
G6B-48BND

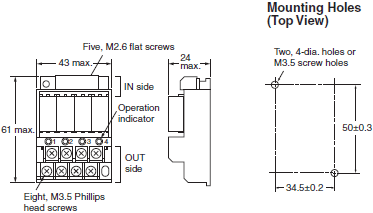

Flat Screw Terminal
G6B-4FB1ND

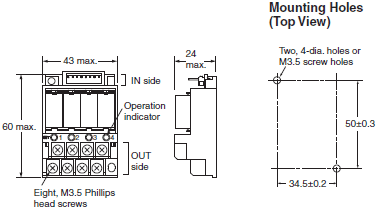

Connector Terminal
G6B-4FPND

Accessories (Order Separately)
Connection Socket (Can be Purchased Individually)
P6BF-4BND (with operation indicator)

Short Bars

G6B-4-SB
Short Bars are used to wire crossovers for common terminals for coils or contacts.

Relay Removal Tool, Short Bar and Terminal Cover (Order Separately)

Refer to Options for the G6B-4CB, G6B-4[][]ND, and G3S4 on Data Sheet.

Relay Mounting Products (Order Separately)

Refer to Common Sockets/Products Related DIN Tracks.

last update: April 10, 2017

OMRON G6B-4[][]ND specification
G6B-4[][]ND Terminal Relay/Specifications
last update: April 10, 2017
Ratings
Coil Ratings (per G6B Relay)

Rated voltage 5 VDC 12 VDC 24 VDC
Rated current 35.5 mA (43.4) 19.1 mA 10.7 mA (10.3)
Coil resistance 125 Ω 720 Ω 2,880 Ω
Must operate voltage 80% max. of rated voltage
Must release voltage 10% min. of rated voltage
Max. voltage 130% of rated voltage
Power consumption Approx. 200 mW

Note: 1. Rated current and coil resistance were measured at a coil temperature of 23°C with a tolerance of ±10%.
         2. Operating characteristics were measured at a coil temperature of 23°C.
         3. The maximum allowable voltage is the maximum value of the allowable voltage range for the relay coil operating
             power supply. There is no continuous allowance.
         4. Diodes to absorb coil surge are equivalent to S5688J (reverse voltage resistance: 600 V; forward current: 1 A).
         5. The values in parentheses are for the G6B-4FB1ND and G6B-4FPND.
         6. The rated current includes the LED current.

Contact Ratings

Classification G6B-4BND (standard), G6B-47BND (long-life) G6B-48BND (high-reliability)
Load Resistive load
(cosφ = 1) Inductive load
(cosφ = 0.4, L/R = 7 ms) Resistive load
(cosφ = 1) Inductive load
(cosφ = 0.4, L/R = 7 ms)
Rated load 5 A at 250 VAC,
5 A at 30 VDC 2 A at 250 VAC,
2 A at 30 VDC 2 A at 250 VAC,
2 A at 30 VDC 0.5 A at 250 VAC,
0.5 A at 30 VDC
Rated carry current 5 A 2 A
Max. switching voltage 380 VAC, 125 VDC
Max. switching current 5 A 2 A
Max. switching power 1,250 VA, 150 W 500 VA, 60 W 500 VA, 60 W 125 VA, 15 W
Error rate (reference
value) (see note) 10 mA at 5 VDC 1 mA at 1 VDC

Note: This value fulfills the P reference value of opening/closing at a rate of 120 times per min (ambient operating
         environment and determination criteria according to JIS C5442).

Characteristics

Contact resistance
(see note 2) 100 mΩ max.
Operate time 10 ms max. (approx. 3 ms)
Release time 15 ms max. (approx. 4 ms)
Insulation resistance 1,000 MΩ min. (at 500 VDC)
Dielectric strength 2,000 VAC, 50/60 Hz for 1 min between coil and contacts
2,000 VAC, 50/60 Hz for 1 min between contacts of different polarity
1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity
250 VAC, 50/60 Hz for 1 min between coils of different polarity
Vibration resistance Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Malfunction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance Destruction: 1,000 m/s² (approx. 100G)
Malfunction: 100 m/s² (approx. 10G)
Endurance Mechanical: 50,000,000 operations min. (at 18,000 operations/hr)
Electrical:
100,000 operations min. (at 1,800 operations/hr, rated load)
500,000 operations min. for long-life at 2 A
100,000 operations min for long-life at 5 A
Ambient temperature Operating: -25°C to 55°C (with no icing or condensation)
Storage: -25°C to 55°C (with no icing or condensation)
Ambient humidity Operating: 35% to 85%
Weight Approx. 75 g

Note: 1. The above values are initial values.
         2. Measurement condition: 1 A at 5 VDC

last update: April 10, 2017

OMRON G6B-4[][]ND catalog
G6B-4[][]ND Terminal Relay/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

G6B-4[][]ND/G3S4 Data Sheet -
[1993KB] Apr 10, 201720170410 G6B-4[][]ND/G3S4 Data Sheet

Options for the G6B-4CB, G6B-4[][]ND, and G3S4 -
[285KB] Apr 10, 201720170410 Options for the G6B-4CB, G6B-4[][]ND, and G3S4

OMRON G6B-4[][]ND lineup
G6B-4[][]ND Terminal Relay/Lineup
last update: April 10, 2017

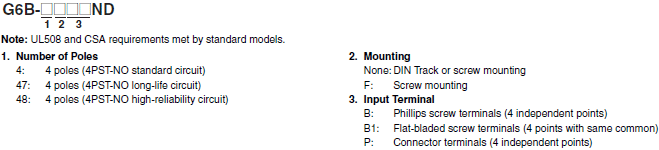

Model Number Legend

List of Models

When your order, specify the rated voltage.

Classification Contact form Mounting method Terminals Model Rated voltage
Equipped with
operation
indicator and
diode to absorb
coil surge 4PST (standard) DIN Track or screw
mounting Phillips screw
terminal G6B-4BND 5 VDC
12 VDC
24 VDC
4PST (long-life) DIN Track or screw
mounting Phillips screw
terminal G6B-47BND 5 VDC
12 VDC
24 VDC
4PST (high reliability) DIN Track or screw
mounting Phillips screw
terminal G6B-48BND 5 VDC
12 VDC
24 VDC
4PST (standard) Screw mounting Flat-bladed screw
terminal G6B-4FB1ND 5 VDC
12 VDC
24 VDC
4PST (standard) Screw mounting Connector G6B-4FPND 5 VDC
12 VDC
24 VDC

Note: 1. For replacement relays, use relays with the same voltage specifications as the relays provided with the Terminal
           when it was purchased.
             Longer operating life can be achieved by replacing the G6B-4[][]ND with the G6B-1174P-FD-US-P6B.
         2. Standard models and long-life models are also available without relays mounted to the sockets
         3. SSR-equipped G3S4 models are also available. Refer to information on the G3S4 (Data Sheet).

Terminal relay Socket
G6B-4BND
G6B-47BND P6BF-4BND

Also give the voltage specification.
P6BF-4BND Connection Sockets do not have specific approved standards.

Accessories (Order Separately)
Replacement Relays

Applicable terminal relay Model Rated voltage
G6B-4BND
G6B-4FB1ND
G6B-4FPND G6B-1114P-FD-US-P6B 5 VDC
12 VDC
24 VDC
G6B-47BND G6B-1174P-FD-US-P6B 5 VDC
12 VDC
24 VDC

Note: Relays cannot be replaced for G6B-48BND, which is mounted directly to boards.

Relay Mounting Products

Name Model
Relay Removal Tool P6B-Y1
Short Bars G6B-4-SB
Mounting Track PFP-100N
PFP-50N
PFP-100N2
End Plate PFP-M
Spacer PFP-S

last update: April 10, 2017
