last update: April 1, 2016

• Previous models with M3 screw connections have been joined by new models with ferrules to help reduce wiring work.

• Ideal for the thermal input devices of Temperature Controllers.

• Select from a wide variety of Temperature Sensors according to the temperature to be measured, location, and environment, and also according to the type and shape of the terminal.

last update: April 1, 2016

Purchase the OMRON Input Equipments Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON E52 (Exclusive Models) Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E52 (Exclusive Models) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E52 (Exclusive Models)Control Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E2C-EDA High Precision Positioning Inductive Proximity Sensor/Features
D4BS Safety-door Switch/Features
E5ZN-DRT DeviceNet Communications Unit/Features
CJ2H-CPU6[]-EIP CJ-series CJ2H (Built-in EtherNet/IP) CPU Units/Features
GX-[]D16[]8 / []D32[]8 Digital I/O Terminal e-CON Connector Type/Features

OMRON E52 (Exclusive Models) specification
E52 (Exclusive Models) Temperature Sensor (Exclusive Models)/Specifications
last update: April 3, 2017
Exclusive Models
Thermocouples
Thermocouples for Molding Machines
E52-CA2GVY, E52-IC2GVY

Element type K (CA), J (IC)
Element diameter 1.0 mm (single wire)
Class Class 2 (0.75)
Protective tubing material SUS304
Thermal contact Grounded type
Temperature range 0°C to 350°C
Lead wire Glass-covered stainless steel shielded thermocouple wire with 4 dia.
1/1.0
0°C to 180°C

Thermocouples with Crimp Terminal
E52-CA1GTY, E52-IC1GTY

Element type K (CA), J (IC)
Element diameter 0.65 mm (single wire)
Class Class 2 (0.75)
Thermal contact Grounded type
Temperature range 0°C to 300°C
Lead wire Glass-covered stainless steel shielded thermocouple wire with 4 dia.
1/1.0
0°C to 150°C
Terminal shape Y-type crimp terminal for M3.5

Note: The E52-CA1GTY is also available with double elements.

Platinum Resistance Thermometers
Platinum Resistance Thermometers for Surface Temperature Measurement
E52-P2GSY

Element type Pt100
Class Class B
Protective tubing material SUS304
With brass-nickel-plated bracket
Conductor type 3-conductor system
Temperature range -50°C to 250°C
Lead wire Silicone-covered 3-conductor cable and approx. 3.9 dia.
30/0.08
-50°C to 150°C

Platinum Resistance Thermometers for Room Temperature Measurement
E52-P10GRY

Element type Pt100
Class Class B
Protective tubing material SUS304
Conductor type 3-conductor system
Temperature range -50°C to 60°C
Lead wire Vinyl-covered 3-conductor cable with 6.1 dia.
20/0.18
-25°C to 60°C

Waterproof Platinum Resistance Thermometers
E52-P10GPY

Element type Pt100
Class Class B
Protective tubing material SUS304
Conductor type 3-conductor system
Temperature range 0°C to 70°C (underwater)
-20°C to 70°C (in the air)
Lead wire Vinyl-covered 3-conductor cable with 6.1 dia.
12/0.18
-25°C to 60°C
Resistive pressure 981 kps

Corrosion-resistant Models with Fluororesin-covered Protective Tubing
Thermocouples
Exposed-lead Models
E52-CA20AY-1

Element type K (CA)
Class Class 2 (0.75)
Protective tubing material ASTM316L with Fluororesin-covered (FEP) tube
Thermal contact Non-grounded type
Temperature range 0°C to 180°C
Lead wire Vinyl-covered: -20°C to 70°C

Platinum Measurement
Exposed-lead Models
E52-P20AY-1

Element type Pt100
Class Class B
Protective tubing material SUS316 with Fluororesin-covered (FEP) tube
Conductor type 3-conductor system
Temperature range -80°C to 180°C
Lead wire Vinyl-covered: -20°C to 70°C

FEP-molded Models (Completely Waterproof)
E52-P5AY-40

Element type Pt100
Class Class B
Protective tubing material Fluororesin (FEP) tube (element/fluororesin mold (FEP))
Conductor type 3-conductor system
Temperature range -50°C to 180°C
Lead wire Fluororesin (FEP) cover (with outer cover): -50°C to 180°C

Pressure-resistant Explosion-proof (IICT6) Models
Thermocouples
Enclosed-terminal Models
E52-CA[][]C-N-6

Element type K (CA)
Class Class 2 (0.75)
Class 3 (Level 1.5) at -40°C and under
Protective tubing material L2 section: ASTM316L
L1 section: SUS304
Explosionproof
specifications Construction Pressure-resistant explosion-proof structure
Explosion-protected
class and ignitability IICT6
Explosion-proof
temperature range -20°C to 85°C
Lead wire wiring method Pressure-resistant packing cable ground type
Conduit thread G1/2
Installation method Conforms to Technical Recommendations of the
Research Institute of Industrial Safety (Japan)

Platinum Resistance Thermometers for Surface Temperature Measurement
Enclosed-terminal Models
E52-P[][]C-N-6

Element type Pt100
Class Class B
Protective tubing material L2 section: ASTM316L
L1 section: SUS304
Explosionproof
specifications Construction Pressure-resistant explosion-proof structure
Explosion-protected
class and ignitability IICT6
Explosion-proof
temperature range -20°C to 85°C
Lead wire wiring method Pressure-resistant packing cable ground type
Conduit thread G1/2
Installation method Conforms to Technical Recommendations of the
Research Institute of Industrial Safety (Japan)

Double-element Models
Thermocouple
Exposed-lead Models
E52-CA20AY-7

Element type K (CA)
Class Class 2 (0.75)
Protective tubing material ASTM316L (with sheath)
Thermal contact Non-grounded type
Temperature range 0°C to permissible temperature limit
Lead wire Vinyl-covered with external dimensions of 2.4 x 4.1
7/0.3
-20°C to 70°C

Permissible Temperature in Dry Air
D Element wire
K (CA)
ASTM316L
3.2 dia. 750°C
4.8 dia. 800°C
6.4 dia. 800°C
8.0 dia. 900°C

Platinum Resistance Thermometers
Exposed-lead Models
E52-P20AY-7

Element type Pt100
Class Class B
Protective tubing material ASTM316L (with sheath)
Conductor type 3-conductor system
Temperature range -200°C to 450°C
Lead wire Vinyl-covered with 6.5 dia.
19/0.18
-20°C to 70°C

Enclosed-terminal Models
E52-P20C-N-7

Element type Pt100
Class Class B
Protective tubing material ASTM316L (with sheath)
Conductor type 3-conductor system
Temperature range -200°C to 450°C

Silicone-covered Lead Wires Models
Thermocouples
Exposed-lead Models with Screws
E52-CA1DY-40

Element type K (CA)
Class Class 2 (0.75)
Screw material SUS304
Thermal contact Grounded type
Temperature range 0°C to 300°C
Lead wire Silicone-covered with external dimensions of 3.5 x 4.9
30/0.1
0°C to 150°C
Terminal shape Y-type crimp terminal for M3.5

Note: Refer to the installation example for the E52-CA1DY.

Thermocouples with Crimp Terminal
E52-CA1GTY-14

Element type K (CA)
Class Class 2 (0.75)
Thermal contact Grounded type
Temperature range 0°C to 200°C
Lead wire Silicone-covered compensating cable with external dimensions of 3.2 x 4.6
30/0.1
0°C to 150°C
Terminal shape Y-type crimp terminal for M3.5

last update: April 3, 2017

OMRON E52 (Exclusive Models) dimension
E52 (Exclusive Models) Temperature Sensor (Exclusive Models)/Dimensions
last update: April 3, 2017

(Unit: mm)

Exclusive Models
Thermocouples

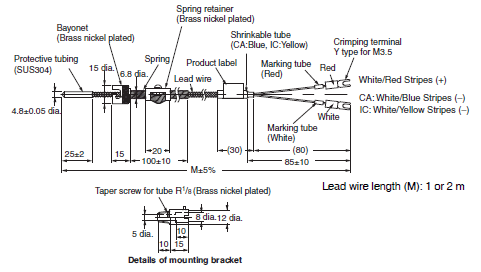

Thermocouples for Molding Machines
E52-CA2GVY, E52-IC2GVY

Note: The Adapter is included with the Thermocouple.
If it is lost or damaged, you can order a replacement with the following model number.
Adapter: Y92F-S1

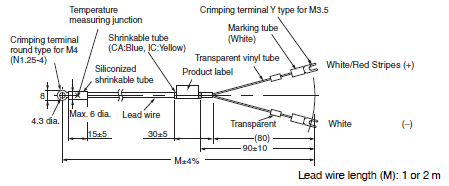

Thermocouples with Crimp Terminal
E52-CA1GTY, E52-IC1GTY

Platinum Resistance Thermometers

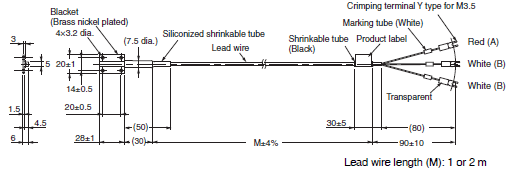

Platinum Resistance Thermometers for Surface Temperature Measurement

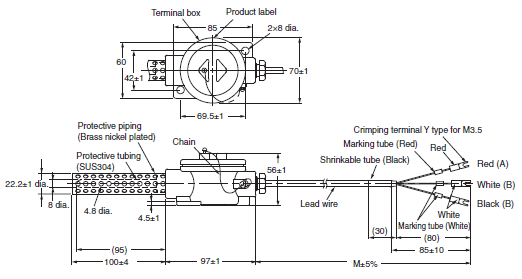

E52-P2GSY

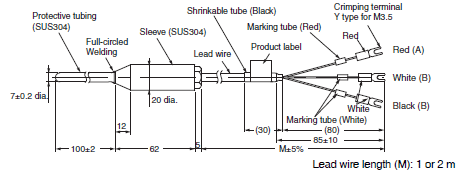

Platinum Resistance Thermometers for Room Temperature Measurement
E52-P10GRY

Waterproof Platinum Resistance Thermometers
E52-P10GPY

Note: The lead wires are vinyl-covered, and cannot be used underwater. Use the E52-P5AY-40 if waterproof lead wires are required for use underwater.

Corrosion-resistant Models with Fluororesin-covered Protective Tubing
Thermocouples
Exposed-lead Models

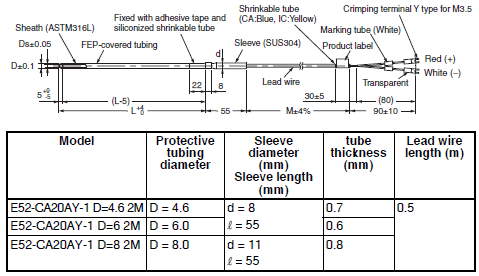

E52-CA20AY-1

Platinum Measurement
Exposed-lead Models

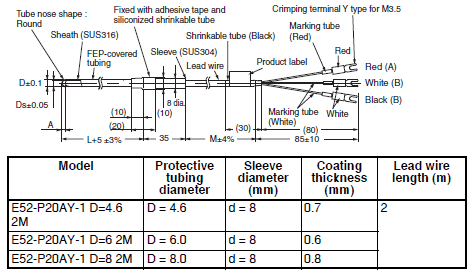

E52-P20AY-1

FEP-molded Models (Completely Waterproof)

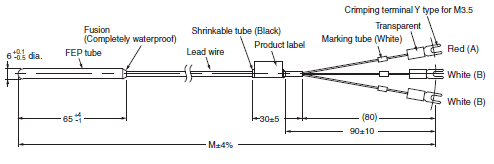

E52-P5AY-40

Pressure-resistant Explosion-proof (IICT6) Models

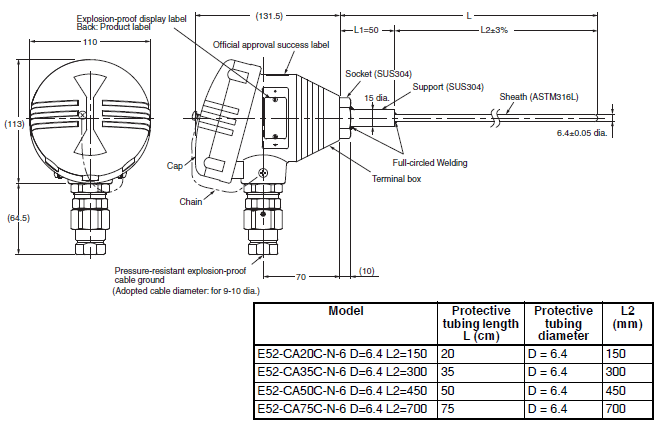

Thermocouples
Enclosed-terminal Models
E52-CA[][]C-N-6

Platinum Resistance Thermometers for Surface Temperature Measurement
Enclosed-terminal Models

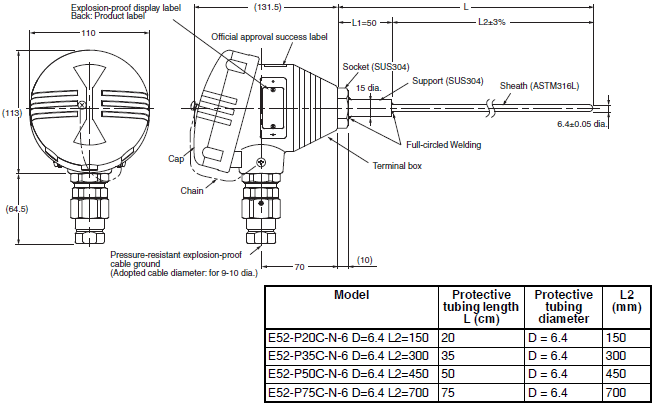

E52-P[][]C-N-6

Double-element Models
Thermocouple
Exposed-lead Models

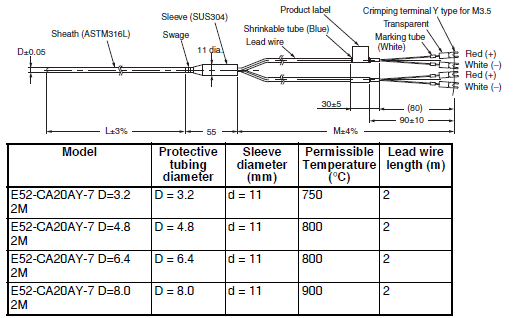

E52-CA20AY-7

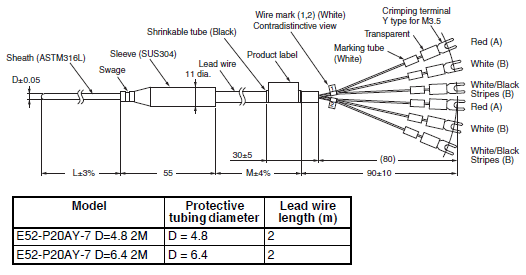

Platinum Resistance Thermometers
Exposed-lead Models
E52-P20AY-7

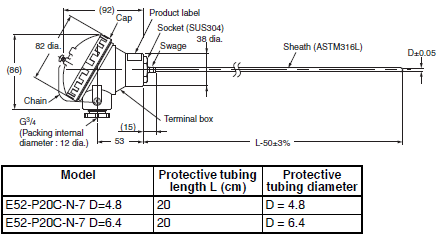

Enclosed-terminal Models
E52-P20C-N-7

Terminal for terminal connection Size: M4Note: The length L is in centimeters, but “50” is 50 millimeters. Therefore, for the E52-P20C-N-7: L = 20 (cm), the sheath length L - 50 = 200 - 50 = 150 mm.

Silicone-covered Lead Wires Models
Thermocouples
Exposed-lead Models with Screws

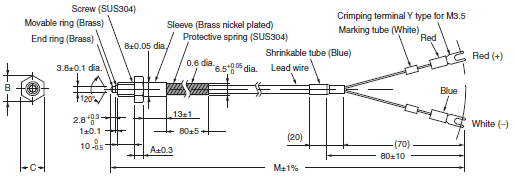

E52-CA1DY-40

Thermocouples with Crimp Terminal

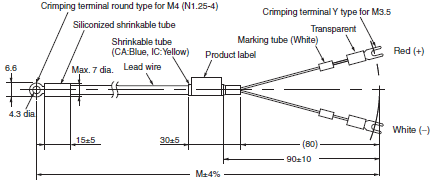

E52-CA1GTY-14

Lead wire length (M): 1 or 2 m

last update: April 3, 2017

OMRON E52 (Exclusive Models) lineup
E52 (Exclusive Models) Temperature Sensor (Exclusive Models)/Lineup
last update: June 22, 2017

Description Model and appearance Tem-
perature
range
(See
note 2.) Ele-
ment
type Conduc-
tor
type Class Protective
tubing
material Termi-
nal
type
Bayonet
spring for
molding
machines E52-CA2GVY
E52-IC2GVY 0°C to
350°C K (CA)
J (IC) Grounded
type 2
(0.75) SUS304 Exposed
lead
wires
Crimping
terminals E52-CA1GTY
E52-IC1GTY 0°C to
300°C ---
Used for
measuring
surface
temperatures E52-P2GSY -50°C
to 250°C Pt100 3-
conductor
system B SUS304
Used for room
temperature
measurement E52-P10GRY -50°C
to 60°C
Double-
element model E52-CA20AY-7 0°C to
900°C K (CA) Two non-
grounded
types 2
(0.75) ASTM316L
E52-P20AY-7 -196°C
to 250°C Pt100 Two 3-
conductor
systems B
E52-P20C-N-7 -200°C
to 450°C Enclosed
terminals
Waterproof
model E52-P10GPY 0°C to
70°C 3-
conductor
system SUS304 Exposed
lead
wires
E52-P5AY-40 -50°C
to 180°C Fluororesin
tubing
Corrosion-
resistant
model E52-P20AY-1 -80°C
to 180°C
E52-CA20AY-1 0°C to
180°C K (CA) Non-
grounded
type 2
(0.75)
Silicone-
covered lead
wires E52-CA1DY-40 0°C to
300°C Grounded
type SUS304
E52-CA1GTY-14 0°C to
200°C ---
Explosion-
proof model E52-P[][]C-N-6 --- Pt100 3-
conductor
system B ASTM316L Enclosed
terminals
E52-CA[][]C-N-6 --- K (CA) Non-
grounded
type 2
(0.75)
Note: 1. These tables provide general specifications only. Be sure to read the detailed specifications and precautions
before use.
2. The temperature range varies with the material, thickness, construction, and element type of the protective tubing.

Exclusive Models
Thermocouples
Thermocouples for Molding Machines
E52-CA2GVY, E52-IC2GVY

Lead wire length (m) Element type: K (CA) Element type: J (IC)
Model
1 E52-CA2GVY 1M E52-IC2GVY 1M
2 E52-CA2GVY 2M E52-IC2GVY 2M

Thermocouples with Crimp Terminal
E52-CA1GTY, E52-IC1GTY

Lead wire length (m) Element type: K (CA) Element type: J (IC)
Model
1 E52-CA1GTY 1M E52-IC1GTY 1M
2 E52-CA1GTY 2M E52-IC1GTY 2M

Platinum Resistance Thermometers
Platinum Resistance Thermometers for Surface Temperature Measurement
E52-P2GSY

Lead wire length (m) Model
1 E52-P2GSY 1M
2 E52-P2GSY 2M

Platinum Resistance Thermometers for Room Temperature Measurement
E52-P10GRY

Lead wire length (m) Model
2 E52-P10GRY 2M

Waterproof Platinum Resistance Thermometers
E52-P10GPY

Lead wire length (m) Model
2 E52-P10GPY 2M
4 E52-P10GPY 4M

Corrosion-resistant Models with Fluororesin-covered Protective Tubing
Thermocouples
Exposed-lead Models
E52-CA20AY-1

Model Protective
tubing
length L (cm) Protective
tubing
diameter Sleeve diameter (mm)
Sleeve length (mm) Covering
thickness
(mm) Lead wire
length (m)
E52-CA20AY-1 D=4.6 2M 20 D = 4.6 d = 8
l = 55 0.7 0.5
E52-CA20AY-1 D=6 2M D = 6.0 0.6
E52-CA20AY-1 D=8 2M D = 8.0 d = 11
l = 55 0.8

Platinum Measurement
Exposed-lead Models
E52-P20AY-1

Model Protective
tubing
length L (cm) Protective
tubing
diameter Sleeve diameter
(mm) Covering
thickness (mm) Lead wire
length (m)
E52-P20AY-1 D=4.6 2M 20 D = 4.6 d = 8 0.7 2
E52-P20AY-1 D=6 2M D = 6.0 d = 8 0.6
E52-P20AY-1 D=8 2M D = 8.0 d = 8 0.8

FEP-molded Models (Completely Waterproof)
E52-P5AY-40

Model Lead wire length (m)
E52-P5AY-40 2M 2
E52-P5AY-40 4M 4
E52-P5AY-40 6M 6
E52-P5AY-40 8M 8

Pressure-resistant Explosion-proof (IICT6) Models
Thermocouples
Enclosed-terminal Models
E52-CA[][]C-N-6

Model Protective tubing
length L (cm) Protective tubing
diameter L2 (mm)
E52-CA20C-N-6 D=6.4 L2=150 20 D = 6.4 150
E52-CA35C-N-6 D=6.4 L2=300 35 D = 6.4 300
E52-CA50C-N-6 D=6.4 L2=450 50 D = 6.4 450
E52-CA75C-N-6 D=6.4 L2=700 75 D = 6.4 700

Platinum Resistance Thermometers for Surface Temperature Measurement
Enclosed-terminal Models
E52-P[][]C-N-6

Model Protective tubing
length L (cm) Protective tubing
diameter L2 (mm)
E52-P20C-N-6 D=6.4 L2=150 20 D = 6.4 150
E52-P35C-N-6 D=6.4 L2=300 35 D = 6.4 300
E52-P50C-N-6 D=6.4 L2=450 50 D = 6.4 450
E52-P75C-N-6 D=6.4 L2=700 75 D = 6.4 700

Double-element Models
Thermocouple
Exposed-lead Models
E52-CA20AY-7

Model Protective
tubing
length L (cm) Protective
tubing
diameter Sleeve
diameter (mm) Permissible
Temperature (°C) Lead wire
length (m)
E52-CA20AY-7 D=3.2 2M 20 D = 3.2 d = 11 750 2
E52-CA20AY-7 D=4.8 2M D = 4.8 d = 11 800 2
E52-CA20AY-7 D=6.4 2M D = 6.4 d = 11 800 2
E52-CA20AY-7 D=8.0 2M D = 8.0 d = 11 900 2

Platinum Resistance Thermometers
Exposed-lead Models
E52-P20AY-7

Model Protective tubing
length L (cm) Protective tubing
diameter Lead wire length (m)
E52-P20AY-7 D=4.8 2M 20 D = 4.8 2
E52-P20AY-7 D=6.4 2M D = 6.4 2

Enclosed-terminal Models
E52-P20C-N-7

Model Protective tubing length L (cm) Protective tubing diameter
E52-P20C-N-7 D=4.8 20 D = 4.8
E52-P20C-N-7 D=6.4 20 D = 6.4

Silicone-covered Lead Wires Models
Thermocouples
Exposed-lead Models with Screws
E52-CA1DY-40

Model Screw pitch Lead wire length (m)
E52-CA1DY-40 M6 1M M6 (P=1.0) 1
E52-CA1DY-40 M6 2M M6 (P=1.0) 2
E52-CA1DY-40 M6 4M M6 (P=1.0) 4

Thermocouples with Crimp Terminal
E52-CA1GTY-14

Model Lead wire length (m)
E52-CA1GTY-14 1M 1
E52-CA1GTY-14 2M 2

last update: June 22, 2017

OMRON E52 (Exclusive Models) catalog
E52 (Exclusive Models) Temperature Sensor (Exclusive Models)/Catalog

Catalog

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

E52 Data Sheet -
[7536KB] Feb 08, 201820180208 E52 Data Sheet

NO. E52 (Exclusive Models)

TYPE:Temperature Controllers Input Equipments Copyright Statement

DATE:2021-06-18

Associated products:
E52 (Low-cost Models) Temperature Sensor (Low-cost Models)/Features E52-THE5A / 6D / 6F Temperature Sensor (Thermistors)/Features

Element type	K (CA), J (IC)
Element diameter	1.0 mm (single wire)
Class	Class 2 (0.75)
Protective tubing material	SUS304
Thermal contact	Grounded type
Temperature range	0°C to 350°C
Lead wire	Glass-covered stainless steel shielded thermocouple wire with 4 dia. 1/1.0 0°C to 180°C

Element type	K (CA), J (IC)
Element diameter	0.65 mm (single wire)
Class	Class 2 (0.75)
Thermal contact	Grounded type
Temperature range	0°C to 300°C
Lead wire	Glass-covered stainless steel shielded thermocouple wire with 4 dia. 1/1.0 0°C to 150°C
Terminal shape	Y-type crimp terminal for M3.5

Element type	Pt100
Class	Class B
Protective tubing material	SUS304 With brass-nickel-plated bracket
Conductor type	3-conductor system
Temperature range	-50°C to 250°C
Lead wire	Silicone-covered 3-conductor cable and approx. 3.9 dia. 30/0.08 -50°C to 150°C

Element type	Pt100
Class	Class B
Protective tubing material	SUS304
Conductor type	3-conductor system
Temperature range	-50°C to 60°C
Lead wire	Vinyl-covered 3-conductor cable with 6.1 dia. 20/0.18 -25°C to 60°C

Element type	Pt100
Class	Class B
Protective tubing material	SUS304
Conductor type	3-conductor system
Temperature range	0°C to 70°C (underwater) -20°C to 70°C (in the air)
Lead wire	Vinyl-covered 3-conductor cable with 6.1 dia. 12/0.18 -25°C to 60°C
Resistive pressure	981 kps

Element type	K (CA)
Class	Class 2 (0.75)
Protective tubing material	ASTM316L with Fluororesin-covered (FEP) tube
Thermal contact	Non-grounded type
Temperature range	0°C to 180°C
Lead wire	Vinyl-covered: -20°C to 70°C

Element type	Pt100
Class	Class B
Protective tubing material	SUS316 with Fluororesin-covered (FEP) tube
Conductor type	3-conductor system
Temperature range	-80°C to 180°C
Lead wire	Vinyl-covered: -20°C to 70°C

Element type	Pt100
Class	Class B
Protective tubing material	Fluororesin (FEP) tube (element/fluororesin mold (FEP))
Conductor type	3-conductor system
Temperature range	-50°C to 180°C
Lead wire	Fluororesin (FEP) cover (with outer cover): -50°C to 180°C

Element type	K (CA)
Class	Class 2 (0.75) Class 3 (Level 1.5) at -40°C and under
Protective tubing material	L2 section: ASTM316L L1 section: SUS304
Explosionproof specifications	Construction	Pressure-resistant explosion-proof structure
Explosion-protected class and ignitability	IICT6
Explosion-proof temperature range	-20°C to 85°C
Lead wire wiring method	Pressure-resistant packing cable ground type
Conduit thread	G1/2
Installation method	Conforms to Technical Recommendations of the Research Institute of Industrial Safety (Japan)

Element type	Pt100
Class	Class B
Protective tubing material	L2 section: ASTM316L L1 section: SUS304
Explosionproof specifications	Construction	Pressure-resistant explosion-proof structure
Explosion-protected class and ignitability	IICT6
Explosion-proof temperature range	-20°C to 85°C
Lead wire wiring method	Pressure-resistant packing cable ground type
Conduit thread	G1/2
Installation method	Conforms to Technical Recommendations of the Research Institute of Industrial Safety (Japan)

Element type	K (CA)
Class	Class 2 (0.75)
Protective tubing material	ASTM316L (with sheath)
Thermal contact	Non-grounded type
Temperature range	0°C to permissible temperature limit
Lead wire	Vinyl-covered with external dimensions of 2.4 x 4.1 7/0.3 -20°C to 70°C

D	Element wire
K (CA) ASTM316L
3.2 dia.	750°C
4.8 dia.	800°C
6.4 dia.	800°C
8.0 dia.	900°C

Element type	Pt100
Class	Class B
Protective tubing material	ASTM316L (with sheath)
Conductor type	3-conductor system
Temperature range	-200°C to 450°C
Lead wire	Vinyl-covered with 6.5 dia. 19/0.18 -20°C to 70°C

Element type	Pt100
Class	Class B
Protective tubing material	ASTM316L (with sheath)
Conductor type	3-conductor system
Temperature range	-200°C to 450°C

Element type	K (CA)
Class	Class 2 (0.75)
Screw material	SUS304
Thermal contact	Grounded type
Temperature range	0°C to 300°C
Lead wire	Silicone-covered with external dimensions of 3.5 x 4.9 30/0.1 0°C to 150°C
Terminal shape	Y-type crimp terminal for M3.5

Element type	K (CA)
Class	Class 2 (0.75)
Thermal contact	Grounded type
Temperature range	0°C to 200°C
Lead wire	Silicone-covered compensating cable with external dimensions of 3.2 x 4.6 30/0.1 0°C to 150°C
Terminal shape	Y-type crimp terminal for M3.5

Description	Model and appearance	Tem- perature range (See note 2.)	Ele- ment type	Conduc- tor type	Class	Protective tubing material	Termi- nal type
Bayonet spring for molding machines	E52-CA2GVY E52-IC2GVY		0°C to 350°C	K (CA) J (IC)	Grounded type	2 (0.75)	SUS304	Exposed lead wires
Crimping terminals	E52-CA1GTY E52-IC1GTY		0°C to 300°C	---
Used for measuring surface temperatures	E52-P2GSY		-50°C to 250°C	Pt100	3- conductor system	B	SUS304
Used for room temperature measurement	E52-P10GRY		-50°C to 60°C
Double- element model	E52-CA20AY-7		0°C to 900°C	K (CA)	Two non- grounded types	2 (0.75)	ASTM316L
E52-P20AY-7		-196°C to 250°C	Pt100	Two 3- conductor systems	B
E52-P20C-N-7		-200°C to 450°C	Enclosed terminals
Waterproof model	E52-P10GPY		0°C to 70°C	3- conductor system	SUS304	Exposed lead wires
E52-P5AY-40		-50°C to 180°C	Fluororesin tubing
Corrosion- resistant model	E52-P20AY-1		-80°C to 180°C
E52-CA20AY-1		0°C to 180°C	K (CA)	Non- grounded type	2 (0.75)
Silicone- covered lead wires	E52-CA1DY-40		0°C to 300°C	Grounded type	SUS304
E52-CA1GTY-14		0°C to 200°C	---
Explosion- proof model	E52-P[][]C-N-6		---	Pt100	3- conductor system	B	ASTM316L	Enclosed terminals
E52-CA[][]C-N-6		---	K (CA)	Non- grounded type	2 (0.75)

Lead wire length (m)	Element type: K (CA)	Element type: J (IC)
Model
1	E52-CA2GVY 1M	E52-IC2GVY 1M
2	E52-CA2GVY 2M	E52-IC2GVY 2M

Lead wire length (m)	Element type: K (CA)	Element type: J (IC)
Model
1	E52-CA1GTY 1M	E52-IC1GTY 1M
2	E52-CA1GTY 2M	E52-IC1GTY 2M

Lead wire length (m)	Model
1	E52-P2GSY 1M
2	E52-P2GSY 2M

Lead wire length (m)	Model
2	E52-P10GRY 2M

Lead wire length (m)	Model
2	E52-P10GPY 2M
4	E52-P10GPY 4M

Model	Protective tubing length L (cm)	Protective tubing diameter	Sleeve diameter (mm) Sleeve length (mm)	Covering thickness (mm)	Lead wire length (m)
E52-CA20AY-1 D=4.6 2M	20	D = 4.6	d = 8 l = 55	0.7	0.5
E52-CA20AY-1 D=6 2M	D = 6.0	0.6
E52-CA20AY-1 D=8 2M	D = 8.0	d = 11 l = 55	0.8

Model	Protective tubing length L (cm)	Protective tubing diameter	Sleeve diameter (mm)	Covering thickness (mm)	Lead wire length (m)
E52-P20AY-1 D=4.6 2M	20	D = 4.6	d = 8	0.7	2
E52-P20AY-1 D=6 2M	D = 6.0	d = 8	0.6
E52-P20AY-1 D=8 2M	D = 8.0	d = 8	0.8

Model	Lead wire length (m)
E52-P5AY-40 2M	2
E52-P5AY-40 4M	4
E52-P5AY-40 6M	6
E52-P5AY-40 8M	8

Model	Protective tubing length L (cm)	Protective tubing diameter	L2 (mm)
E52-CA20C-N-6 D=6.4 L2=150	20	D = 6.4	150
E52-CA35C-N-6 D=6.4 L2=300	35	D = 6.4	300
E52-CA50C-N-6 D=6.4 L2=450	50	D = 6.4	450
E52-CA75C-N-6 D=6.4 L2=700	75	D = 6.4	700

Model	Protective tubing length L (cm)	Protective tubing diameter	L2 (mm)
E52-P20C-N-6 D=6.4 L2=150	20	D = 6.4	150
E52-P35C-N-6 D=6.4 L2=300	35	D = 6.4	300
E52-P50C-N-6 D=6.4 L2=450	50	D = 6.4	450
E52-P75C-N-6 D=6.4 L2=700	75	D = 6.4	700

Model	Protective tubing length L (cm)	Protective tubing diameter	Sleeve diameter (mm)	Permissible Temperature (°C)	Lead wire length (m)
E52-CA20AY-7 D=3.2 2M	20	D = 3.2	d = 11	750	2
E52-CA20AY-7 D=4.8 2M	D = 4.8	d = 11	800	2
E52-CA20AY-7 D=6.4 2M	D = 6.4	d = 11	800	2
E52-CA20AY-7 D=8.0 2M	D = 8.0	d = 11	900	2

Model	Protective tubing length L (cm)	Protective tubing diameter	Lead wire length (m)
E52-P20AY-7 D=4.8 2M	20	D = 4.8	2
E52-P20AY-7 D=6.4 2M	D = 6.4	2

Model	Protective tubing length L (cm)	Protective tubing diameter
E52-P20C-N-7 D=4.8	20	D = 4.8
E52-P20C-N-7 D=6.4	20	D = 6.4

Model	Screw pitch	Lead wire length (m)
E52-CA1DY-40 M6 1M	M6 (P=1.0)	1
E52-CA1DY-40 M6 2M	M6 (P=1.0)	2
E52-CA1DY-40 M6 4M	M6 (P=1.0)	4

Model	Lead wire length (m)
E52-CA1GTY-14 1M	1
E52-CA1GTY-14 2M	2

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
E52 Data Sheet	- [7536KB]	Feb 08, 201820180208	E52 Data Sheet

Return to OMRON
