OMRON E5ZN-DRTControl Components/ Temperature Controllers/Module Type
OMRON E5ZN-DRT Control Components
OMRON E5ZN-DRT Dimensions
/Images/l_1337-25-118781-198x198.jpglast update: April 3, 2017
DeviceNet Communications Unit Enables Program-free Communications with Temperature Controllers
Startup Time Is Six Times Faster and No Communications Programs Are Needed
Manage All E5ZN Together from the DeviceNet Configurator
Use the DeviceNet Configurator for E5ZN initial settings and temperature control wiring to enable immediate execution.
Improved Maintenance with Monitoring, Comment, and Copying Functions
Measure the heater control time (RUN time monitor) to manage heater life expectancy.
Monitor supply voltages, such as those for Temperature Controller and Communications Unit power supplies, and network power supplies.
User-specified names can be set for each heater and Communications Unit, enabling the location of errors to be checked quickly.
Upload/download Temperature Controller parameters to the Communications Unit. This shortens the time required to replace Temperature Controllers.
last update: April 3, 2017
Purchase the OMRON Module Type Please fill in the following
If you have just landed here, this product OMRON E5ZN-DRT Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E5ZN-DRT We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E5ZN-DRTControl Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
A7D / A7DP Thumbwheel Switch/Features
G3PW Single-phase Power Controller/Features
E2NC Smart Proximity Sensor/Features
H3AM Mechatronic Analog Timer/Features
S8VM Switch Mode Power Supply (15/30/50/100/150/300/600/1,500-W Models)/Features
OMRON E5ZN-DRT specification
E5ZN-DRT DeviceNet Communications Unit/Specificationslast update: September 24, 2012
Ratings
| Power supply voltage | DeviceNet | 24 VDC (for internal circuits) |
|---|---|---|
| External input power supply | 24 VDC (for RS-485 communications circuits and Temperature Controllers) | |
| Allowable voltage range | DeviceNet | 11 to 25 VDC |
| External input power supply | 20.4 to 26.4 VDC | |
| Power consumption (See note 2.) | DeviceNet | Approx. 1.1 W (for a current of 45 mA at 24 VDC) |
| External input power supply | Approx. 0.5 W (for a current of 20 mA at 24 VDC) | |
| Connectable Temperature Controllers | E5ZN Series | |
| Maximum number of connectable Temperature Controllers | 16 | |
| Ambient operating temperature | -10 to 55°C (with no icing or condensation) | |
| Ambient operating humidity | 25% to 85% | |
| Ambient storage temperature | -25 to 65°C (with no icing or condensation) | |
Note: 1. Do not use an inverter output as the power supply. (Refer to Safety Precautions for All Temperature Controllers.)
2. The power consumption for the Temperature Controllers is not included.
Characteristics
| Insulation resistance | 20 MΩ min. (at 100 VDC) |
|---|---|
| Dielectric strength | 500 VAC, 50/60 Hz for 1 min between the DIN track and all DeviceNet connector terminals and between the DIN track and all terminal socket terminals |
| Vibration resistance | 10 to 55 Hz, 10 m/s2 for 2 hrs each in ±X, ±Y, and ±Z directions |
| Shock resistance | 150 m/s2, 3 times each in ±X, ±Y, and ±Z directions |
| Weight | 100 g max. |
| Safety standards | cULus508 EMS: Electrostatic Discharge (ESD) EN61006-2, EN61000-4-2 (4 kV/contact, 8 kV/air) Radiated Electromagnetic Fields EN61006-2, EN61000-4-3 (10 V/m) Electrical Fast transients/BURST EN61006-2, EN61000-4-4 (2 kV/DC power-line, 1 kV/Signal-line) Surge Transients EN61006-2, EN61000-4-5 (line to ground : 1 kV/DC power-line) : 2 kV/Signal-line line to line : 0.5 kV/DC power-line) Conducted Disturbances EN61006-2, EN61000-4-6 (10 V) EMI: Radiated Emissions (electric field) EN50081-2 Class A |
Communications (for Temperature Controller Expansion)
| Transmission line connection method | RS-485 multipoint |
|---|---|
| Communications method | RS-485 (2-wire, half-duplex) |
| Synchronization method | Start-stop synchronization |
| Baud rate | 38,400 bps |
| Transmission code | ASCII |
| Data bit length | 7 bits |
| Stop bit length | 2 bits |
| Error detection | Vertical parity (even) |
| BCC (block check character) | |
| Flow control | None |
| Number of Units that can be connected in parallel | 16 Units max. (32 channels) |
last update: September 24, 2012
OMRON E5ZN-DRT lineup
E5ZN-DRT DeviceNet Communications Unit/Lineuplast update: October 16, 2012
| Name | External input power supply voltage | Applicable Temperature Controller | Model |
|---|---|---|---|
| DeviceNet Communications Unit | 24 VDC | E5ZN | E5ZN-DRT |
| Terminal Unit | E5ZN-SCT24S |
Note: A DeviceNet Communications Unit and Terminal Unit are required to connect to DeviceNet. Two End Plates are
provided with E5ZN-SCT24S Terminal Units. When mounting to a DIN track, be sure to mount End Plates on both
sides.
last update: October 16, 2012
OMRON E5ZN-DRT catalog
E5ZN-DRT DeviceNet Communications Unit/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 E5ZN-DRT Data Sheet | - [740KB] | Apr 03, 201720170403 | E5ZN-DRT Data Sheet |
OMRON E5ZN-DRT dimension

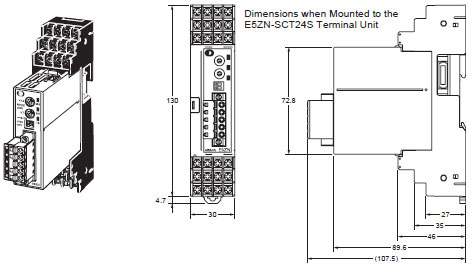

E5ZN-DRT DeviceNet Communications Unit/Dimensionslast update: September 24, 2012
E5ZN-DRT
last update: September 24, 2012
- NO. E5ZN-DRT
- TYPE:Temperature Controllers Module Type
