OMRON XW2R (General-purpose devices) Dimensions
/Images/l_3154-25-146895-198x198.jpglast update: May 8, 2017
• Models available with Phillips screw, slotted screw, push-in, or e-CON connections.
• The terminal arrangement enables smoother wiring work.
• Push-in terminals simplify wiring and make the Terminal Blocks even easier to use. (In comparison to the OMRON XW2F.)
• Mounting to DIN Track is possible.
last update: May 8, 2017
Purchase the OMRON Connector-Terminal Block Conversion Units Please fill in the following
If you have just landed here, this product OMRON XW2R (General-purpose devices) Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the XW2R (General-purpose devices) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON XW2R (General-purpose devices)Power Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
R88M-K, R88D-KT G5-series AC Servomotors/Servo Drives with General-purpose Pulse Train or Analog ...
E69-[] Rotary Encoders Accessories/Features
F03-[] Electrodes and Accessories/Features
WL, WLM Two-circuit Limit Switch/Long-life Two-circuit Limit Switch/Features
K8AK-PM Three-phase Voltage and Phase-sequence Phase-loss Relay/Features
OMRON XW2R (General-purpose devices) catalog
XW2R (General-purpose devices) Connector-Terminal Block Conversion Units for General-purpose Devices/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 XW2R (General-purpose devices) Data Sheet | - [3339KB] | May 08, 201720170508 | XW2R (General-purpose devices) Data Sheet |
| XW2R Series Catalog | G077-E1-03 [21666KB] | Apr 02, 201820180402 | XW2R Series Catalog |
| XW2 Series Table of Connector-Terminal Block Conversion Units and connectable device combinations | G129-E1-02 [950KB] | Jun 01, 201820180601 | XW2 Series Table of Connector-Terminal Block Conversion Units and connectable device combinations |
OMRON XW2R (General-purpose devices) dimension
XW2R (General-purpose devices) Connector-Terminal Block Conversion Units for General-purpose Devices/Dimensionslast update: January 06, 2015
With power supply terminals

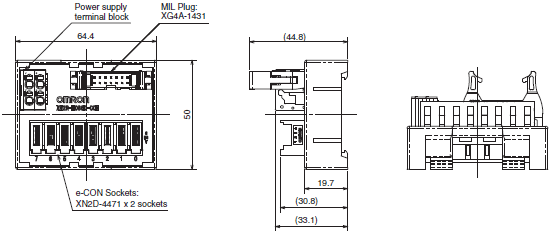

e-CON Type

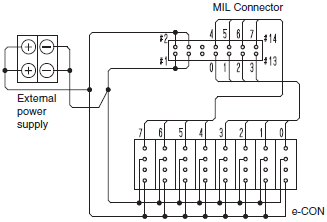

Wiring Diagram
Without power supply terminals

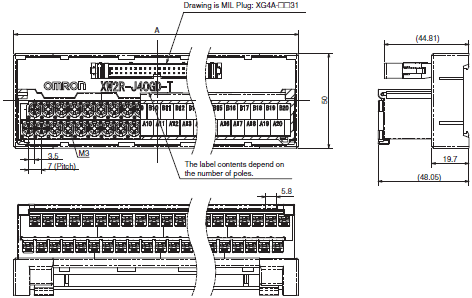

Phillips screw

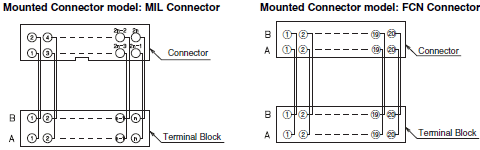

Wiring Diagram

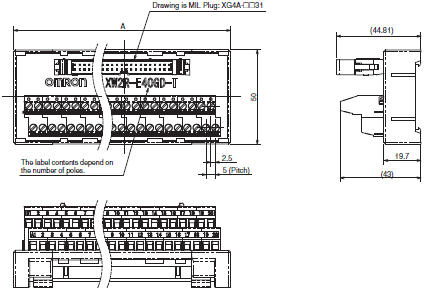

Slotted screw (rise up)

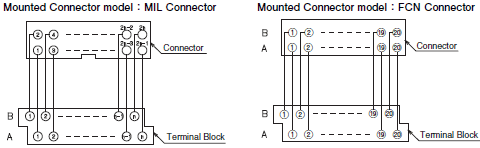

Wiring Diagram

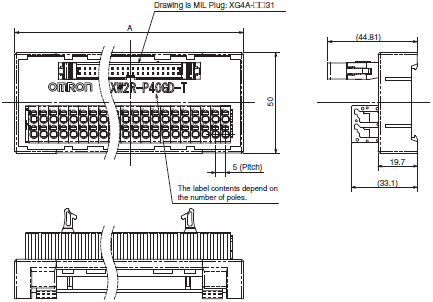

Push-in spring

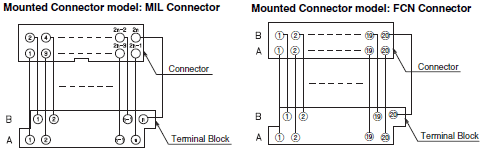

Wiring Diagram
last update: January 06, 2015
OMRON XW2R (General-purpose devices) lineup
XW2R (General-purpose devices) Connector-Terminal Block Conversion Units for General-purpose Devices/Lineuplast update: May 8, 2017

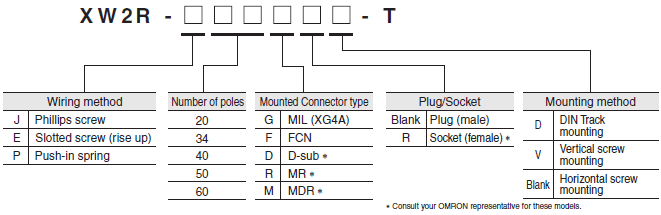

Model List
With power supply terminals
Without power supply terminals
With power supply terminals
e-CON Type

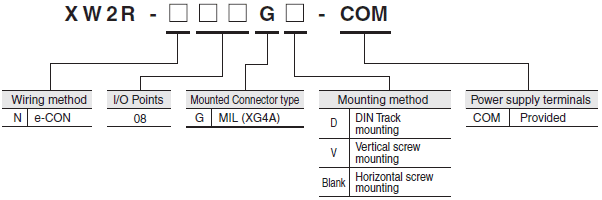

| Appearance | I/O Points | I/O | Model ∗ | Mounted Connector model | Cable Connector model |
|---|---|---|---|---|---|
 | 8 Points | Input | XW2R-N08GD-COM | XG4A-1431 (MIL Connector) XN2D-4471 (e-CON Connector) | XG4M-1430-T (MIL Connector) XN2A-1470 (e-CON Connector) |
* Only DIN Track mounting models are described here. Refer to the XW2R-series Connector-Terminal Block Conversion Units Catalog (Cat. No. G077) for information on screw mounting models.
Input Device Connectors: XN2 e-CON Connectors
For Sensor
| Appearance | Number of poles | Model |
|---|---|---|
 | 4 | XN2A-1470 |
Relay Connector
| Appearance | Number of poles | Model |
|---|---|---|
 | 4 | XN2B-1470 |
Without power supply terminals
Phillips screw
| Appearance ∗1 | Mounted Connector model | Number of poles | Model ∗2 | |
|---|---|---|---|---|
 | MIL Connector | XG4A-2031 | 20 | XW2R-J20GD-T |
| XG4A-3431 | 34 | XW2R-J34GD-T | ||
| XG4A-4031 | 40 | XW2R-J40GD-T | ||
| XG4A-5031 | 50 | XW2R-J50GD-T | ||
| XG4A-6031 | 60 | XW2R-J60GD-T | ||
| FCN Connector | FCN-364P040-AU | 40 | XW2R-J40FD-T | |
*1 The mounted Connector shown in the appearance illustration is a MIL Connector.
*2 Only DIN Track mounting models are described here. Refer to the XW2R-series Connector-Terminal Block Conversion Units Catalog (Cat. No. G077) for information on screw mounting models.
Slotted screw (rise up)
| Appearance ∗1 | Mounted Connector model | Number of poles | Model ∗2 | |
|---|---|---|---|---|
 | MIL Connector | XG4A-2031 | 20 | XW2R-E20GD-T |
| XG4A-3431 | 34 | XW2R-E34GD-T | ||
| XG4A-4031 | 40 | XW2R-E40GD-T | ||
| XG4A-5031 | 50 | XW2R-E50GD-T | ||
| XG4A-6031 | 60 | XW2R-E60GD-T | ||
| FCN Connector | FCN-364P040-AU | 40 | XW2R-E40FD-T | |
*1 The mounted Connector shown in the appearance illustration is a MIL Connector.
*2 Only DIN Track mounting models are described here. Refer to the XW2R-series Connector-Terminal Block Conversion Units Catalog (Cat. No. G077) for information on screw mounting models.
Push-in spring
| Appearance ∗1 | Mounted Connector model | Number of poles | Model ∗2 | |
|---|---|---|---|---|
 | MIL Connector | XG4A-2031 | 20 | XW2R-P20GD-T |
| XG4A-3431 | 34 | XW2R-P34GD-T | ||
| XG4A-4031 | 40 | XW2R-P40GD-T | ||
| XG4A-5031 | 50 | XW2R-P50GD-T | ||
| XG4A-6031 | 60 | XW2R-P60GD-T | ||
| FCN Connector | FCN-364P040-AU | 40 | XW2R-P40FD-T | |
*1 The mounted Connector shown in the appearance illustration is a MIL Connector.
*2 Only DIN Track mounting models are described here. Refer to the XW2R-series Connector-Terminal Block Conversion Units Catalog (Cat. No. G077) for information on screw mounting models.
last update: May 8, 2017
OMRON XW2R (General-purpose devices) specification
XW2R (General-purpose devices) Connector-Terminal Block Conversion Units for General-purpose Devices/Specificationslast update: April 01, 2015
With power supply terminals
e-CON Type
| Rated current | Power supply terminal block: 2 A, Connectors/e-CON Connectors: 1 A (However, rated current of e-CON Connector depends on the wires that are used.) | |
|---|---|---|
| Rated voltage | 24VDC | |
| Insuration resistance | 100MΩ min. (at 500VDC) | |
| Dielectric strength | 500VAC for 1 min (leakage current: 1 mA max.) | |
| Ambient operating temperature | 0 to 55°C | |
| Applicable wires | Applicable wire sizes * | AWG 24 to 14 (ferrules), AWG 28 to 14 (stranded wires), AWG 28 to 16 (solid wires) (Outer diameter of insulation must be 4 mm max) |
| Stripped length | AWG28-16: 8 to 10 mm AWG14: 9 to 10 mm | |
* This is the applicable range for the power supply terminal block. For the applicable wire sizes for I/O Connectors (e-CON).
Input Device Connectors: XN2 e-CON Connectors
| Rated current | 3 A/pin (with AWG20 wires), 2 A/pin (with AWG22 wires), 1 A/pin (with AWG24 wires), 0.5 A/pin (with AWG26 or AWG28 wires) |
|---|---|
| Rated voltage | 32 VDC |
| Contact resistance | 30 mΩ max. (at 20 mV, 100 mA max.) |
| Insuration resistance | 103 MΩ min. (at 500VDC) |
| Dielectric strength | 1,000 VAC for 60 sec (leakage current: 1 mA max.) |
| Insertion durability | 50 times |
| Ambient operating temperature | -30 to 75°C * |
| Applicable wires | Stranded wire 0.08mm2 (AWG28) to 0.5mm2 (AWG20) (Outer diameter of insulation must be 1.5 mm max) |
* The operating temperature range is restricted by the maximum operating temperature of the cable.
Without power supply terminals
Phillips screw
| Rated current | 1 A | |
|---|---|---|
| Rated voltage | 125 VAC, 24 VDC | |
| Insuration resistance | 100 MΩ min. (at 500 VDC) | |
| Dielectric strength | 500 VAC for 1 min (leakage current: 1 mA max.) | |
| Ambient operating temperature | 0 to 55°C | |
| Applicable wires | Applicable wire sizes | AWG 22 to 16 (round or forked crimp terminals) AWG 26 to 16 (stranded or solid wires) |
| Stripped length | 9 mm | |
| Tightening | 0.5 Nm | |
Slotted screw (rise up)
| Rated current | 1 A | |
|---|---|---|
| Rated voltage | 125 VAC, 24 VDC | |
| Insuration resistance | 100 MΩ min. (at 500 VDC) | |
| Dielectric strength | 500 VAC for 1 min (leakage current: 1 mA max.) | |
| Ambient operating temperature | 0 to 55°C | |
| Applicable wires | Applicable wire sizes | AWG 22 to 16 (ferrules) AWG 26 to 16 (stranded or solid wires) |
| Stripped length | 7 mm | |
| Tightening | 0.5 to 0.6 N·m | |
Push-in spring
| Rated current | 1 A | |
|---|---|---|
| Rated voltage | 125 VAC, 24 VDC | |
| Insuration resistance | 100 MΩ min. (at 500 VDC) | |
| Dielectric strength | 500 VAC for 1 min (leakage current: 1 mA max.) | |
| Ambient operating temperature | 0 to 55°C | |
| Applicable wires | Applicable wire sizes | AWG 24 to 14 (ferrules) AWG 28 to 14 (stranded or solid) (Outer diameter of insulation must be 4 mm max) |
| Stripped length | AWG28-16: 8 to 10 mm AWG14: 9 to 10 mm | |
last update: April 01, 2015
