OMRON E2EZ dimension

last update: April 01, 2015

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

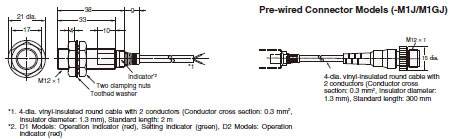

E2EZ-X2D[]-N

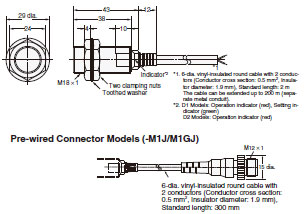

E2EZ-X4D[]-N

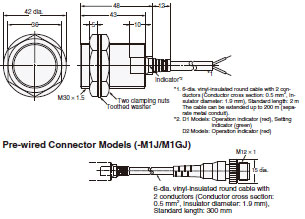

E2EZ-X8D[]-N

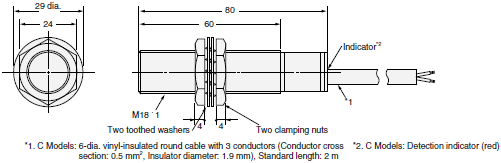

E2EZ-X4C1

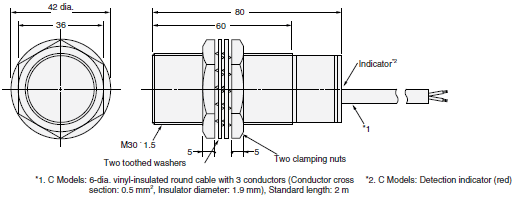

E2EZ-X8C1

Mounting Hole Dimensions

last update: April 01, 2015

OMRON E2EZ lineup

last update: April 01, 2015

Sensors

Pre-wired Models

Appearance		Sensing distance	Output configuration	Model
				Operation mode
				NO	NC
	M12	2 mm	DC 2-Wire Models	E2EZ-X2D1-N 2M	E2EZ-X2D2-N 2M
	M18	4 mm	DC 3-wire, NPN	E2EZ-X4C1 2M	--
			DC 2-wire	E2EZ-X4D1-N 2M	E2EZ-X4D2-N 2M
	M30	8 mm	DC 3-wire, NPN	E2EZ-X8C1 2M	--
			DC 2-wire	E2EZ-X8D1-N 2M	E2EZ-X8D2-N 2M

Pre-wired Smartclick Connector Models (M12)

Appearance		Sensing distance	Output configuration	Model
				Operation mode
				NO	NC
	M12	2 mm	DC 2-wire, (3)-(4) pin arrangement	E2EZ-X2D1-M1TJ 0.3M	--
			DC 2-wire, (1)-(4) pin arrangement	E2EZ-X2D1-M1TGJ 0.3M	--
	M18	4 mm	DC 2-wire, (3)-(4) pin arrangement	E2EZ-X4D1-M1TJ 0.3M	--
			DC 2-wire, (1)-(4) pin arrangement	E2EZ-X4D1-M1TGJ 0.3M	--
	M30	8 mm	DC 2-wire, (3)-(4) pin arrangement	E2EZ-X8D1-M1TJ 0.3M	--
			DC 2-wire, (1)-(4) pin arrangement	E2EZ-X8D1-M1TGJ 0.3M	--

Pre-wired Connector Models (M12)

Appearance		Sensing distance	Output configuration	Model
				Operation mode
				NO	NC
	M12	2 mm	DC 2-wire, (3)-(4) pin arrangement	E2EZ-X2D1-M1J 0.3M	--
			DC 2-wire, (1)-(4) pin arrangement	E2EZ-X2D1-M1GJ 0.3M	--
	M18	4 mm	DC 2-wire, (3)-(4) pin arrangement	E2EZ-X4D1-M1J 0.3M	--
			DC 2-wire, (1)-(4) pin arrangement	E2EZ-X4D1-M1GJ 0.3M	--
	M30	8 mm	DC 2-wire, (3)-(4) pin arrangement	E2EZ-X8D1-M1J 0.3M	--
			DC 2-wire, (1)-(4) pin arrangement	E2EZ-X8D1-M1GJ 0.3M	--

Accessories (Order Separately)

Sensor I/O Connectors (M12, Sockets on One Cable End)

(Models for Pre-wired Connectors: A Connector is not provided with the Sensor. Be sure to order a Connector separately.)

Appearance		Cable length	Sensor I/O Connector model number	Applicable Proximity Sensor model number
Straight		2 m	XS2F-D421-DD0	E2EZ-X[]D1-M1J
		5 m	XS2F-D421-GD0
L-shape		2 m	XS2F-D422-DD0
		5 m	XS2F-D422-GD0
Straight		2 m	XS2F-D421-DA0-F	E2EZ-X[]D1-M1GJ
		5 m	XS2F-D421-GA0-F
L-shape		2 m	XS2F-D422-DA0-F
		5 m	XS2F-D422-GA0-F
Smartclick Connector Straight		2 m	XS5F-D421-D80-F	E2EZ-X[]D1-M1TJ E2EZ-X[]D1-M1TGJ
		5 m	XS5F-D421-G80-F

last update: April 01, 2015

OMRON E2EZ specification

last update: April 01, 2015

Model		E2EZ-X2D[]-N E2EZ-X2D[]-M1J E2EZ-X2D[]-M1GJ	E2EZ-X4D[]-N E2EZ-X4D[]-M1J E2EZ-X4D[]-M1GJ	E2EZ-X8D[]-N E2EZ-X8D[]-M1J E2EZ-X8D[]-M1GJ	E2EZ-X4C1	E2EZ-X8C1
Sensing distance		2 mm ±10%	4 mm ±10%	8 mm ±10%	4 mm ±10%	8 mm ±10%
Set distance *1		0 to 1.6 mm	0 to 3.2 mm	0 to 6.4 mm	0 to 3.2 mm	0 to 6.4 mm
Differential travel		20% max. of sensing distance
Detectable object		Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Data Sheet.)
Standard sensing object		Iron, 12 × 12 × 1 mm	Iron, 30 × 30 × 1 mm	Iron, 54 × 54 × 1 mm	Iron, 30 × 30 × 1 mm	Iron, 54 × 54 × 1 mm
Response frequency *2		200 Hz	100 Hz	30 Hz	C Models: 12 Hz	C Models: 8 Hz
Power supply volt- age (operating voltage range)		12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.			C Models: 12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
Current consumption		---			C Models: 15 mA max.
Leakage current		0.8 mA max.			---
Control output	Load current	3 to 100 mA max.			C Models: NPN open- collector output 100 mA max. at 12 VDC (30 VDC max.) 200 mA max. at 24 VDC (30 VDC max.)
	Residual voltage	3 V max. (Load current: 100 mA, Cable length: 2 m)			C Models: 2 V max. (Load current: 200 mA, Cable length: 2 m)
Indicators		D1 Models: Operation indicator (red), Setting indicator (green) D2 Models: Operation indicator (red)			C Models: Detection indicator (red)
Operation mode (with sensing ob- ject approaching)		D1 Models: NO D2 Models: NC For details, refer to the Timing chart on Data Sheet.			NO For details, refer to the Timing chart on Data Sheet.
Protection circuits		Load short-circuit protection, Surge suppressor			C Models: Load short-circuit protection, Reverse polarity protection, Surge suppressor
Ambient temperature range		Operating/Storage: 0 to 50°C (with no icing or condensation)
Ambient humidity range		Operating/Storage: 35% to 95% (with no condensation)
Temperature influence		±20% max. of sensing distance at 23°C in the temperature range of 0 to 50°C
Voltage influence		±2.5% max. of sensing distance at rated voltage in the rated voltage ±10% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case			C Models: 1,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance		Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance		Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP67, in-house standards: oil-resistant
Connection method		Pre-wired Models (Standard cable length: 2 m) and Pre-wired Connector Models
Weight (packed state)		E2EZ-X2D[]-N: Approx. 70 g E2EZ-X2D[]-M1J: Approx. 40 g E2EZ-X2D[]-M1GJ: Approx. 40 g	E2EZ-X4D[]-N: Approx. 160 g E2EZ-X4D[]-M1J: Approx. 90 g E2EZ-X4D[]-M1GJ: Approx. 90 g	E2EZ-X8D[]-N: Approx. 220 g E2EZ-X8D[]-M1J: Approx. 160 g E2EZ-X8D[]-M1GJ: Approx. 160 g	Approx. 170 g	Approx. 270 g
Materi- als	Case	Nickel-plated brass
	Sensing surface	PBT			Heat-resistant ABS
	Clamping nuts	Zinc-plated iron
	Toothed washer	Zinc-plated iron
Accessories		Instruction manual

*1. Use the Sensor within the range in which the green indicator is ON.
*2. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a
       distance of twice the standard sensing object, and a set distance of half the sensing distance.
