OMRON M2S (Super Luminosity Type) Dimensions
/Images/l_3258-25-181702-198x198.jpglast update: October 15, 2013
• New models with ultra bright LEDs added to singlescreen models.
• Previous models not changed. Line up of models in seven colors (the previous red, orange, green, and white models, and the new yellow, blue, and pure white models).
last update: October 15, 2013
Purchase the OMRON Square / Rectangular-body Type Please fill in the following
If you have just landed here, this product OMRON M2S (Super Luminosity Type) Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the M2S (Super Luminosity Type) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON M2S (Super Luminosity Type)Switches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
V430-F Series Auto Focus Multi Code Reader/Features
H7GP Total Counter/Time Counter (DIN 48 x 24)/Features
CJ1W-PDC15 CJ-series Process Analog I/O Unit/Features
XW2B (Standard-type) Standard-type Connector-Terminal Block Conversion Units/Features
S3D2 Sensor Controller/Features
OMRON M2S (Super Luminosity Type) catalog
M2S (Super Luminosity Type) Indicator (Square) Ultra Bright LED Type/Catalog- Catalog
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 M2S Data Sheet | A232-E1-01 [317KB] | Oct 03, 201320131003 | M2S Data Sheet |
OMRON M2S (Super Luminosity Type) dimension
M2S (Super Luminosity Type) Indicator (Square) Ultra Bright LED Type/Dimensionslast update: October 15, 2013

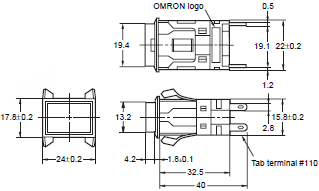

Rectangular Models (M2SJ)

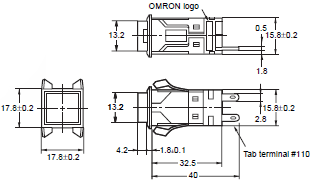

Square Models (M2SA)
Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions. Recommended panel thickness: 1 to 4 mm

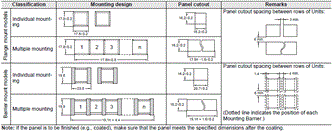

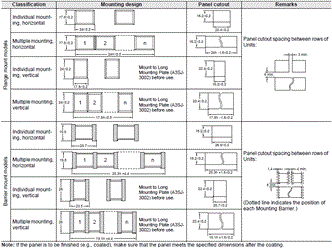

Panel Cutout
(If you use a Switch Guard or Seal Cover, refer to Switch and Guard Mounting Dimensions or Seal Cover Mounting Dimensions in the A3S datasheet.)
M2SJ
M2SA
last update: October 15, 2013
OMRON M2S (Super Luminosity Type) lineup
M2S (Super Luminosity Type) Indicator (Square) Ultra Bright LED Type/Lineuplast update: October 15, 2013
Ordering as a Set
The model numbers used to order sets of Units are given in the following tables. One set comprises the Operation Unit, Lamp, and Socket Unit.
Rectangular M2SJ
Rectangular Models
| Case color | Black | Lamp holder color symbol (color) | |
|---|---|---|---|
| Lighting method | |||
| LED lamp | 5 VDC | M2SJ-90A1-05S(1) | R, O, G, W, Y, A, or PW |
| 12 VAC/DC | M2SJ-90A1-12S(1) | ||
| 24 VAC/DC | M2SJ-90A1-24S(1) | ||
Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White,
(Y) = Yellow, (A) = Blue, (PW) = Pure White.
Square M2SA
Square Models
| Case color | Black | Lamp holder color symbol (color) | |
|---|---|---|---|
| Lighting method | |||
| LED lamp | 5 VDC | M2SA-90A1-05S(1) | R, O, G, W, Y, A, or PW |
| 12 VAC/DC | M2SA-90A1-12S(1) | ||
| 24 VAC/DC | M2SA-90A1-24S(1) | ||
Note: Enter the desired color symbol for the Pushbutton in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White,
(Y) = Yellow, (A) = Blue, (PW) = Pure White.
Accessories, Replacements, and Tools
The accessories, replacements, and tools are the same as those for the A3S. Refer to the A3S datasheet.
last update: October 15, 2013
OMRON M2S (Super Luminosity Type) specification
M2S (Super Luminosity Type) Indicator (Square) Ultra Bright LED Type/Specificationslast update: October 15, 2013
Approved Standard Ratings
UL (File No. E41515), CSA (File No. LR45258)
LED: 24 VDC max.
Note: Certification has been obtained for the Indicator.
For detailed information on individual products that have received certification, consult your supplier.
Ratings
| Ambient operating temperature | -10 to 50°C (with no icing or condensation) |
|---|---|
| Ambient operating humidity | 35% to 85%RH |
| Ambient storage temperature | -25 to 65°C (with no icing or condensation) |
LED Lamp Ratings
| Operating voltage | Rated voltage | Rated current |
|---|---|---|
| 5 VDC ±5% | 5 VDC | 8 mA |
| 12 VAC/VDC ±5% | 12 VAC/VDC | |
| 24 VAC/VDC ±5% | 24 VAC/VDC |
last update: October 15, 2013
