OMRON EE-SX47 / SX67 specification

last update: July 19, 2017

Type		Standard	L-shaped	T-shaped, slot center 7 mm	T-shaped, slot center 10 mm
NPN models	Connector models	EE-SX670 EE-SX670A EE-SX470	EE-SX671 EE-SX671A EE-SX471	EE-SX672 EE-SX672A EE-SX472	EE-SX675
	Pre-wired models	EE-SX670-WR	EE-SX671-WR	EE-SX672-WR	EE-SX675-WR
PNP models	Connector models	EE-SX670P EE-SX670R	EE-SX671P EE-SX671R	EE-SX672P EE-SX672R	EE-SX675P
	Pre-wired models	EE-SX670P-WR	EE-SX671P-WR	EE-SX672P-WR	EE-SX675P-WR
Sensing distance		5 mm (slot width)
Sensing object		Opaque: 2 × 0.8 mm min.
Differential distance		0.025 mm
Light source		Infrared LED with a peak wavelength of 940 nm
Indicator *1		Light indicator (red) (turns ON when light is interrupted for models with A or R suffix)
Supply voltage		5 to 24 VDC ±10%, ripple (p-p): 10% max.
Current consumption		12 mA max. (Connector models, L terminal open), 35 mA max. (NPN pre-wired models), 30 mA max. (PNP pre-wired models)
Control output		NPN open collector: 5 to 24 VDC, 100 mA max. 100 mA load current with a residual voltage of 0.8 V max. 40 mA load current with a residual voltage of 0.4 V max. OFF current (leakage current): 0.5 mA max. PNP open collector: 5 to 24 VDC, 50 mA max. 50 mA load current with a residual voltage of 1.3 V max. OFF current (leakage current): 0.5 mA max.
Protection circuits		Load short circuit protection (Connector models), No circuit protection (Pre-wired models)
Response frequency *2		1 kHz min. (3 kHz average)
Ambient illumination		1,000 lx max. with fluorescent light on the surface of the receiver.
Ambient temperature range		Operating: - 25 to +55 °C, Storage: - 30 to +80 °C (with no icing or condensation)
Ambient humidity range		Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)
Vibration resistance		Destruction: 20 to 2,000 Hz (peak acceleration: 100 m/s2) 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions
Shock resistance		Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection		IEC60529 IP50
Connecting method		Connector Models (direct soldering possible), Pre-wired Models (Standard cable length: 1 m), Models with Connectors (Standard cable length: 0.1 m)
Weight	Connector models	Approx. 3.1 g	Approx. 3 g	Approx. 2.4 g	Approx. 2.7 g
	Pre-wired models	Approx. 18.9 g	Approx. 17.3 g	Approx. 17.8 g	Approx. 18.3 g
Material	Case	Polybutylene phthalate (PBT)
	Cover	Polycarbonate
	Emitter/receiver

Type		Close-mounting		F-shaped	R-shaped
NPN models	Connector models	EE-SX673 EE-SX673A EE-SX473	EE-SX674 EE-SX674A EE-SX474	EE-SX676	EE-SX677
	Pre-wired models	EE-SX673-WR	EE-SX674-WR	EE-SX676-WR	EE-SX677-WR
PNP models	Connector models	EE-SX673P EE-SX673R	EE-SX674P EE-SX674R	EE-SX676P	EE-SX677P
	Pre-wired models	EE-SX673P-WR	EE-SX674P-WR	EE-SX676P-WR	EE-SX677P-WR
Sensing distance		5 mm (slot width)
Sensing object		Opaque: 2 × 0.8 mm min.
Differential distance		0.025 mm
Light source		Infrared LED with a peak wavelength of 940 nm
Indicator *1		Light indicator (red) (turns ON when light is interrupted for models with A or R suffix)
Supply voltage		5 to 24 VDC ±10%, ripple (p-p): 10% max.
Current consumption		12 mA max. (Connector models, L terminal open), 35 mA max. (NPN pre-wired models), 30 mA max. (PNP pre-wired models)
Control output		NPN open collector: 5 to 24 VDC, 100 mA max. 100 mA load current with a residual voltage of 0.8 V max. 40 mA load current with a residual voltage of 0.4 V max. OFF current (leakage current): 0.5 mA max. PNP open collector: 5 to 24 VDC, 50 mA max. 50 mA load current with a residual voltage of 1.3 V max. OFF current (leakage current): 0.5 mA max.
Protection circuits		Load short circuit protection (Connector models), No circuit protection (Pre-wired models)
Response frequency *2		1 kHz min. (3 kHz average)
Ambient illumination		1,000 lx max. with fluorescent light on the surface of the receiver.
Ambient temperature range		Operating: -25 to +55°C, Storage: -30 to +80°C (with no icing or condensation)
Ambient humidity range		Operating: 5% to 85%, Storage: 5% to 95% (with no icing or condensation)
Vibration resistance		Destruction: 20 to 2,000 Hz (peak acceleration: 100 m/s2) 1.5-mm double amplitude for 2 h (4-min periods) each in X, Y, and Z directions
Shock resistance		Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection		IEC60529 IP50
Connecting method		Connector Models (direct soldering possible), Pre-wired Models (Standard cable length: 1 m), Models with Connectors (Standard cable length: 0.1 m)
Weight	Connector models	Approx. 2.3 g	Approx. 3 g	Approx. 2.2 g	Approx. 2.2 g
	Pre-wired models	Approx. 16.8 g	Approx. 17.1 g	Approx. 16.9 g	Approx. 16.9 g
Material	Case	Polybutylene phthalate (PBT)
	Cover	Polycarbonate
	Emitter/receiver

*1. The indicator is a GaP red LED (peak wavelength: 690 nm).
*2. The response frequency was measured by detecting the rotating disk shown at the right.

last update: July 19, 2017

OMRON EE-SX47 / SX67 lineup

last update: January 05, 2017

Connector

Appearance		Sensing method	Connecting method	Sensing distance	Output configuration	Indicator mode	Model
							NPN output	PNP output
Standard		Through- beam type (with slot)	Connector (4 poles)	5 mm (slot width) (Infrared light)	Dark-ON/ Light-ON (selectable) *3 *4	Incident light	EE-SX670	EE-SX670P
						No incident light	EE-SX670A	EE-SX670R
					Light-ON	Incident light	EE-SX470	---
L-shaped					Dark-ON/ Light-ON (selectable) *3 *4	Incident light	EE-SX671	EE-SX671P
						No incident light	EE-SX671A	EE-SX671R
					Light-ON	Incident light	EE-SX471	---
T-shaped, slot center 7 mm					Dark-ON/ Light-ON (selectable) *3 *4	Incident light	EE-SX672	EE-SX672P
						No incident light	EE-SX672A	EE-SX672R
					Light-ON	Incident light	EE-SX472	---
Close- mounting					Dark-ON/ Light-ON (selectable) *3 *4	Incident light	EE-SX673	EE-SX673P
						No incident light	EE-SX673A	EE-SX673R
					Light-ON	Incident light	EE-SX473	---
Close- mounting					Dark-ON/ Light-ON (selectable) *3 *4	Incident light	EE-SX674	EE-SX674P
						No incident light	EE-SX674A	EE-SX674R
					Light-ON	Incident light	EE-SX474	---
T-shaped, slot center 10 mm					Dark-ON/ Light-ON (selectable) *3 *4	Incident light	EE-SX675	EE-SX675P
F-shaped					Dark-ON/ Light-ON (selectable) *3 *4	Incident light	EE-SX676	EE-SX676P
R-shaped					Dark-ON/ Light-ON (selectable) *3 *4	Incident light	EE-SX677	EE-SX677P

*3. Dark-ON when the L terminal of the connector is opened, and light-ON when the L terminal and positive (+) terminal are connected. Do not connect the L terminal to 0 V when using dark-ON operation. When using light-ON, it is useful to select the connector EE-1001-1. The L terminal and positive (+) terminal of this connector are connected in advance.
*4. If you do not use the L terminal wire ((2) pink) when you use a Connector with Cable for an EE-1006 or EE-1010-series Photomicrosensor, noise may affect the Photomicrosensor. To prevent the effects of noise, cut the unused L terminal wire at the base of the connector and wrap it with insulating tape to prevent it from coming in contact with other terminals.

Pre-wired Models

Appearance		Sensing method	Sensing distance	Output configu- ration	Indicator mode	Con- necting method	Model
							NPN output	PNP output
Standard		Through- beam type (with slot)	5 mm (slot width) (Infrared light)	Dark-ON/ Light-ON (selectable) *1 *2	Incident light	Pre- wired Models (1m)	EE-SX670-WR 1M	EE-SX670P-WR 1M
L-shaped							EE-SX671-WR 1M	EE-SX671P-WR 1M
T-shaped, slot center 7 mm							EE-SX672-WR 1M	EE-SX672P-WR 1M
Close- mounting							EE-SX673-WR 1M	EE-SX673P-WR 1M
Close- mounting							EE-SX674-WR 1M	EE-SX674P-WR 1M
T-shaped, slot center 10 mm							EE-SX675-WR 1M	EE-SX675P-WR 1M
F-shaped							EE-SX676-WR 1M	EE-SX676P-WR 1M
R-shaped							EE-SX677-WR 1M	EE-SX677P-WR 1M

*1. Dark-ON operation can be used when the L terminal is left unconnected or Light-ON operation can be used when the L terminal and positive (+) terminal are connected to each other. Do not connect the L terminal to 0 V when using dark-ON operation.
*2. If you do not use the L terminal wire ((2) pink) when you use a Connector with Cable for an EE-1006 or EE-1010-series Photomicrosensor, noise may affect the Photomicrosensor. To prevent the effects of noise, cut the unused L terminal wire at the base of the connector and wrap it with insulating tape to prevent it from coming in contact with other terminals.

Accessories (Order Separately) Connector Models

Type		Cable length	Model	Remarks
Connector	Connector		EE-1001
			EE-1001-1	L terminal and positive (+) terminal are already short-circuited.
			EE-1009 *
	Connector with Cable	1 m	EE-1006 1M
			EE-1010 1M *
		2 m	EE-1006 2M
			EE-1010 2M *
	Connector with Robot Cable	1 m	EE-1010-R 1M *
		2 m	EE-1010-R 2M *
Connector Hold-down Clip			EE-1006A	Applicable Photomicrosensors For EE-SX670[] and 470[] only. (Can be used only with EE-1006 Connectors for the Photomicrosensors listed above.)

Note: For details, refer to the Photomicro Sensors Accessories on EE-[] which can be accessed from your OMRON website.
* EE-1009- or EE-1010-series Connectors have a builtin locking mechanism to prevent cable disconnection when only the cable is pulled. To remove the Connector from the Sensor, grip the top and bottom of the Connector firmly and push into the Sensor once before pulling out. The locking mechanism prevents the Connector from being removed by pulling on the cable only and enables removal only when the Connector (housing) is pulled.

last update: January 05, 2017

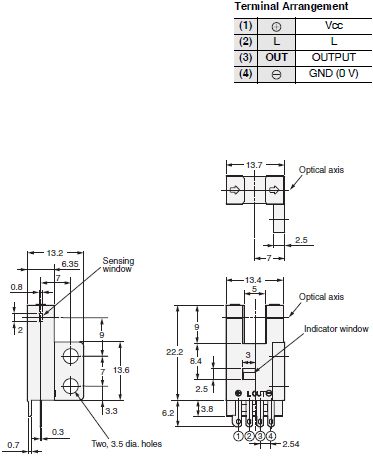

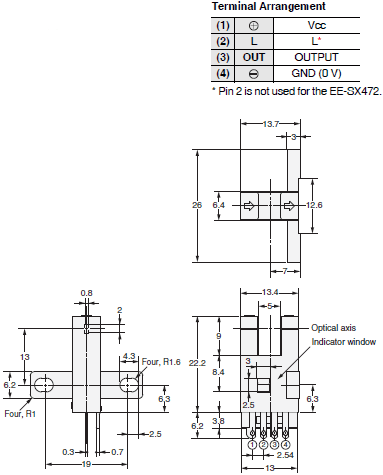

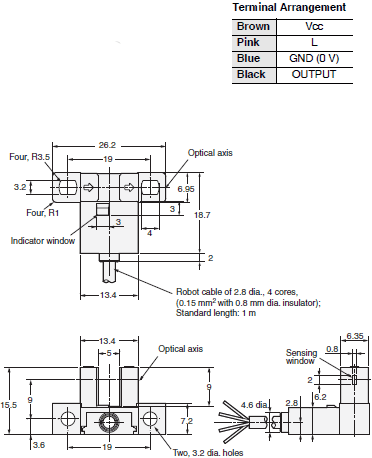

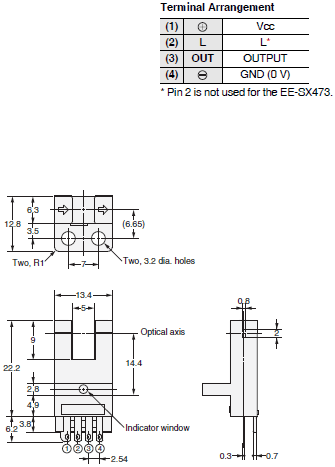

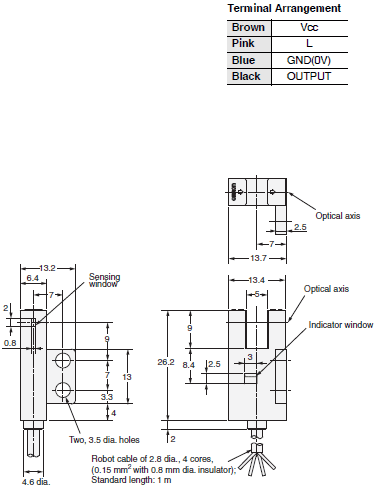

OMRON EE-SX47 / SX67 dimension

last update: October 20, 2016

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

EE-SX670/670P
EE-SX670A/670R
EE-SX470

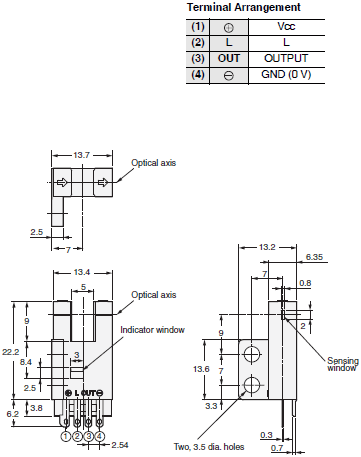

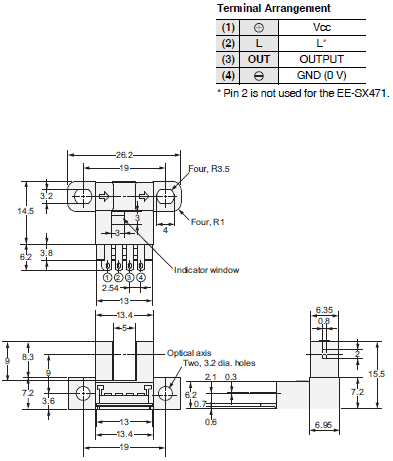

EE-SX671/671P
EE-SX671A/671R
EE-SX471

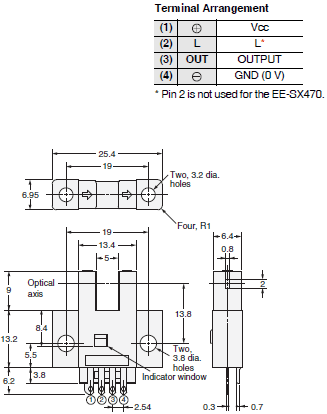

EE-SX672/672P
EE-SX672A/672R
EE-SX472

EE-SX673/673P
EE-SX673A/673R
EE-SX473

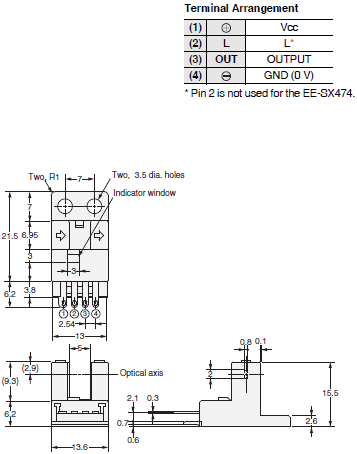

EE-SX674/674P
EE-SX674A/674R
EE-SX474

EE-SX675/675P

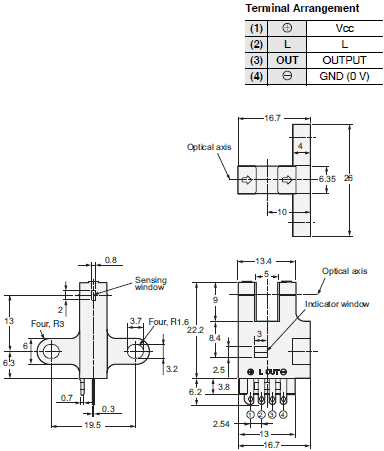

EE-SX676/676P

EE-SX677/677P

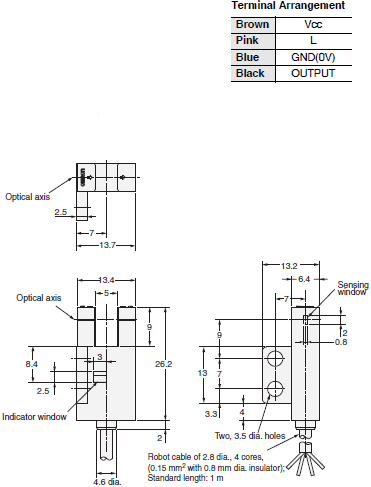

EE-SX670-WR/670P-WR

EE-SX671-WR/671P-WR

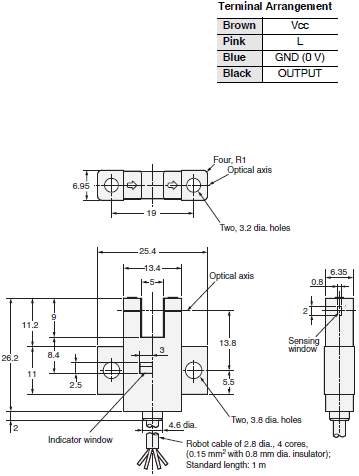

EE-SX672-WR/672P-WR

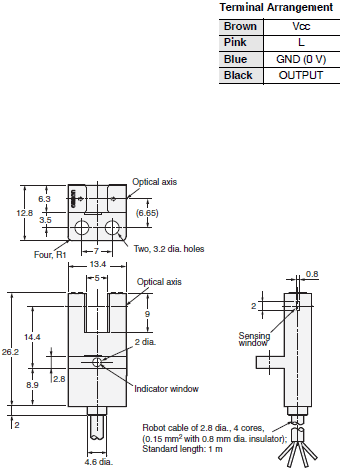

EE-SX673-WR/673P-WR

EE-SX674-WR/674P-WR

EE-SX675-WR/675P-WR

EE-SX676-WR/676P-WR

EE-SX677-WR/677P-WR

last update: October 20, 2016
